Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) V12-6.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Backup Lamp Switch >> Locations

Backup Lamp Switch: Locations

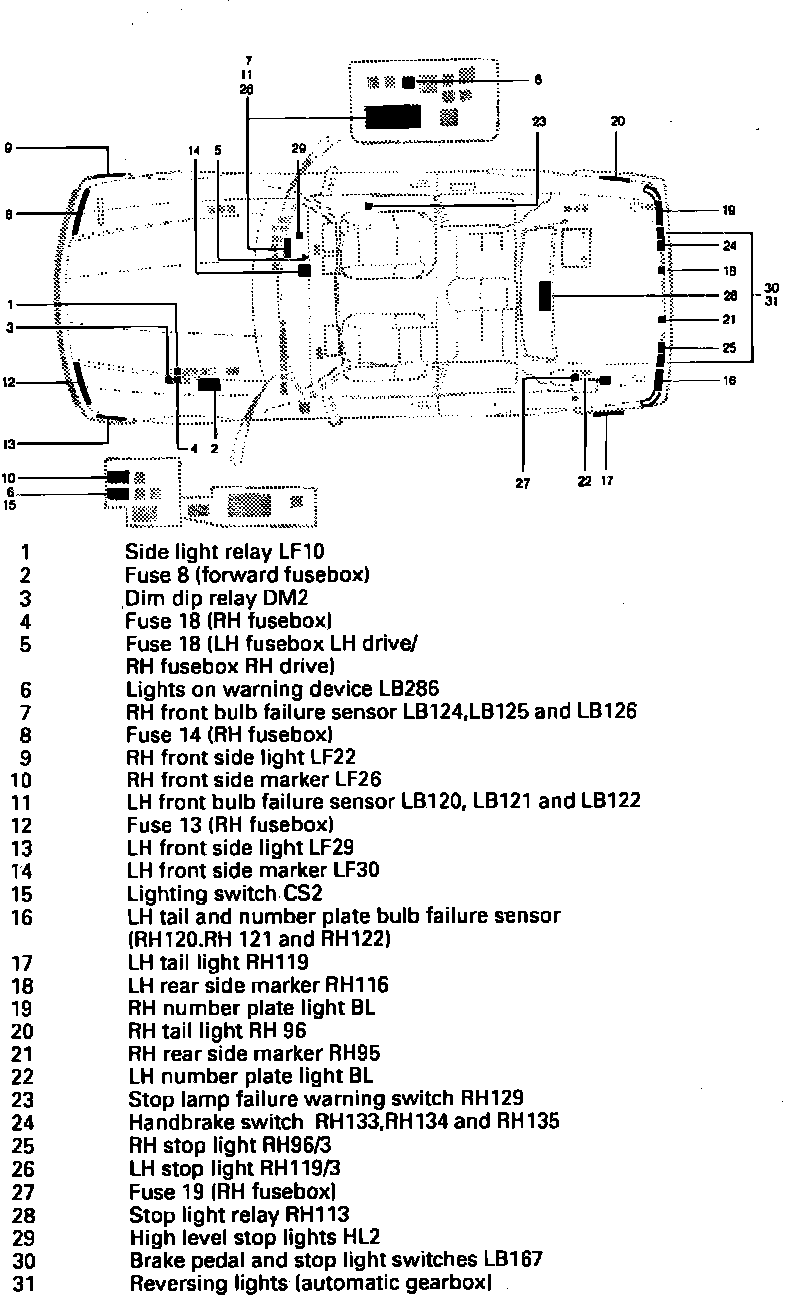

Exterior Lighting (Side, Tail, Stop & Reverse Lamps):

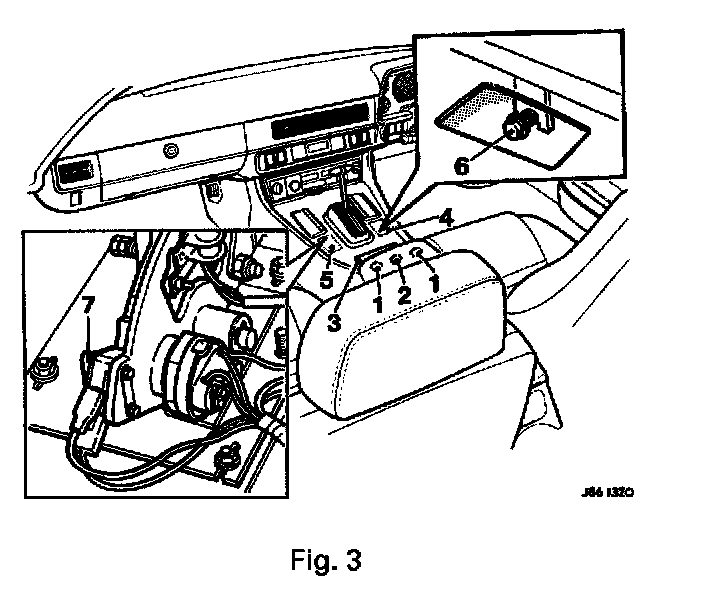

Under Center Console:
