Test E - Low Secondary Voltage

Test E:

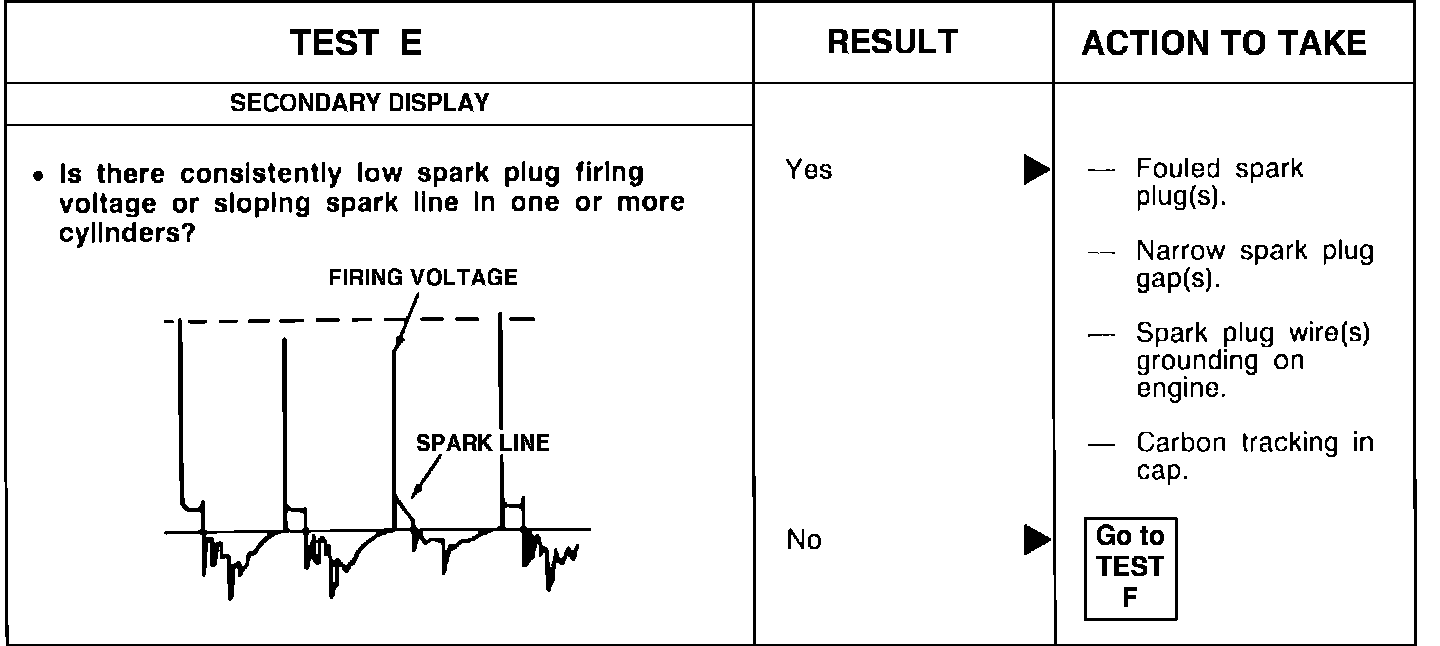

1. If the the secondary pattern shows one or more cylinders with consistently low voltage or a sloping spark line, check the areas indicated on the chart.
2. If the pattern is not as indicated above, proceed to TEST F.
