Test B - High Secondary Voltage
Test B - High Secondary Voltage
Test B:
1.

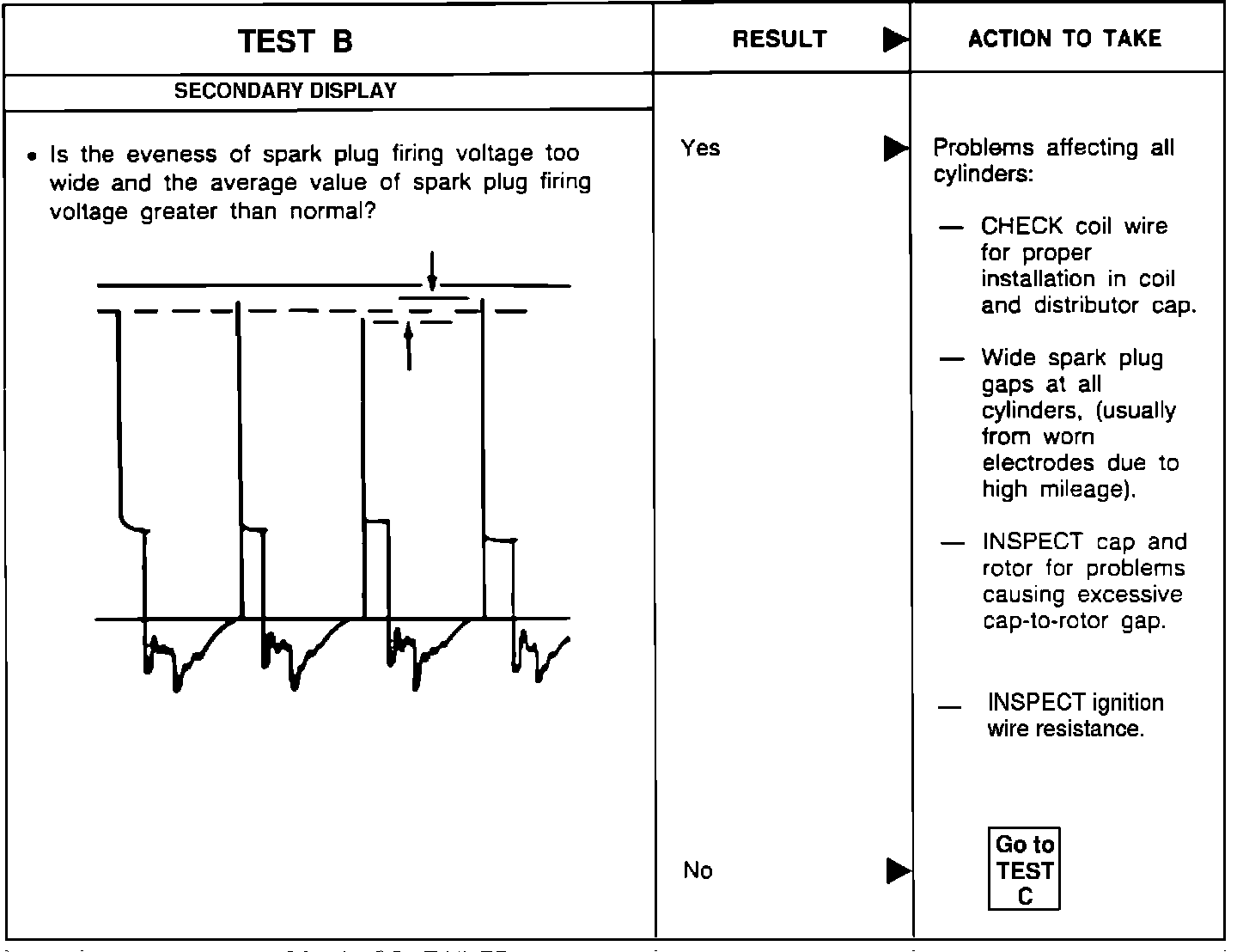

If the the secondary pattern is above 15k volts or there is a great difference between cylinders, check the areas indicated on the chart.
2.
If the pattern is not as indicated above, proceed to
TEST C
.
