FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Jaguar
>>
1994
>>
XJ-S Convertible (XJ27) V12-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Case and Related Parts
Case and Related Parts

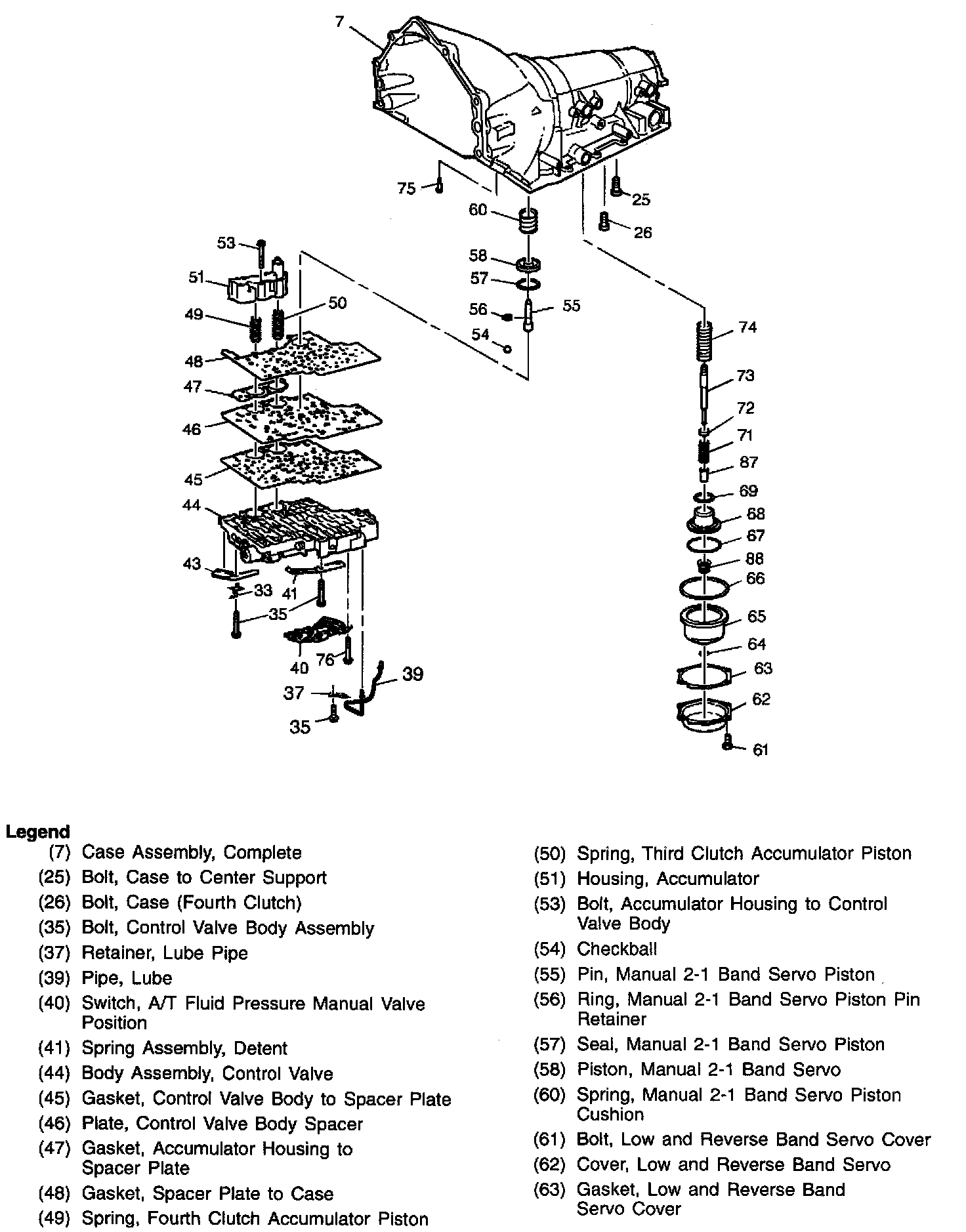

CASE AND RELATED PARTS (1 of 3)

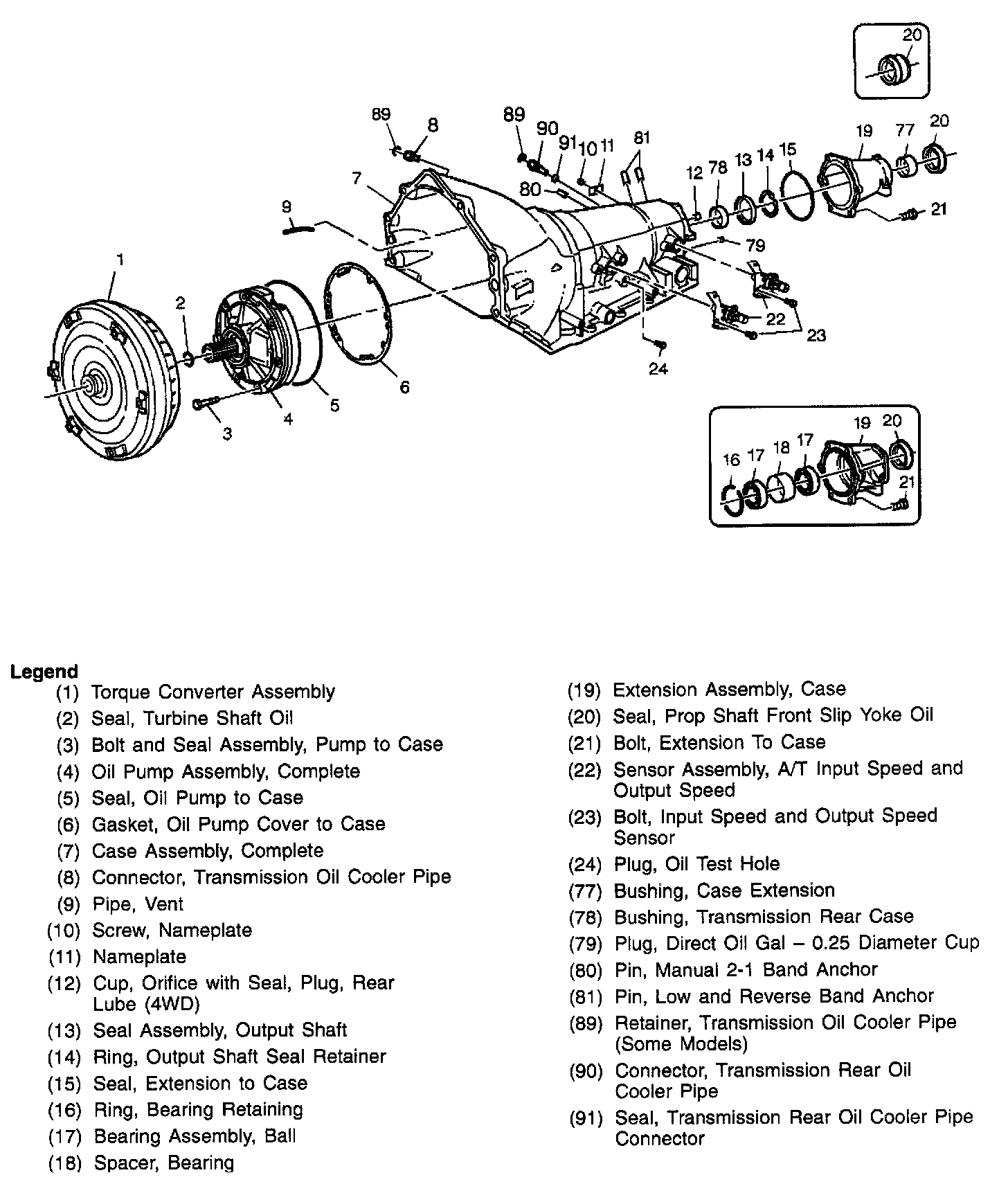

CASE AND RELATED PARTS (2 of 3)

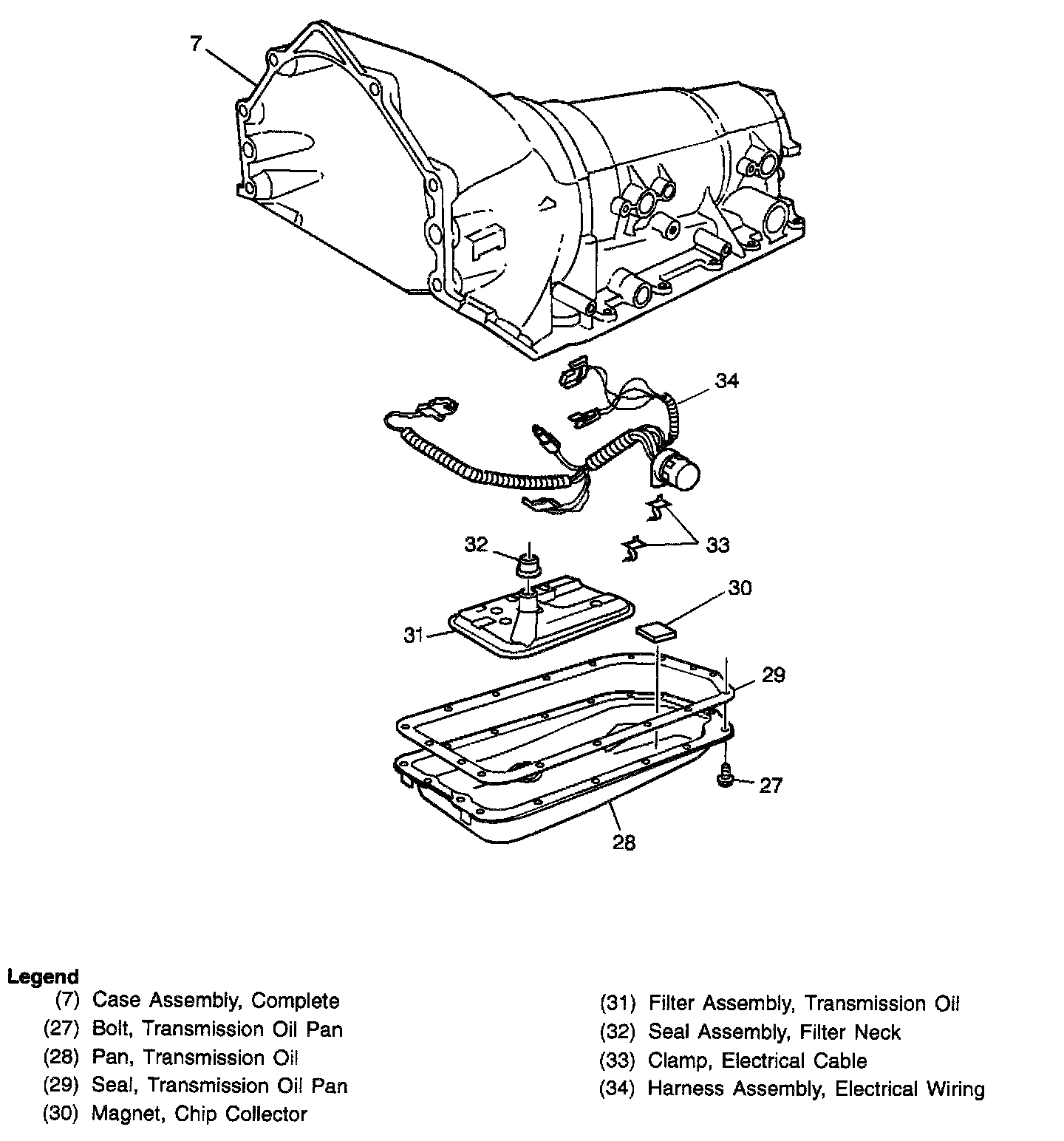

CASE AND RELATED PARTS (3 0f 3)
