Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram

System Diagram

��:

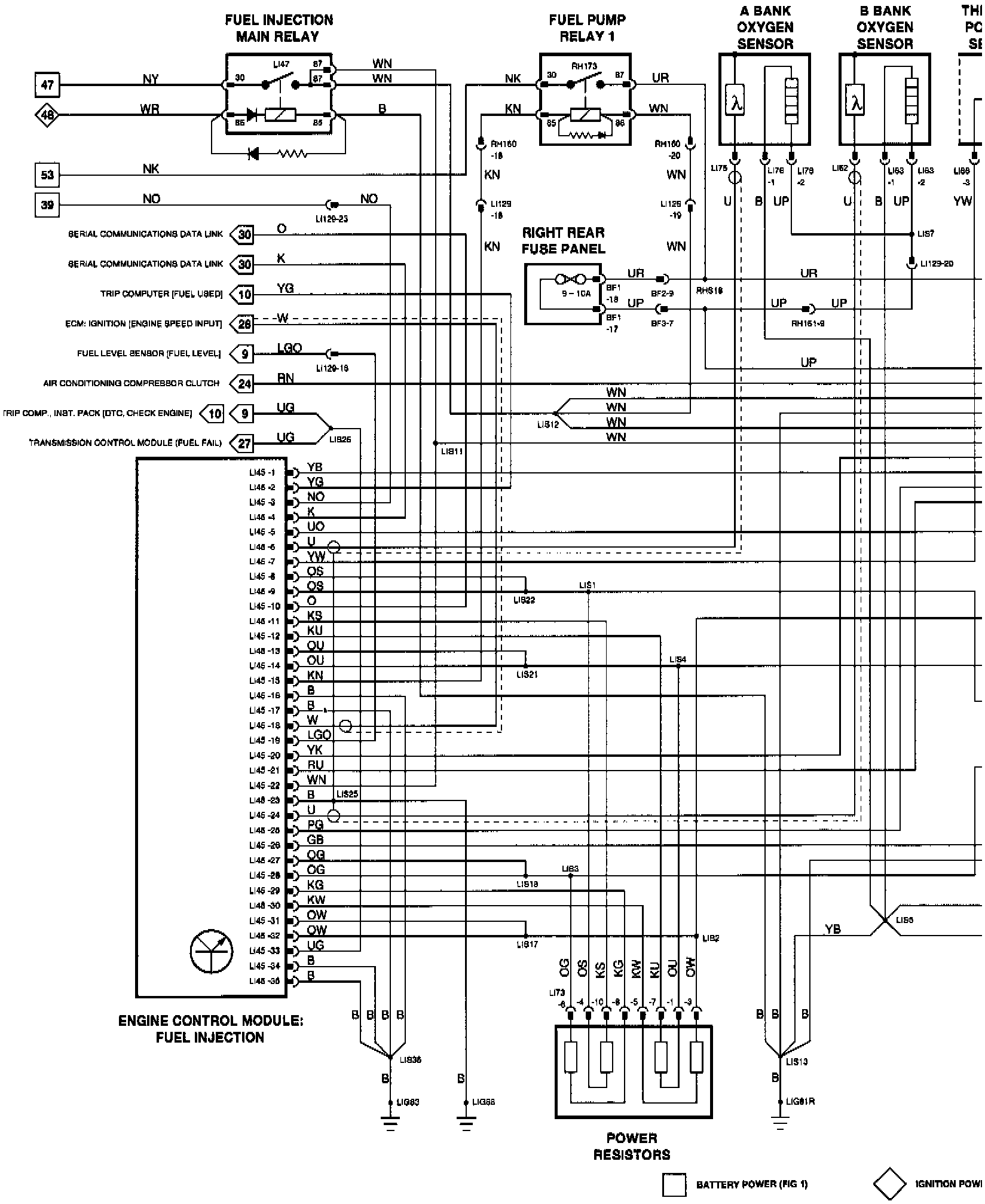

Wiring diagram

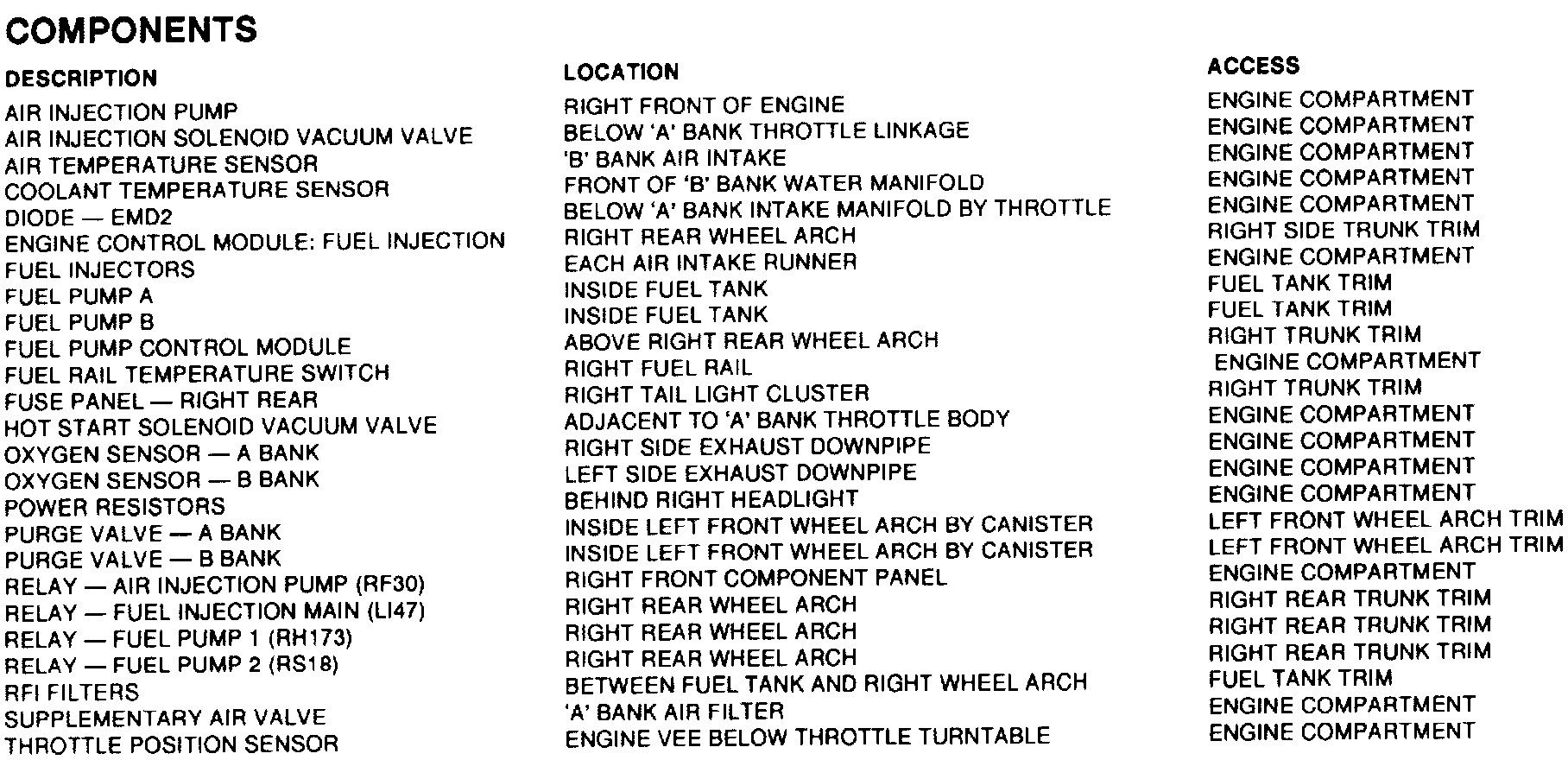

Components

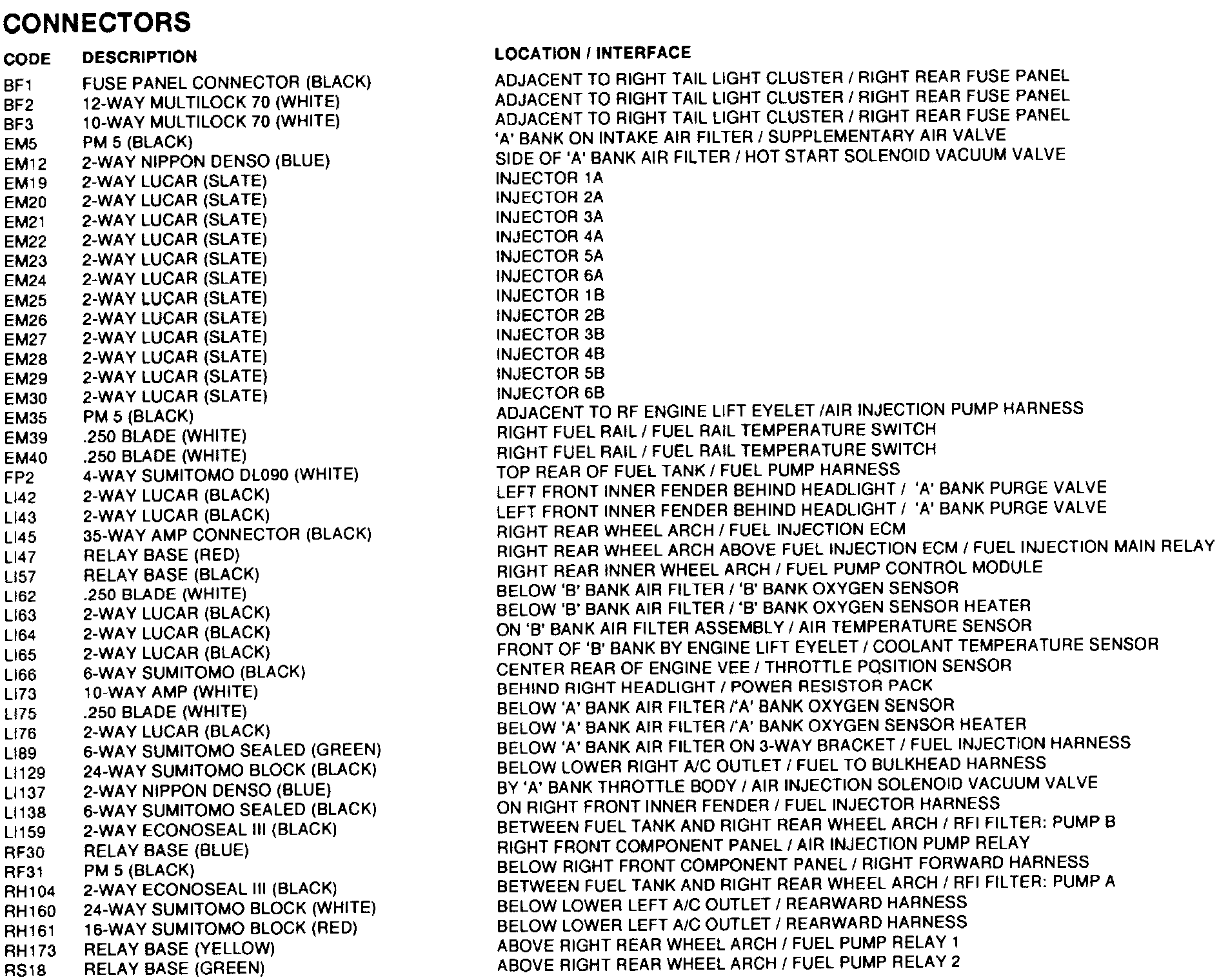

Connectors

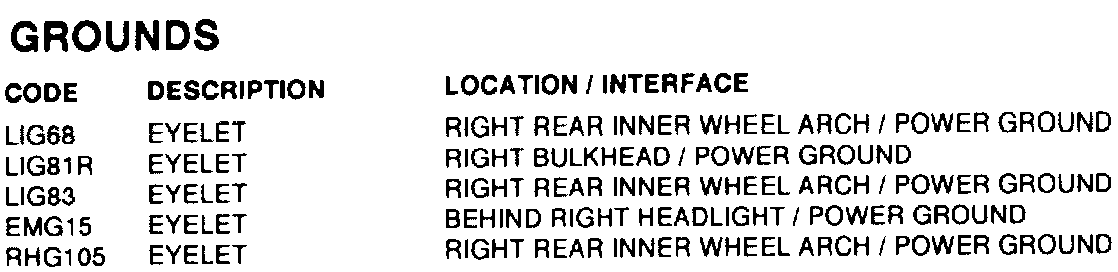

Grounds





Inputs/outputs
