Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System

Ignition System

�DM:

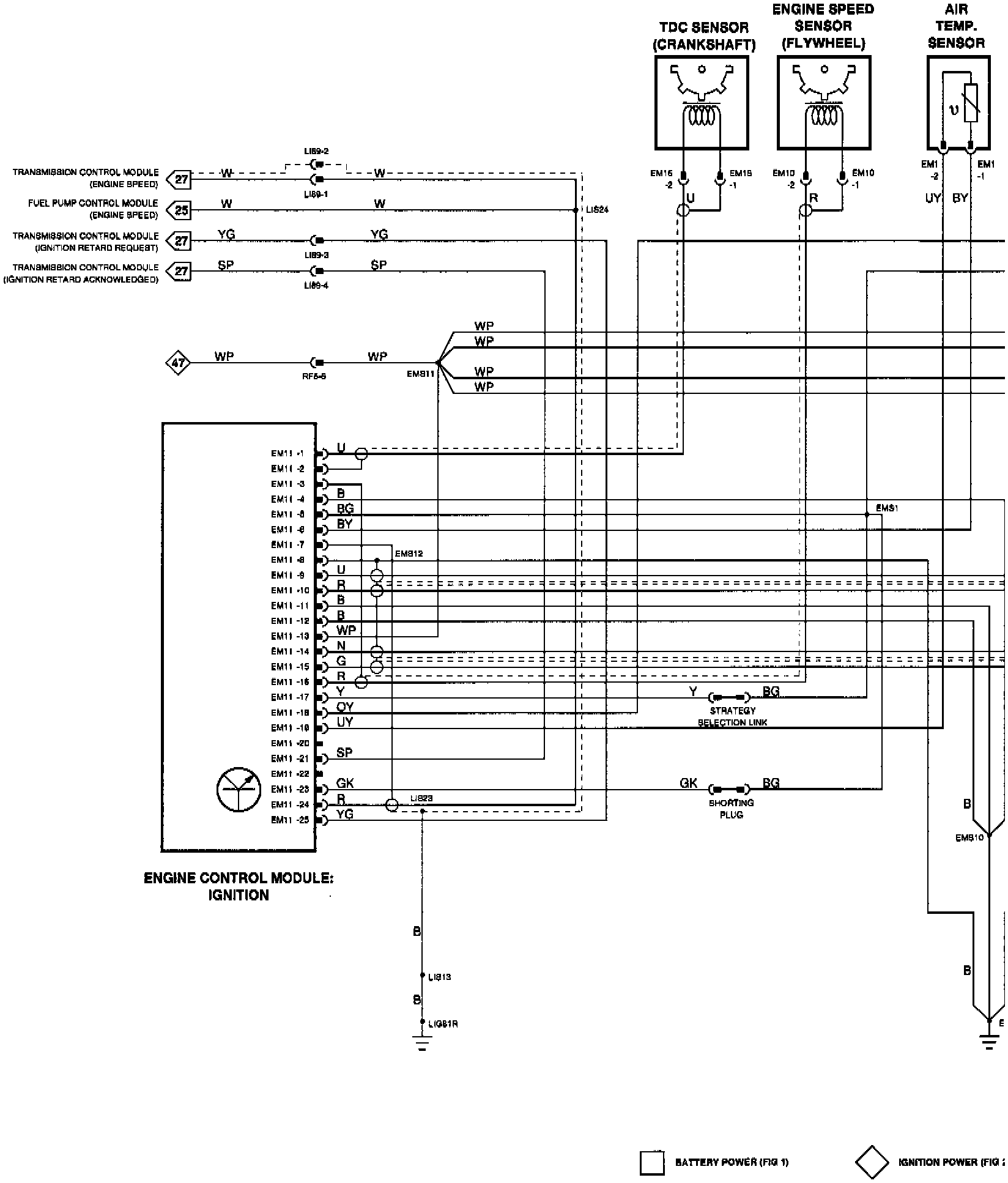

Wiring diagram

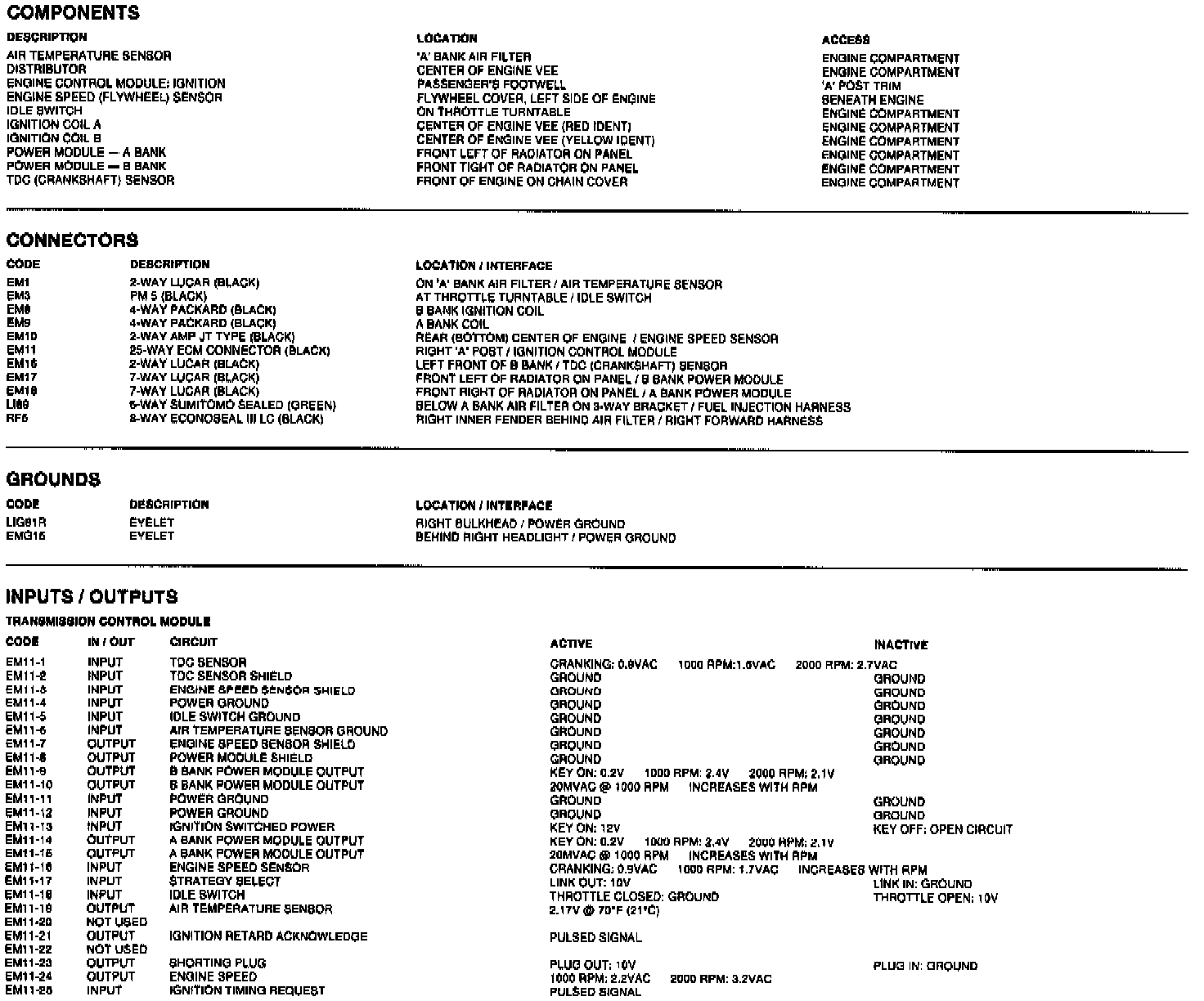

Components, connectors, grounds, inputs/outputs
