1994
>>
XJ-S Convertible (XJ27) V12-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
Fuel Delivery and Air Induction

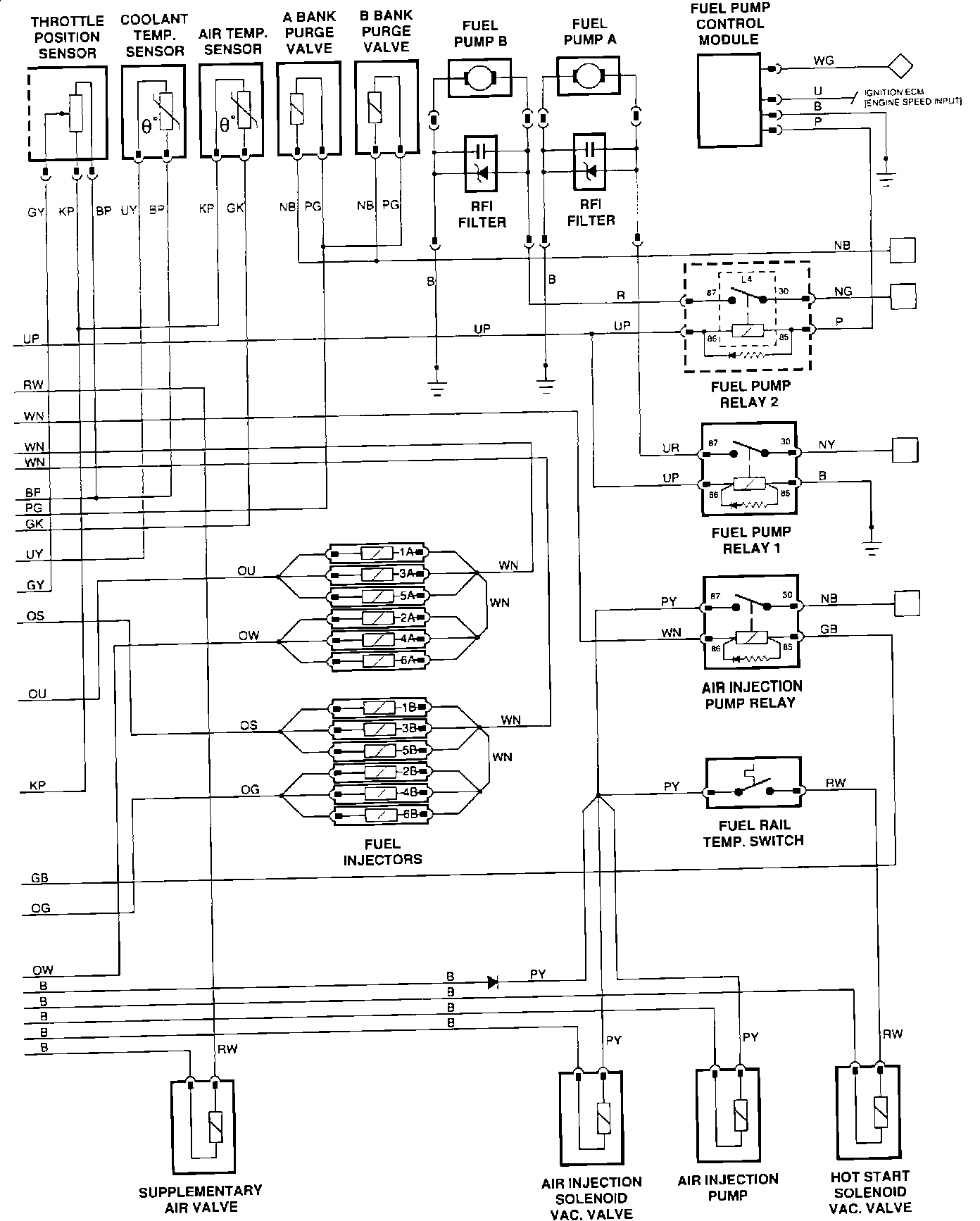

Wiring Diagram - Part 1 Of 2:
PART 1

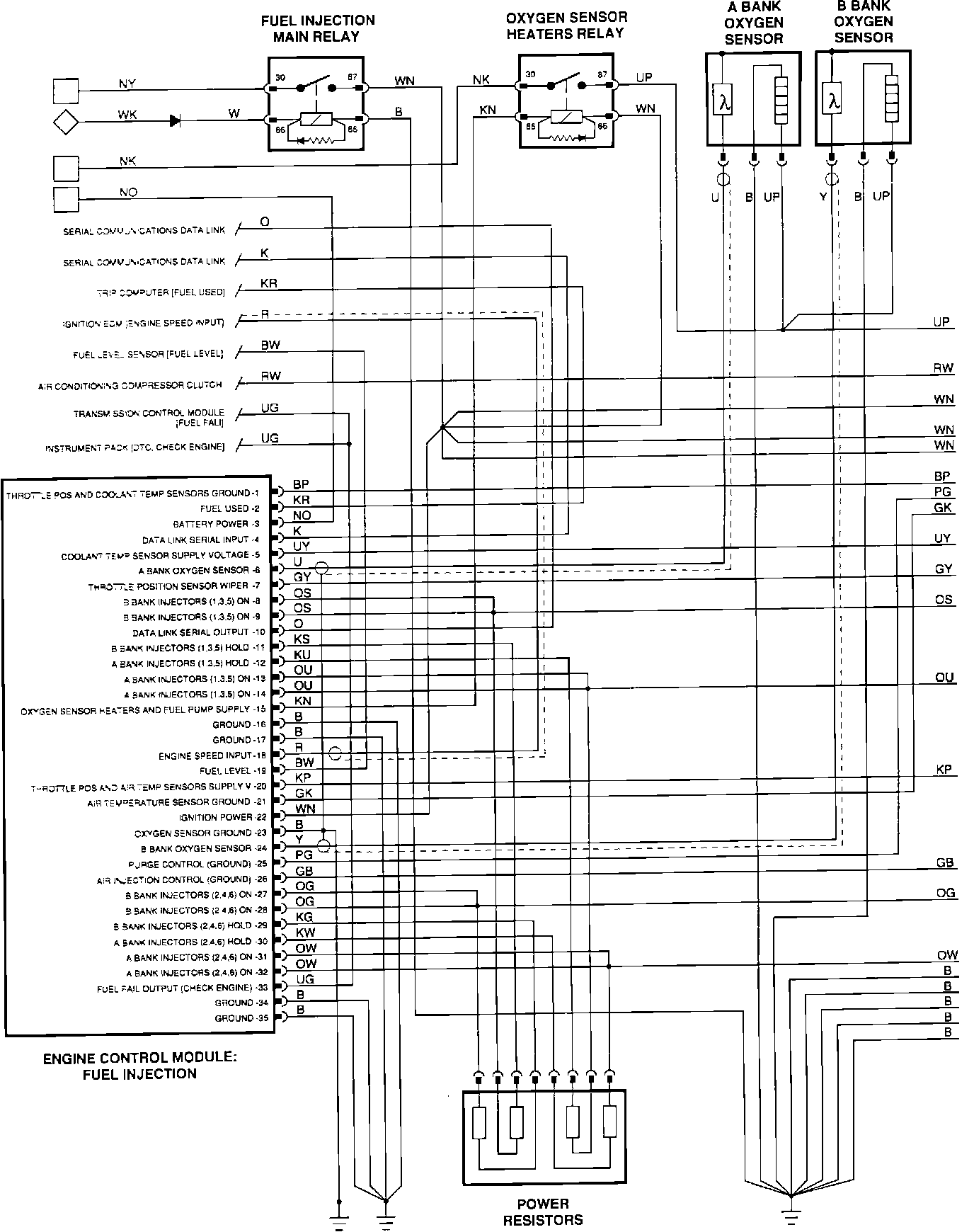

Wiring Diagram - Part 2 Of 2:
PART 2
