Jaguar
>>
1994
>>
XJ-S Convertible (XJ27) V12-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
Data Link Connector
B; :

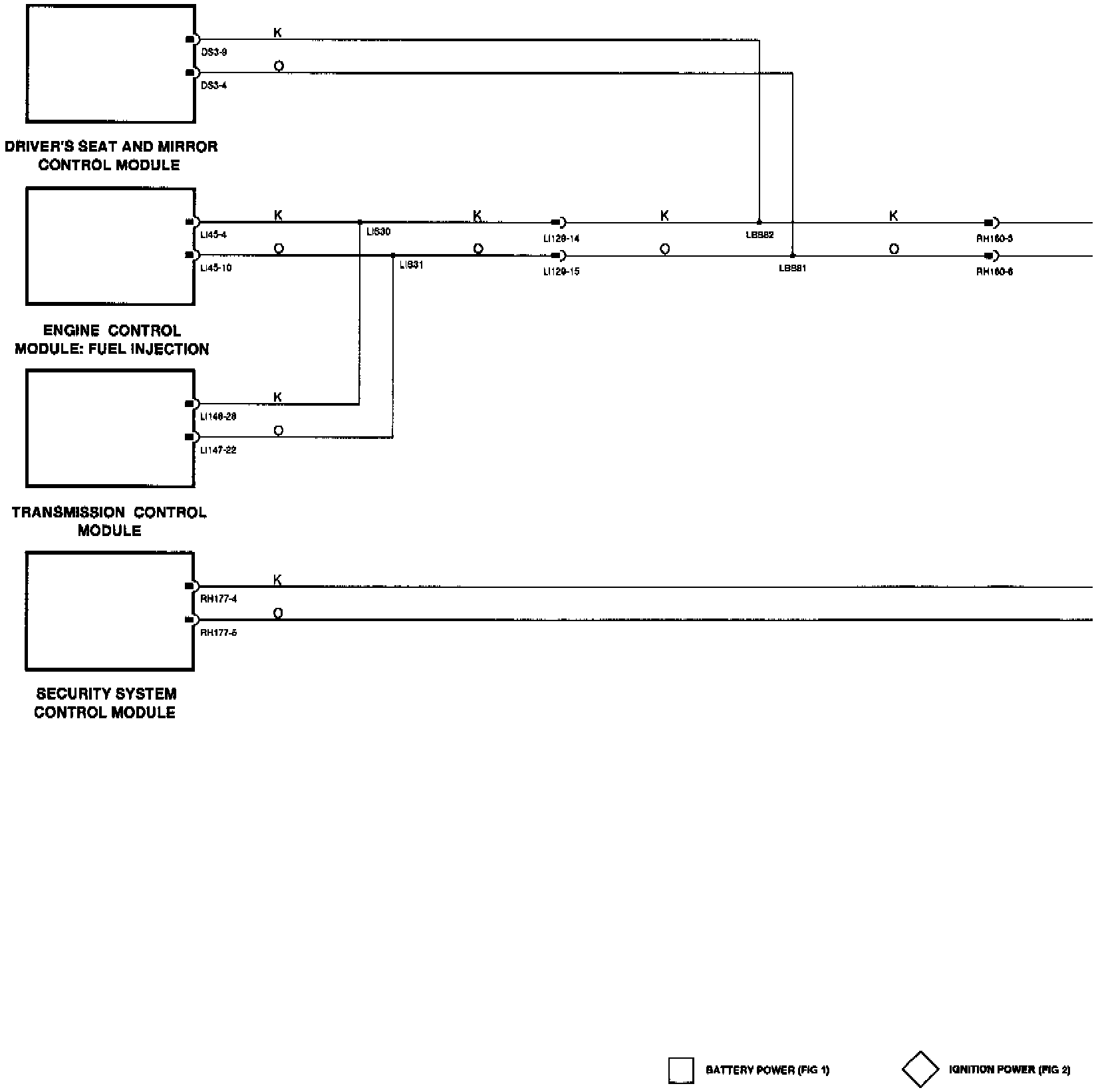

Wiring diagram

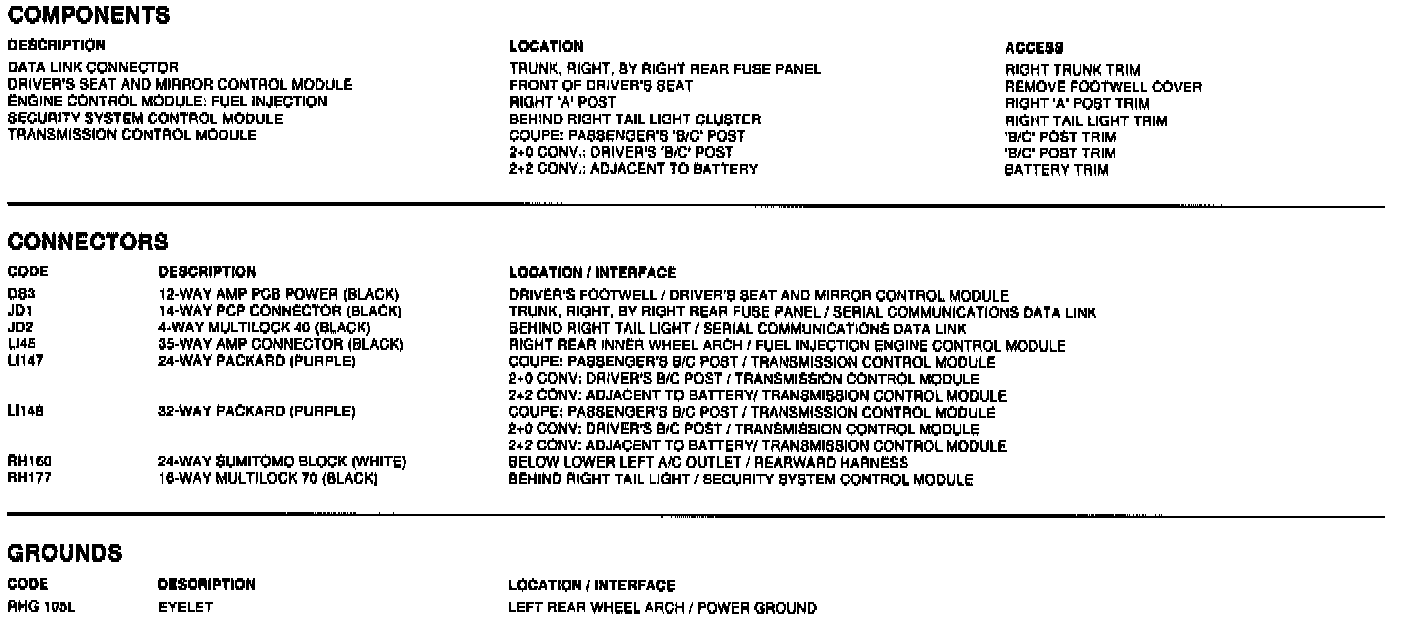

Components, connectors, grounds
