Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> System Diagram

System Diagram

vT:

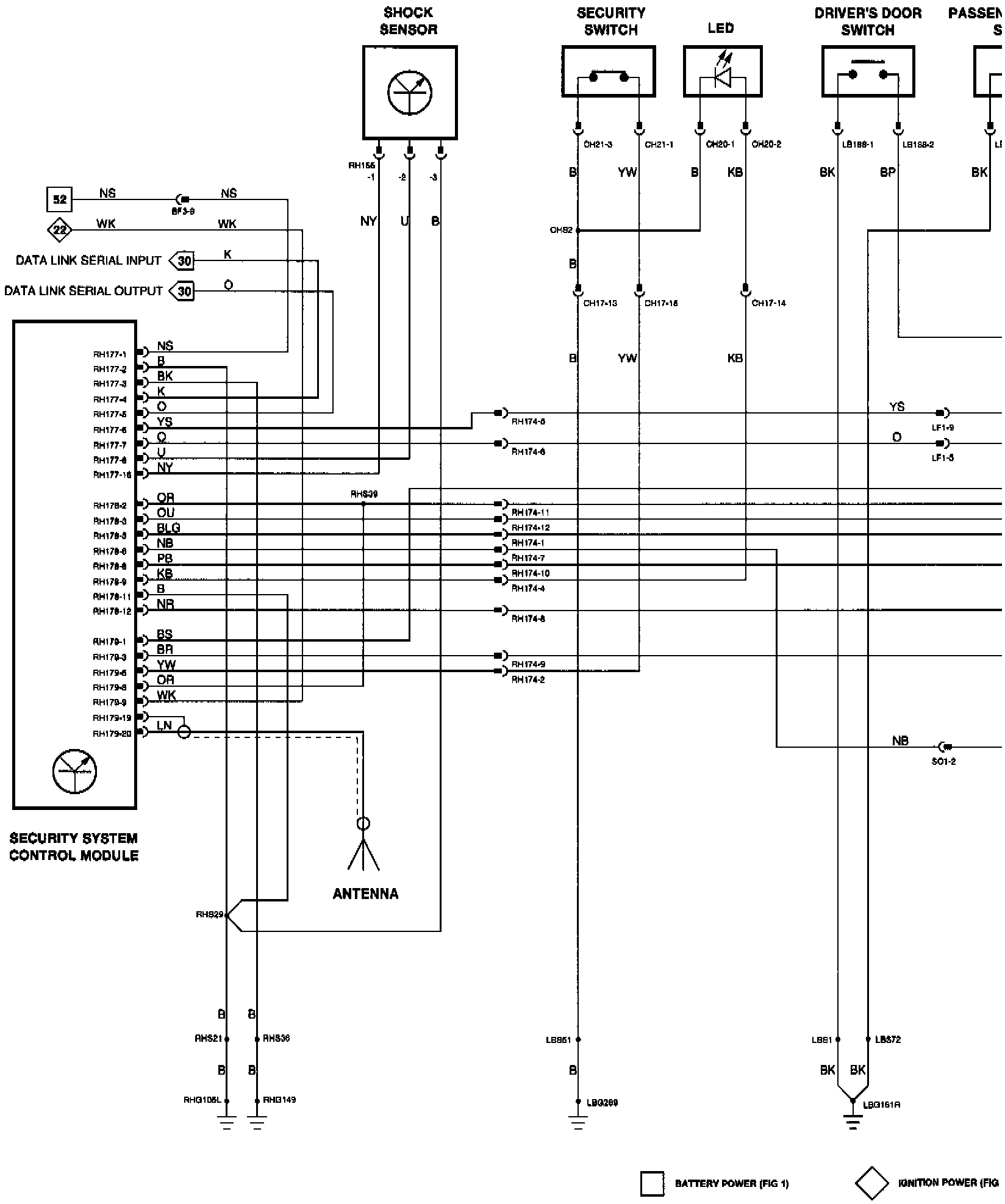

Wiring diagram

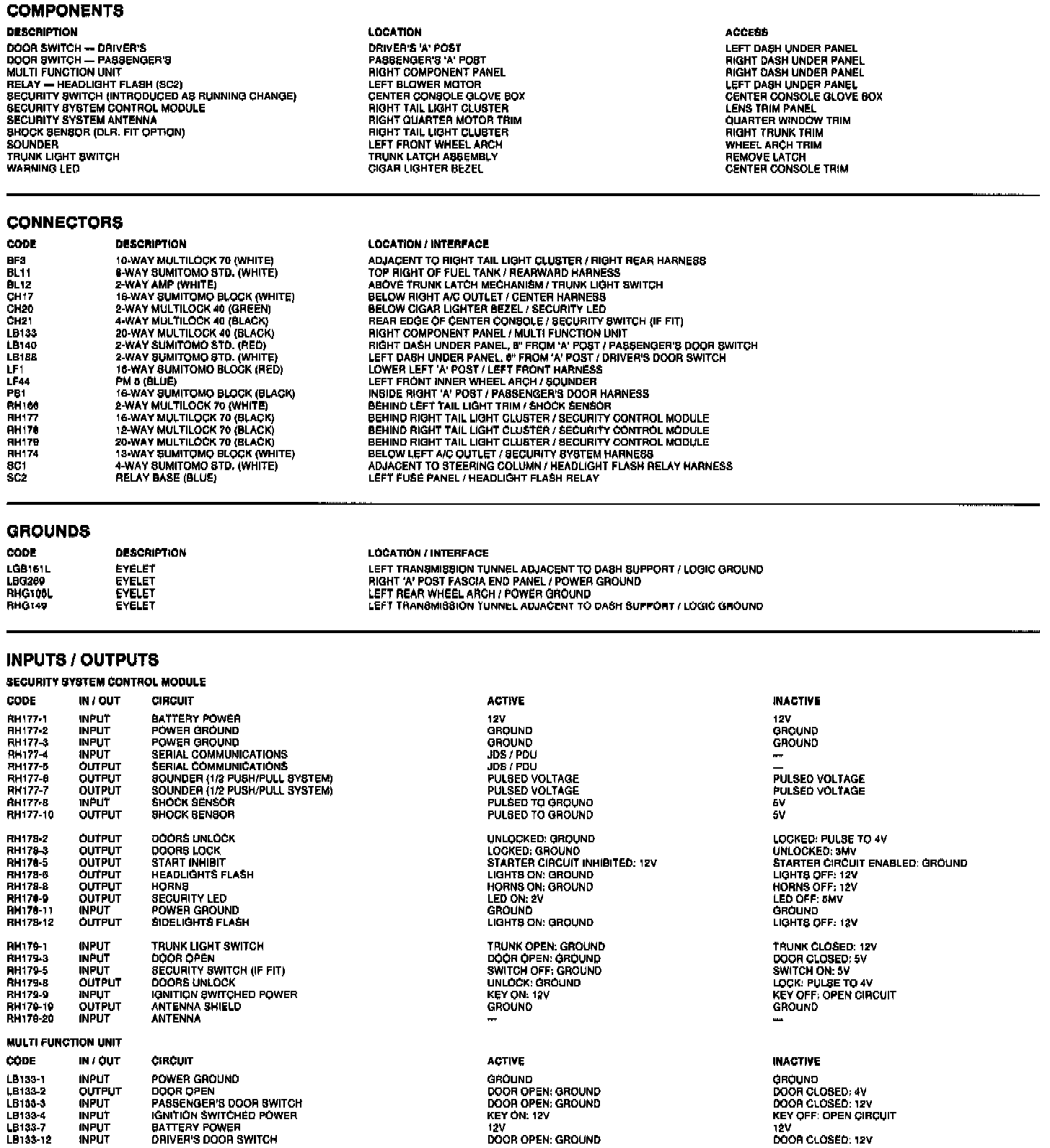

Components, connectors, grounds, inputs/outputs
