System Specifications

COOLING SYSTEM TORQUE FIGURES

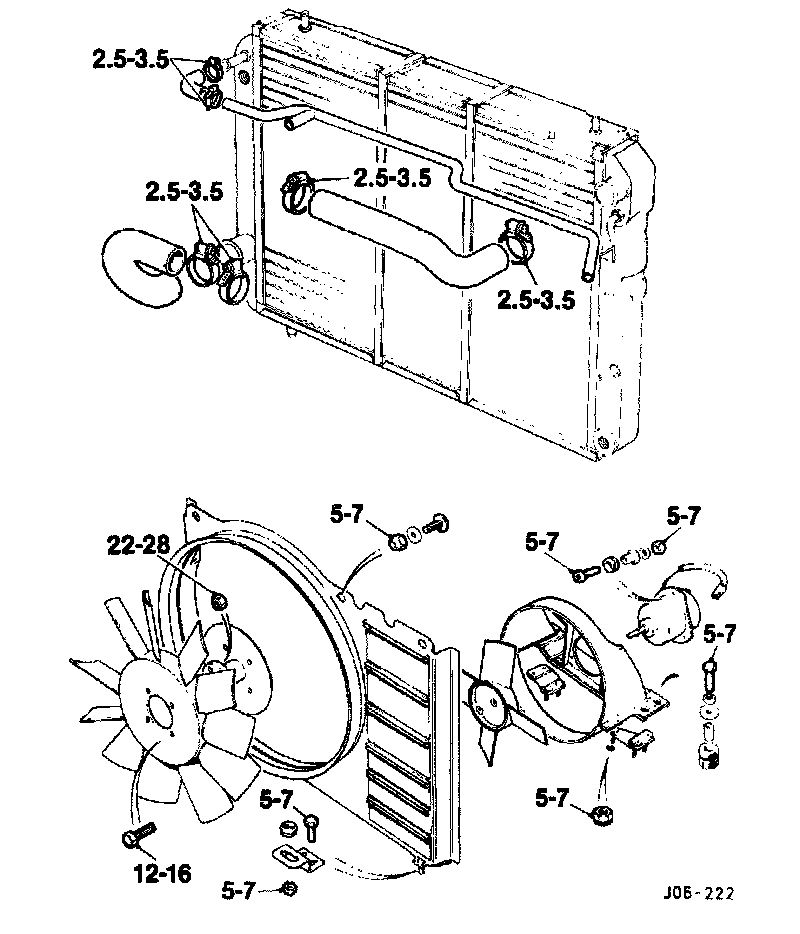

Radiator And Cooling Fans:

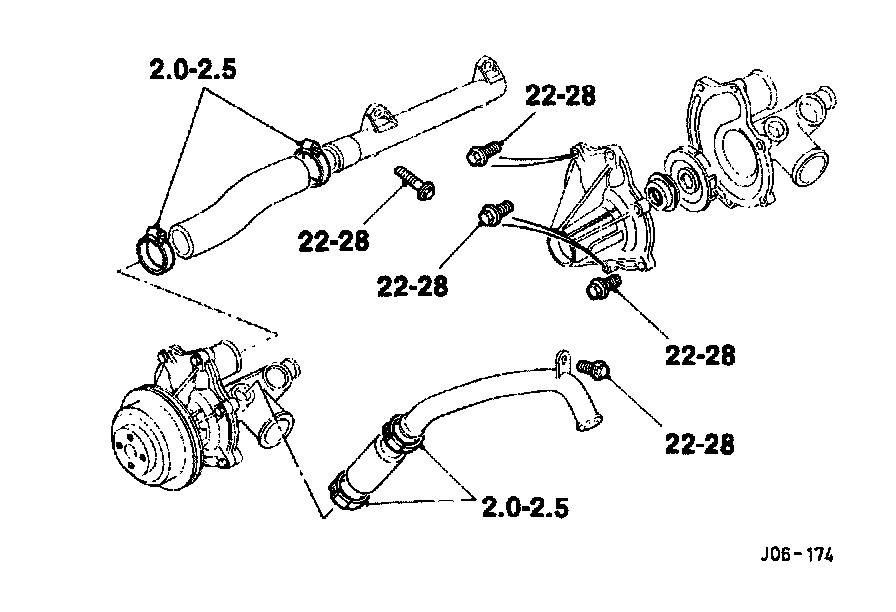

Heater Hose, Water Rail, And Water Pump:

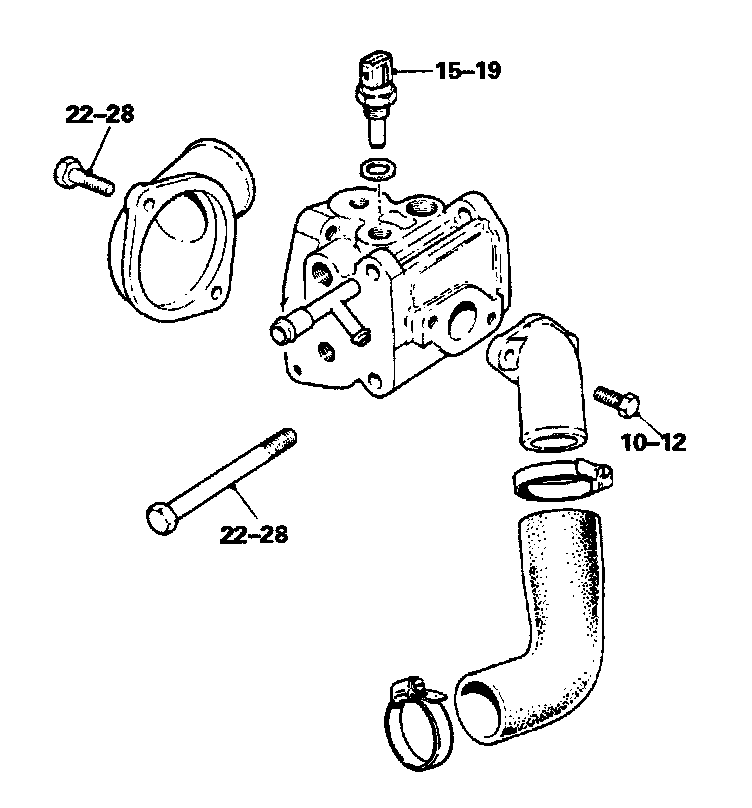

Thermostat And Bypass Hose:
