Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) L6-4.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Fuel Delivery and Air Induction >> Inertia Fuel Shutoff Switch >> Locations

Inertia Fuel Shutoff Switch: Locations

Inertia Switch:

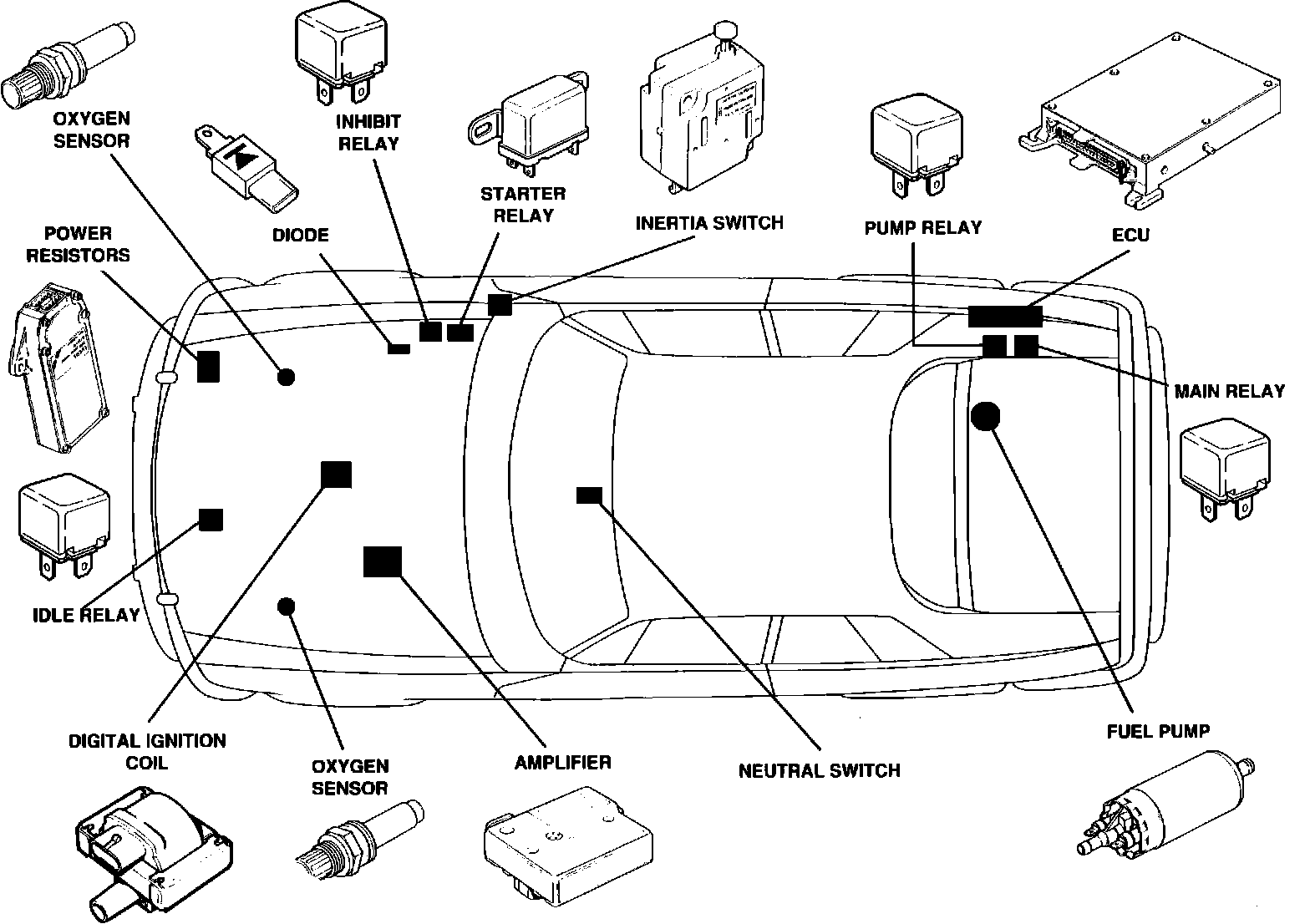

Vehicle Component Locations:





Located beneath passenger dash, on side forward of door.
