Oil Pressure Transmitter
OIL PRESSURE TRANSMITTERRENEW
Fig 1:
6 cylinder:
Open the bonnet.
Disconnect the battery earth lead.
Disconnect the transmitter feed wire.
Unscrew and remove the transmitter (Fig. 1).
Fit and tighten the new transmitter.
Reconnect the transmitter feed wire.
Reconnect the battery earth lead.
Close the bonnet.

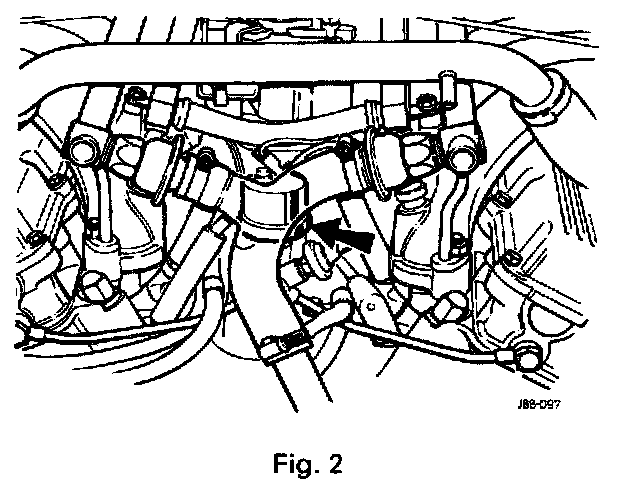

Fig 2:
12 cylinder:
Open the bonnet.
Disconnect the battery earth lead.
Disconnect the rubber boot and the transmitter feed wire.
Unscrew and remove the transmitter (Fig. 2).
Fit and tighten the new transmitter.
Reconnectthe transmitter feed wire and the rubber boot.
Reconnect the battery earth lead.
Close the bonnet.
DATA
TORQUE FIGURES
Transmitter to engine - 20-27 Nm
SPANNER SIZES
18 mm
