Air Injection Check Valve: Description and Operation
The check valve, located in the delivery tube behind the air pump, prevents the back-flow of exhaust gas to the air pump.

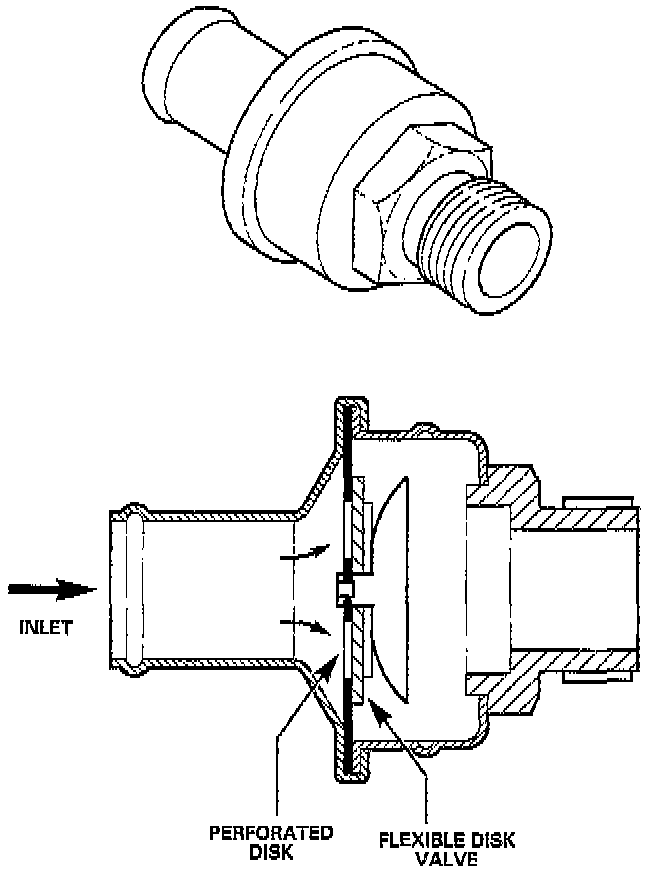

Air Injection Check Valve:
