R134A Systems From VIN 190529

R134A Systems From VIN 190529

�c�:

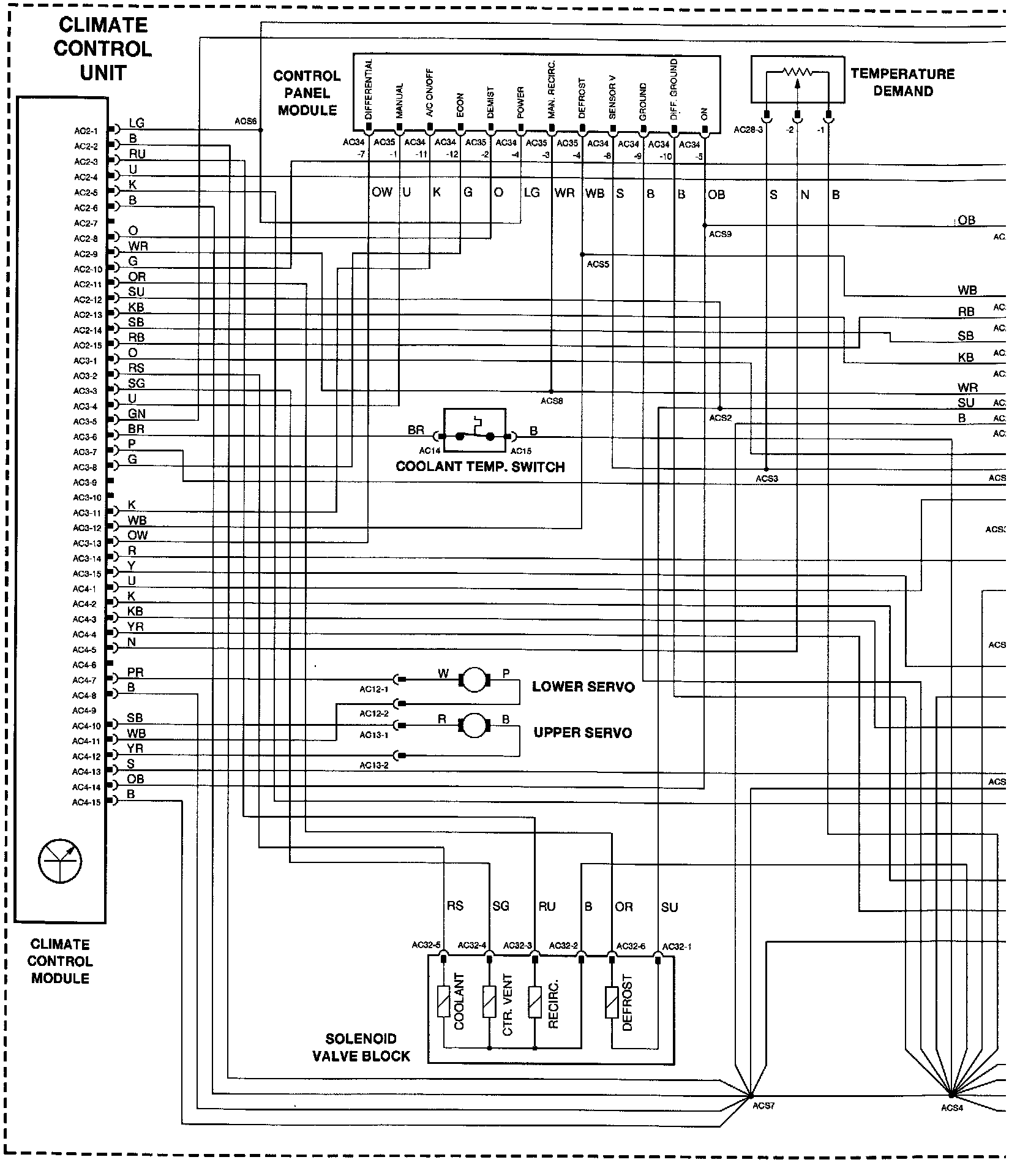

Wiring diagram

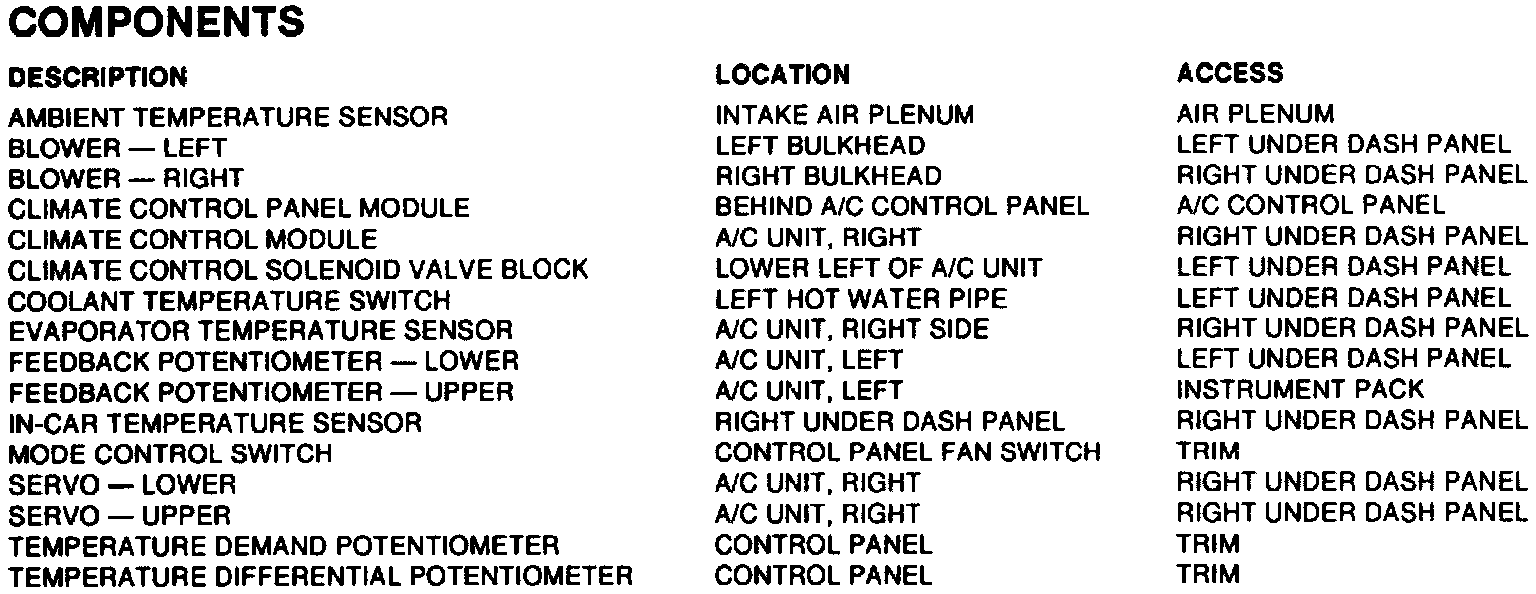

Components

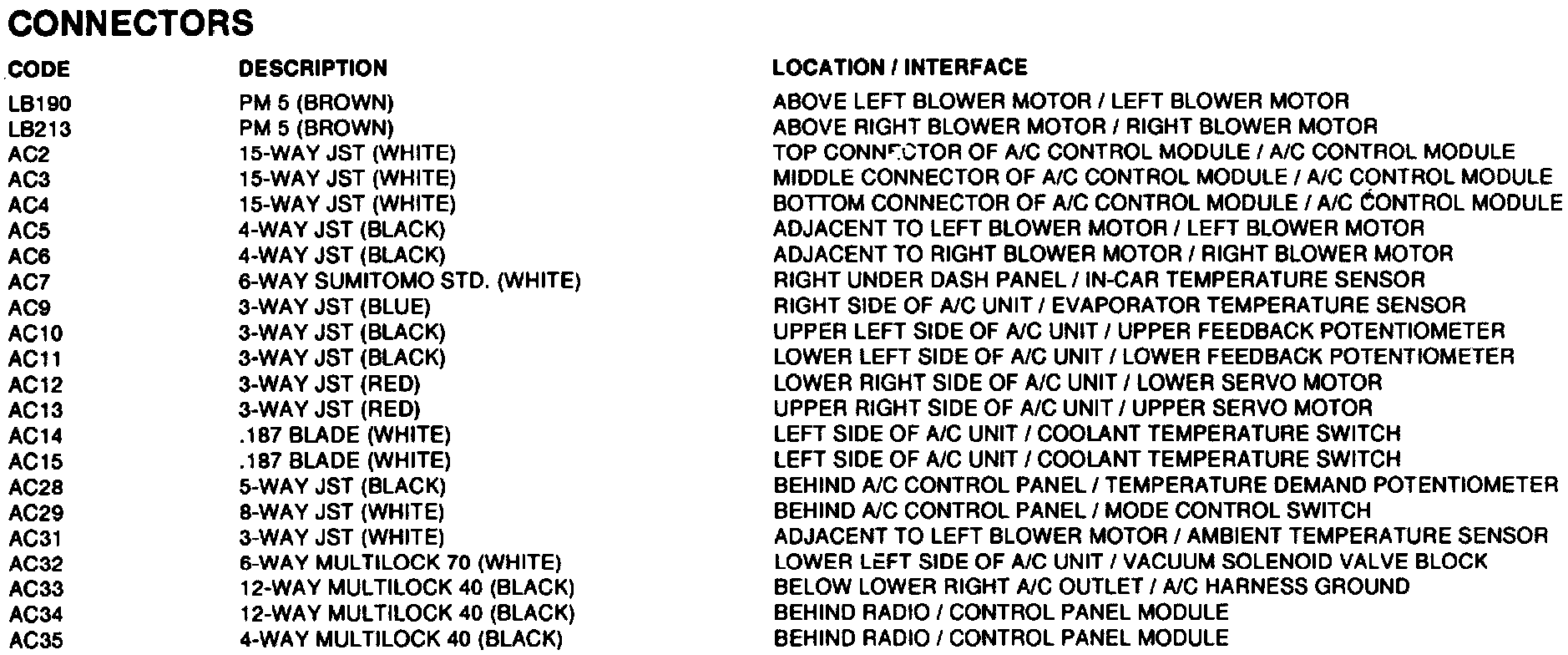

Connectors

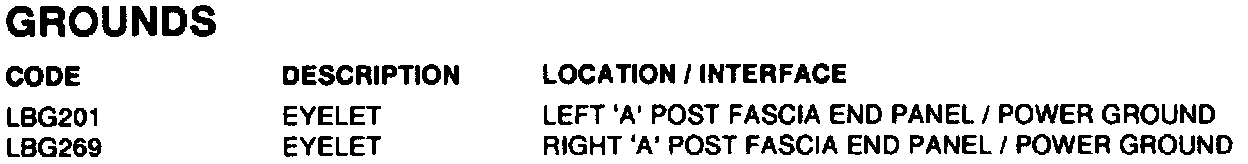

Grounds

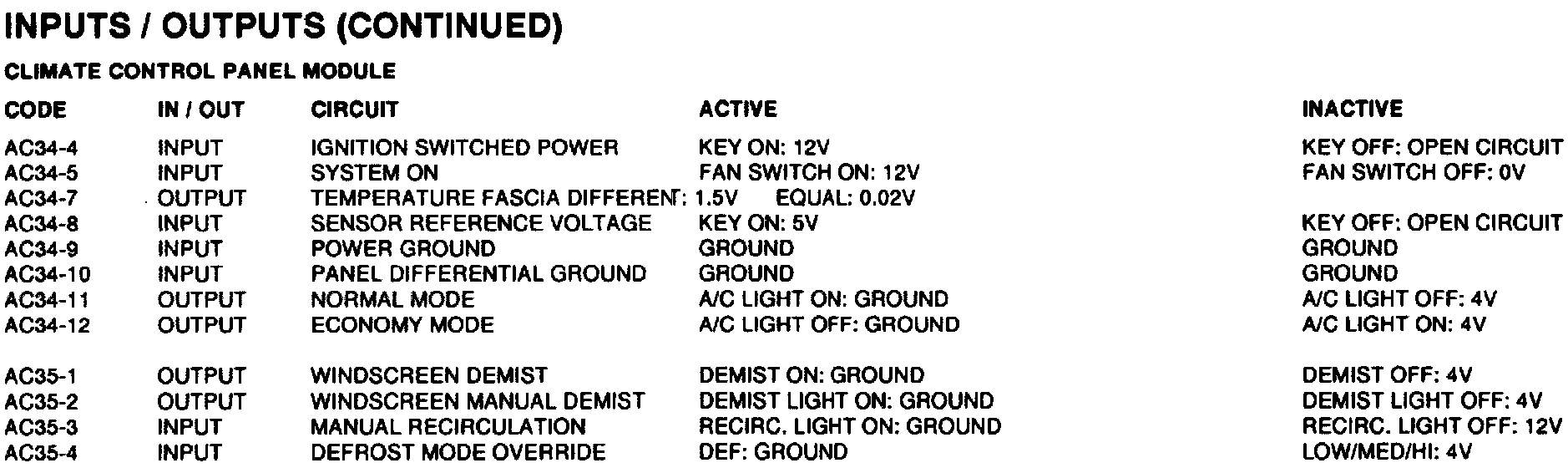

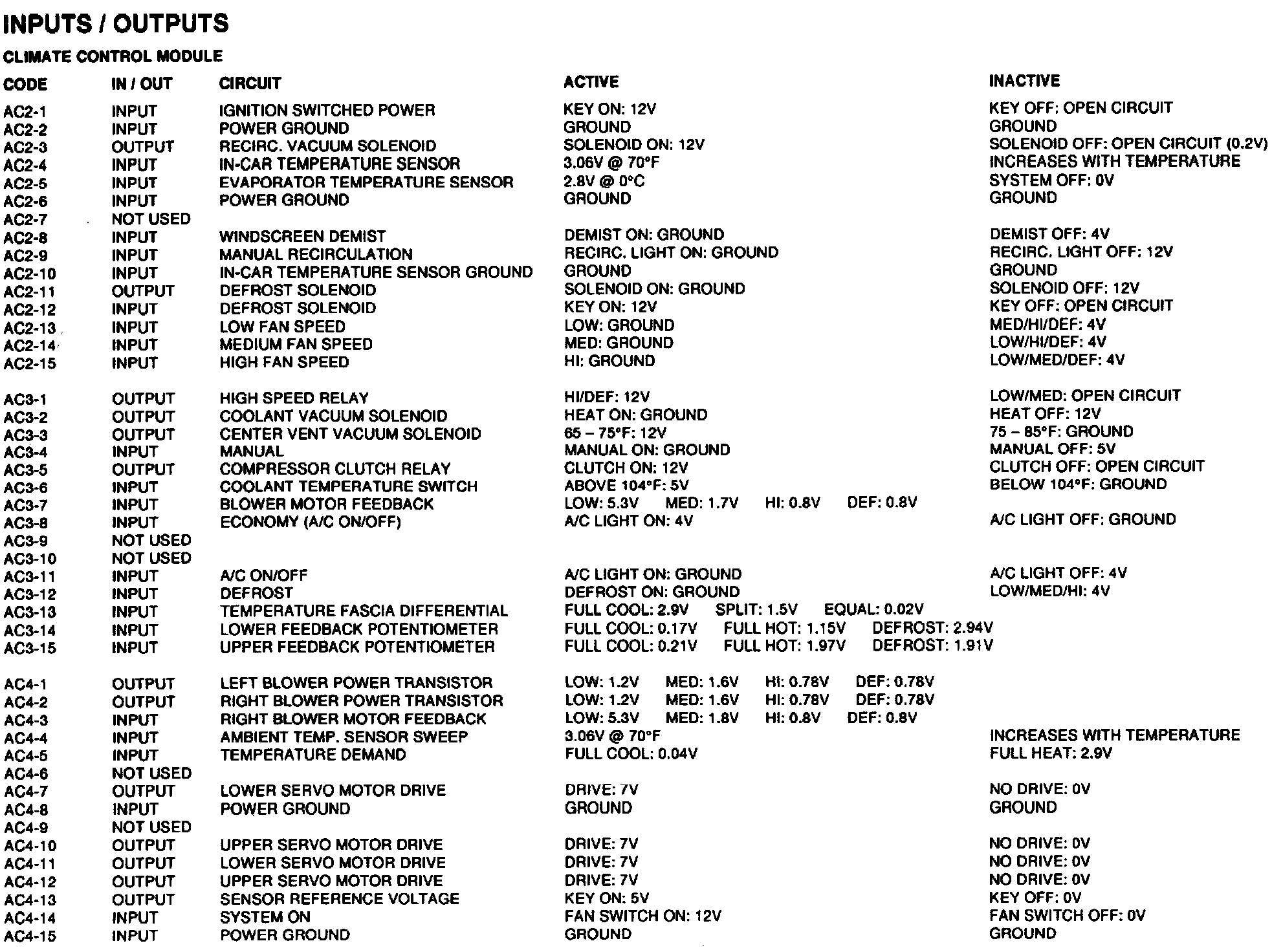

Inputs/Outputs





Reference flags
