Convertible Top - Replacement

76-93

Convertible Top - Outer Cloth Cover/Interior Headliner - Replacement

MODEL: XJS Convertible DATE: 8/94

ISSUE:

The convertible top Outer Cloth Cover and Interior Headliner are available as separate assemblies.

Do not replace the complete convertible top assembly if the fault is with either the Outer Cloth Cover or the Interior Headliner.

NOTE:
The Outer Cloth Cover should be used when the fault is the outer cover. The Interior Headliner should be used when the fault is the headliner.

A detachable headliner was introduced at VIN 189293. Additional parts are required to replace the Interior Headliner of vehicles before VIN 189293. Refer to "PARTS INFORMATION" below for details.

ACTION:

If repairs are required to convertible tops, replace only those components required to repair the fault. Refer to Service Manual section 76.86 for repair procedures.

PARTS INFORMATION:

Outer Cloth Replacement: All

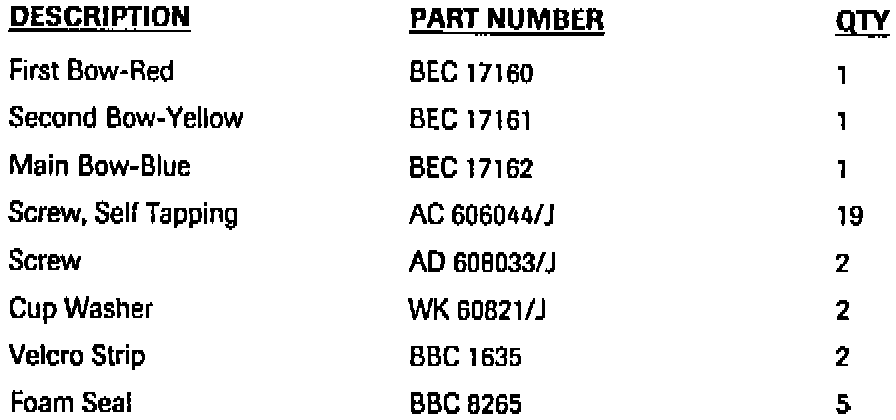

Interior Headliner Replacement: Vehicles BEFORE VIN 189293

ALSO: One roll double sided adhesive tape 1/2" wide. Obtain locally.

Interior Headliner Replacement Vehicles AFTER VlN189293

DESCRIPTION PART NUMBER QTY

Interior Headliner BEC 17245/LDY-Grey 1

or BEC 17245/AEE-Doeskin 1

WARRANTY POLICY:

Warranty claims for convertible tops and headliners are only accepted for factory defects in material or workmanship. The following are not covered under warranty:

^ Stains or blemishes resulting from environmental fall-out, lack of maintenance, or customer abuse.

^ Physical damage resulting from vandalism, lack of maintenance, or customer abuse.

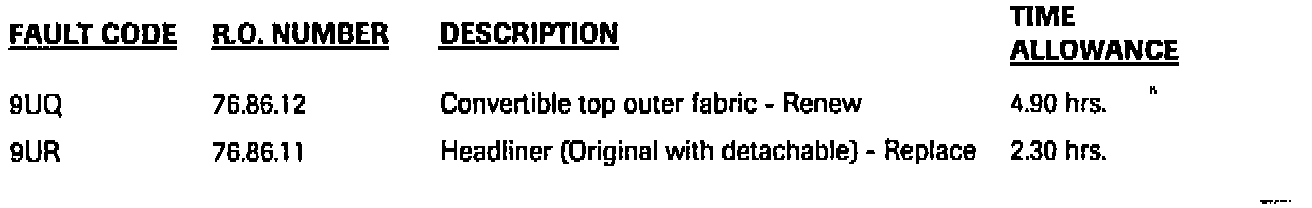

WARRANTY INFORMATION:
