Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) L6-4.0L >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Diagrams >> Electrical Diagrams

Electrical Diagrams

�p� :

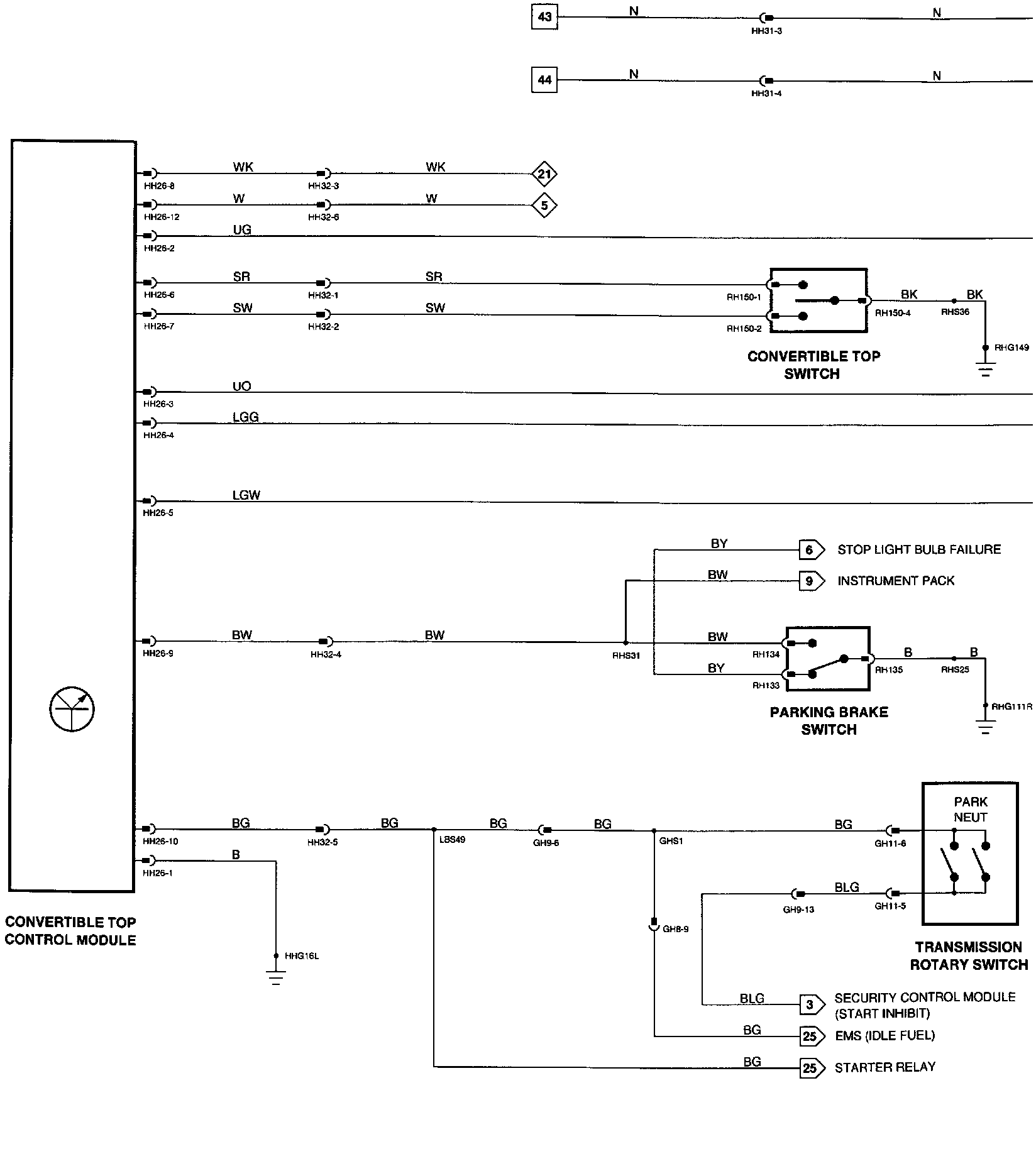

Wiring diagram

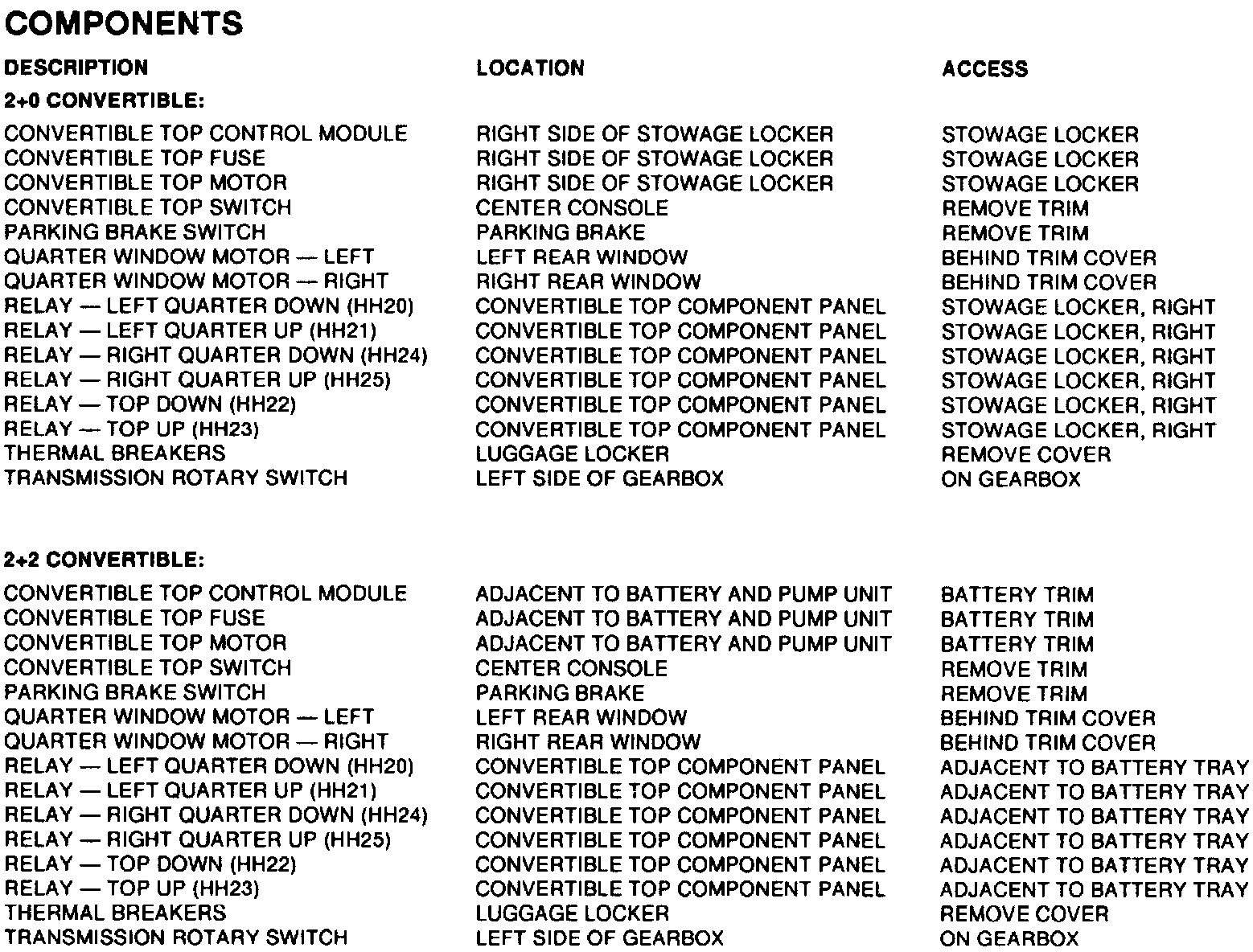

Components

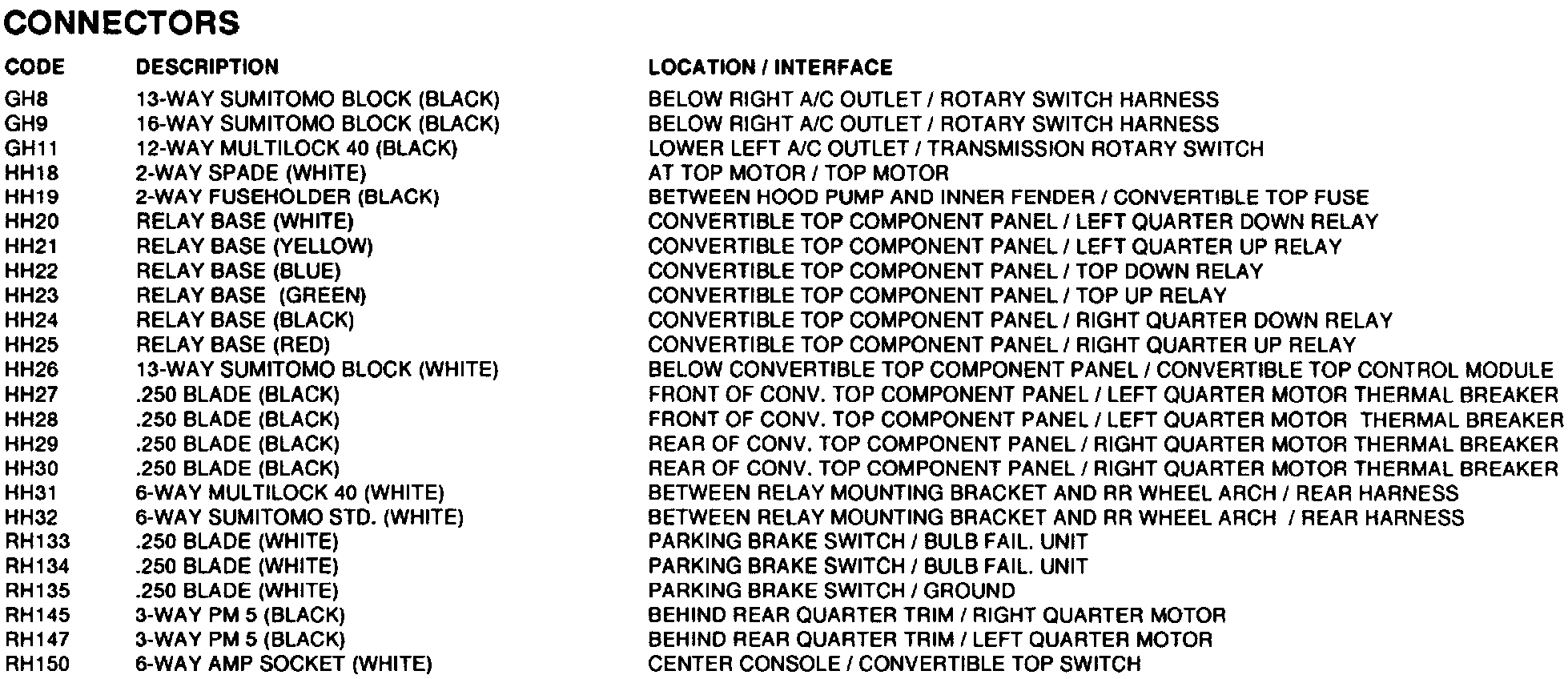

Connectors

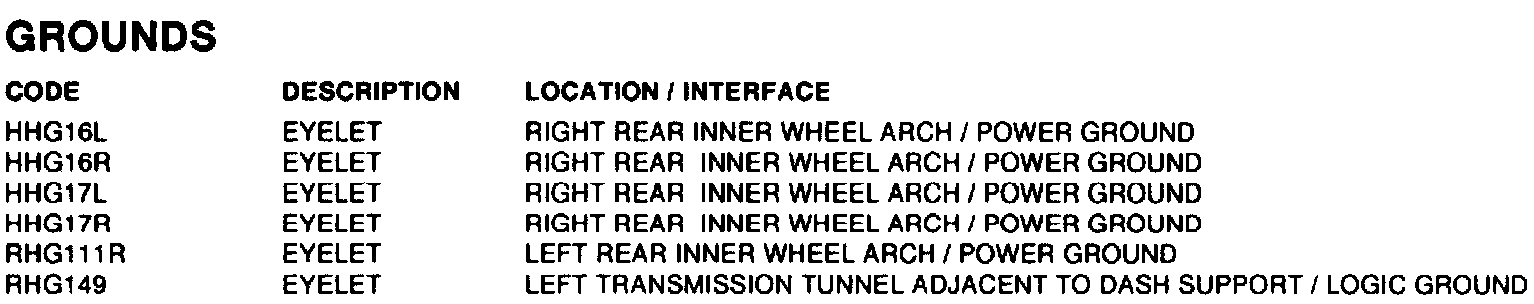

Grounds

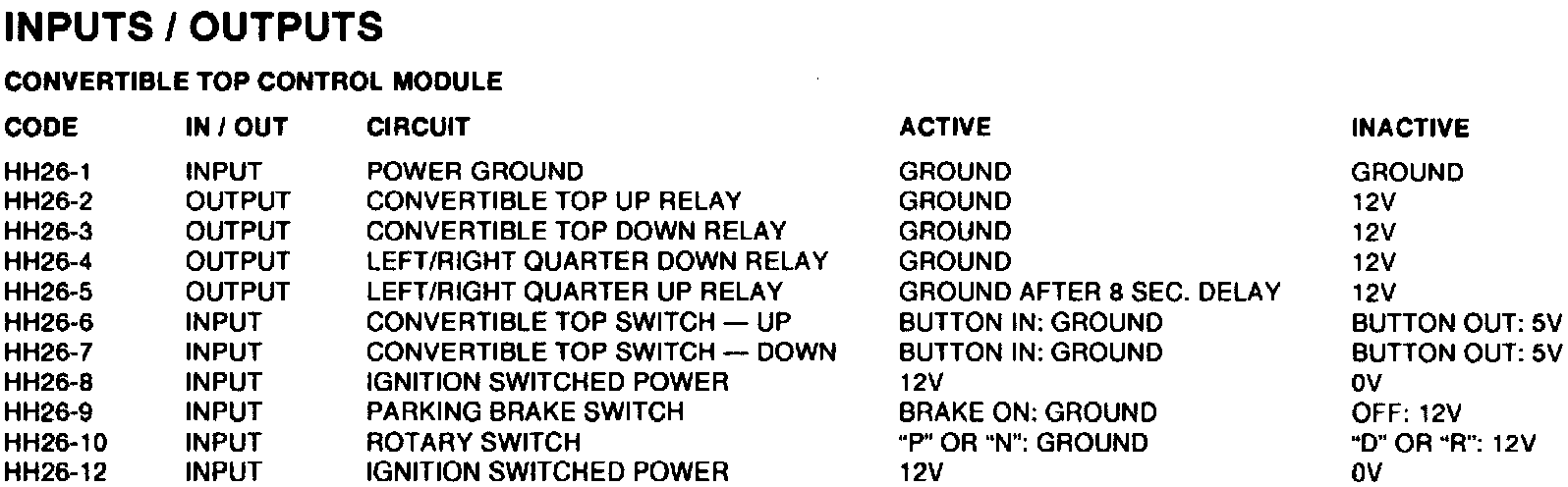

Inputs/Outputs





Reference flags
