Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse and Relay Center Details >> F-28 (A/T)

F-28 (A/T)

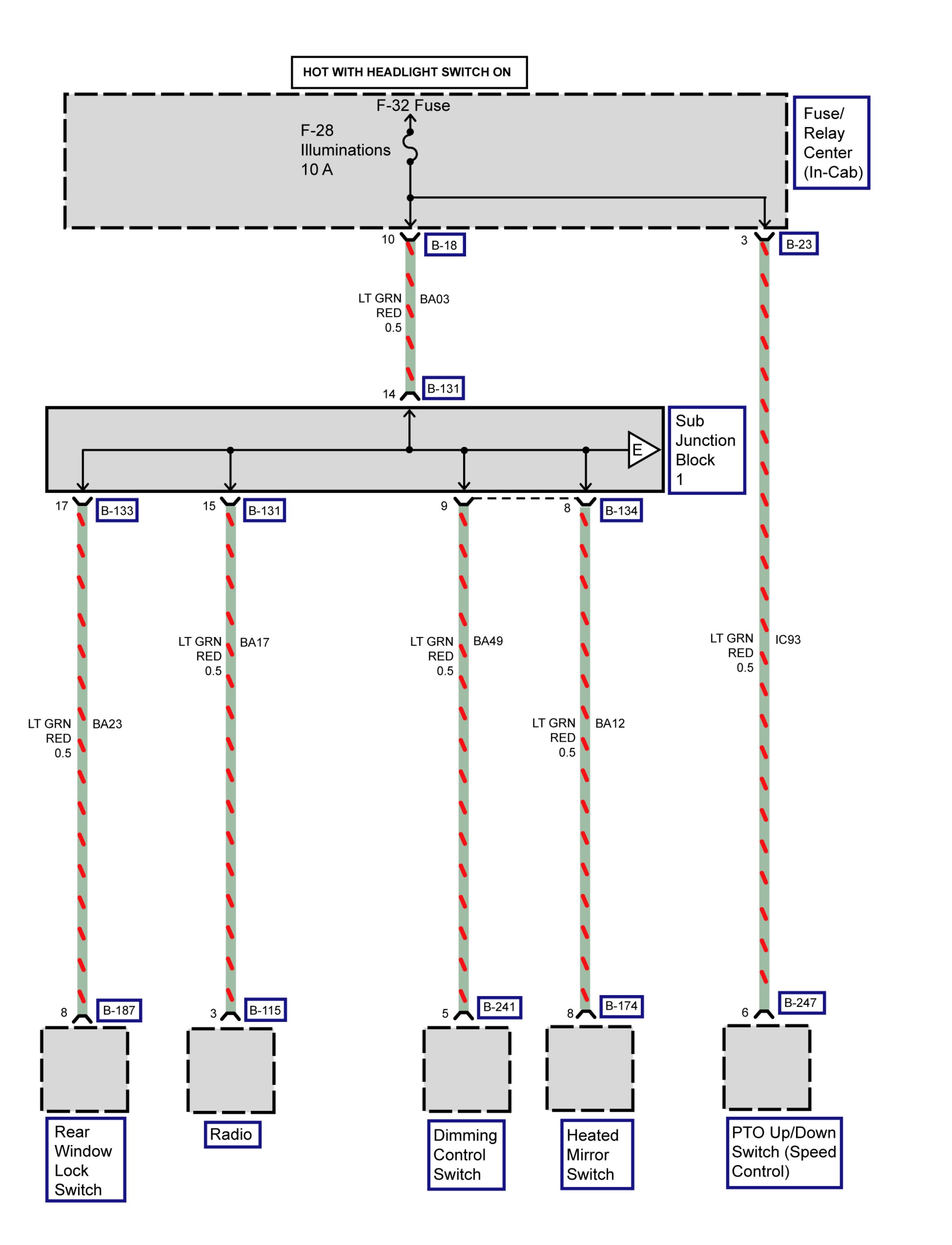

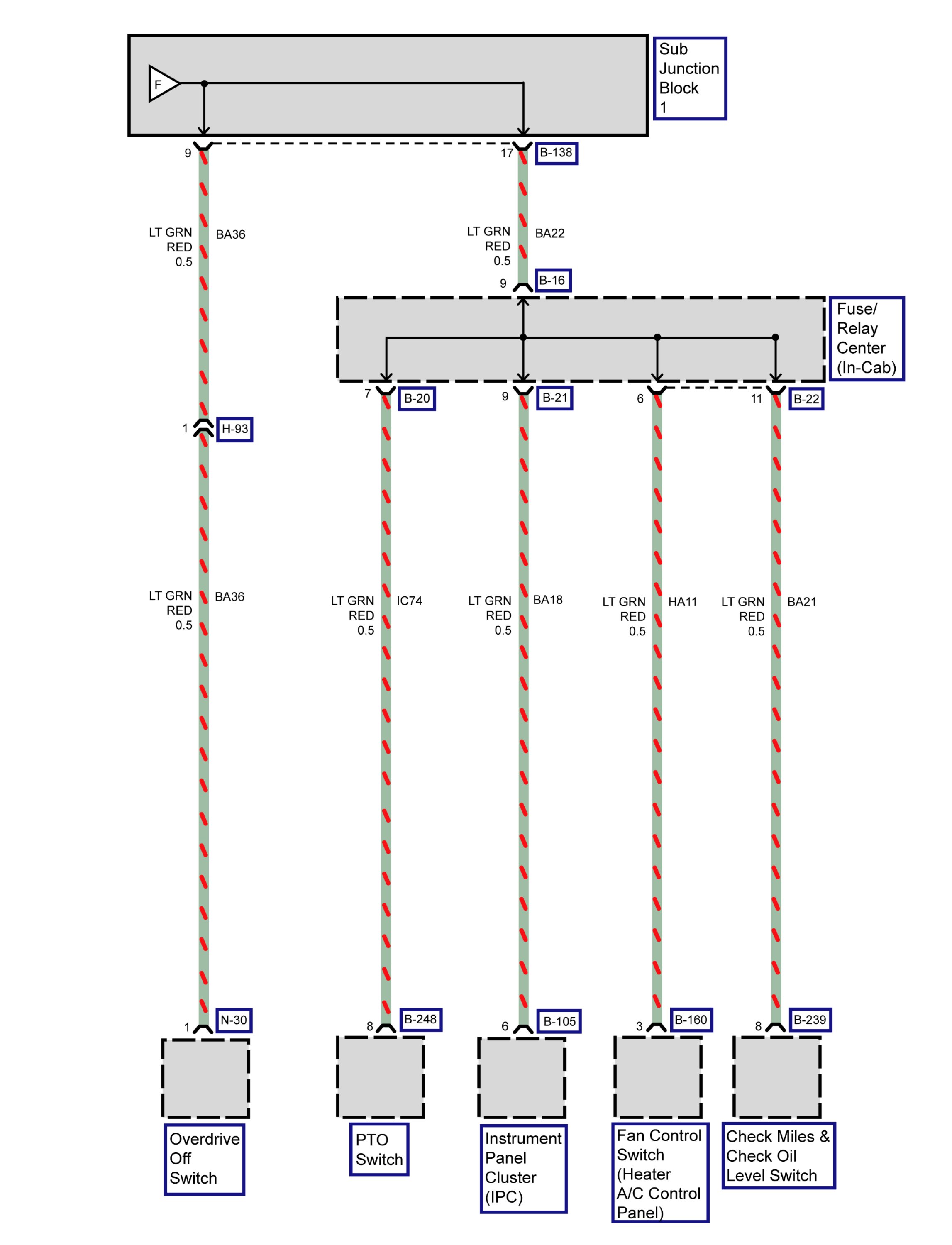

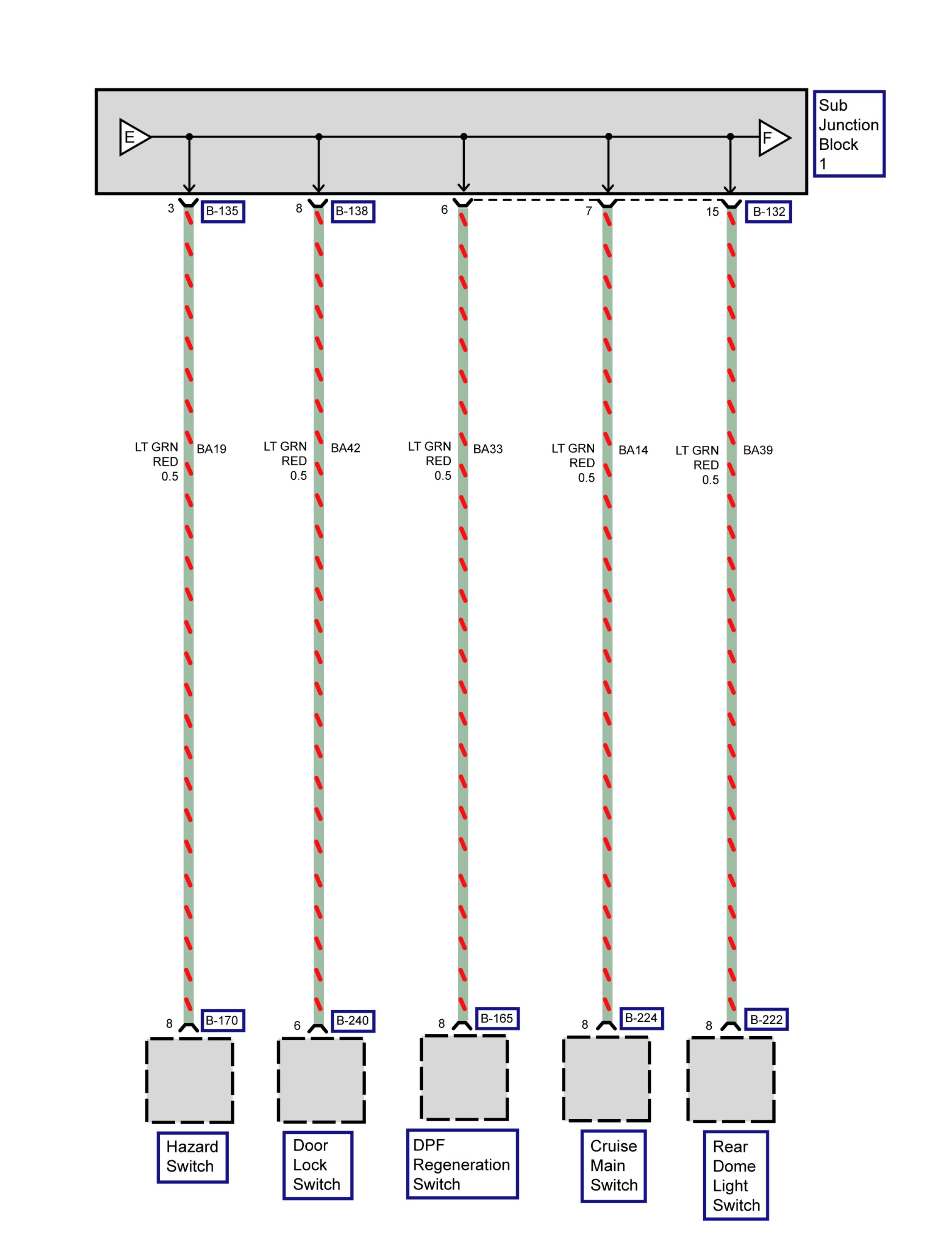

F-28 Fuse (A/T) 1 of 3
