Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Diesel Emissions Fluid Level Sensor
Diesel Emissions Fluid Level Sensor

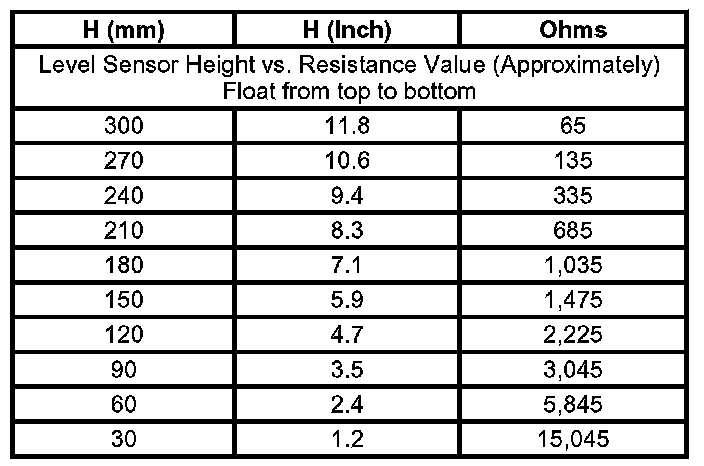

Level Sensor Height vs. Resistance
