Refrigerant Pressure Sensor / Switch: Locations

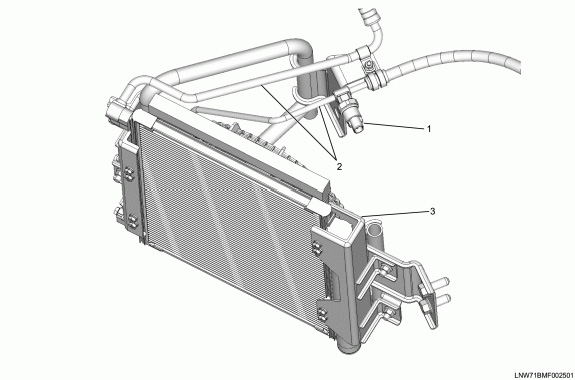

Pressure Switch

Components

Legend
(1) Pressure Switch
(2) High Pressure Pipe
(3) Condenser ASM
