Removal

Magnetic Clutch Relay and Condenser Fan Relay

Removal

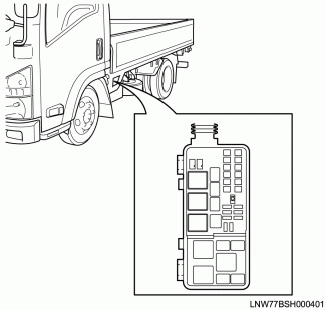

1. Fuse and relay box position






2. Disconnect the magnetic clutch relay (1) and condenser fan relay (2).






Legend
(1) Magnetic Clutch Relay
(2) Condenser Fan Relay
(3) A/C Diode
(4) HVAC Fuse
(5) A/C Fuse
(6) Condenser Fan Fuse

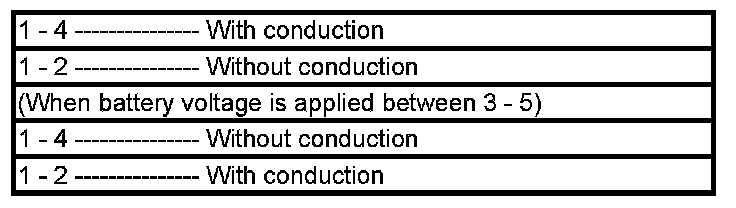

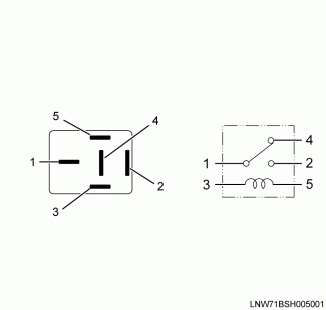

3. Check the conduction between the terminals of the magnetic clutch relay.

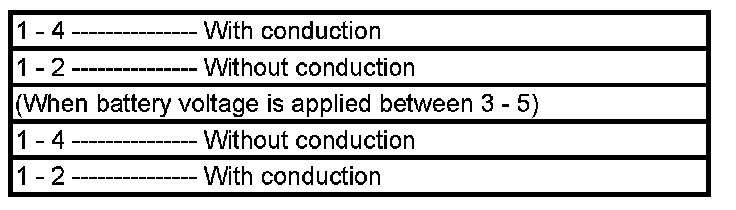

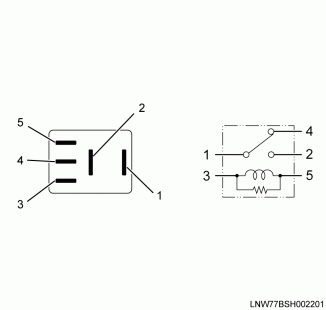

4. Check the conduction between the terminals of the condenser fan relay.
