Removal

Blower Relay

Removal

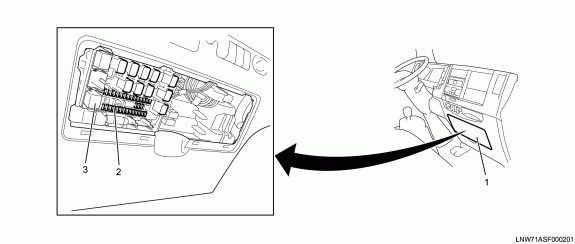

1. Fuse and Relay Box Position






Legend
(1) Relay Box Lid
(2) Fuse
(3) Relay


2. Disconnect the blower relay (3).

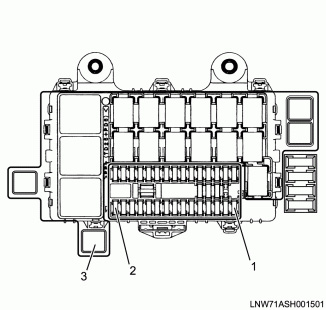

Legend
(1) Air Conditioner Fuse
(2) Mirror,Heater Fuse
(3) Blower Relay

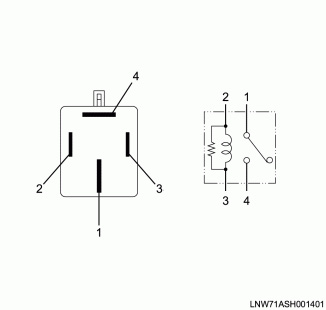

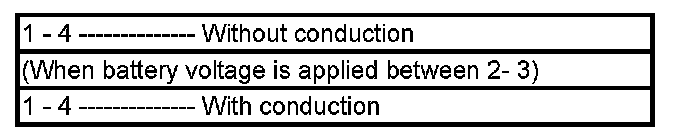

3. Check the conduction between the terminals of the relay.
