Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Electrical Diagrams
>>
Variable Nozzle Turbocharger
>>

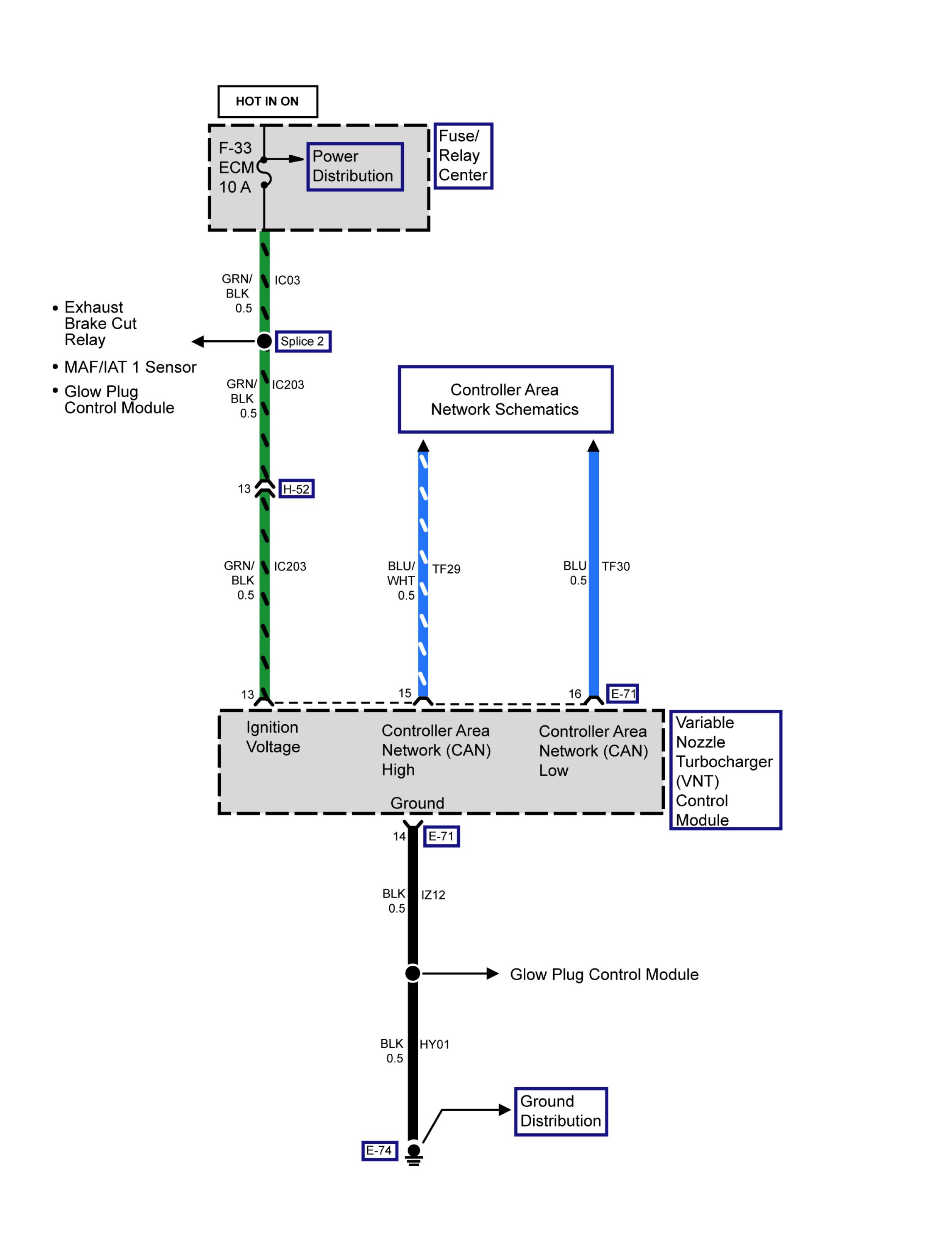

Power, Ground and Can
Power, Ground and Can
Power, Ground and CAN
