Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Controls
>>
Fuel Rail Pressure Regulator/Fuel Rail Pressure Reduction Valve

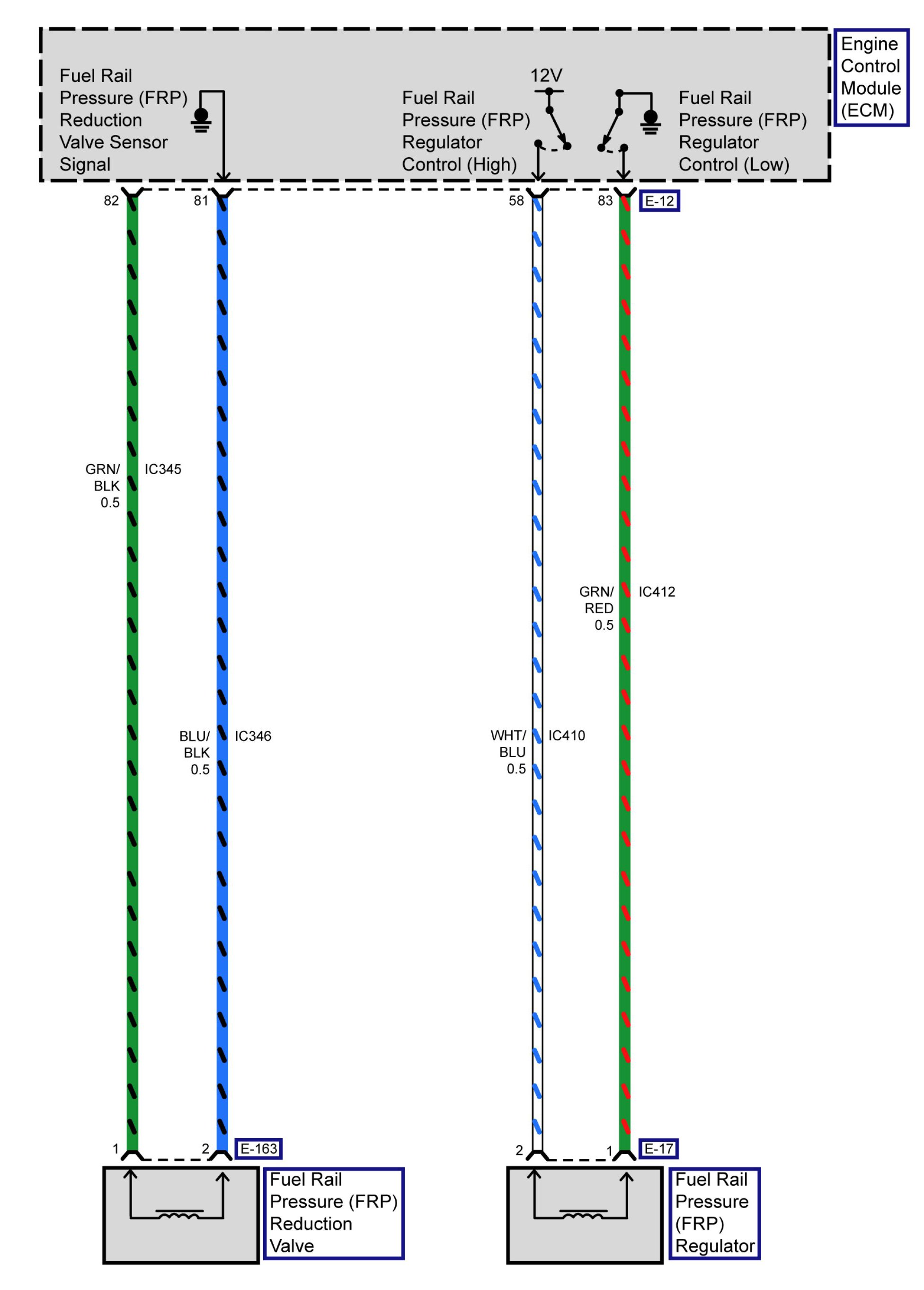

Fuel Rail Pressure Regulator/Fuel Rail Pressure Reduction Valve
Fuel Rail
Pressure Regulator/Fuel Rail Pressure Reduction Valve
