Diesel Particle Filter (DPF): Locations

Diesel Particulate Filter (DPF)

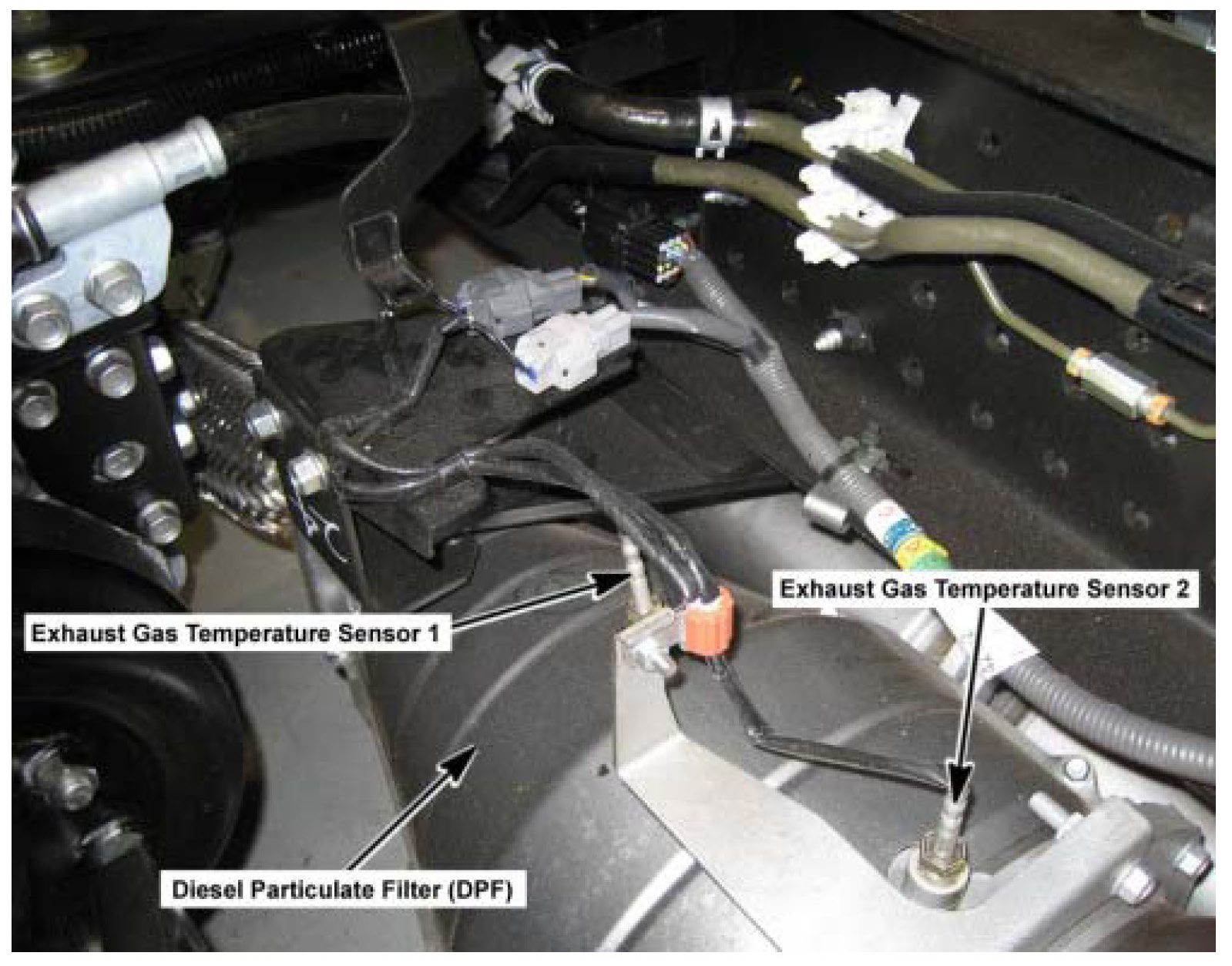

Between the Frame Rails, Behind the Transmission (5.2L)

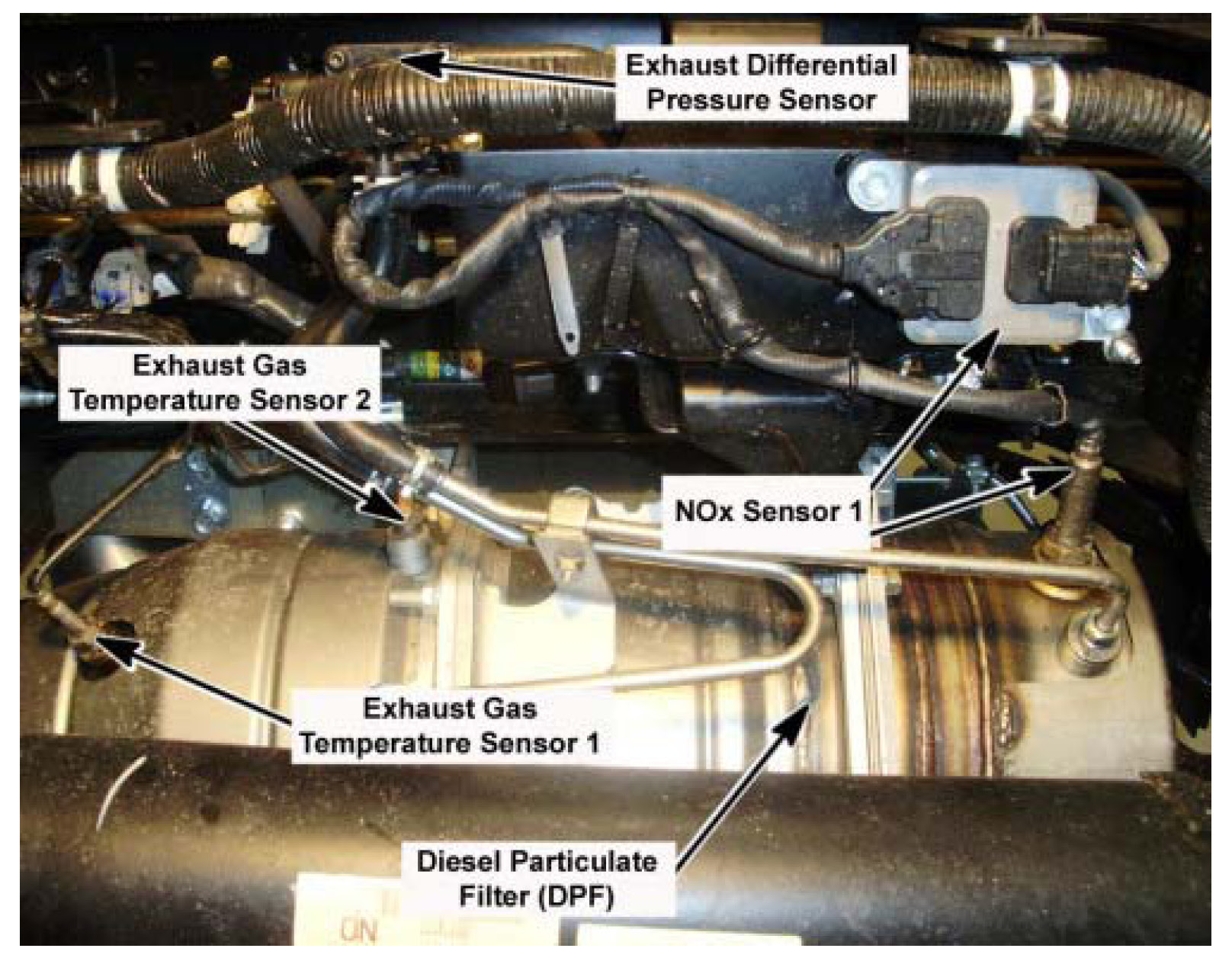

Between the Frame Rails, Behind the Transmission (3.0L)
