Scan Tool Does Not Power Up

Scan Tool Does Not Power Up

Circuit Description

The data link connector (DLC) is a standardized 16-cavity connector. Connector design and location is dictated by an industry wide standard, and is required to provide the following:
- Scan tool power battery positive voltage at terminal 16
- Scan tool power ground at terminal 4
- Common signal ground at terminal 5

The scan tool will power up with the ignition OFF. Some modules however, will not communicate unless the ignition is ON.

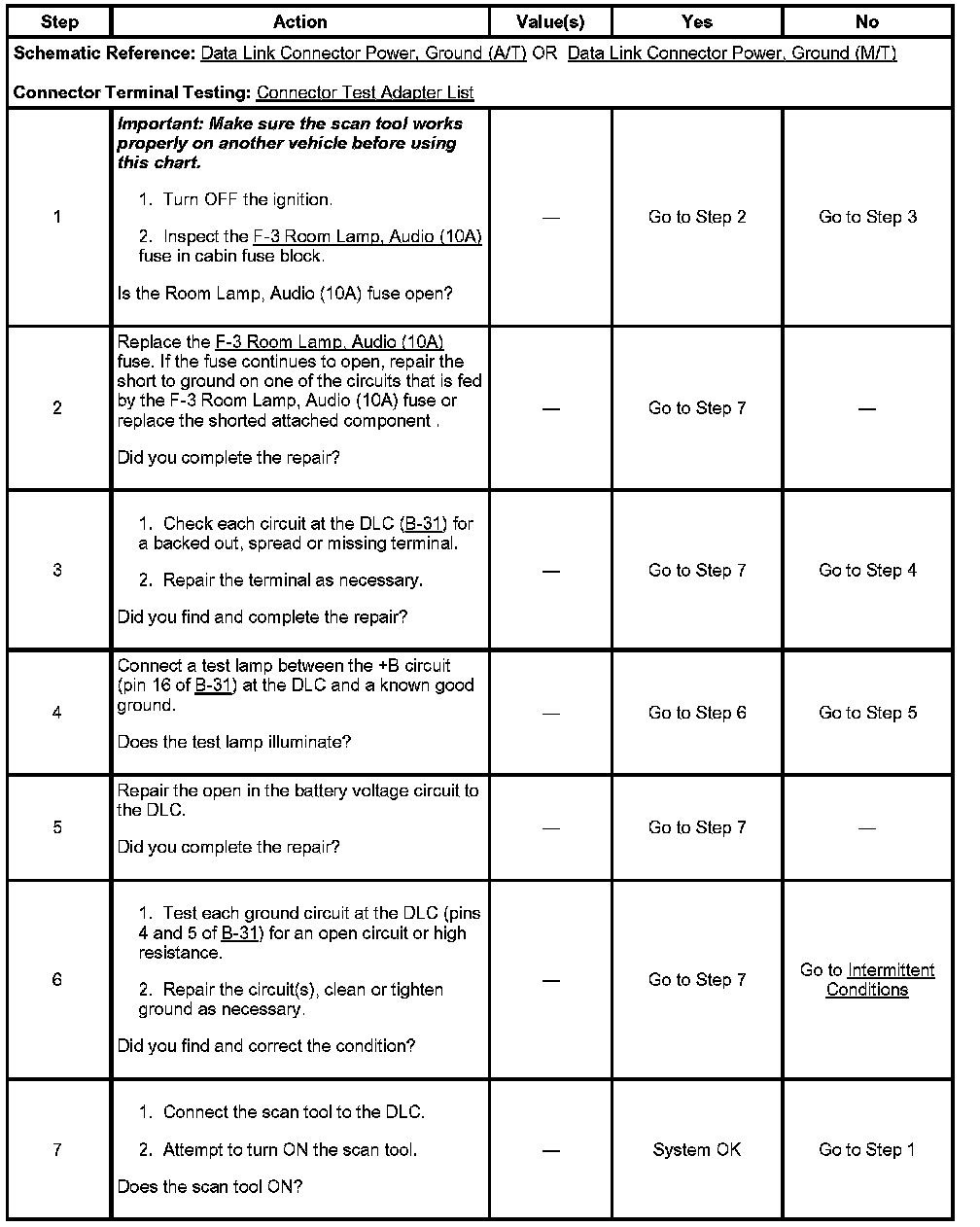

Circuit/ System Testing Scan Tool Does Not Power Up
