Diesel Emissions Fluid (DEF) System: Locations

SCR System Controls Component Views

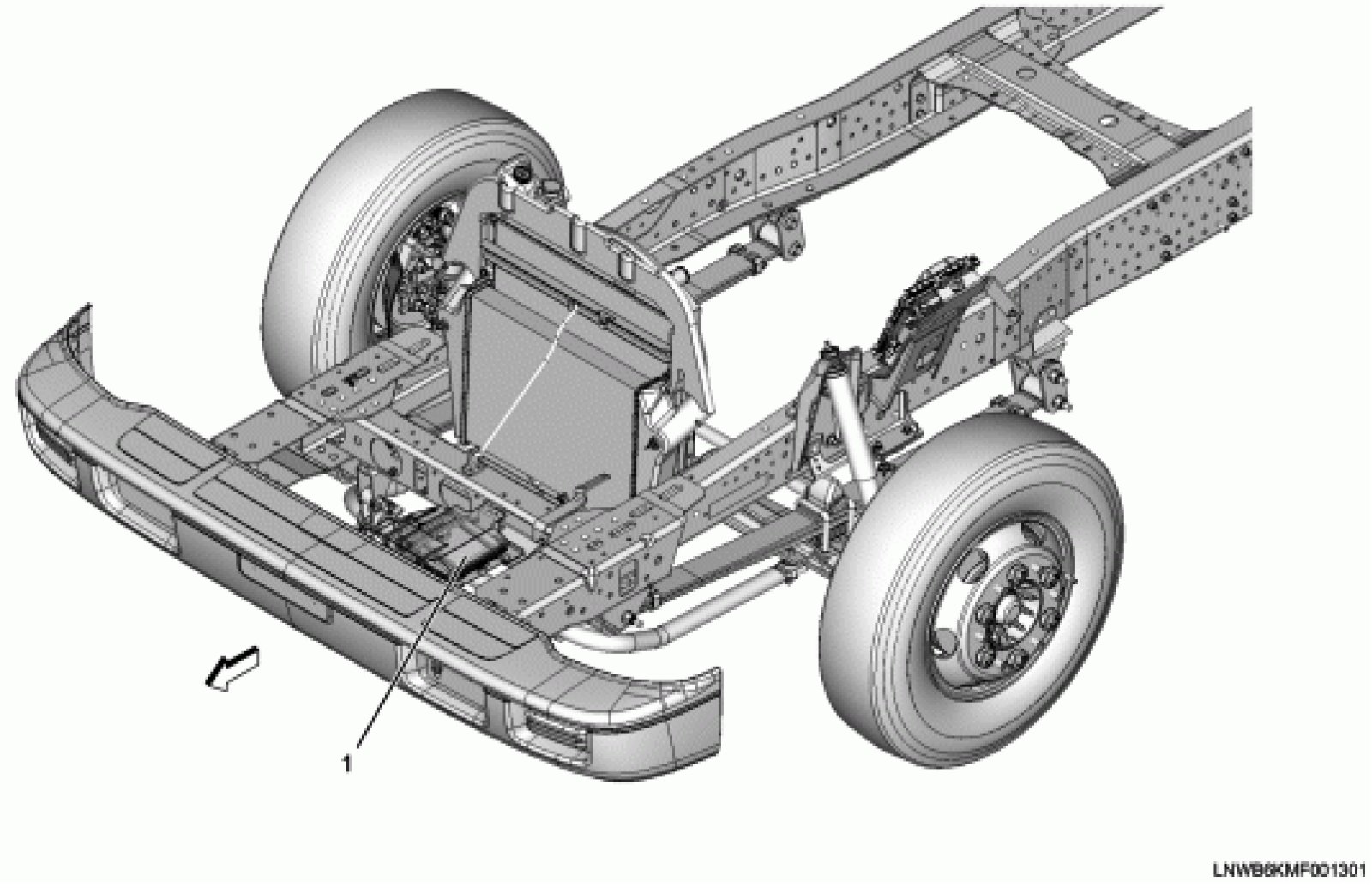

Legend
(1) Diesel exhaust fluid (DEF) control module

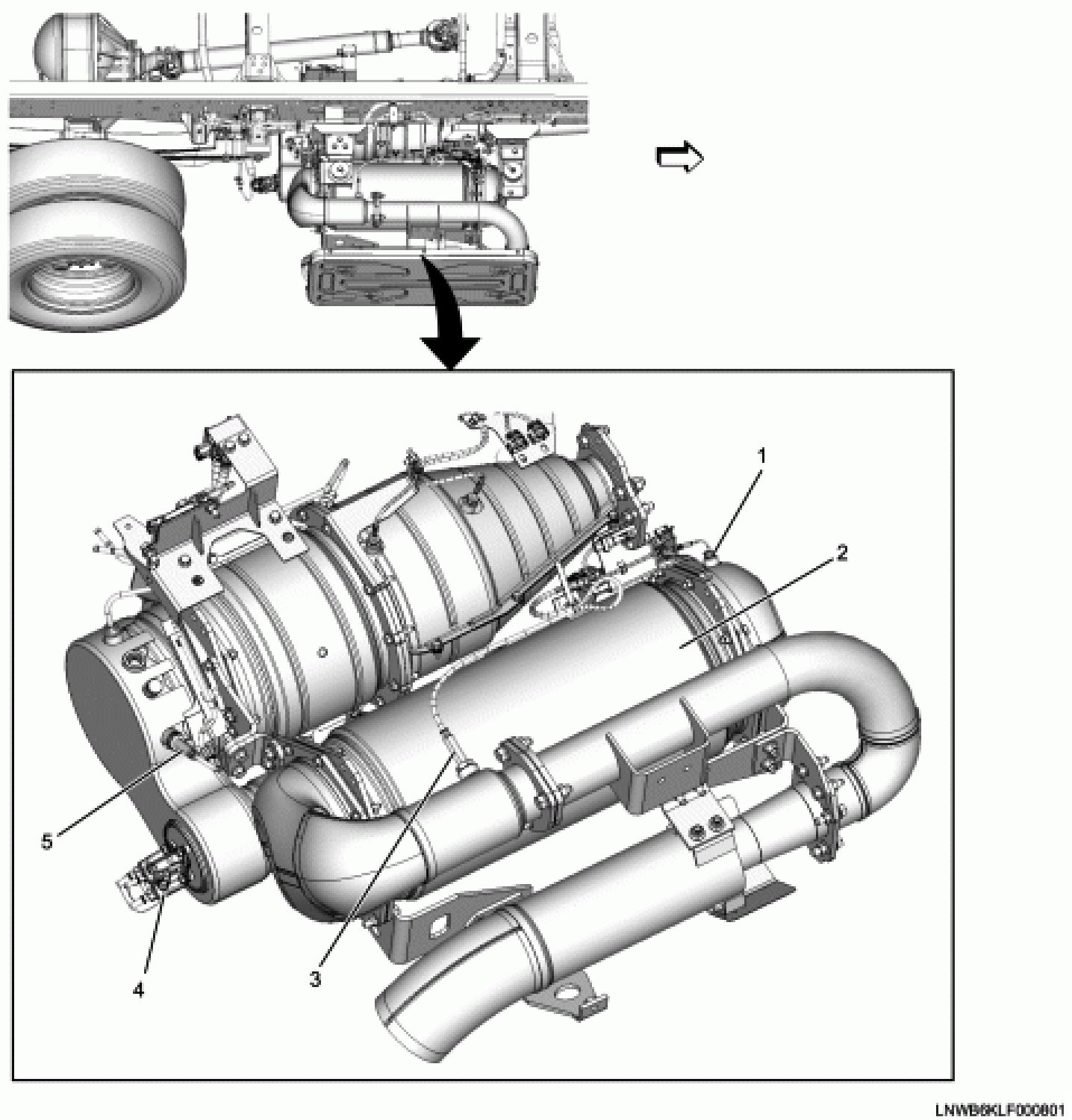

Legend
(1) Exhaust gas temperature (EGT) sensor 3
(2) SCR catalyst
(3) NOx sensor 2
(4) DEF injector
(5) NOx sensor 1

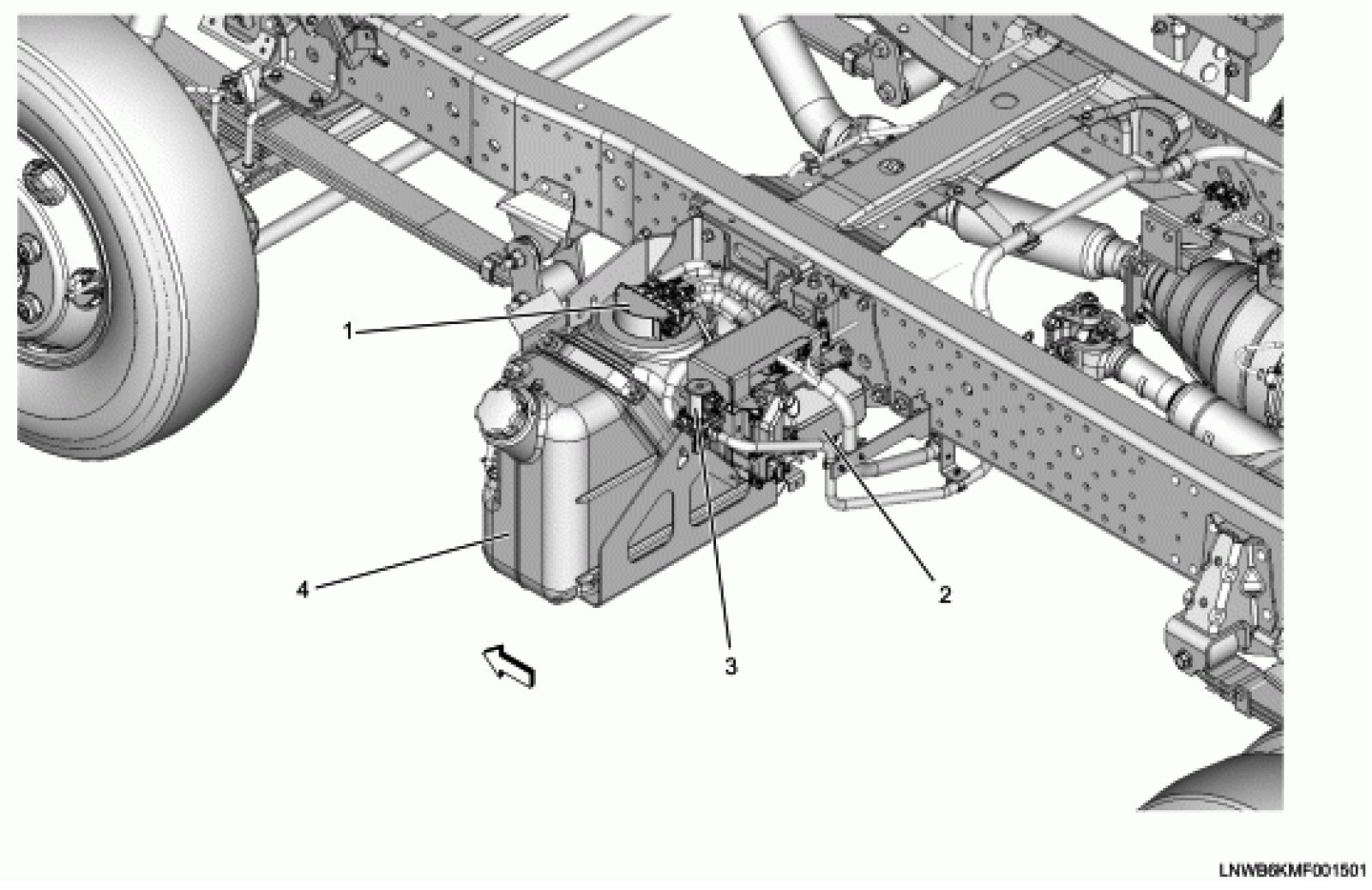

Legend
(1) DEF level sensor
(2) DEF supply pump
(3) DEF heater valve
(4) DEF tank

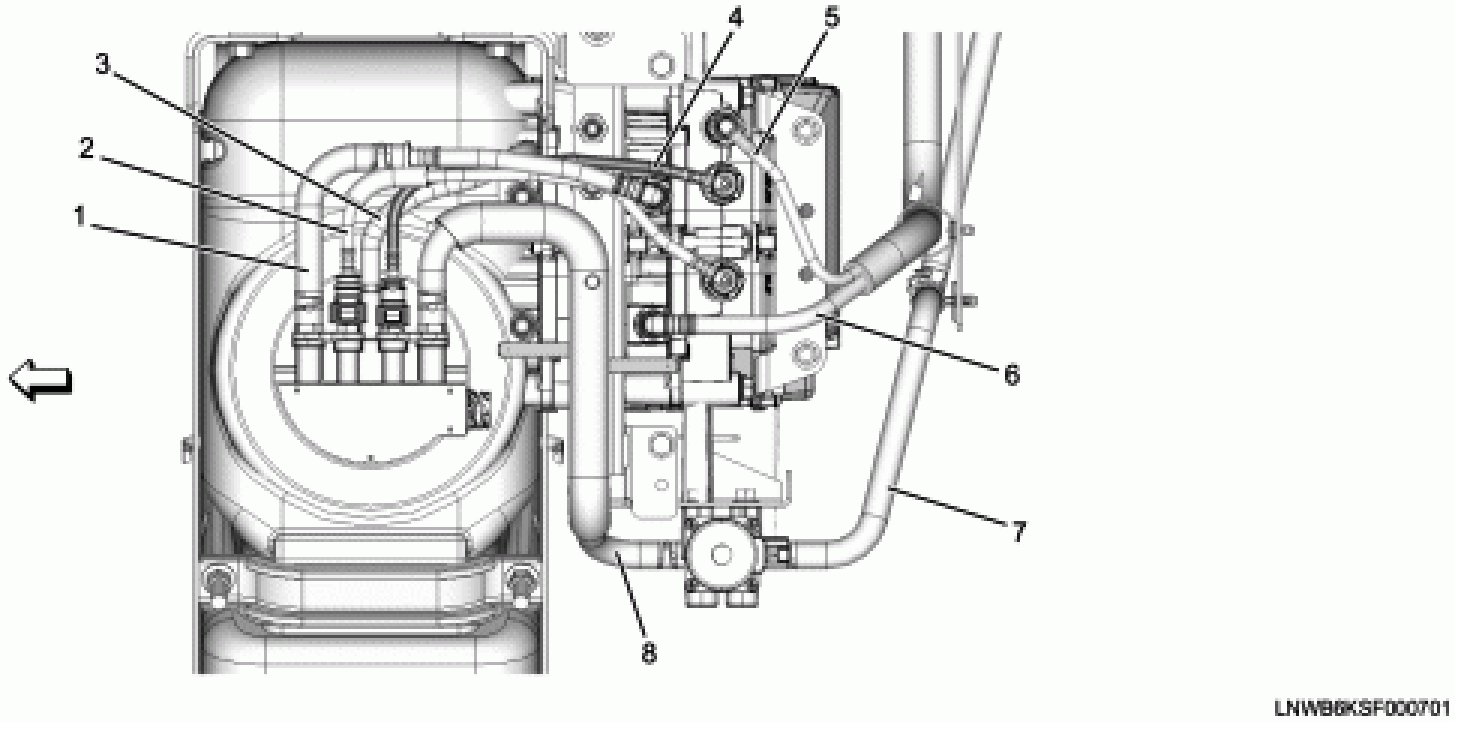

Legend
(1) Engine coolant hose (DEF tank to DEF supply pump)
(2) DEF suction hose
(3) Vent hose
(4) DEF backflow hose
(5) DEF pressure hose (to DEF injector)
(6) Engine coolant hose (DEF supply pump to DEF injector)
(7) Engine coolant hose (engine to DEF heater valve)
(8) Engine coolant hose (DEF heater valve to DEF tank)
