Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> FL-12

FL-12

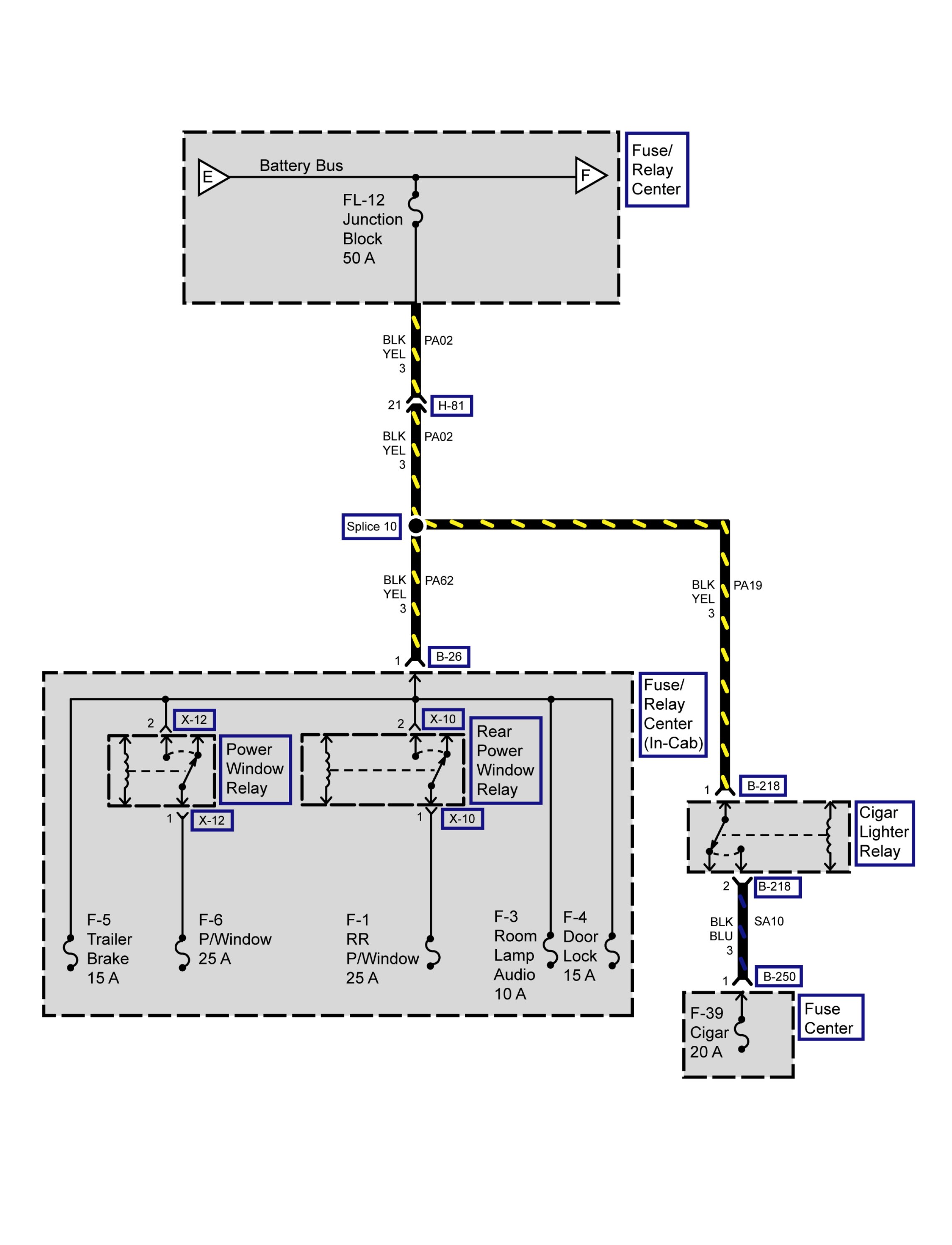

FL-12 Fuse
