Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>

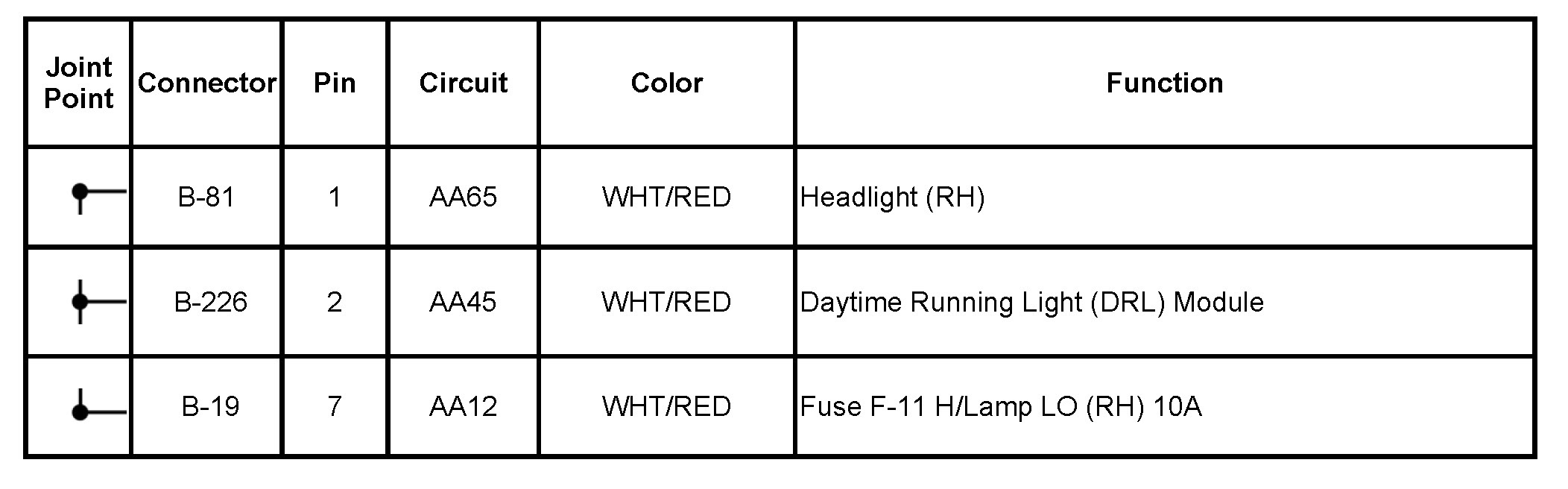

Splice 21
Splice 21
Splice 21

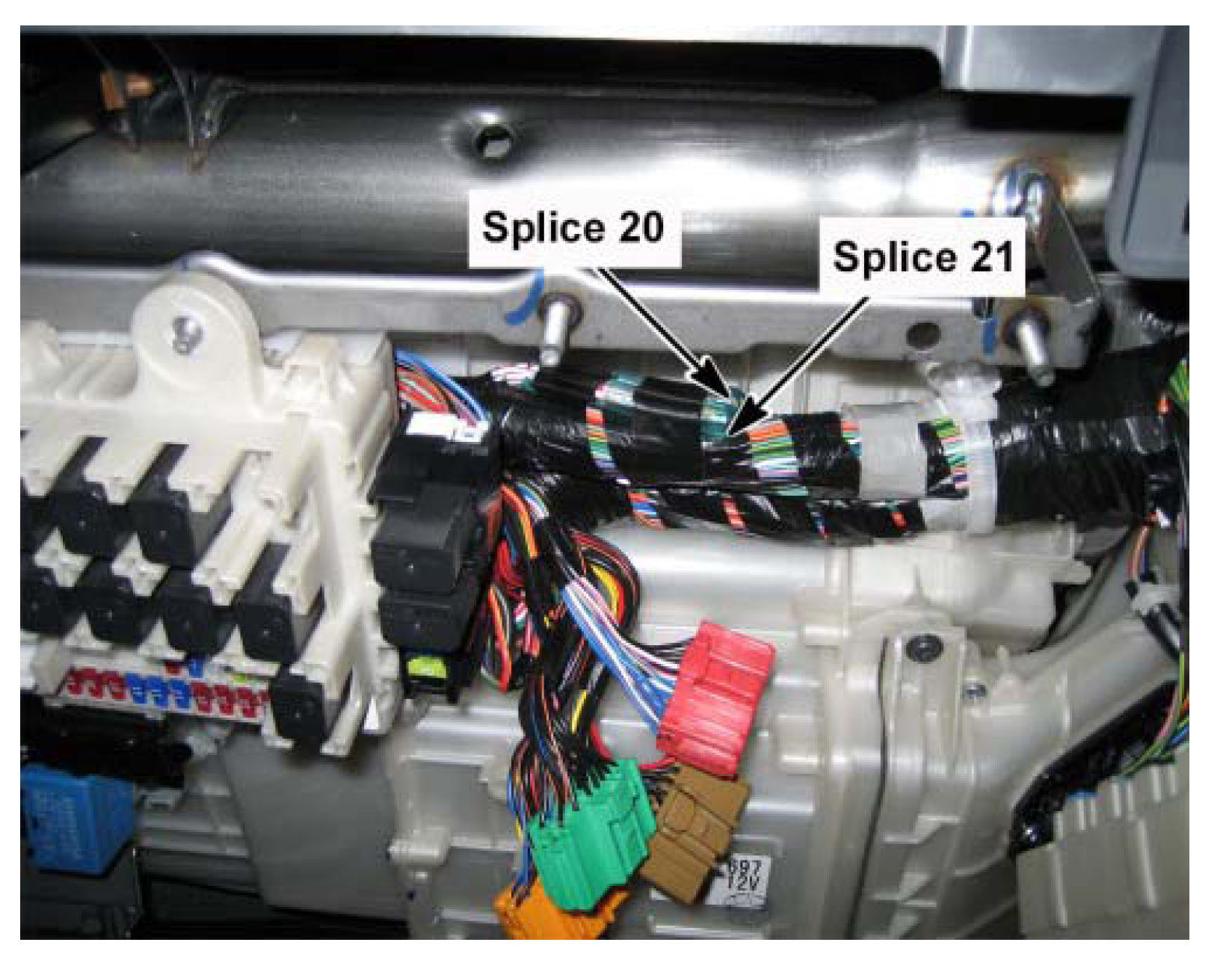

Behind the Center of the I/P, Right Side of the Fuse/Relay Center
