Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>

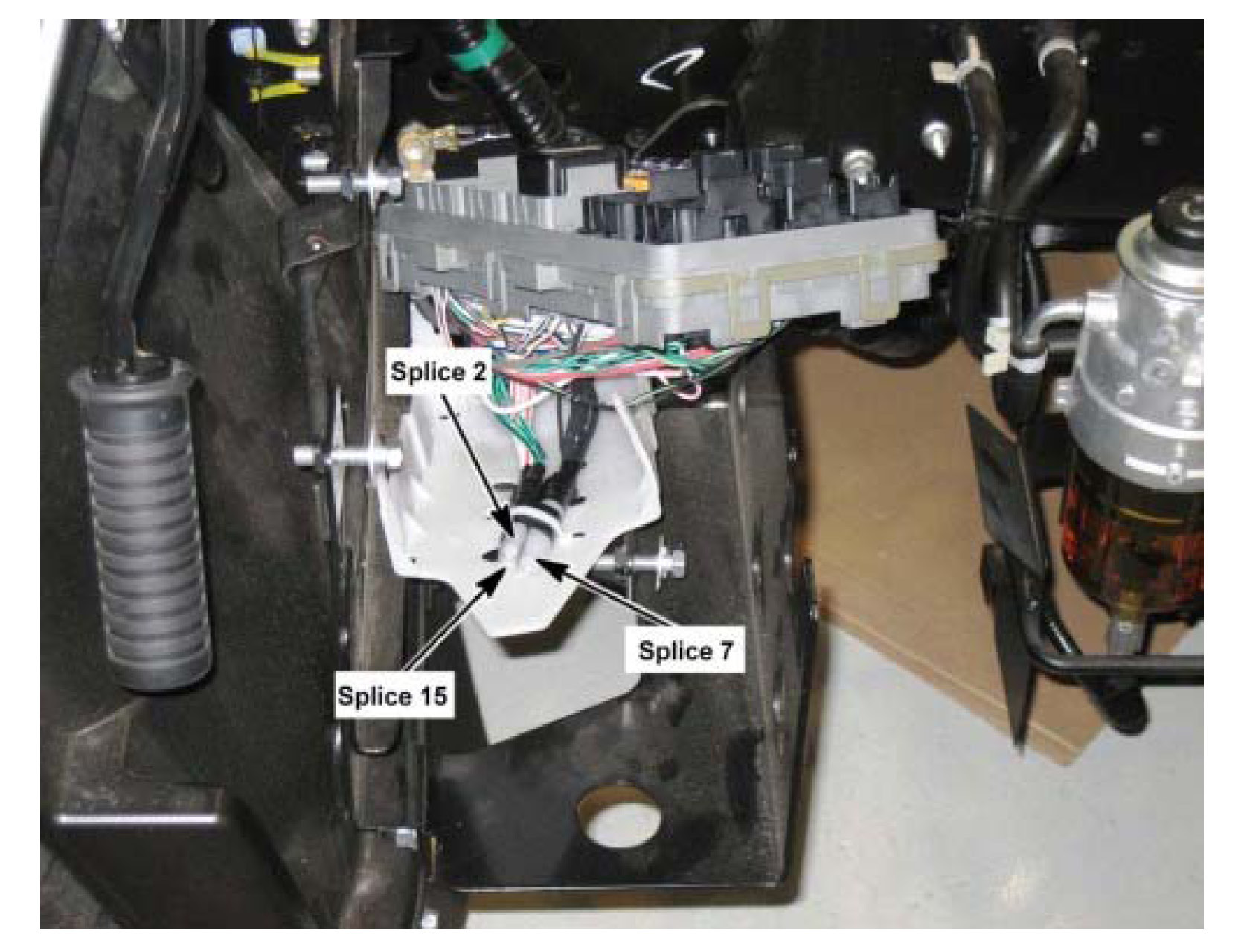

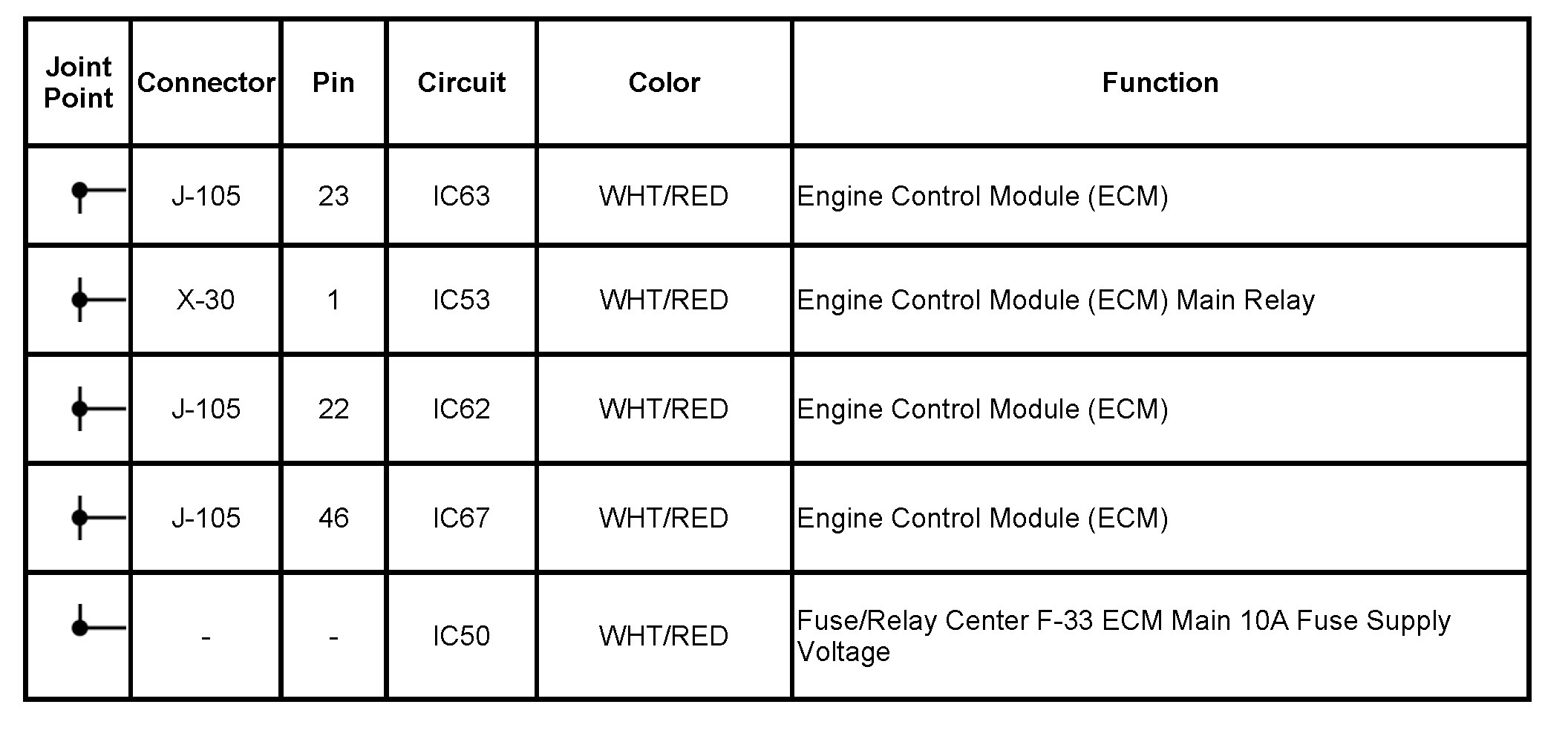

Splice 15
Splice 15
Splice 15
Inside the Fuse/Relay Center
