Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
H-87
H-87

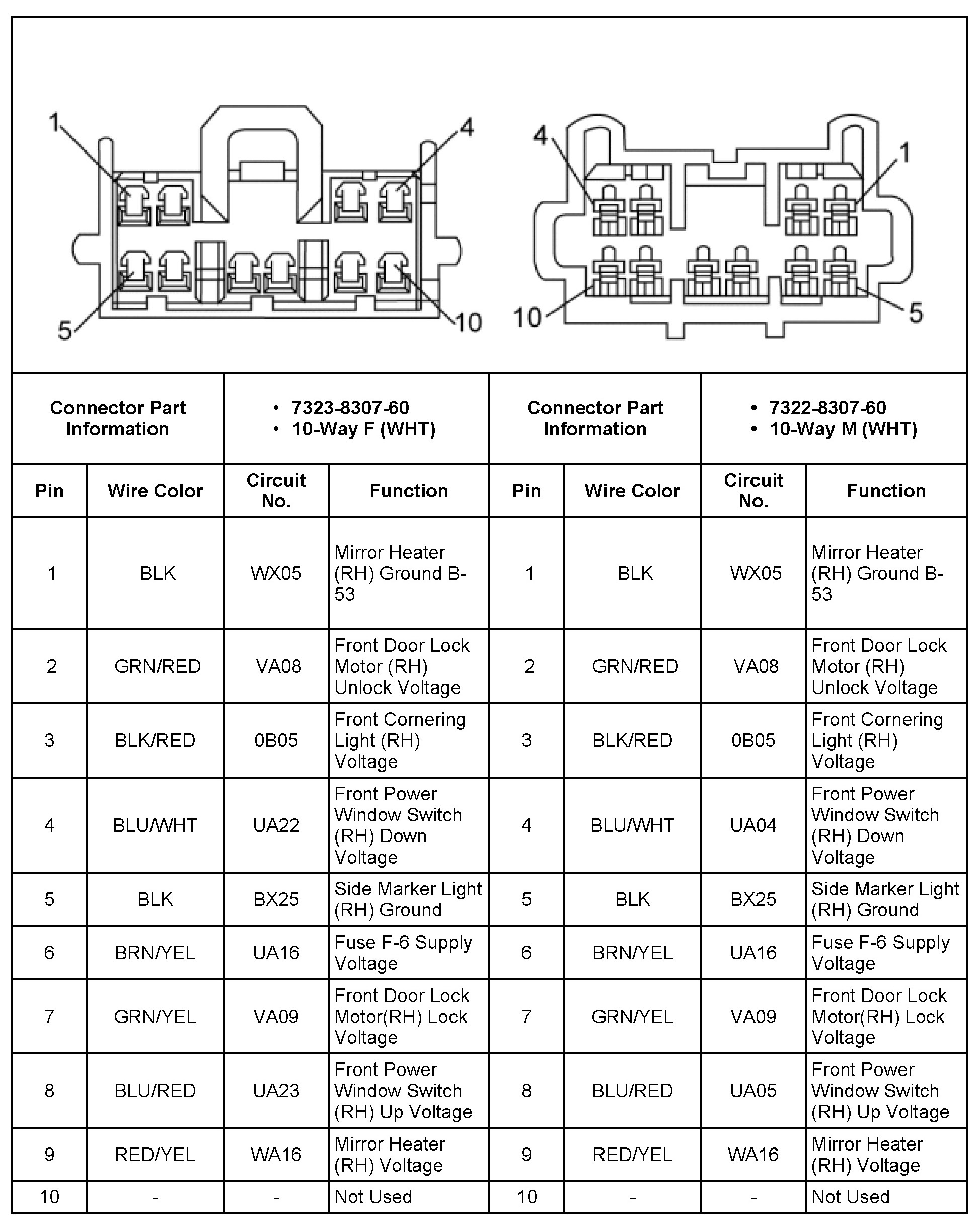

H-87 I/P Harness To The Door Harness (RH)

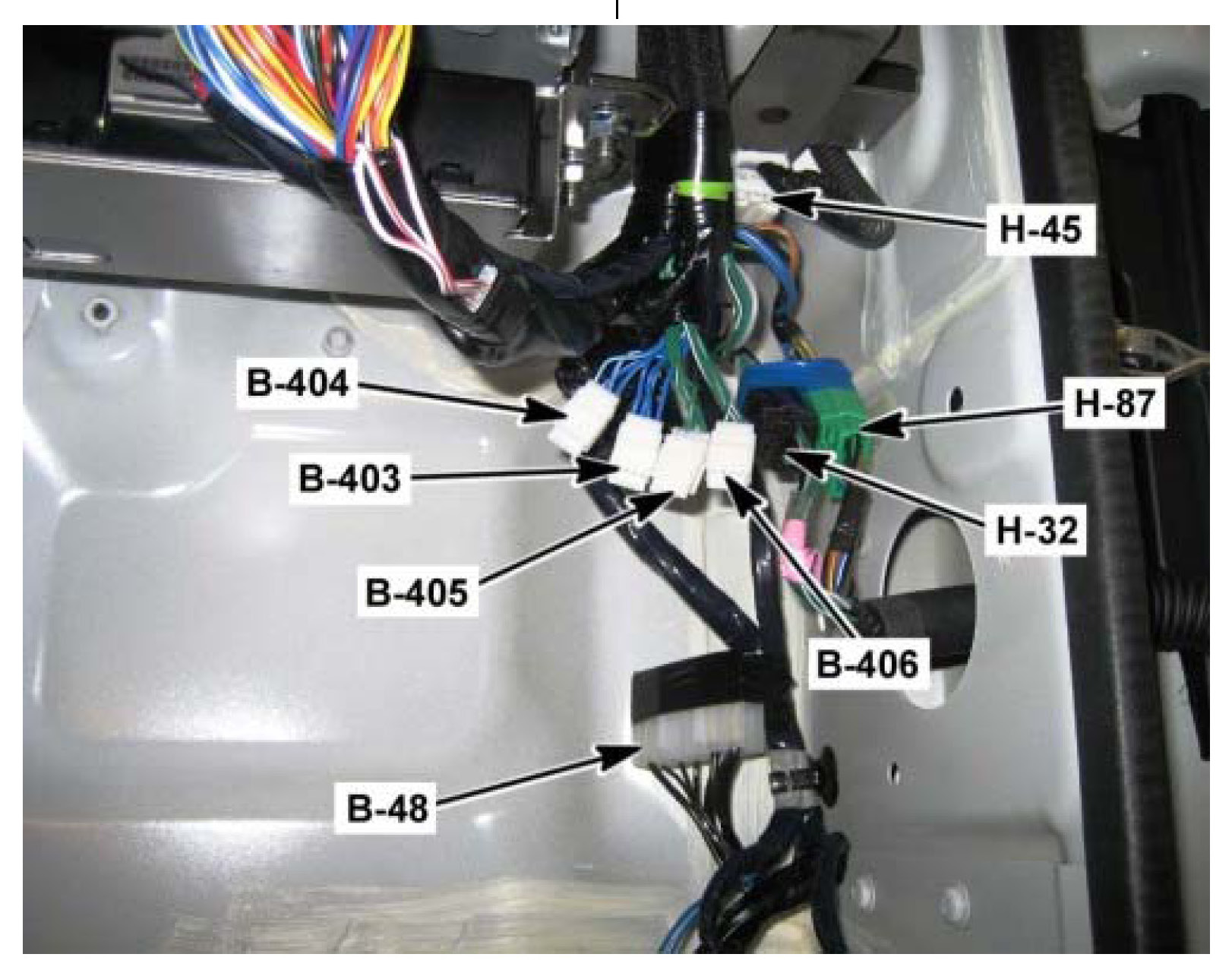

Behind the Glove Compartment On the Right Side, Next To The A-Pillar
