Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
H-49
H-49

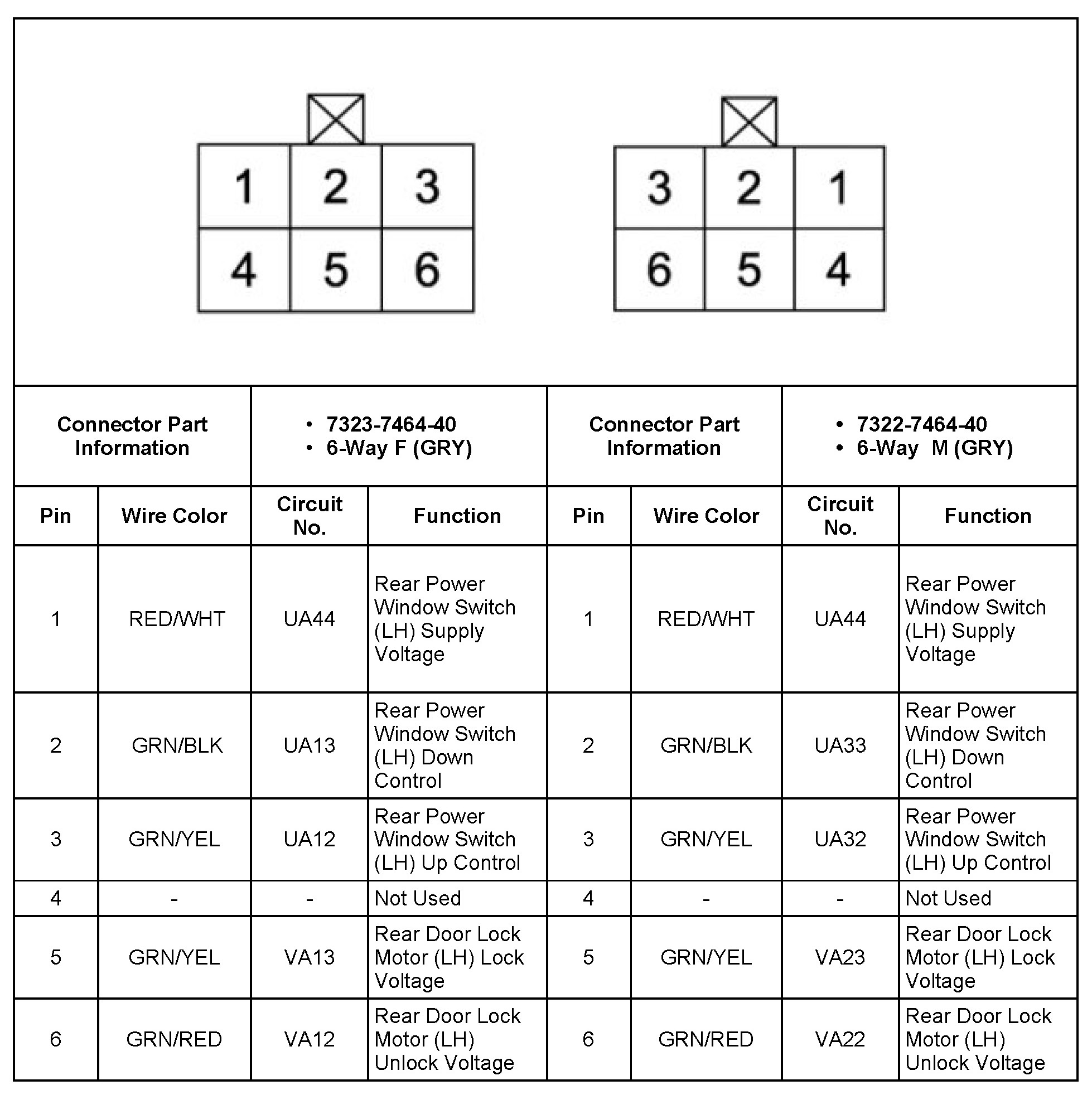

H-49 Floor Harness (LH) To The Rear Door Harness (LH)
