H-174
H-174

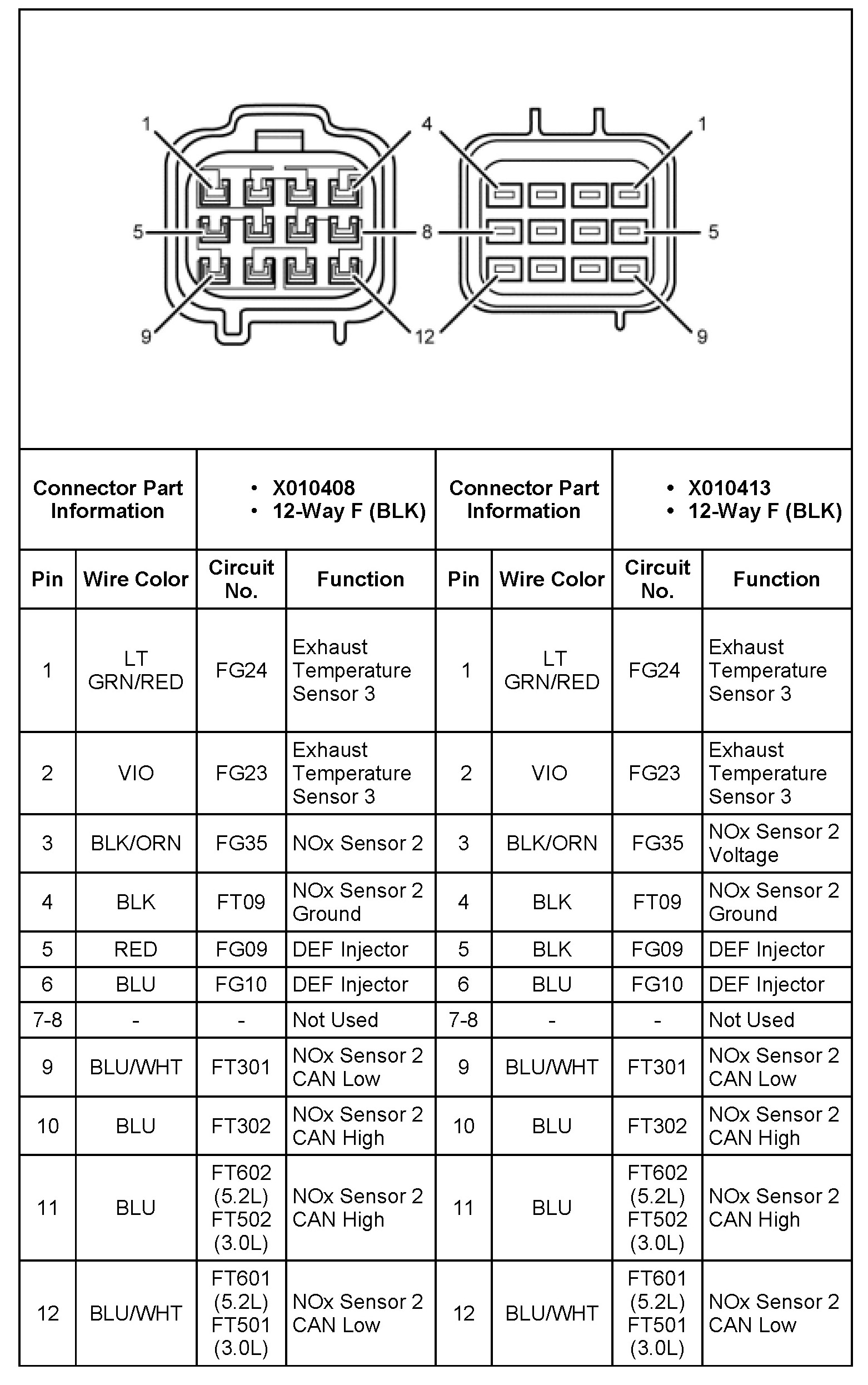

H-174 Front Chassis Harness To SCR Extension Harness

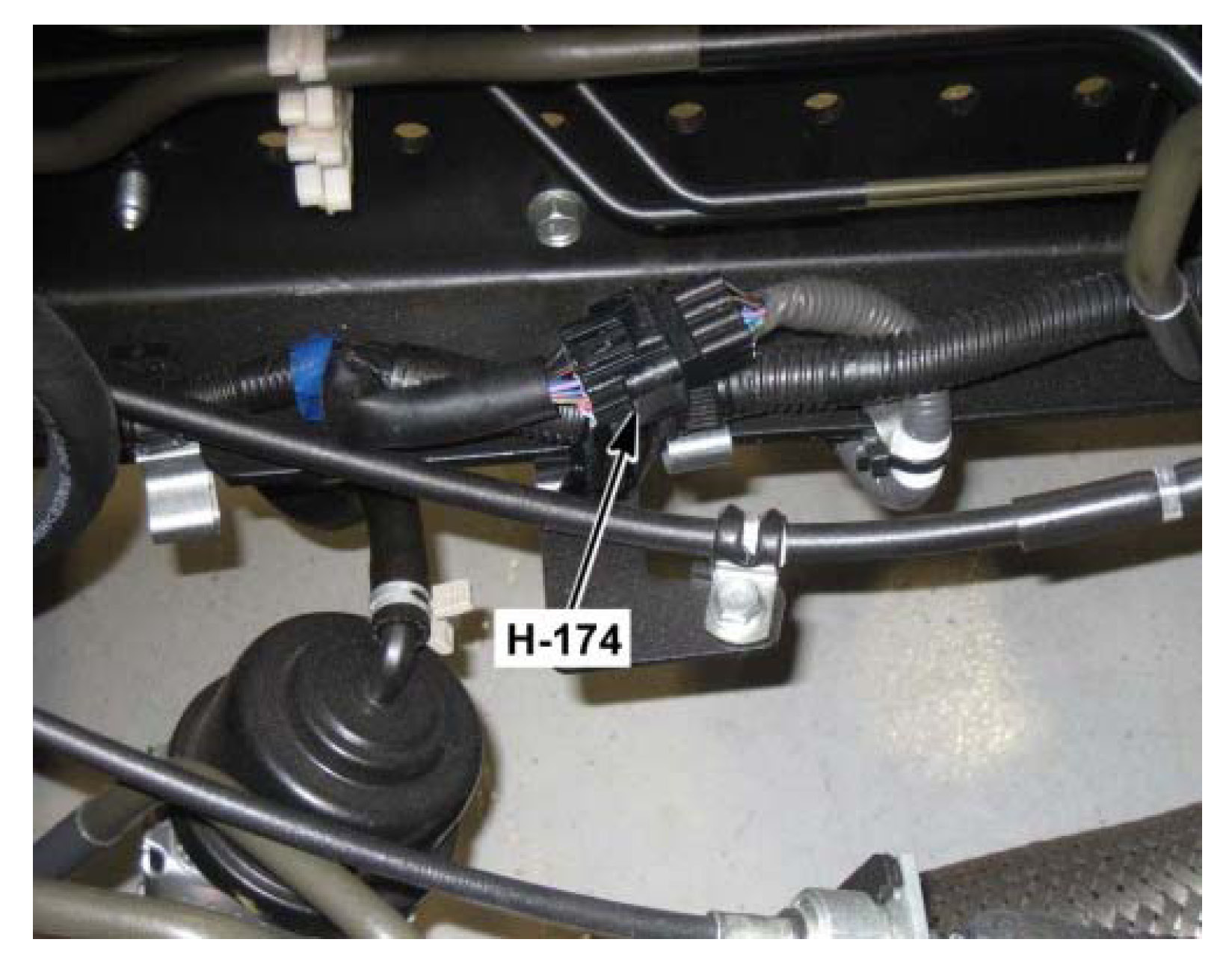

Right Inner Side of Frame Rail, Forward of the Transmission Crossmember
