Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
H-171
H-171

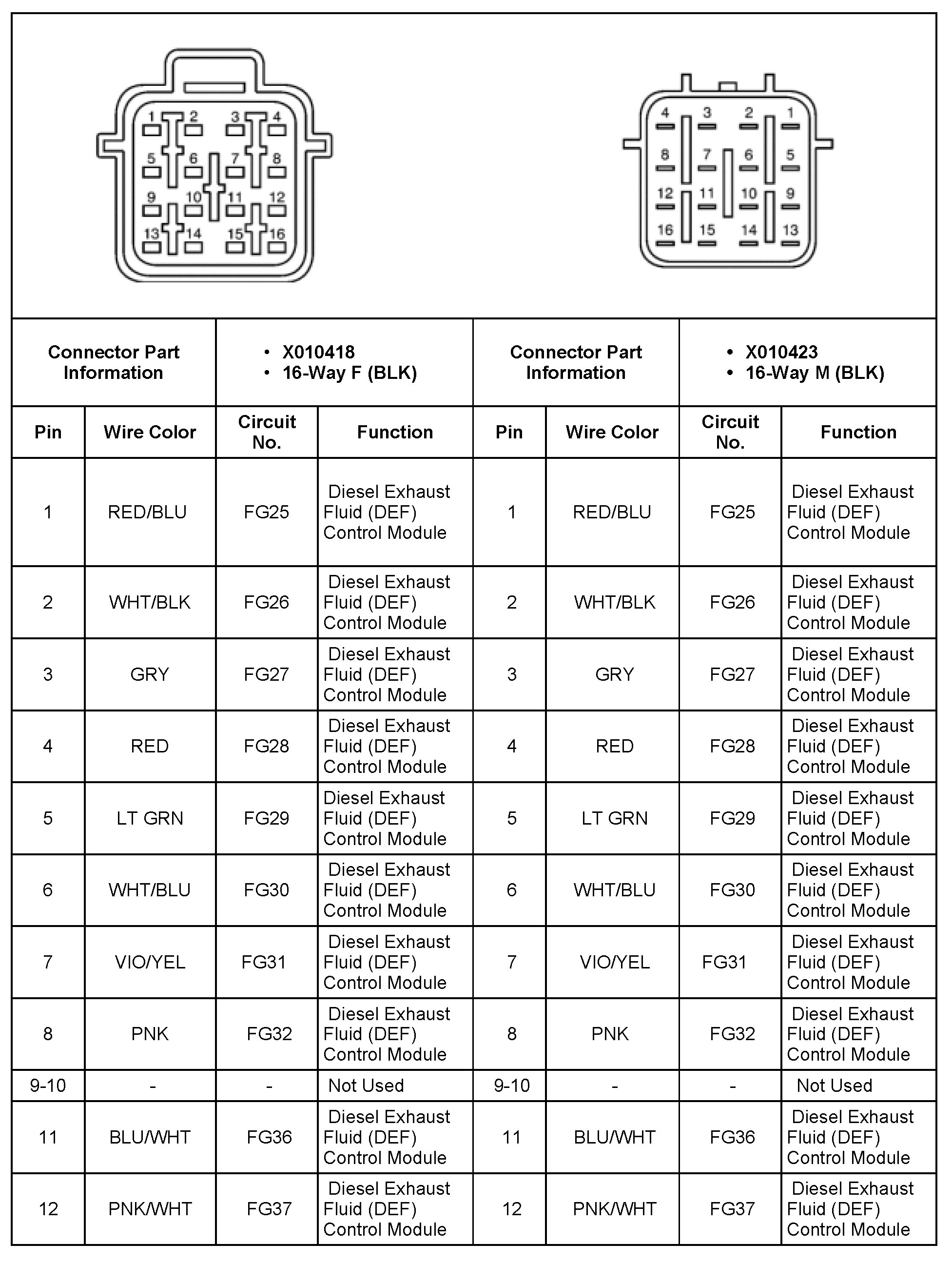

H-171 Front Chassis Harness To DEF Supply Module & UREA Level Sensor

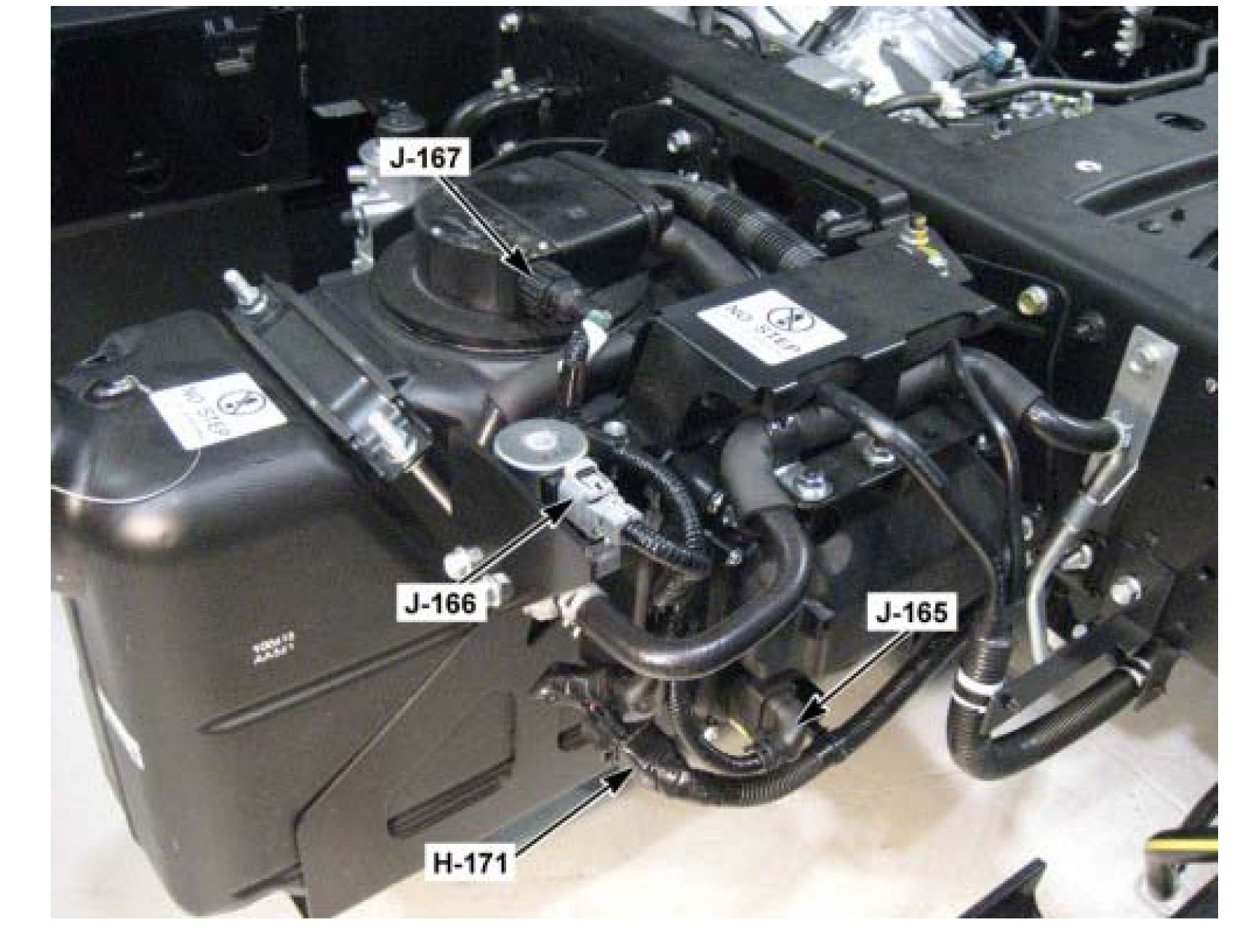

Front of Batteries On DEF Supply Module
