Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
E-75
E-75

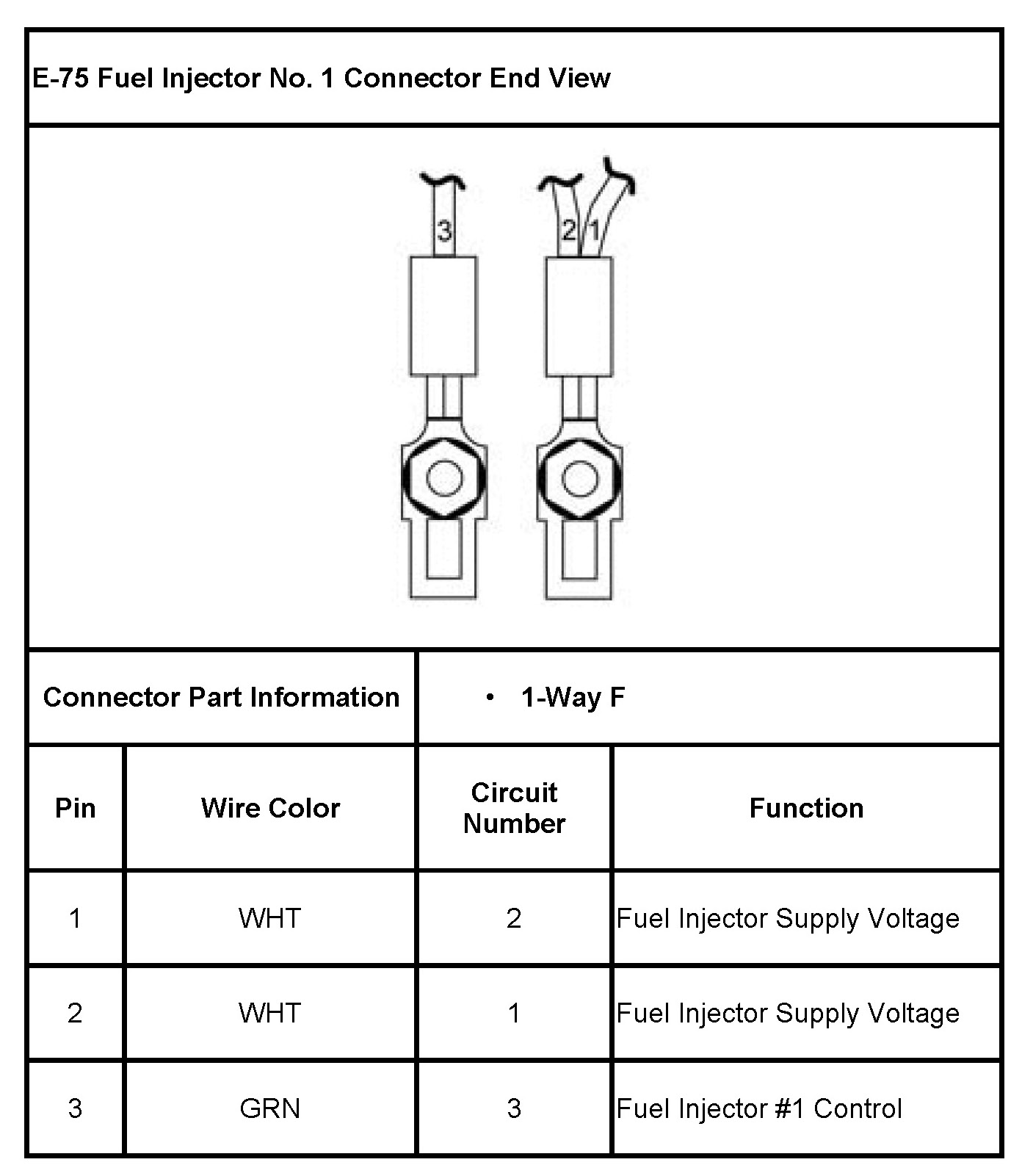

E-75 Fuel Injector No. 1

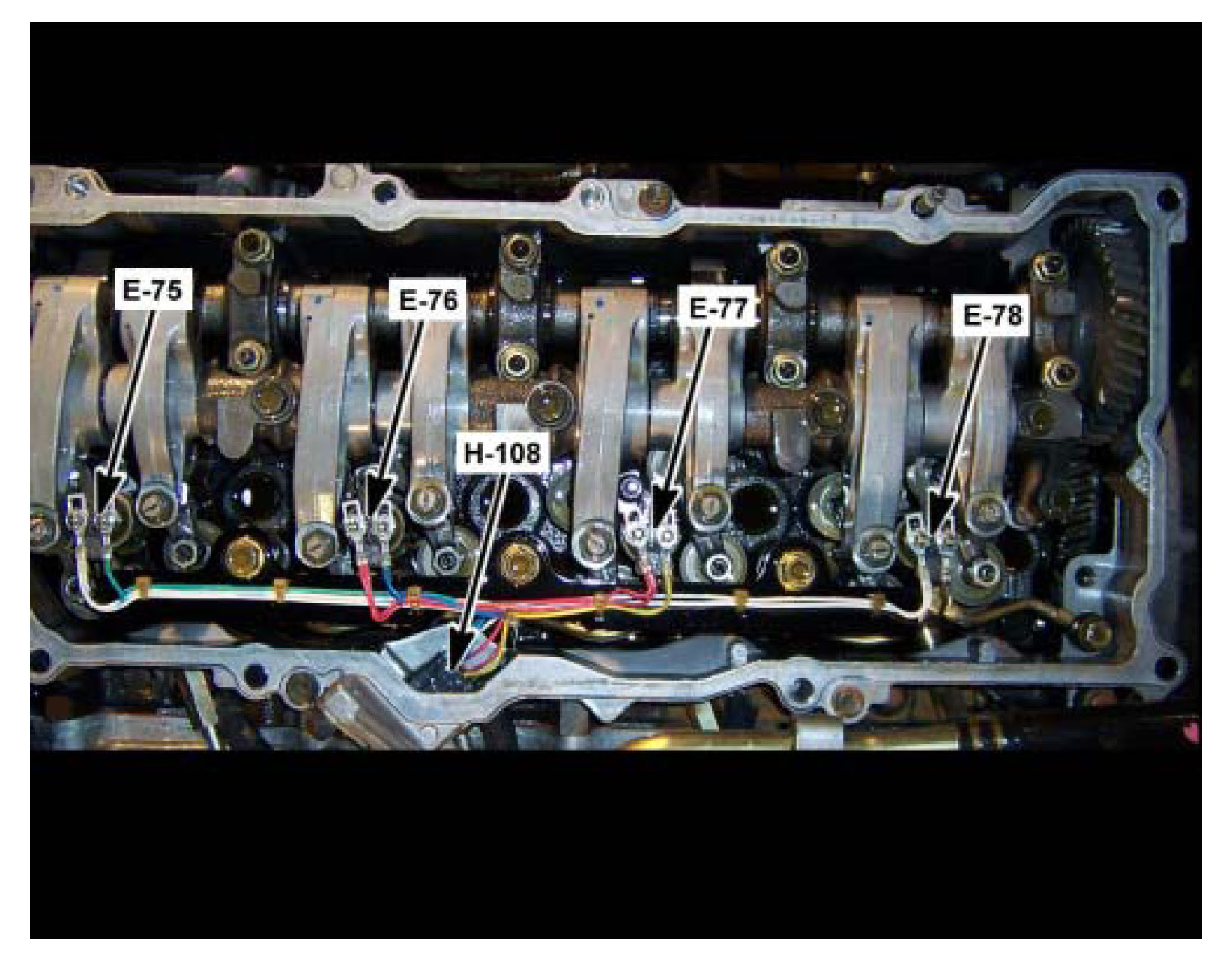

On the Upper Left Side of the Engine, In the Cylinder Head, Under the Valve Cover, At Cylinder 1
