Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
D-40
D-40

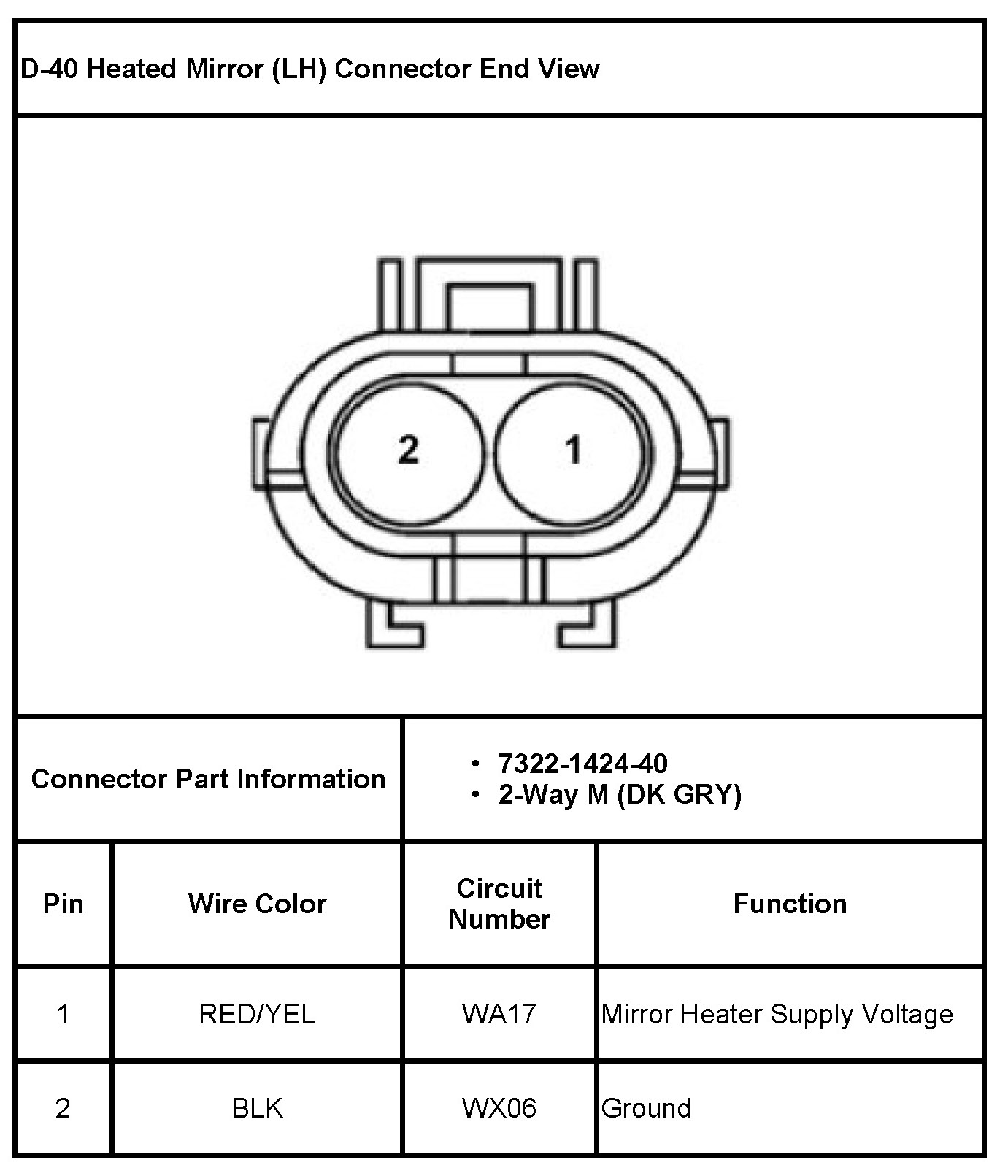

D-40 Heated Mirror (LH)
On the Exterior Side of the Left Door
Mirror Heater (LH) (D-40)
On the Exterior Side of the Left Door
