Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Locations >> Connector Locations >> D-28

D-28

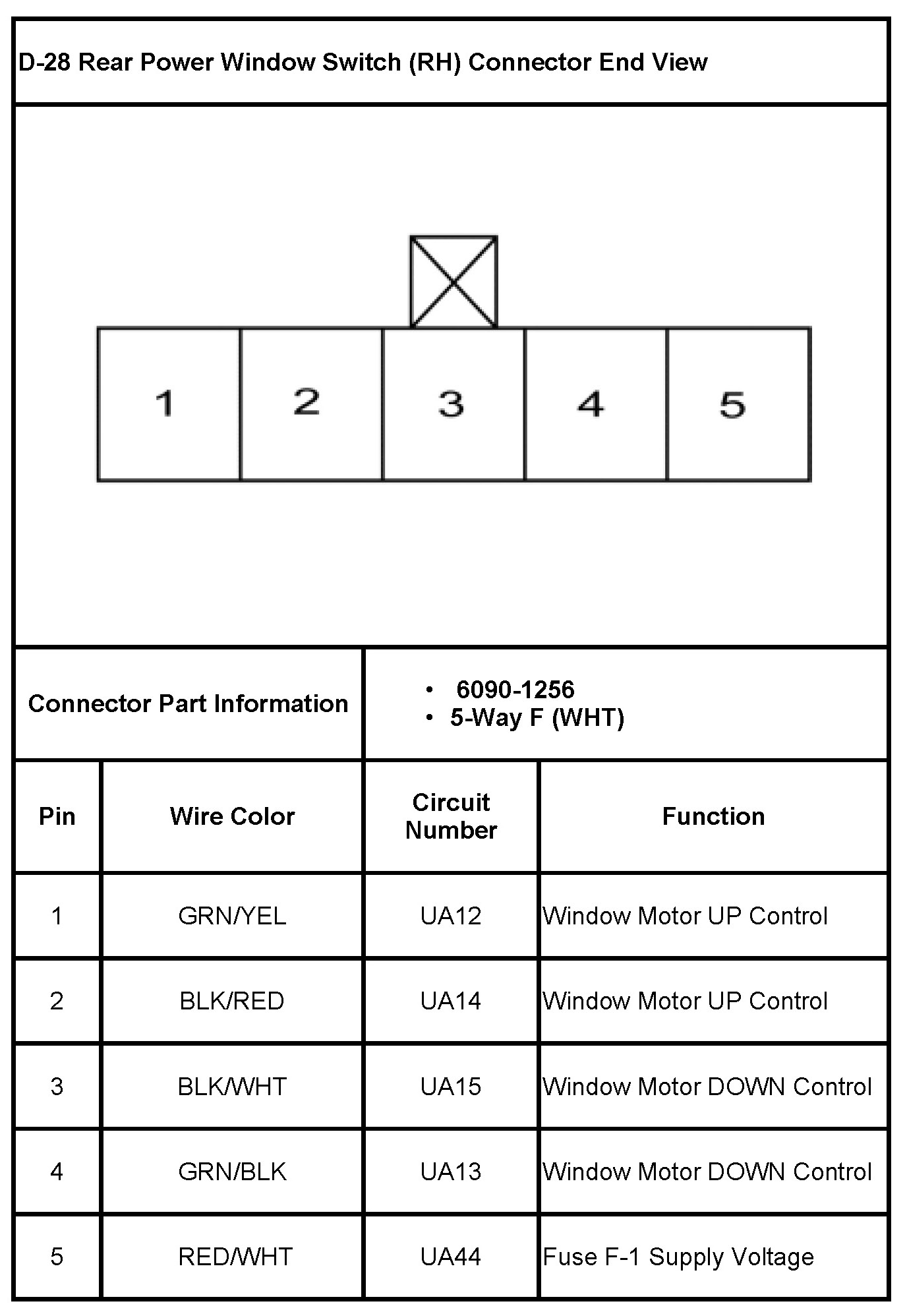

D-28 Rear Power Window Switch (RH)
