Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
D-17
D-17

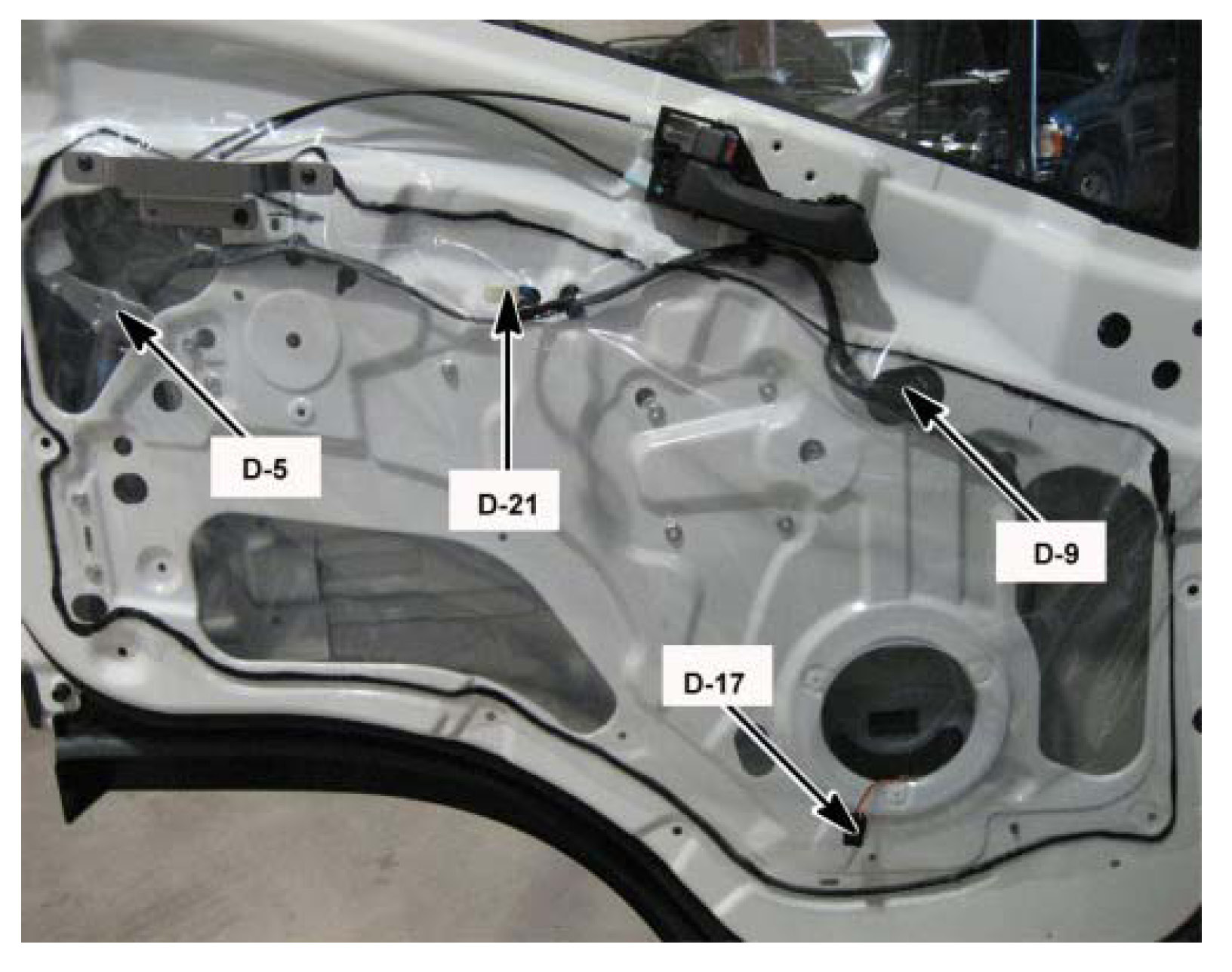

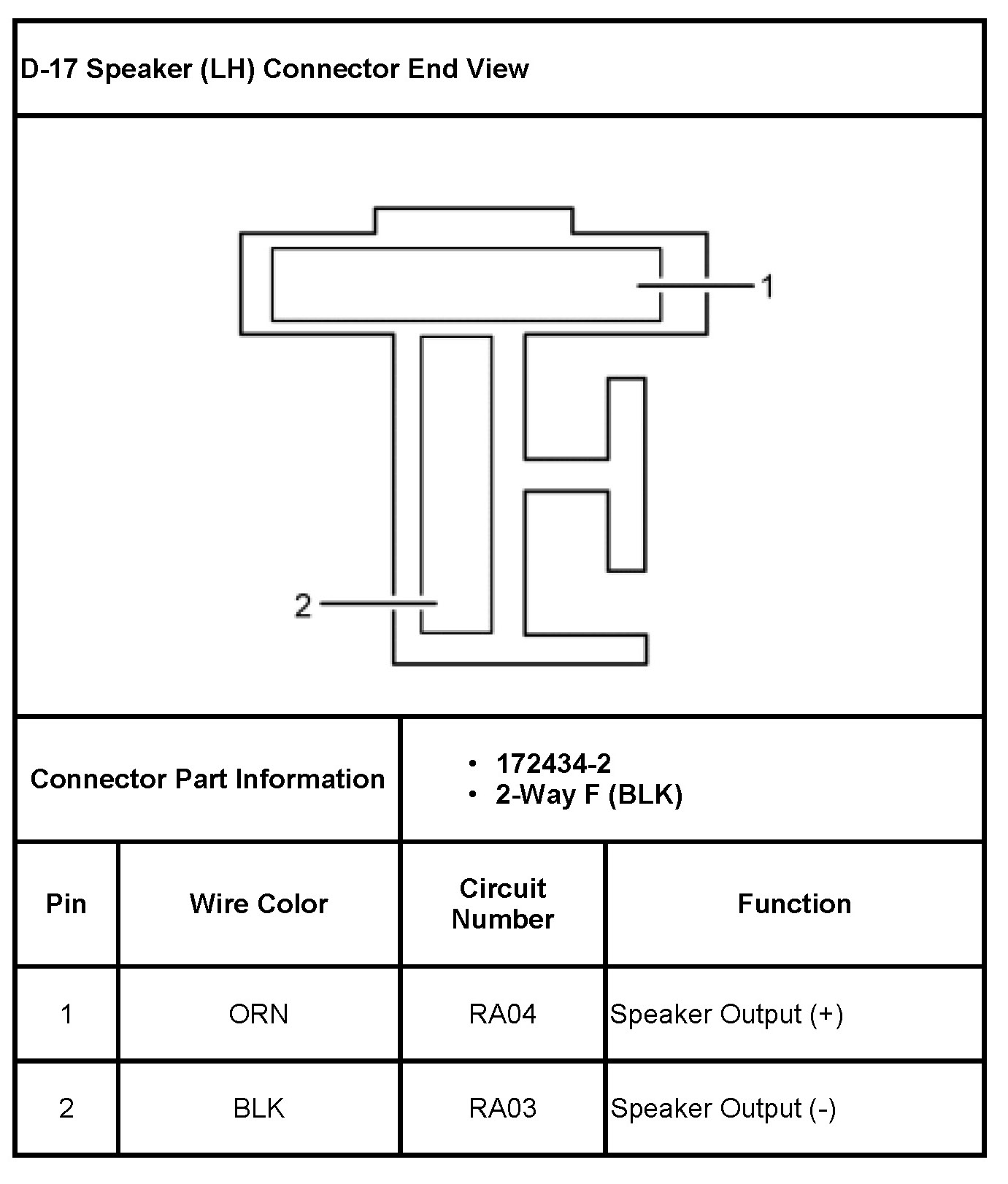

D-17 Speaker (LH)
In the Left Front Door, On the Speaker

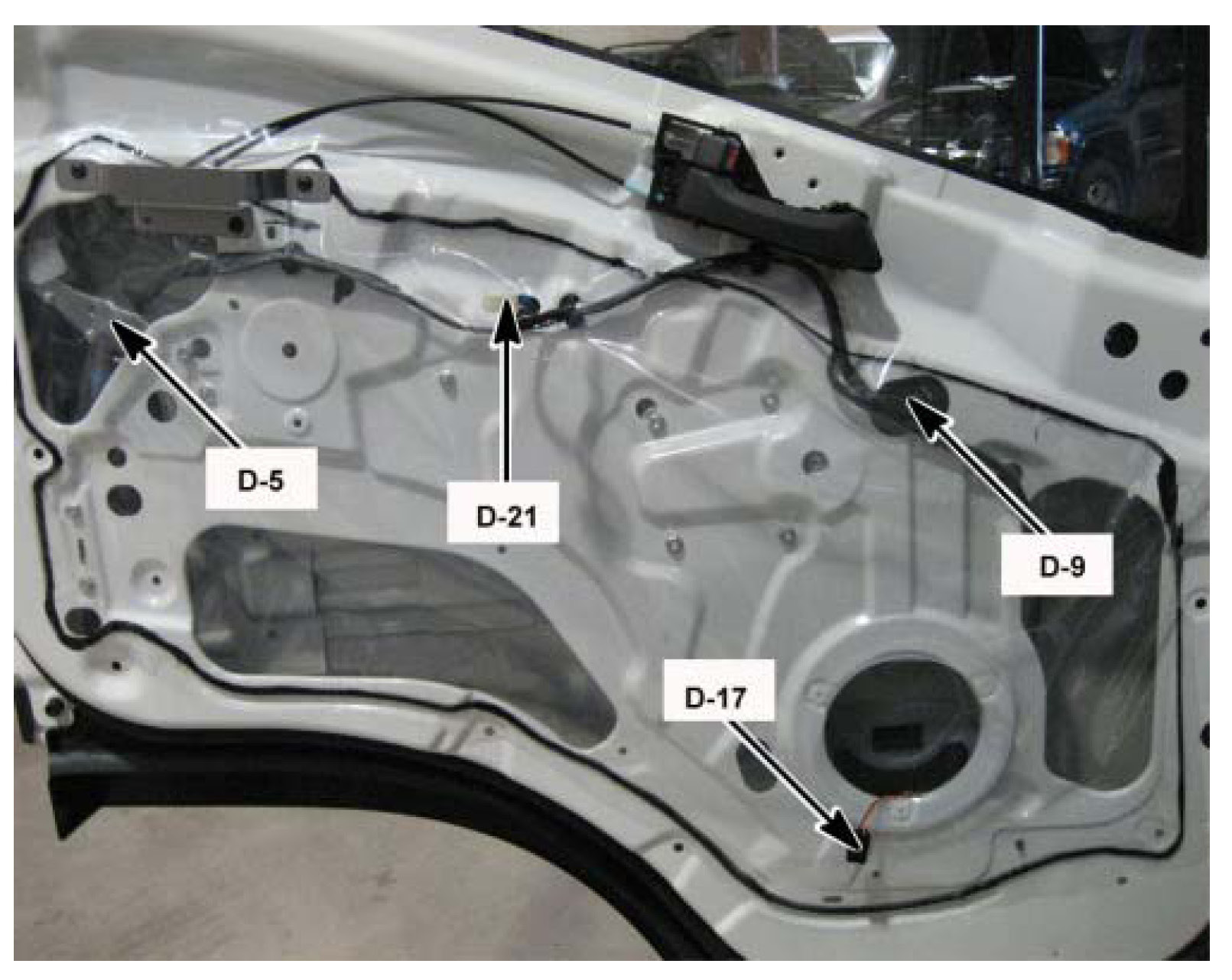

Speaker (LH) (D-17)
In the Left Front Door, On the Speaker
