Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
B-5 to X-30 Component ID List
>>
J-19
J-19

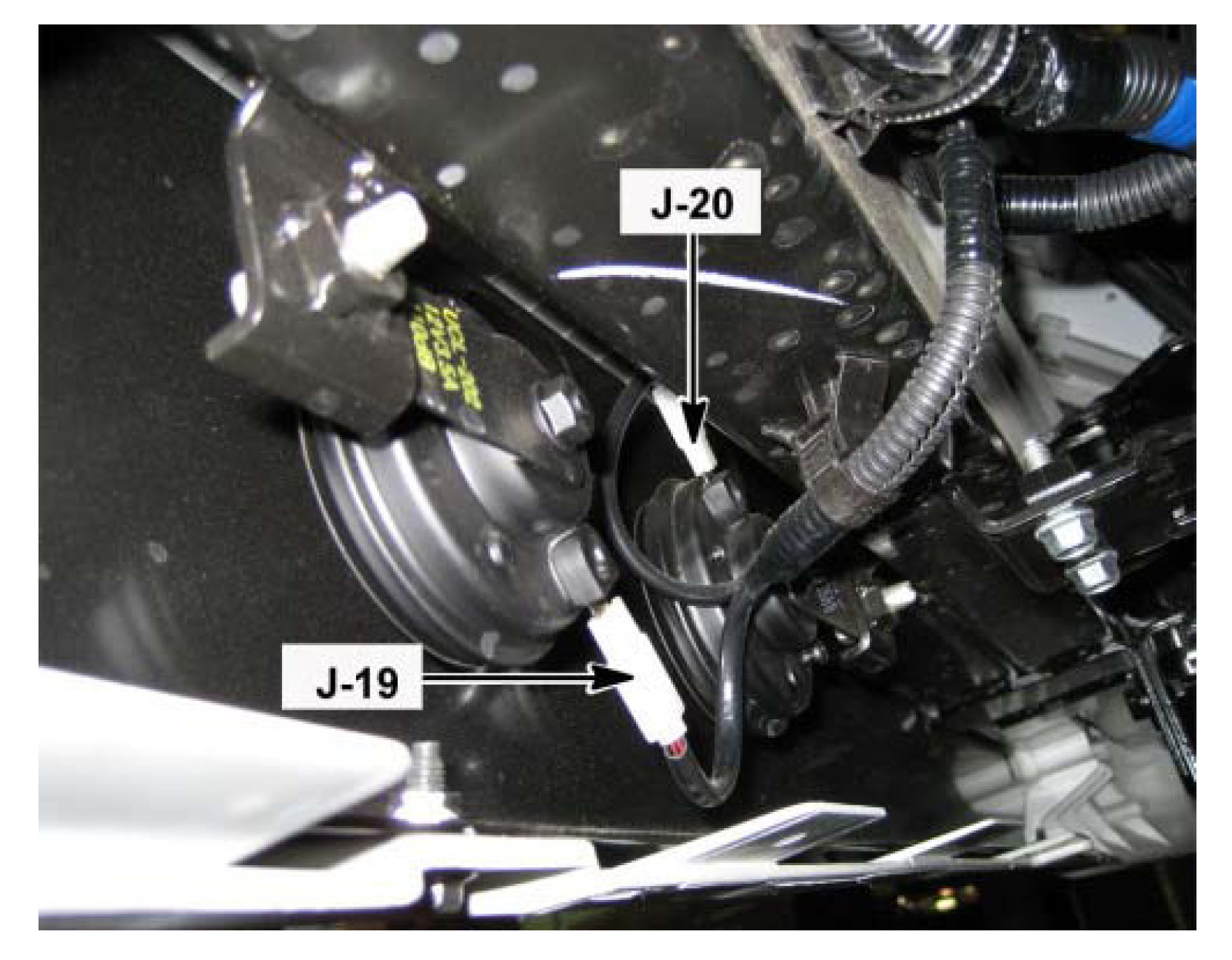

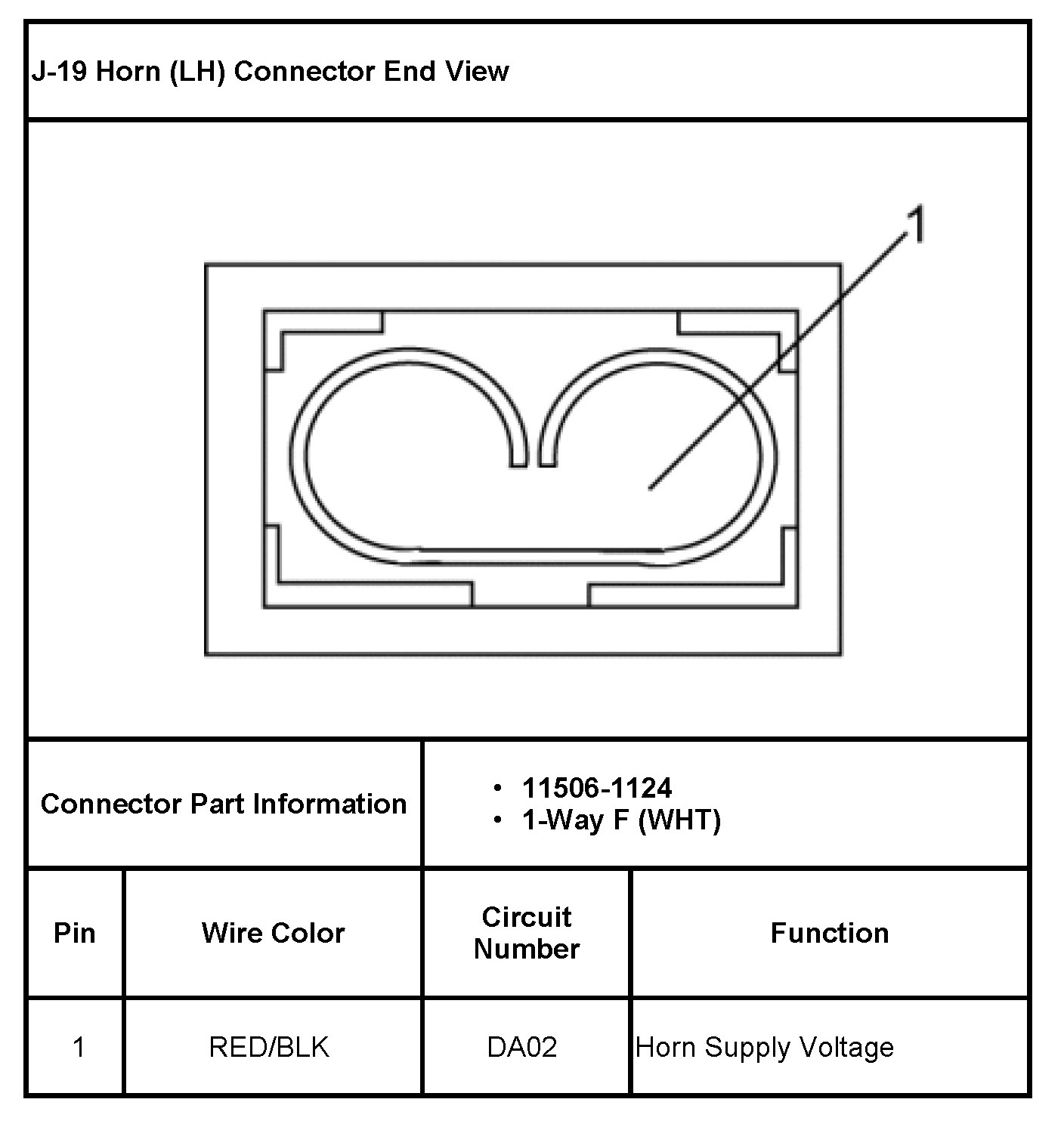

J-19 Horn (LH)
Front of the Vehicle, Behind the Front Bumper
Horn (LH) (J-19)
Front of the Vehicle, Behind the Front Bumper
