Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Locations >> Component Locations >> B-5 to X-30 Component ID List >> J-118

J-118

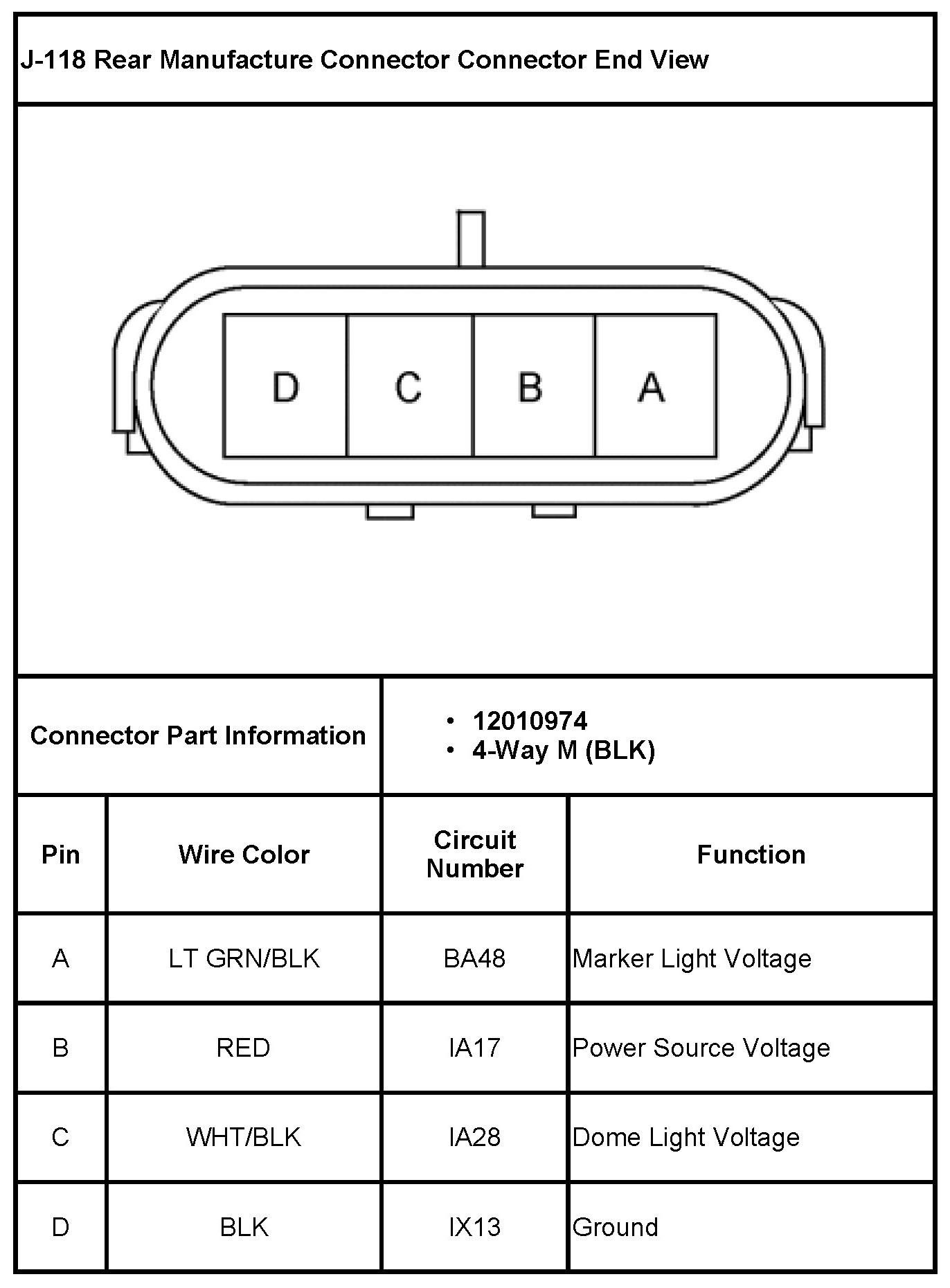

J-118 Rear Manufacture Connector







Center Rear of the Last Crossmember

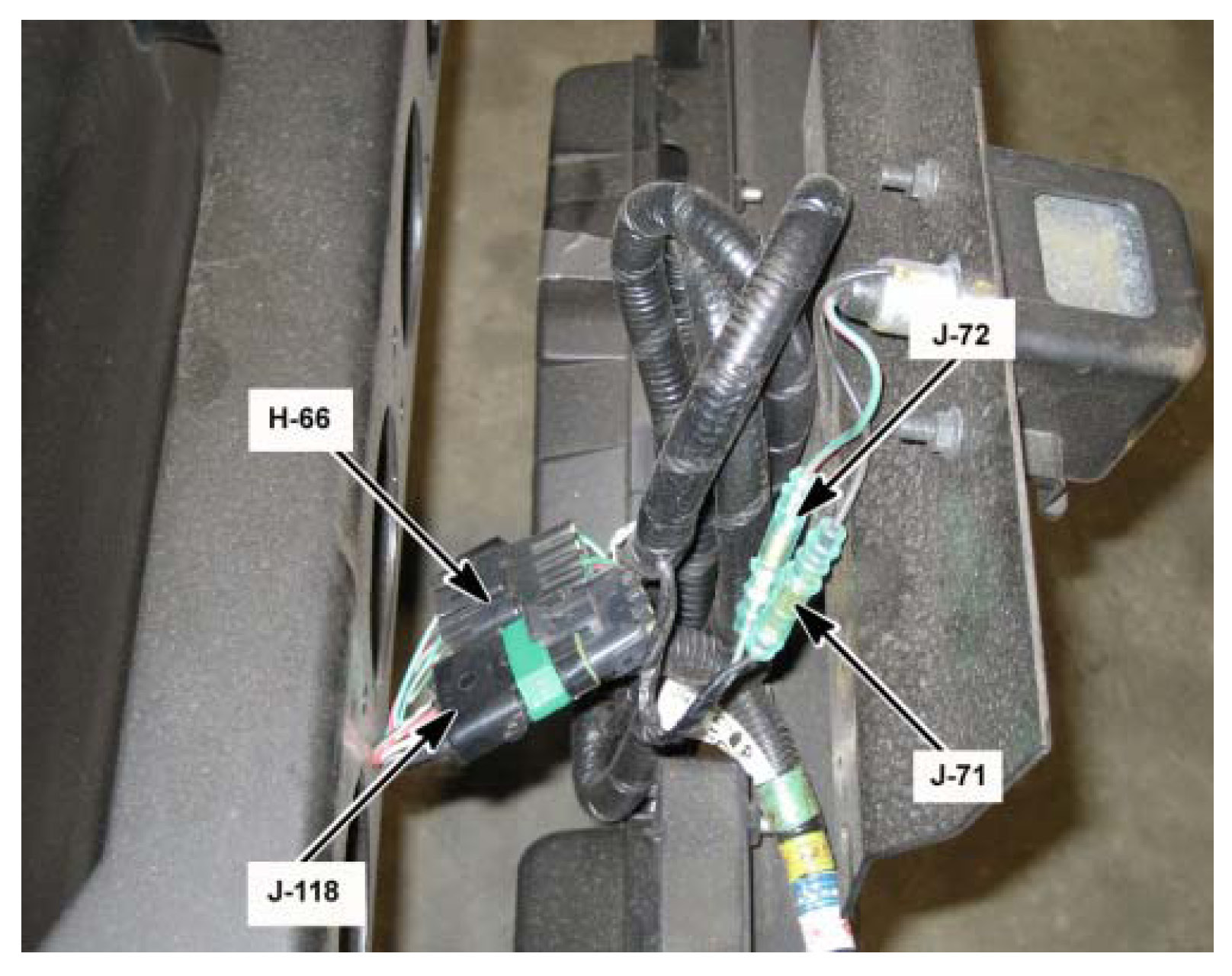

Rear Manufacturer Connector (J-118)

Center Rear of the Last Crossmember
