E-146

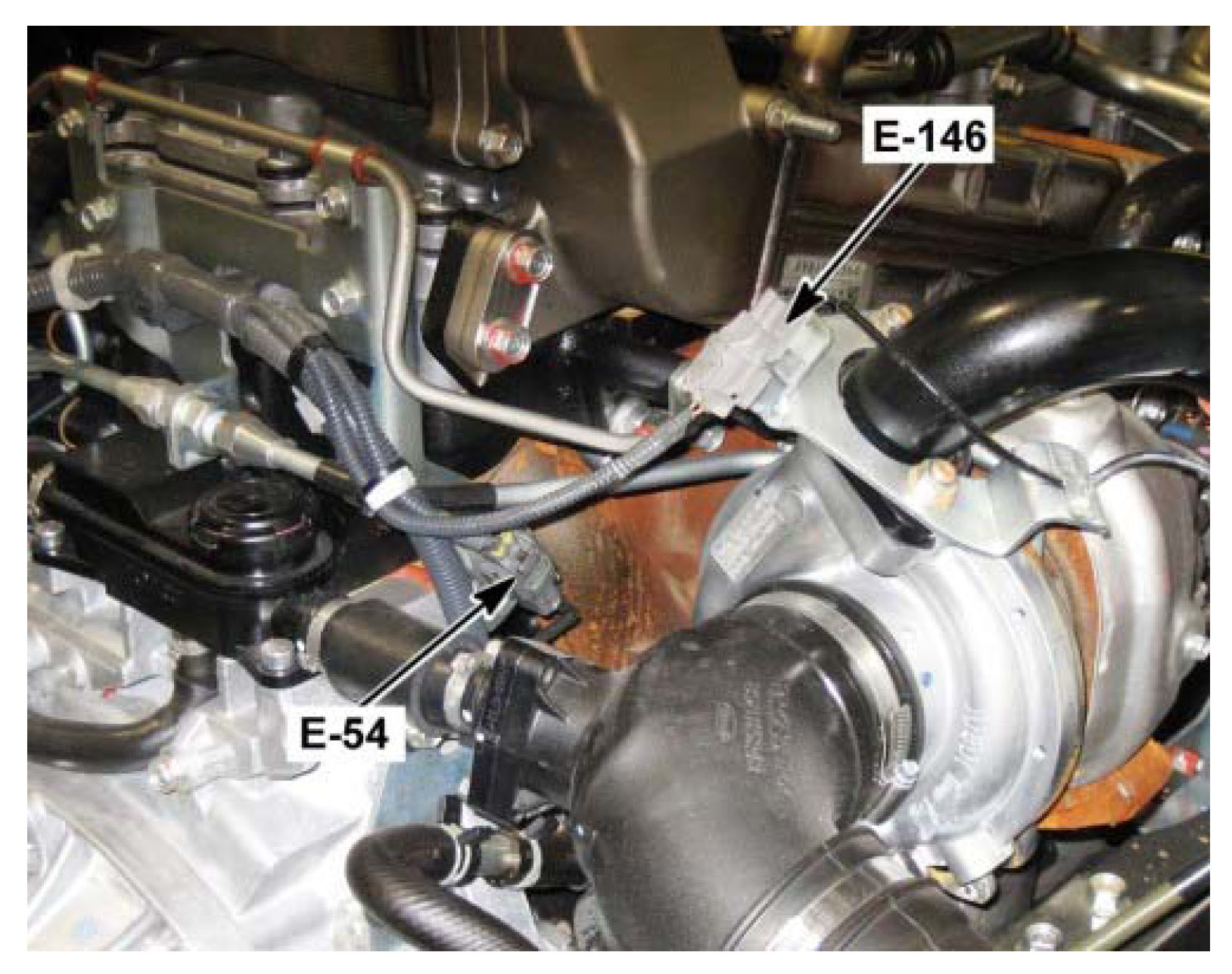

E-146 Turbocharger Outlet Air Temperature Sensor







Right Side of Engine in Turbocharger Outlet Duct

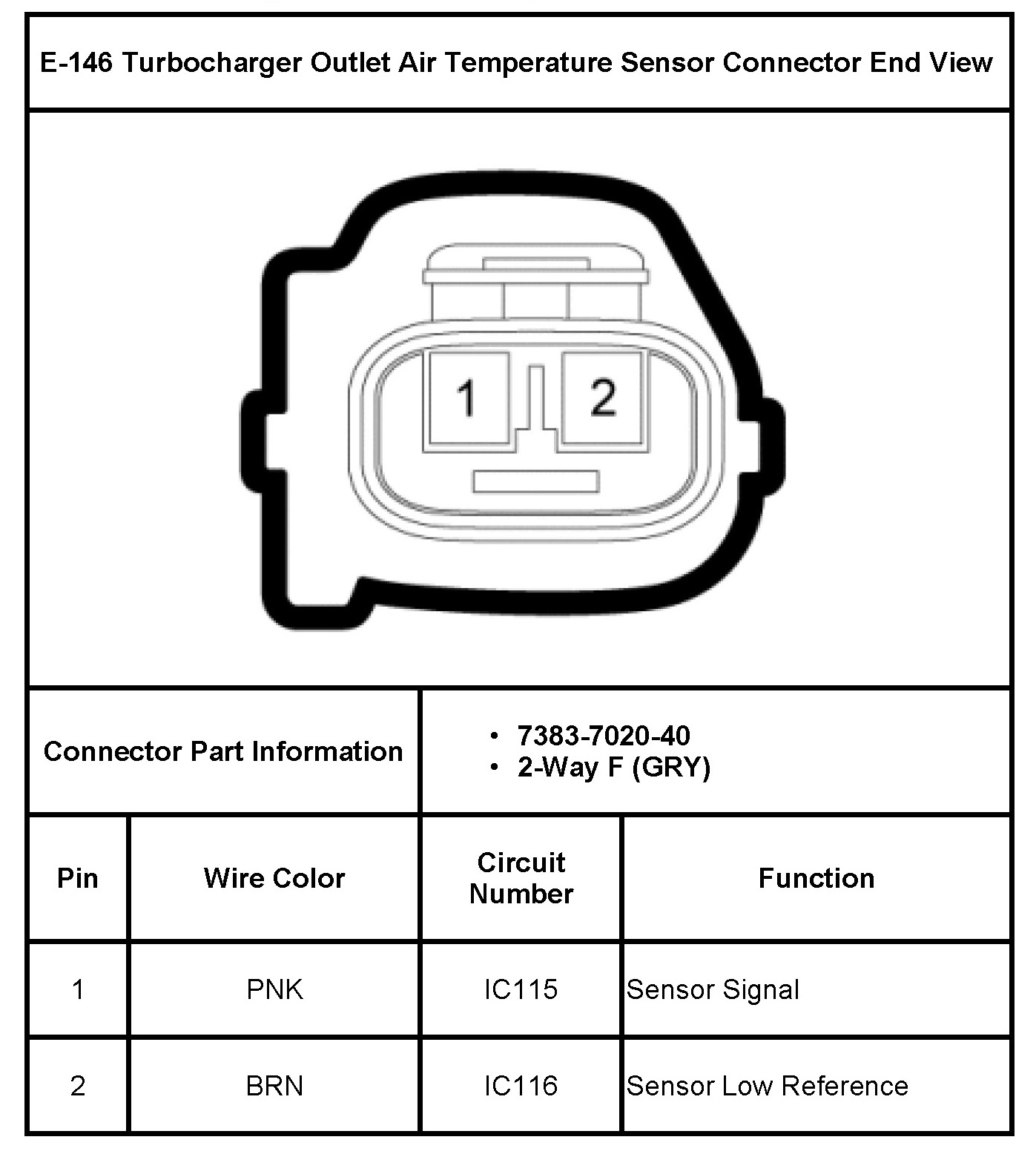

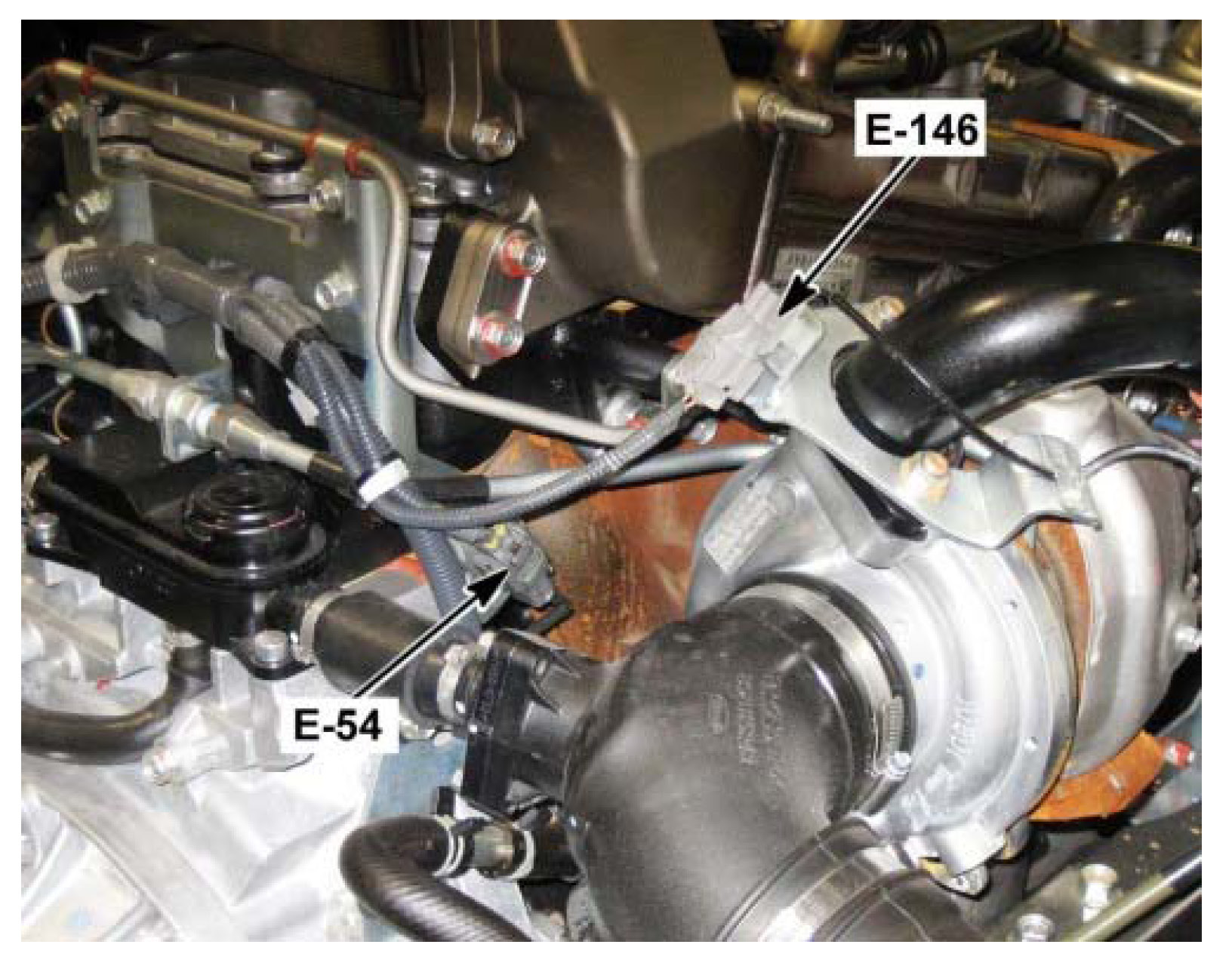

Turbocharger Outlet Air Temperature Sensor (E-146)

Right Side of Engine, In Turbocharger Outlet Duct
