Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
B-5 to X-30 Component ID List
>>
B-268
B-268

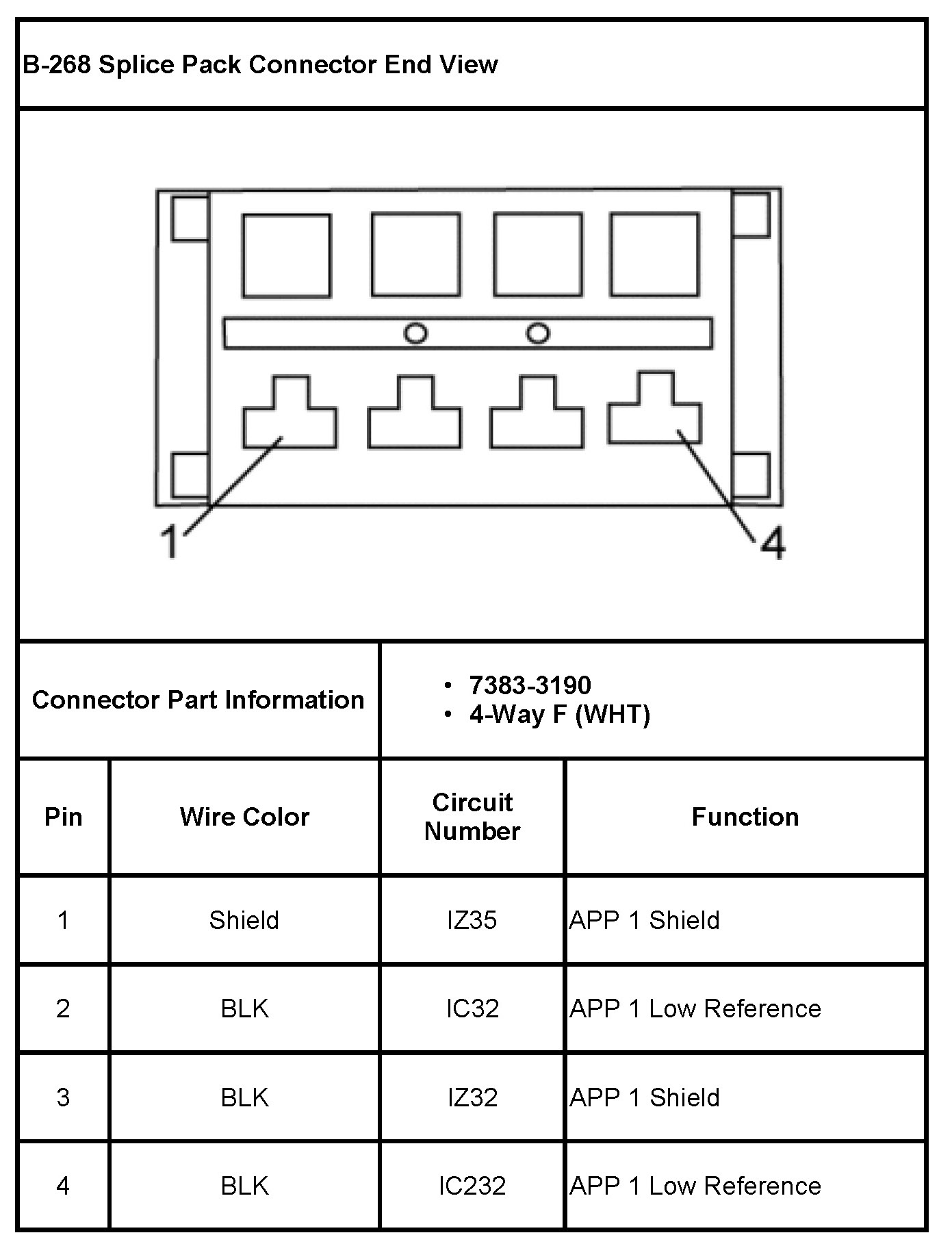

B-268 Splice Pack

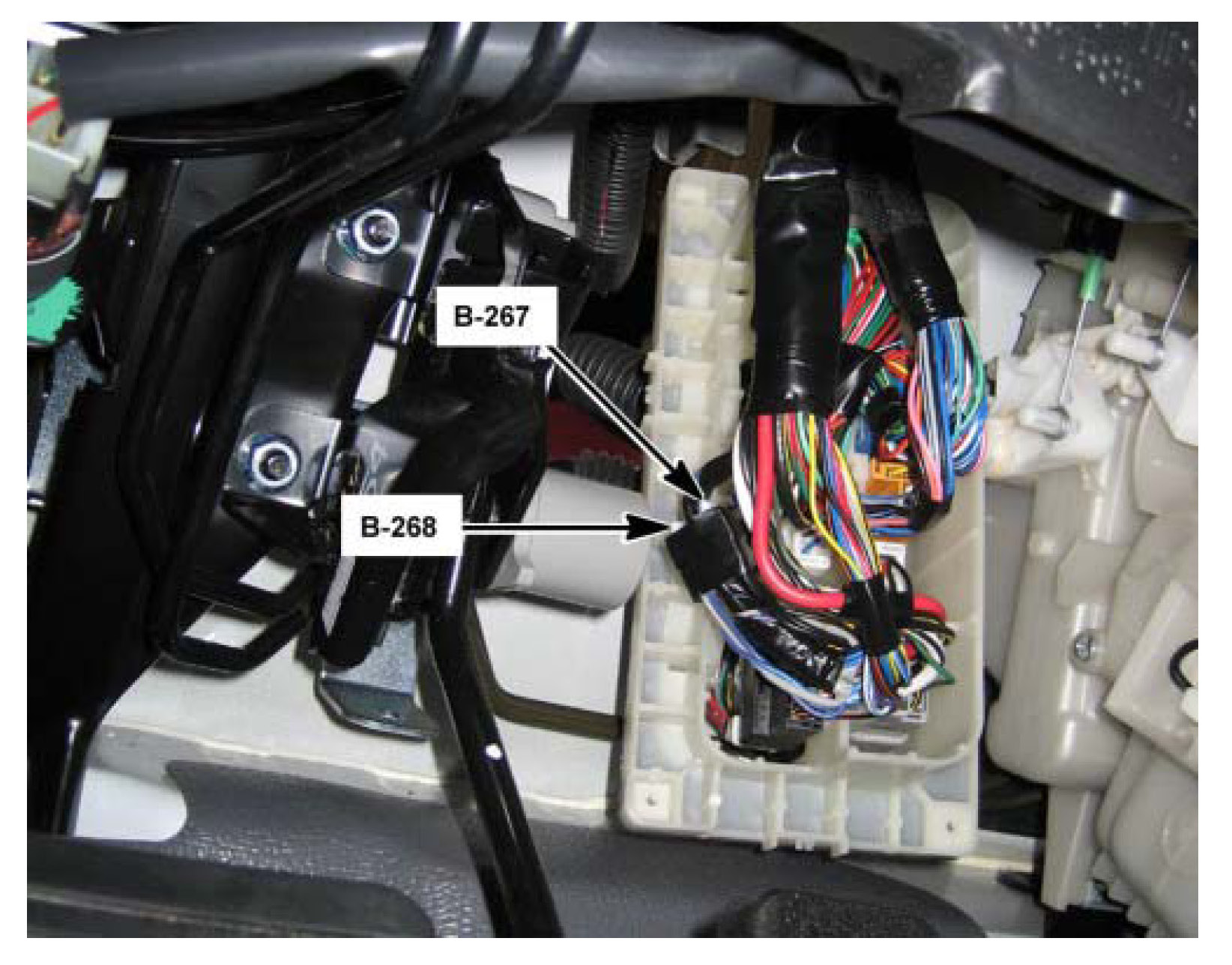

Under the Center of the I/P, Behind the Cover of the Bulkhead Connectors
