Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Locations >> Component Locations >> B-5 to X-30 Component ID List >> B-136

B-136

B-136 Sub Junction Block 1

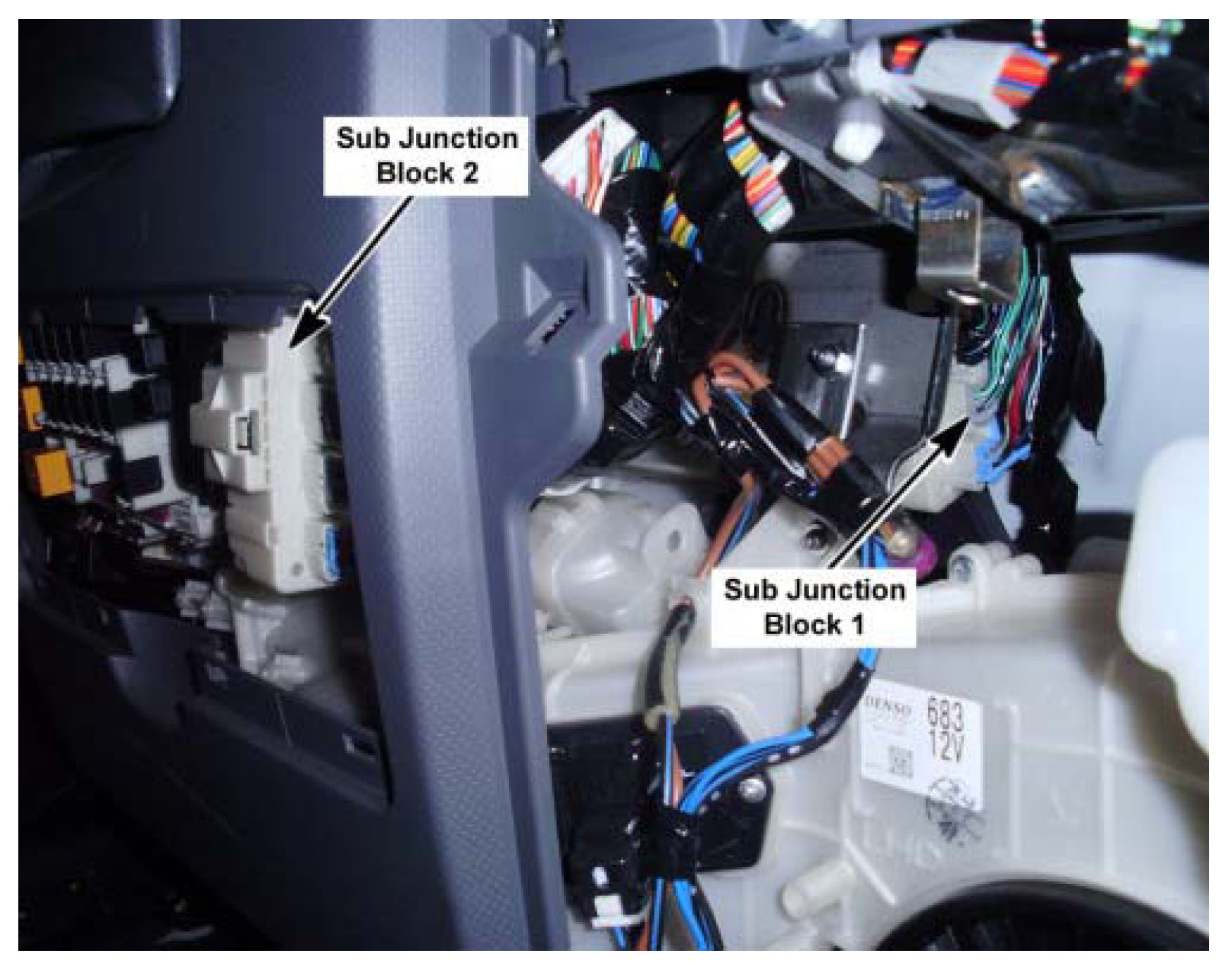

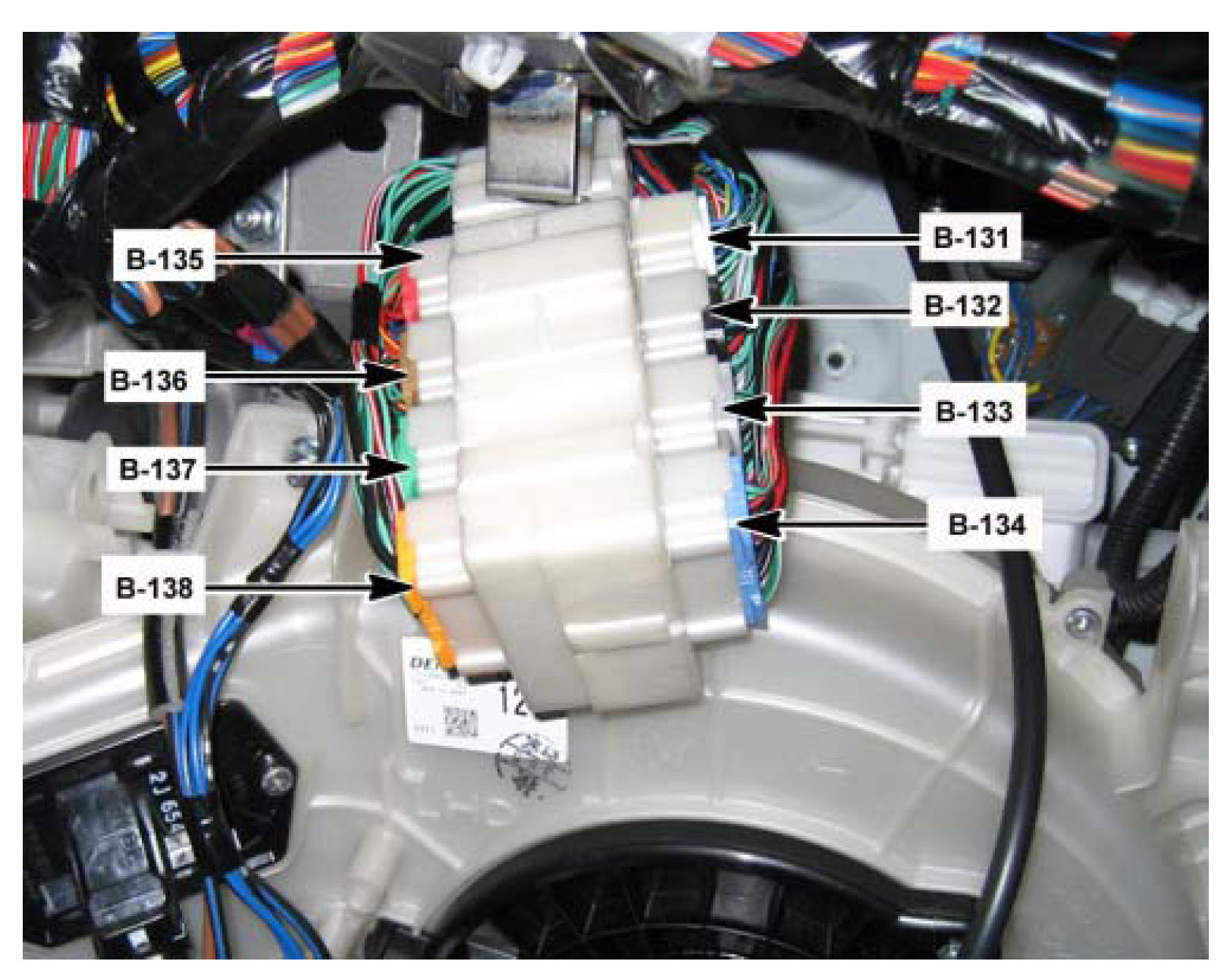

Behind the Center of the I/P, Above the Blower Motor Case To The Left of the Blower Motor

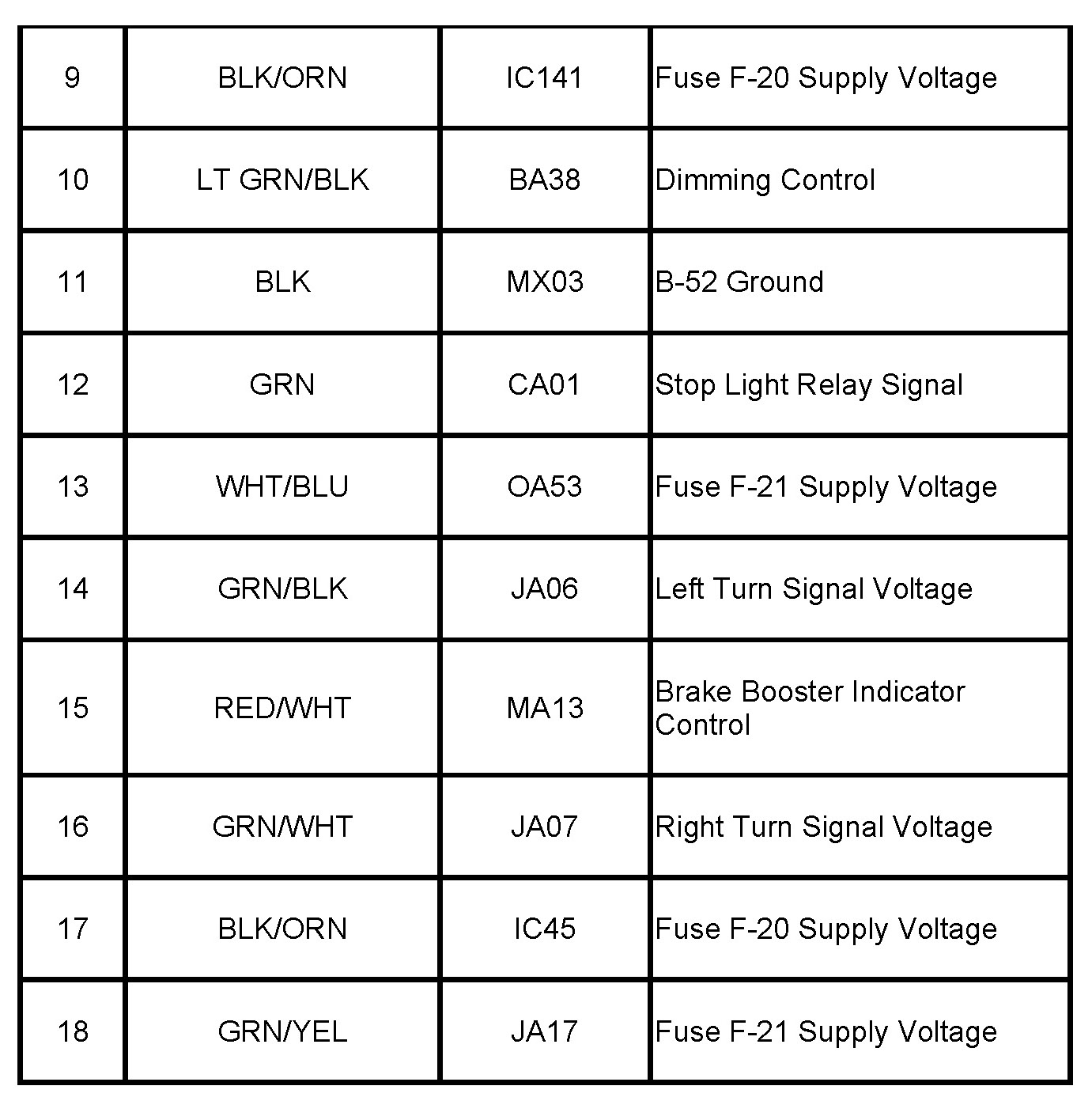

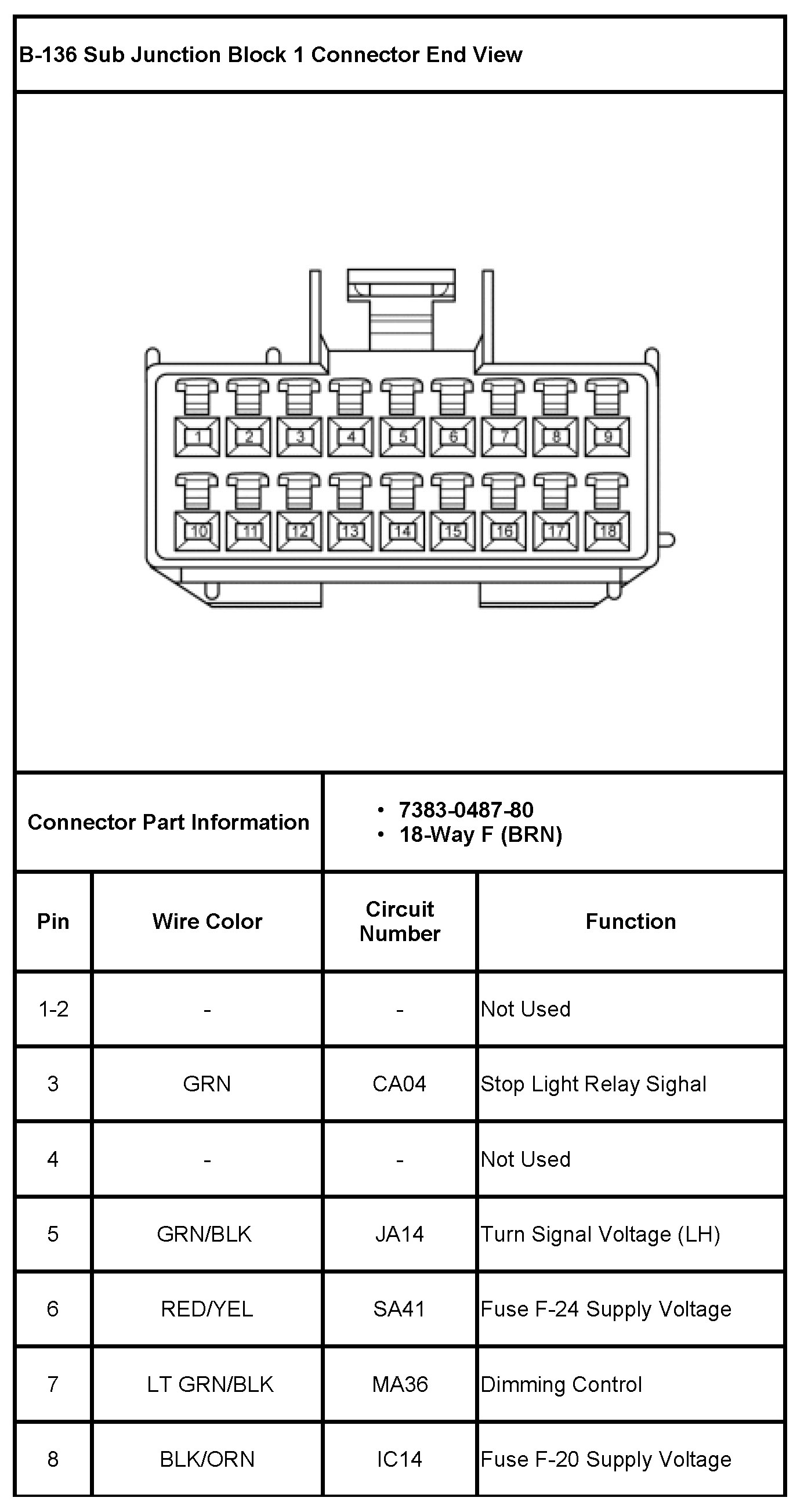

Component Connector View (Junction Block Removed For Clarity)
