Sub Junction Block 2
Sub Junction Block 2
Sub Junction Block 2

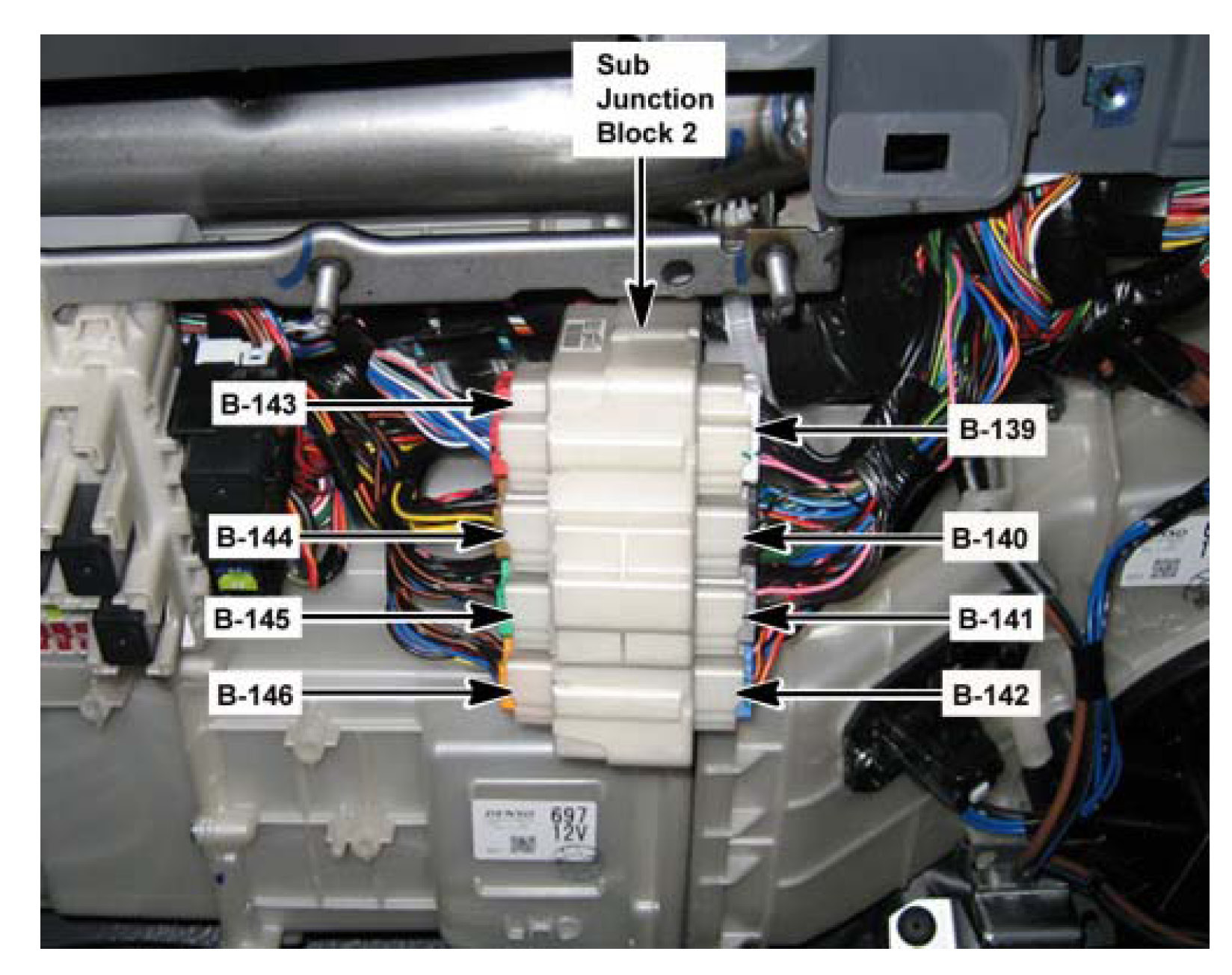

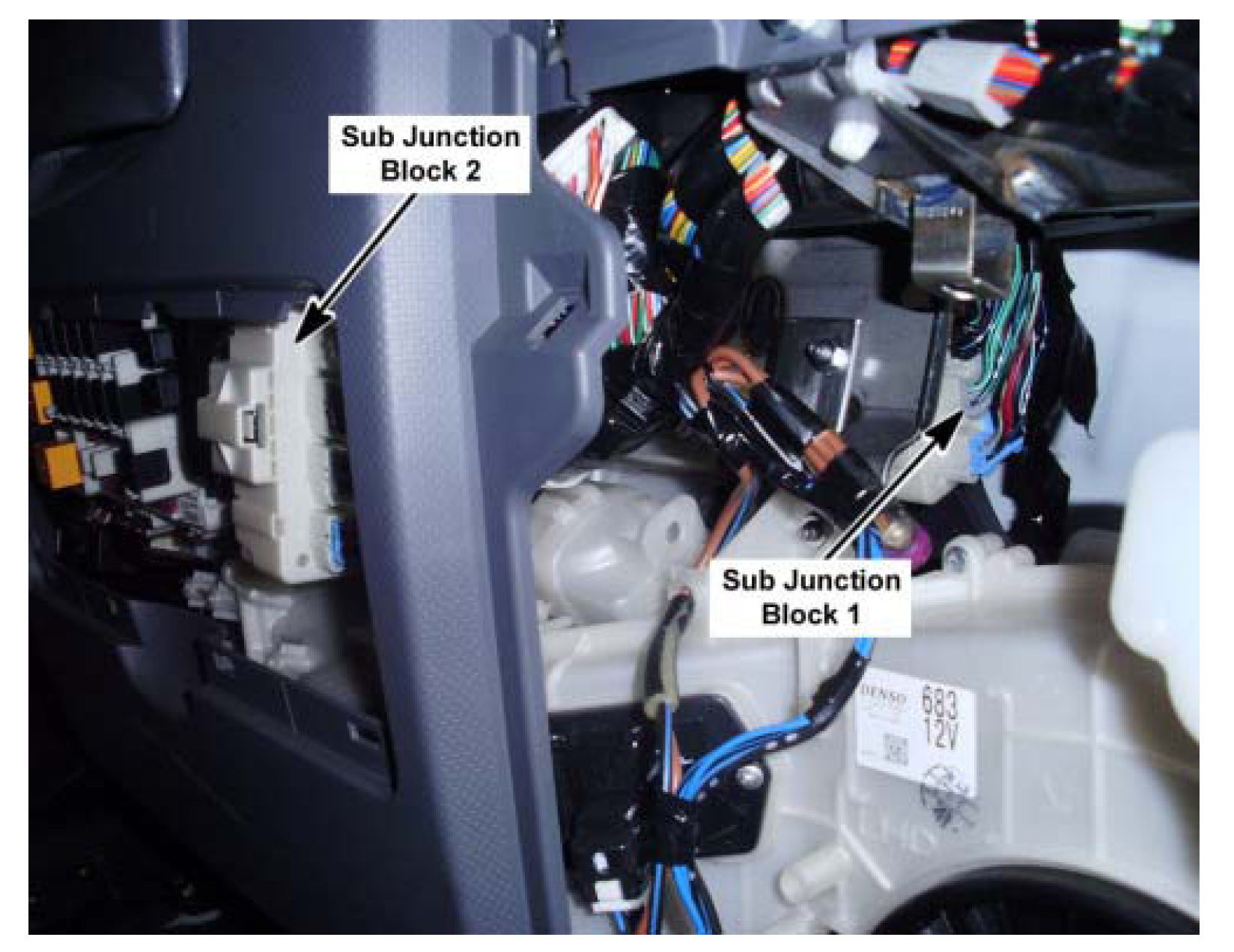

Behind the Center of the I/P, On the Right of the In-Cab Fuse Relay Center

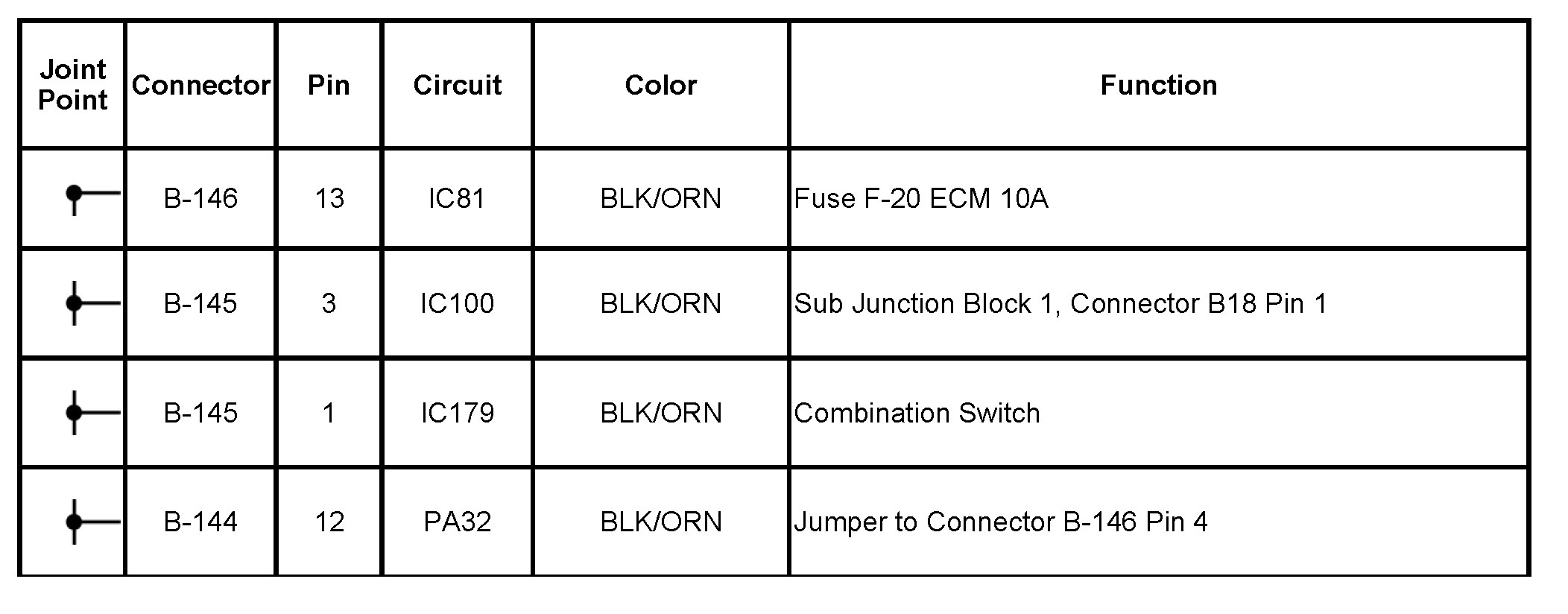

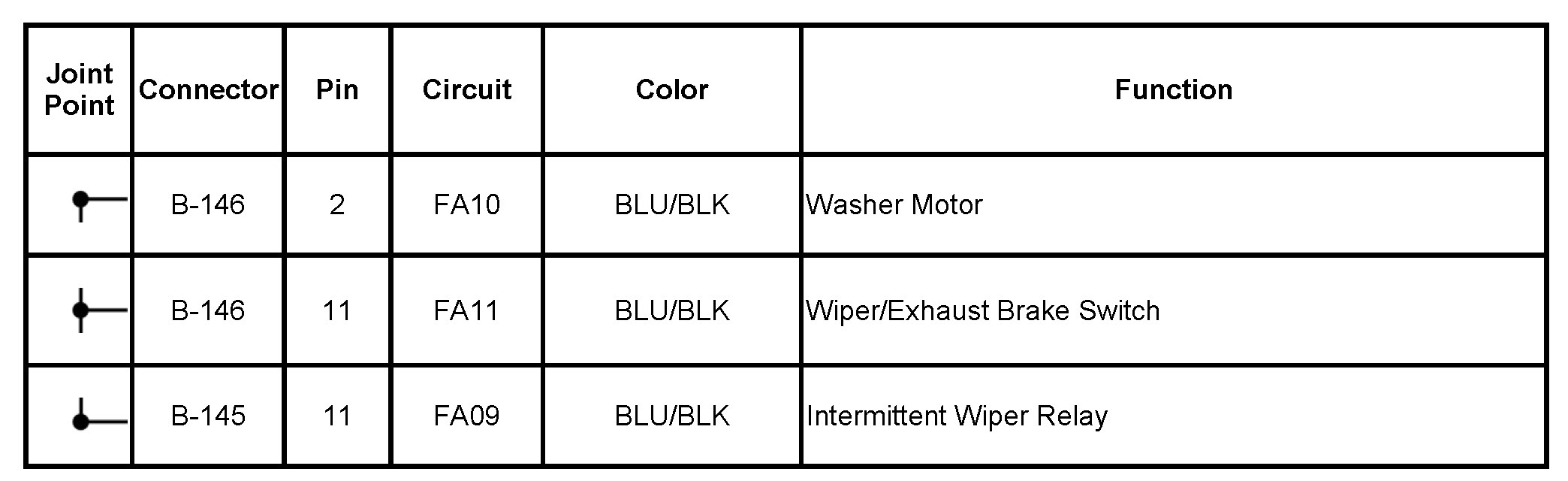

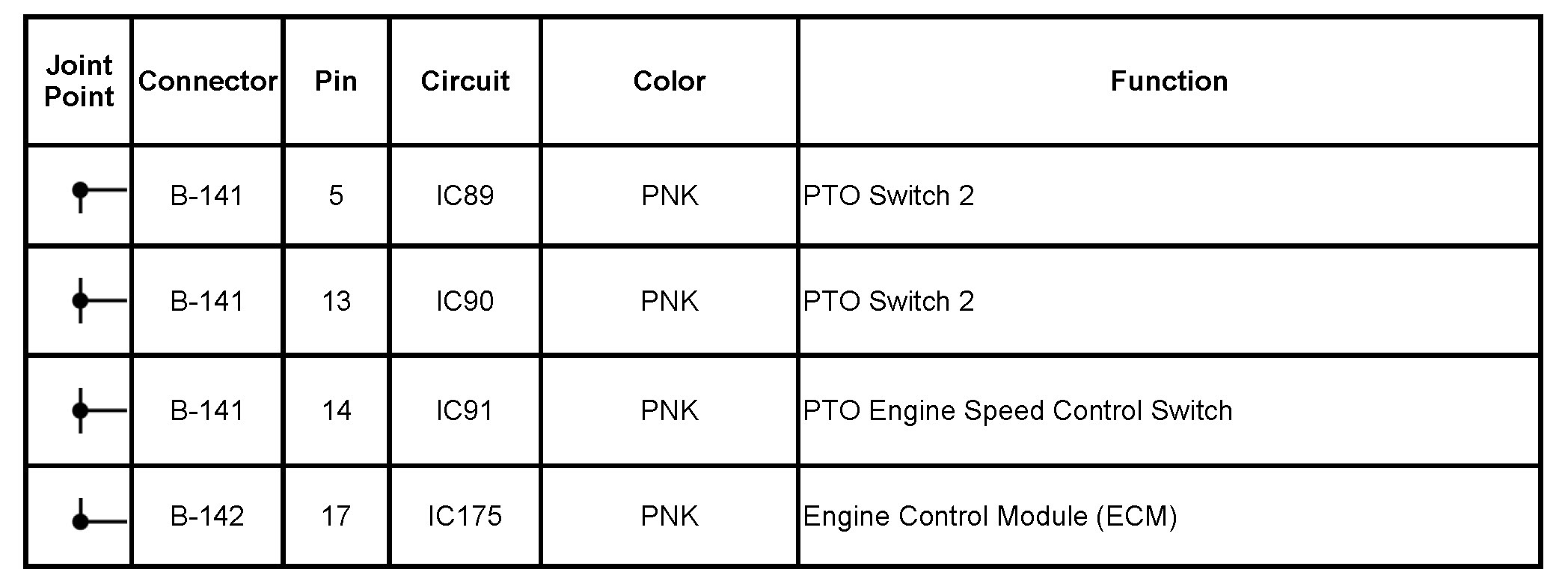

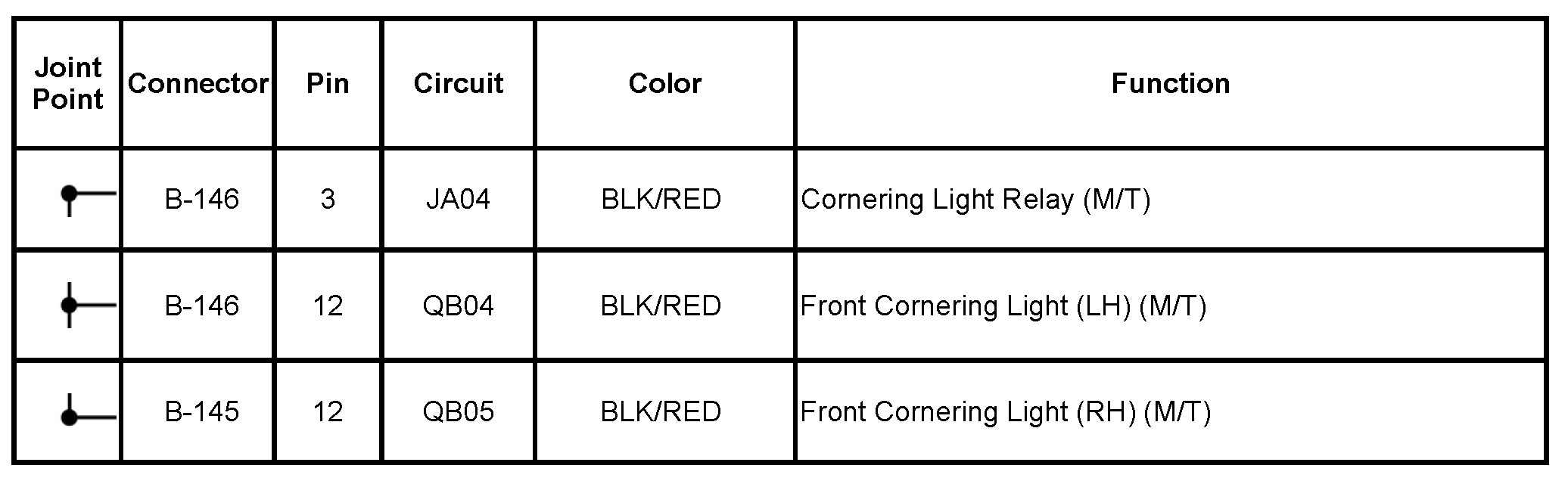

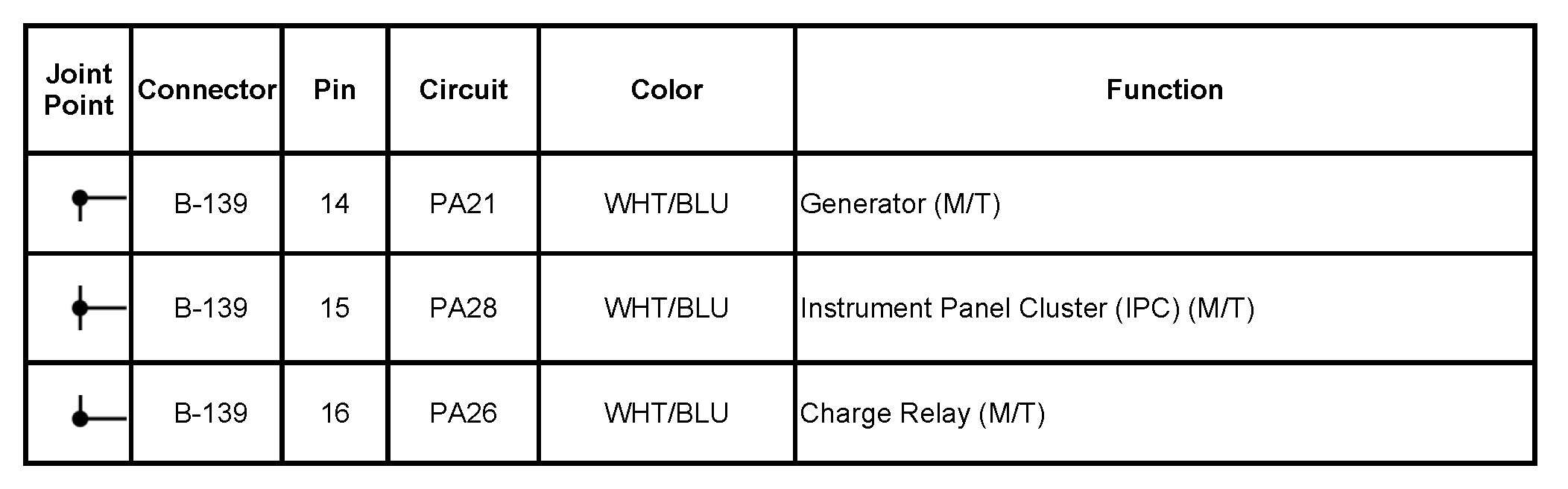

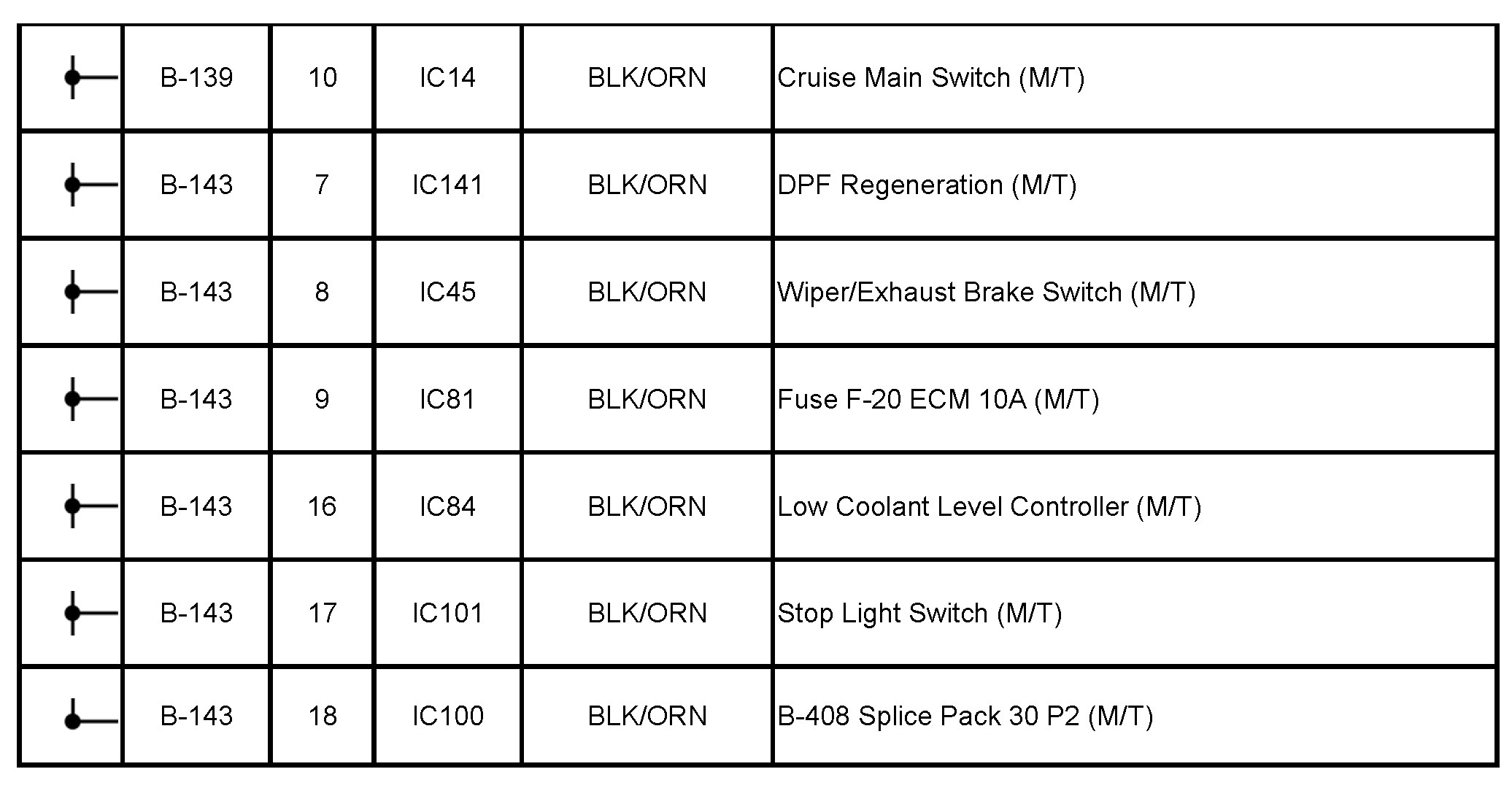

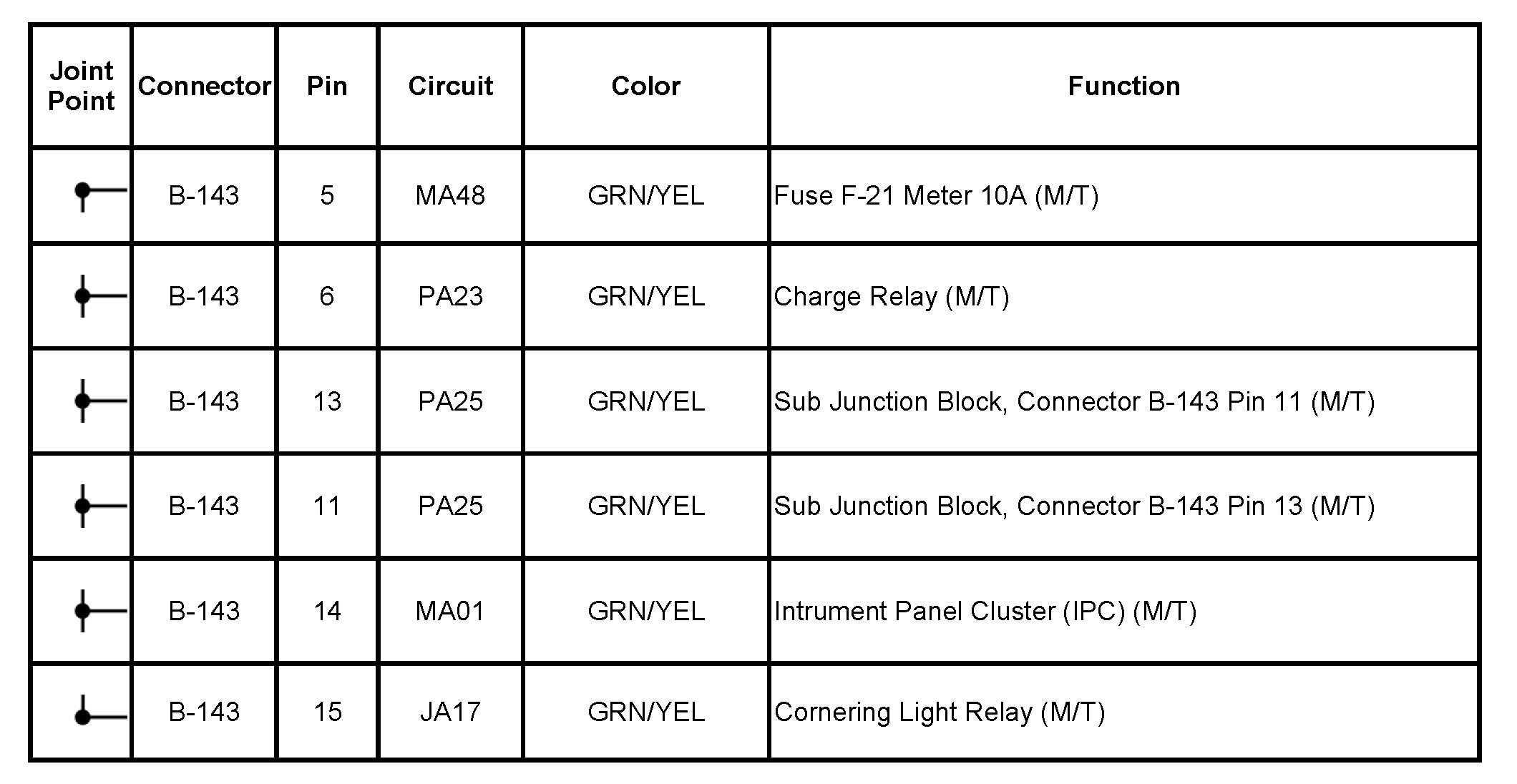

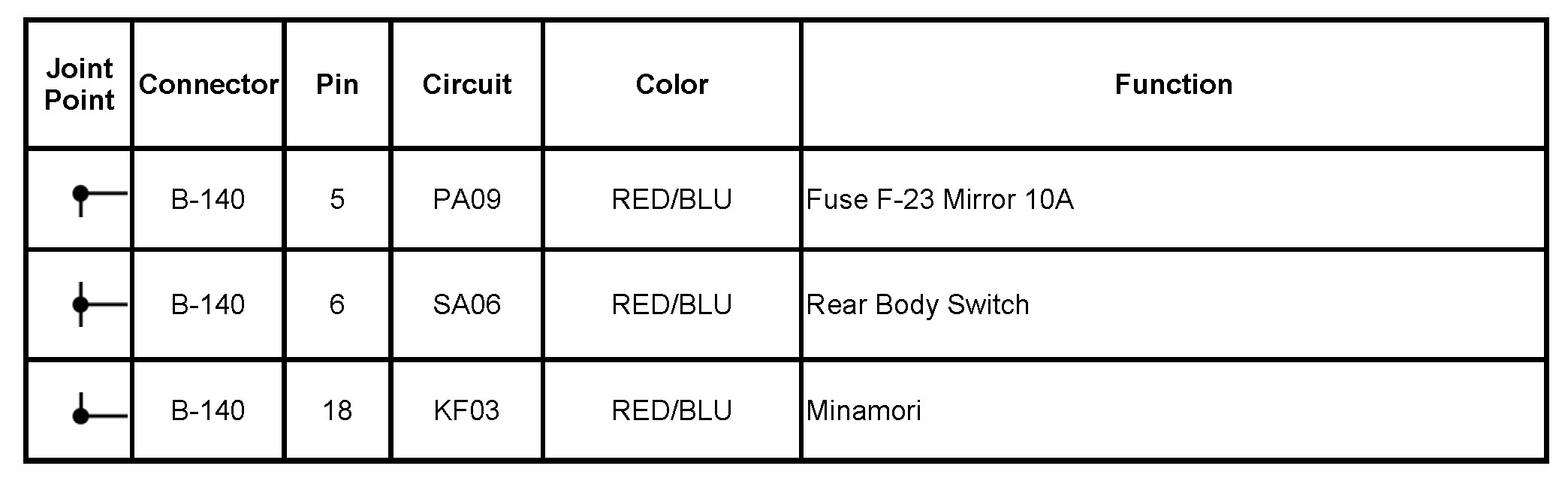

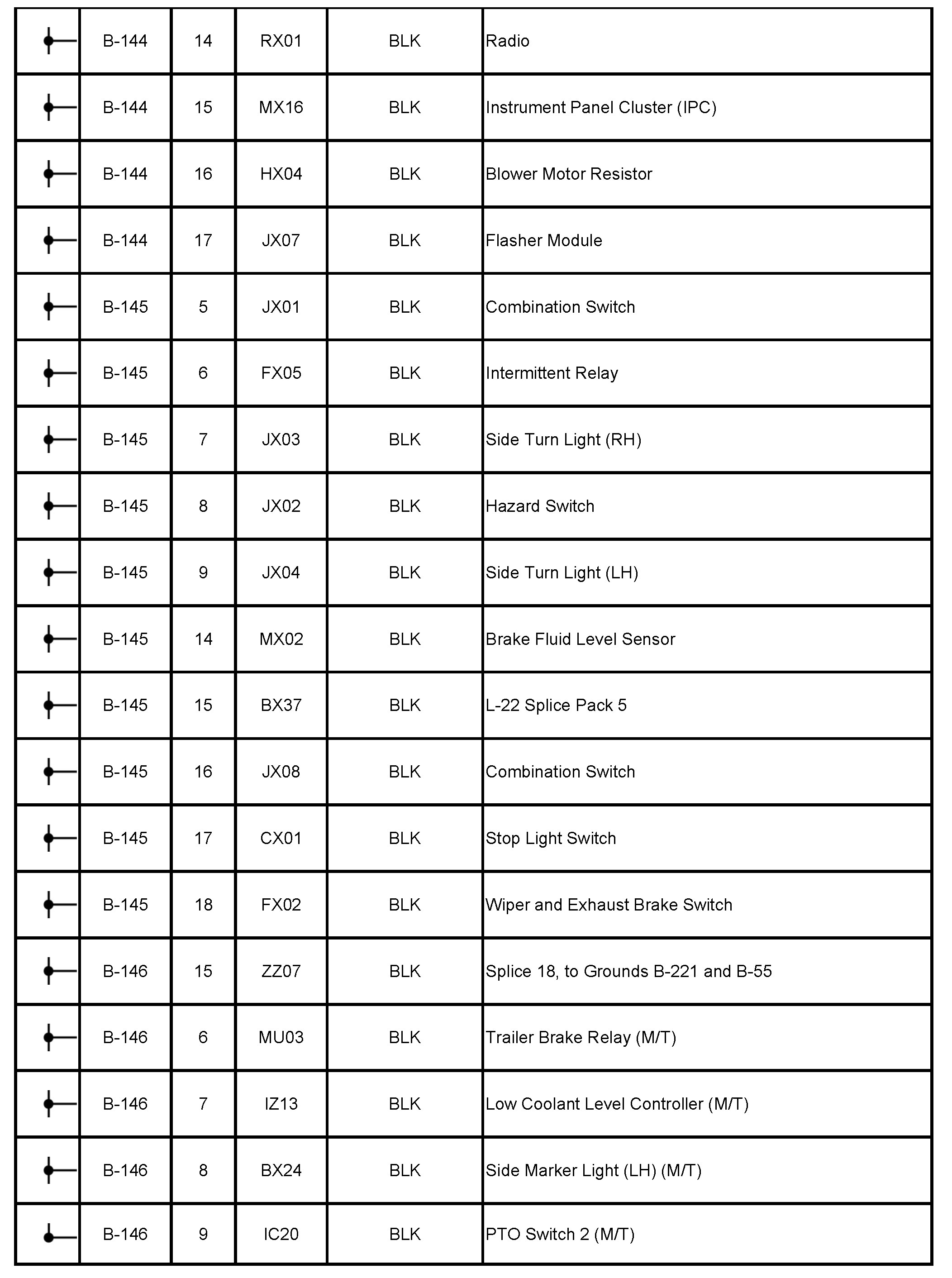

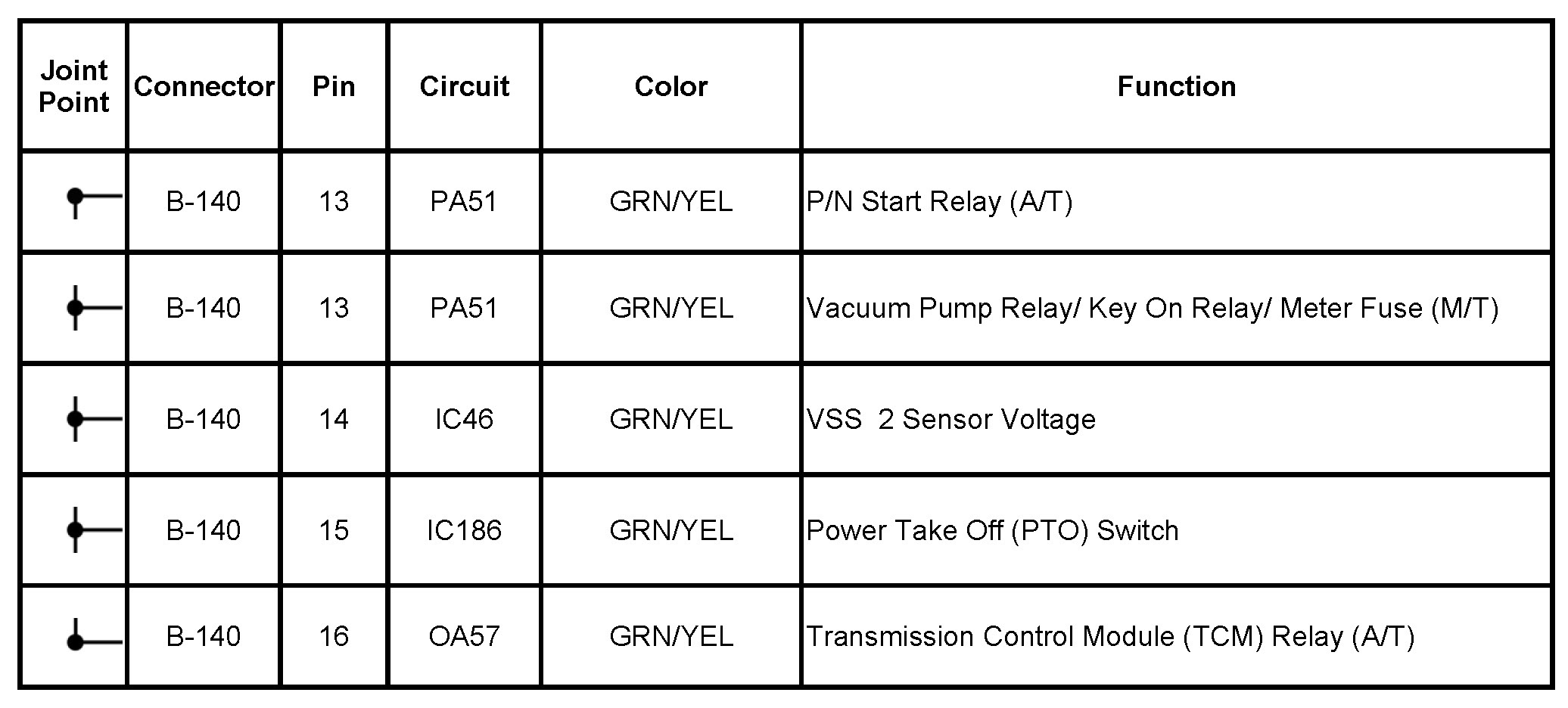

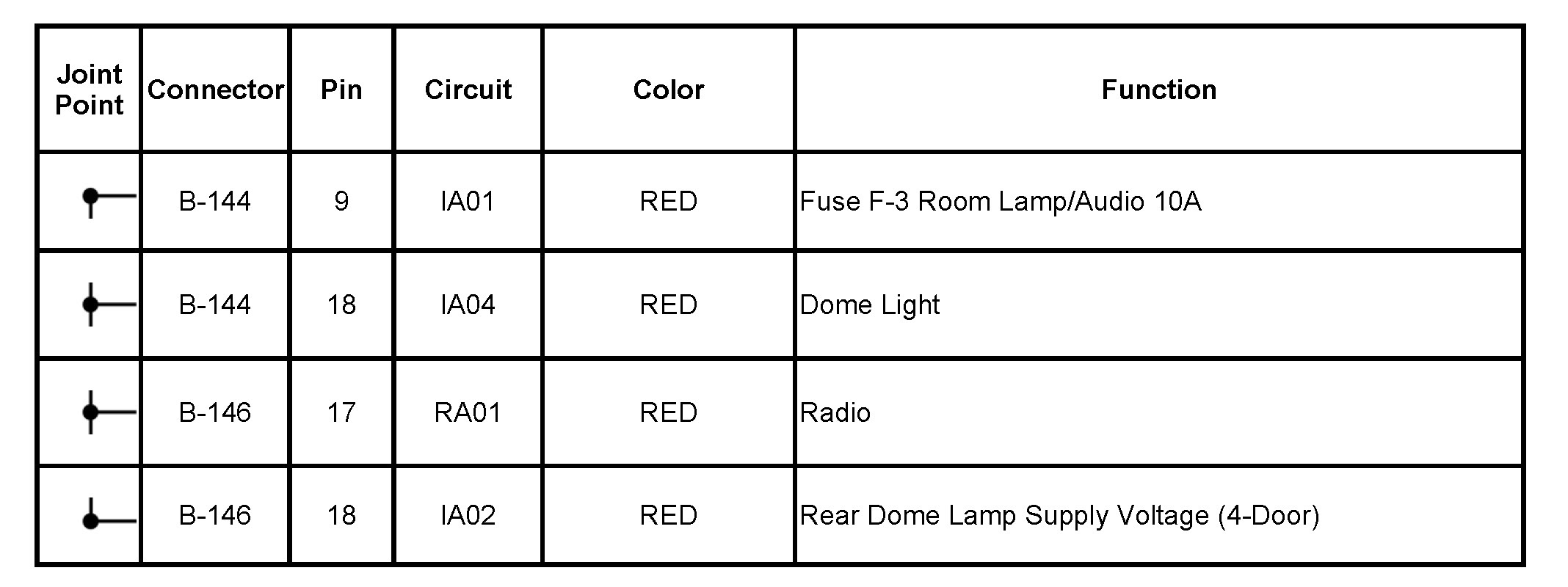

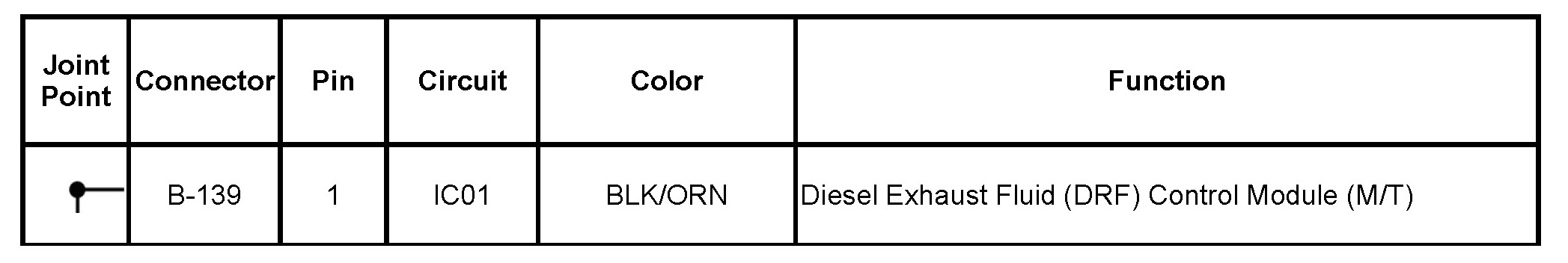

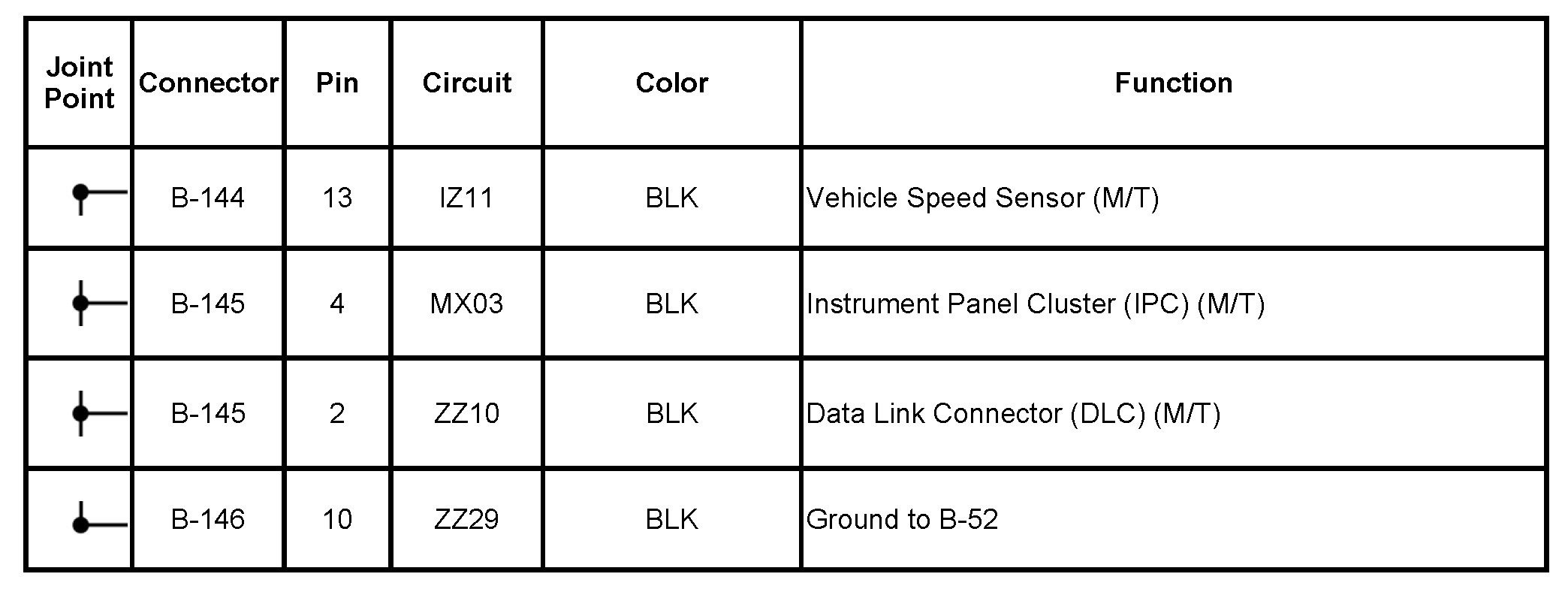

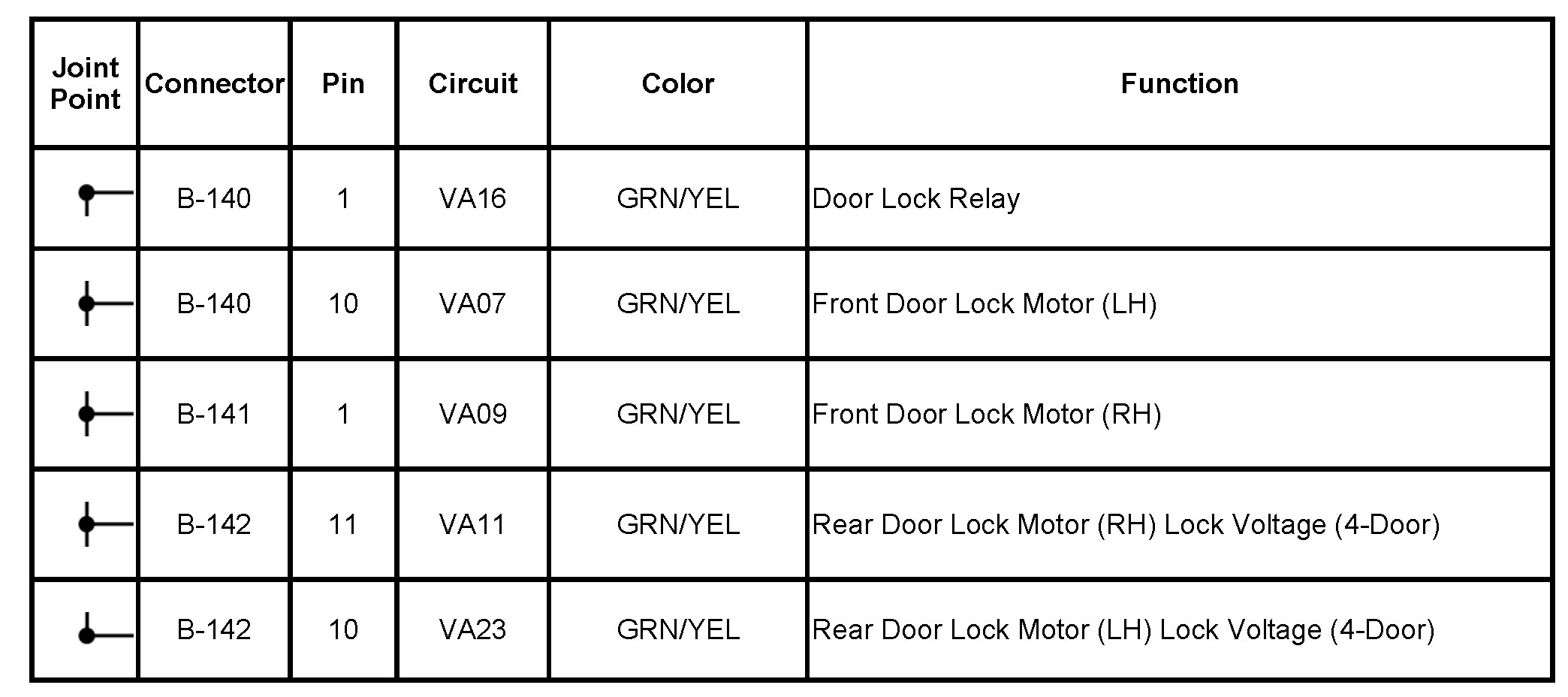

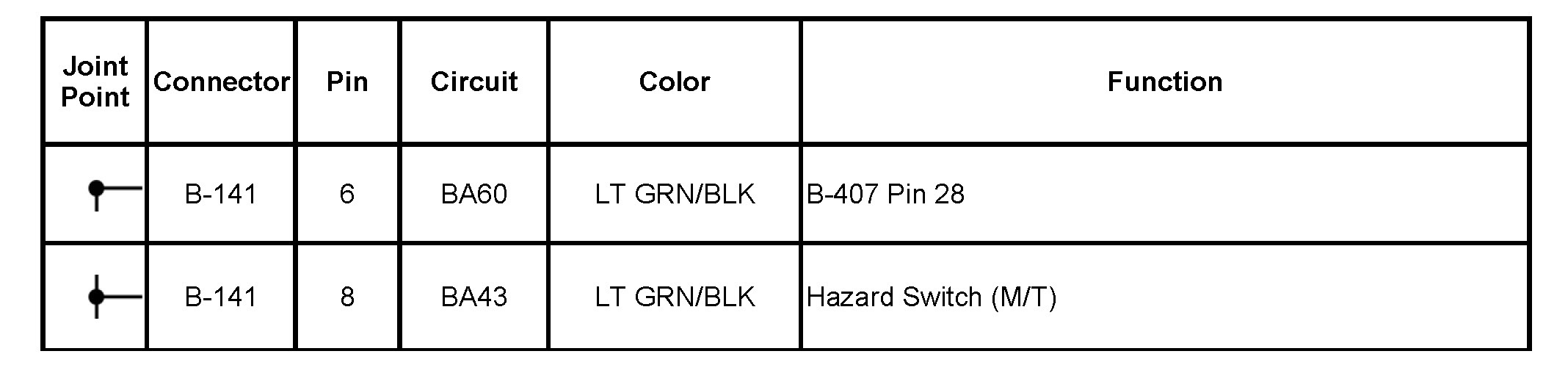

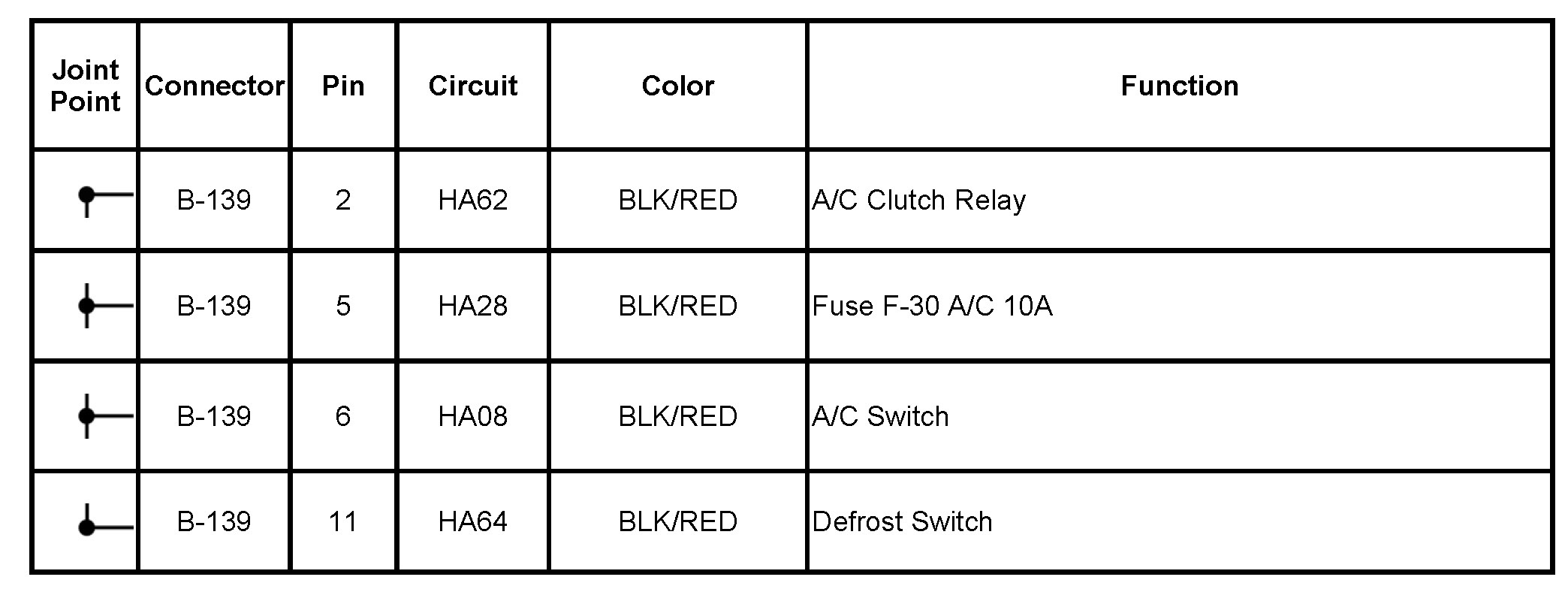

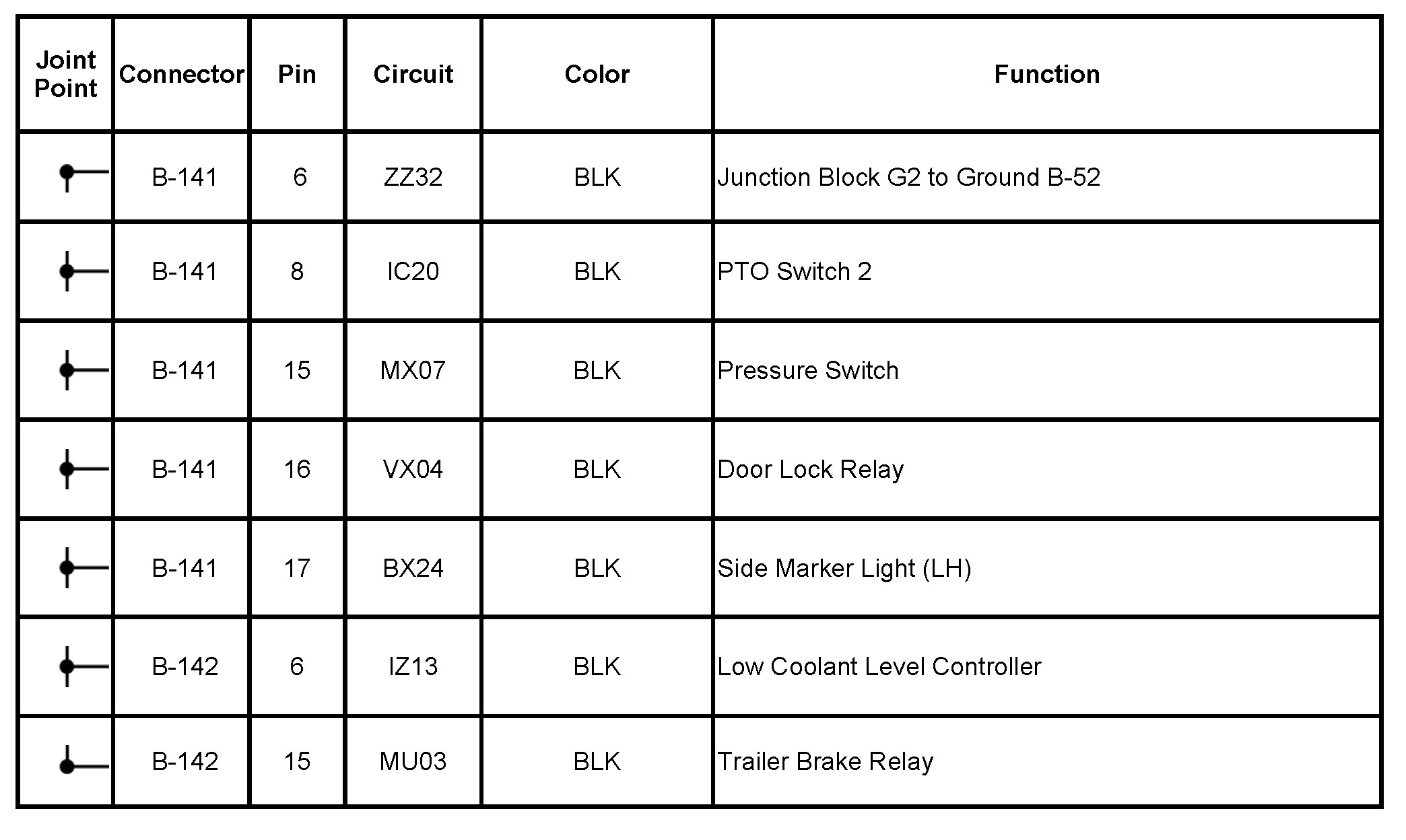

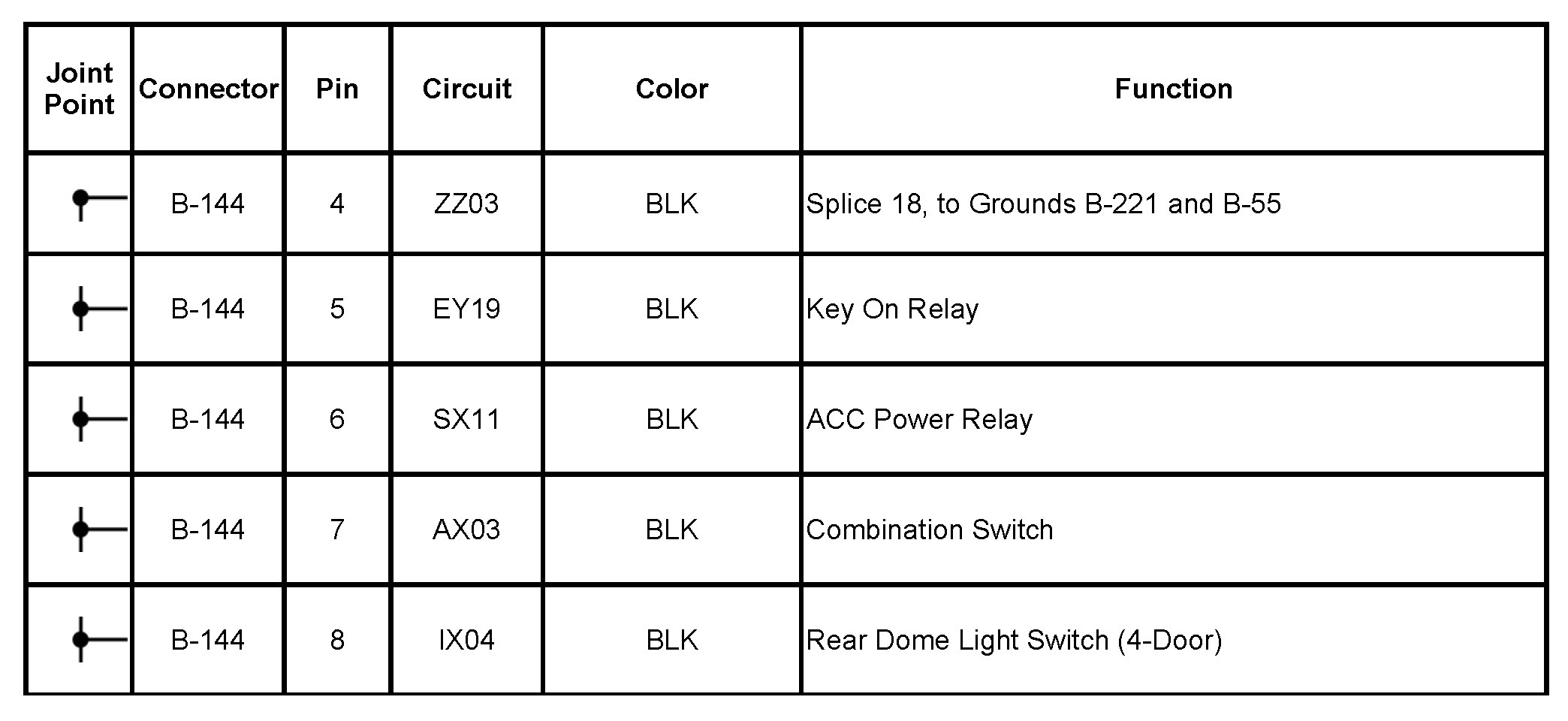

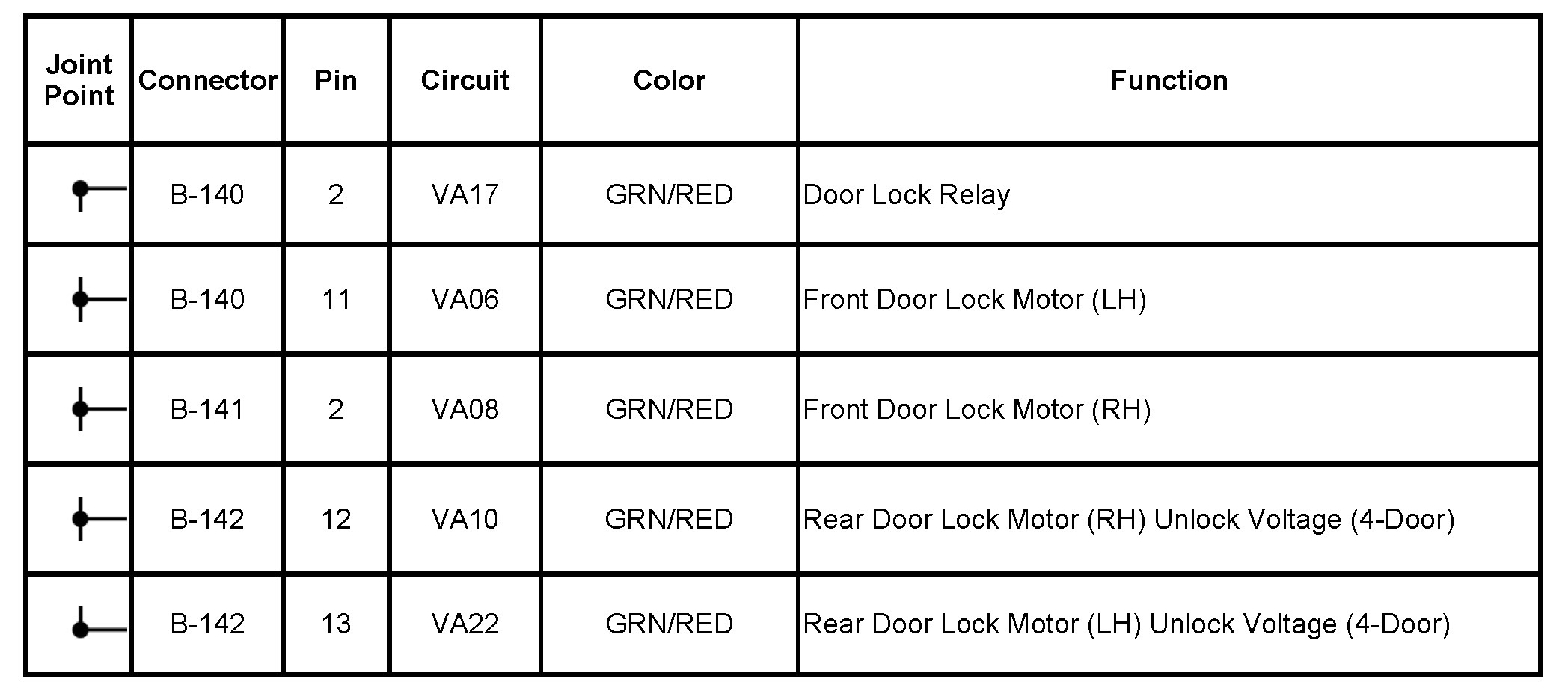

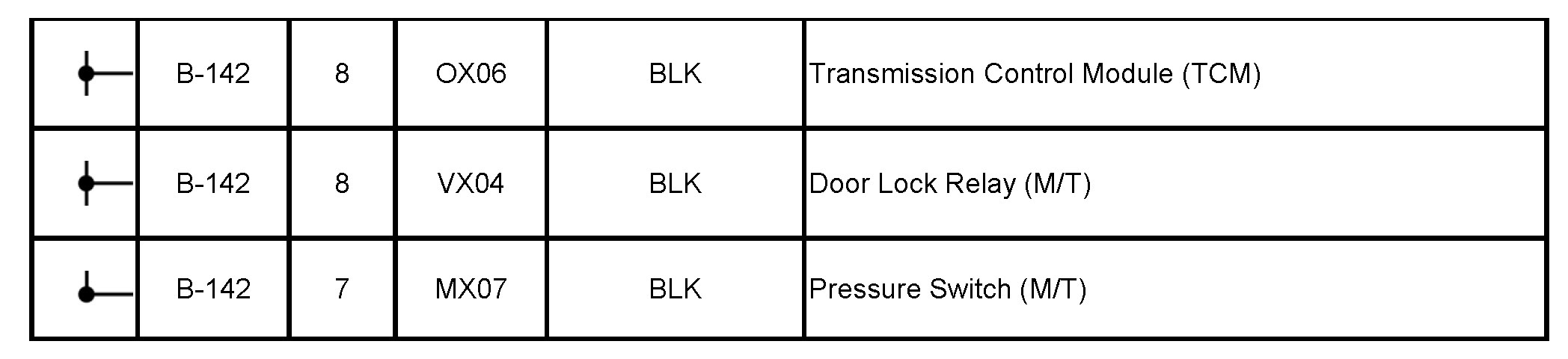

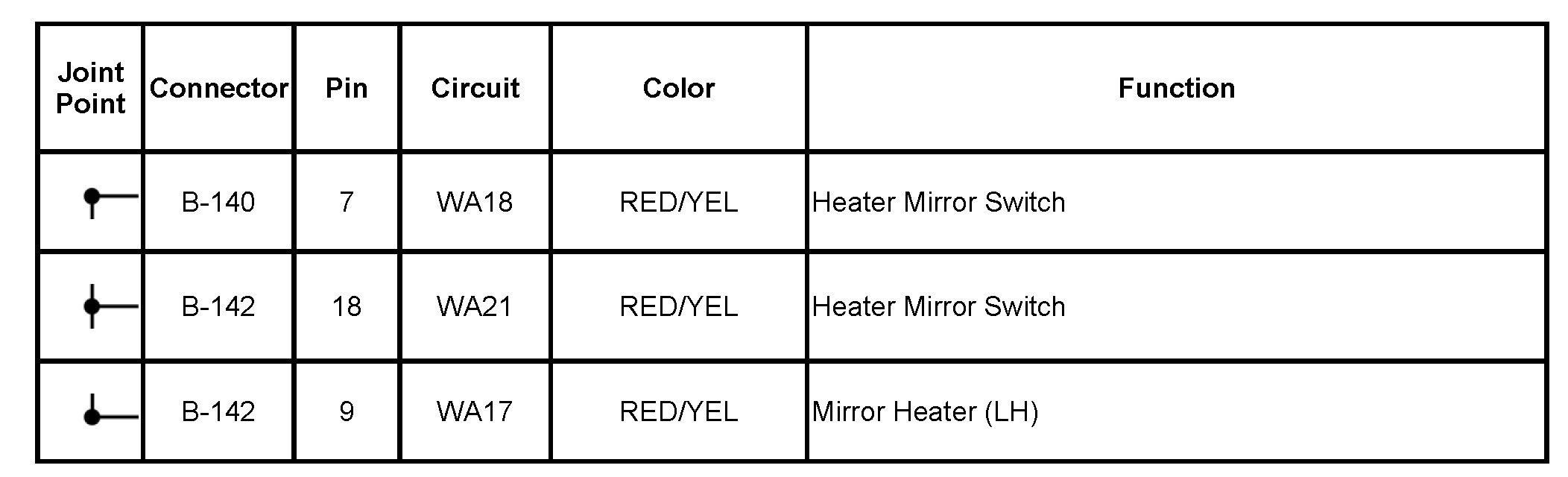

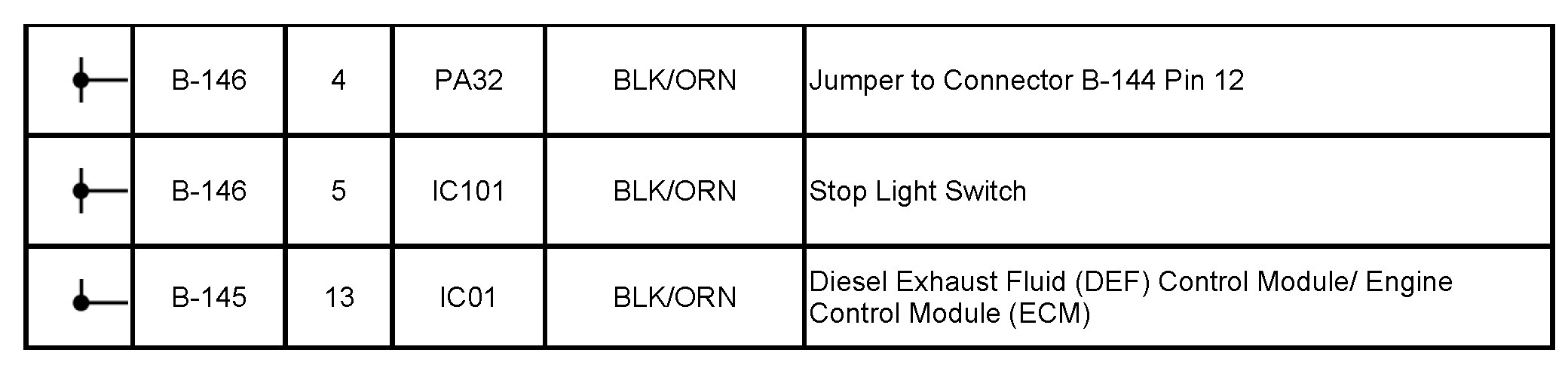

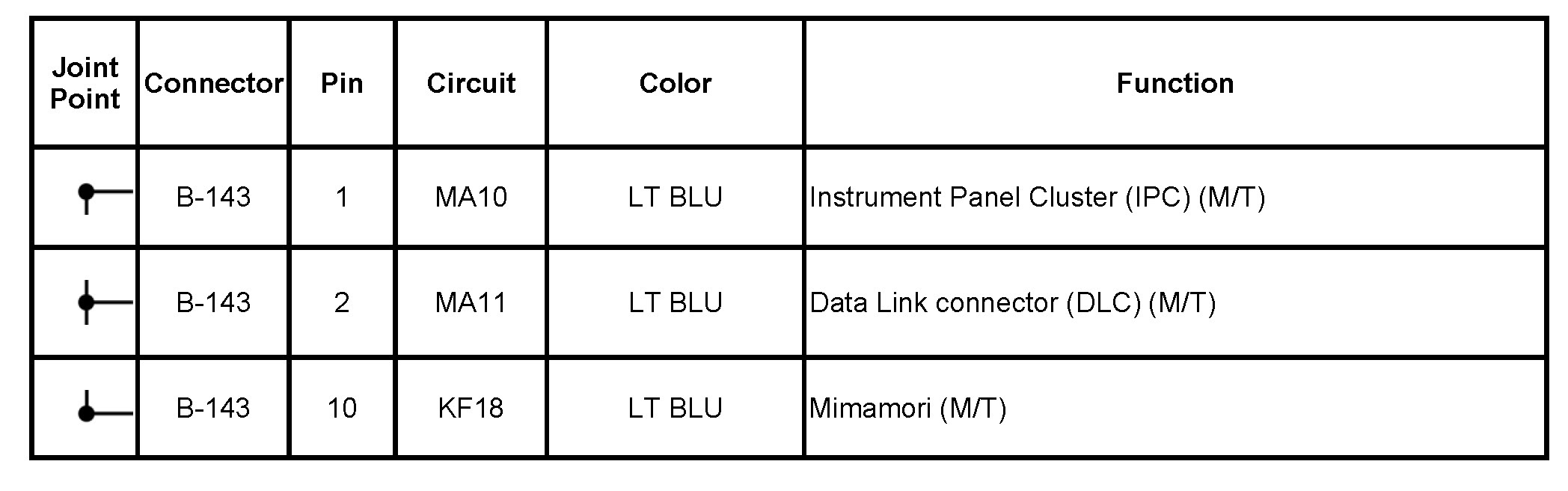

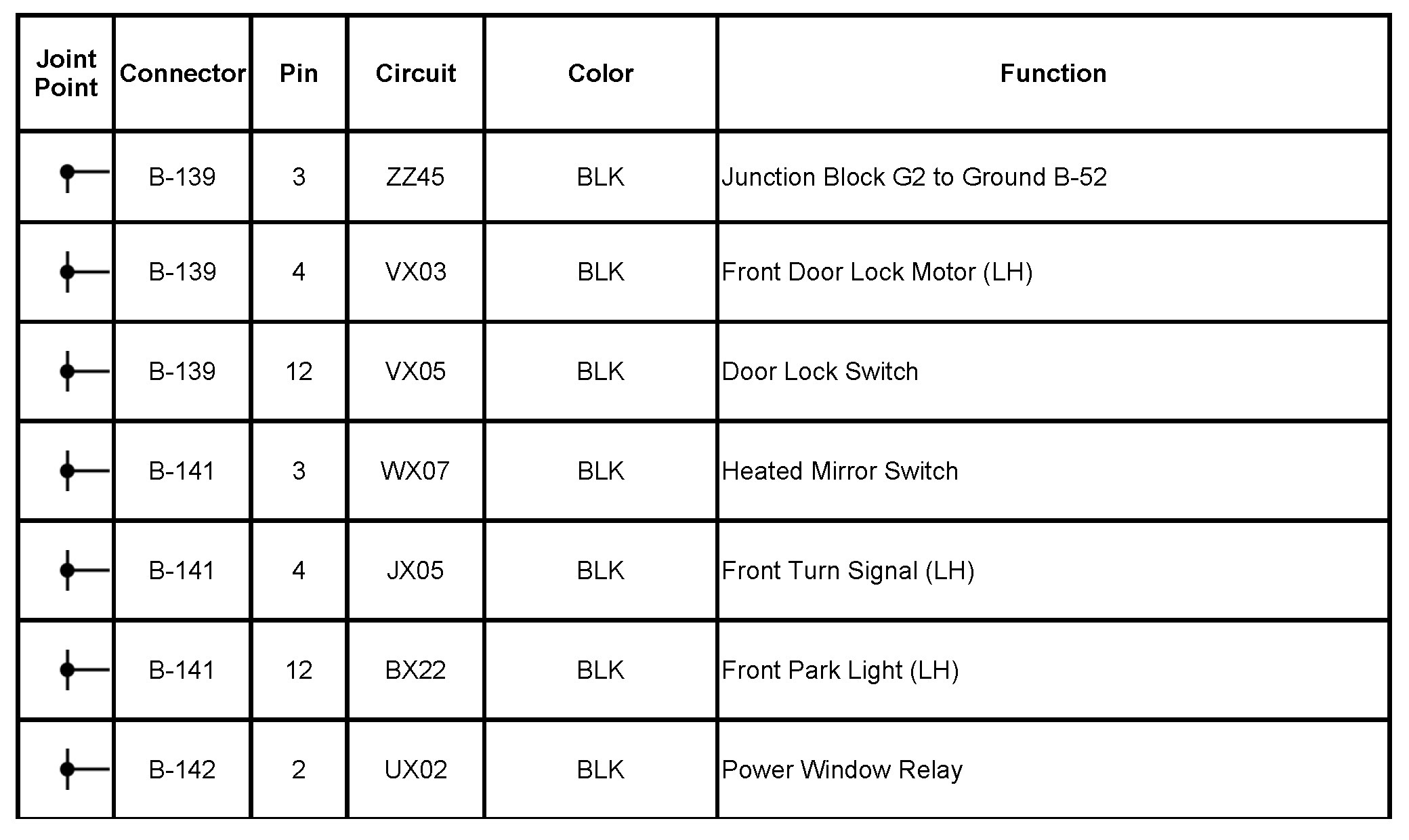

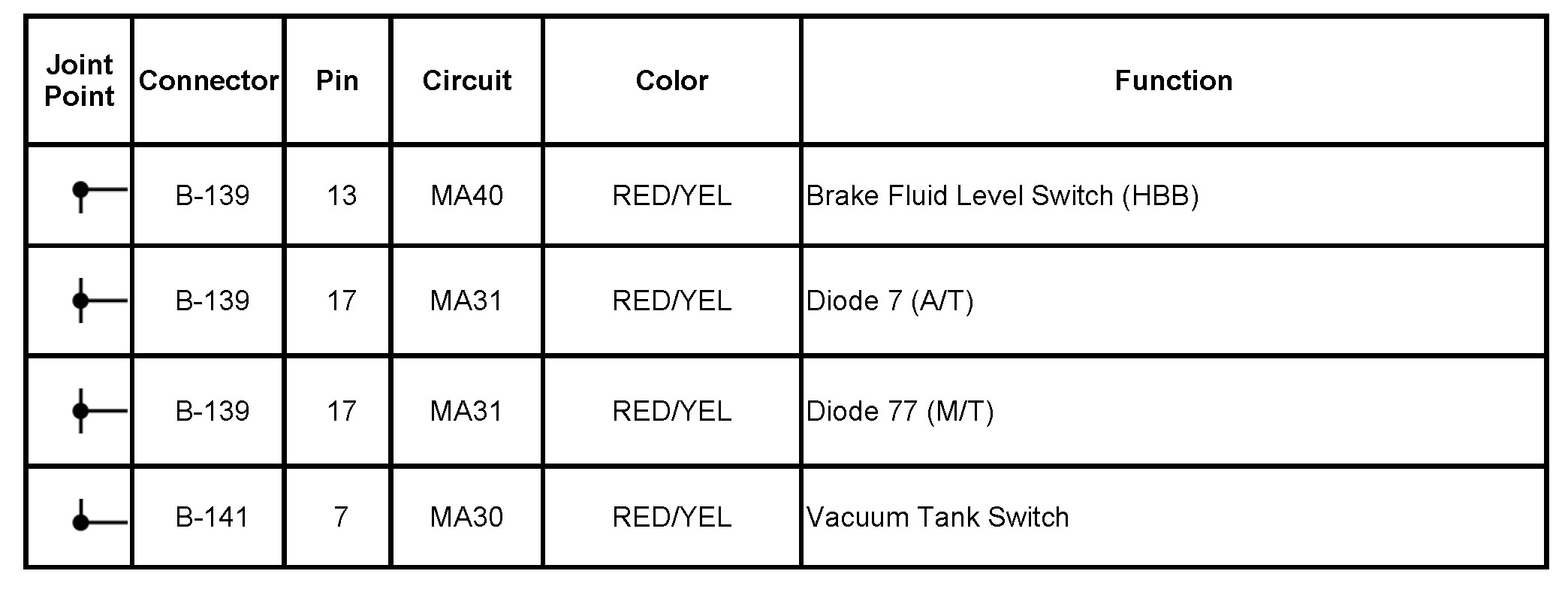

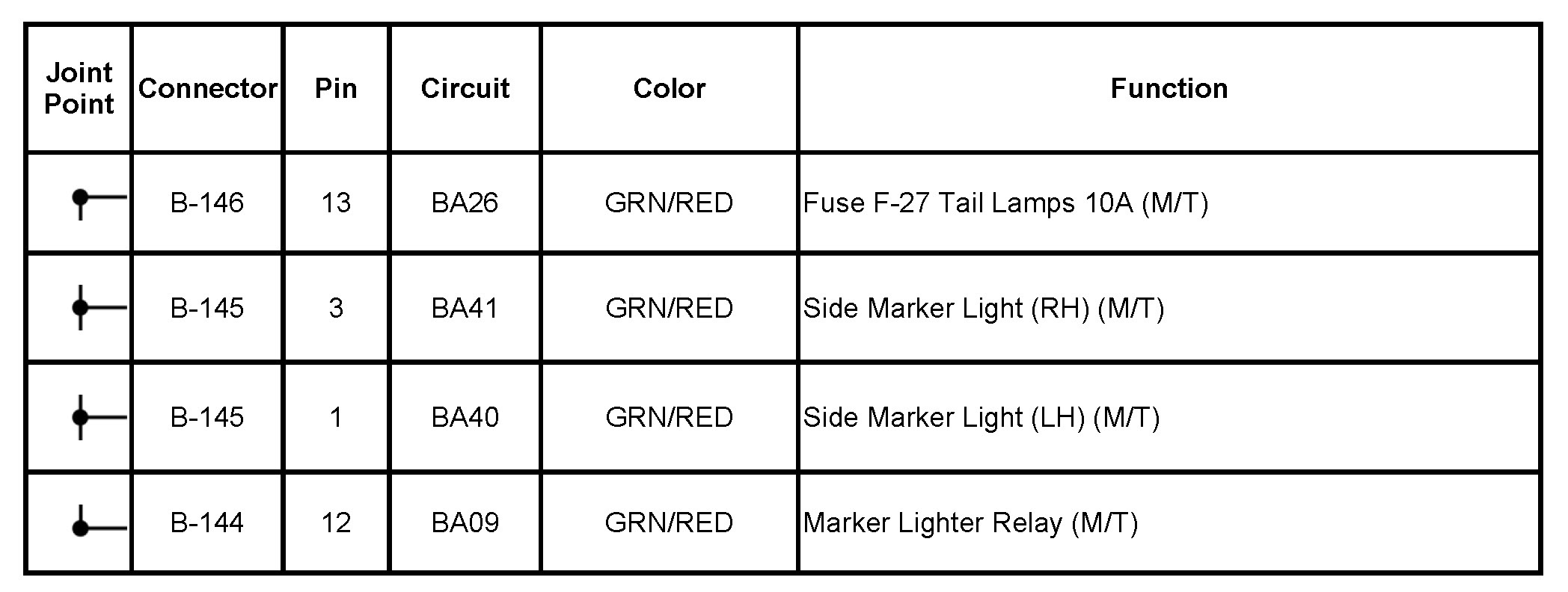

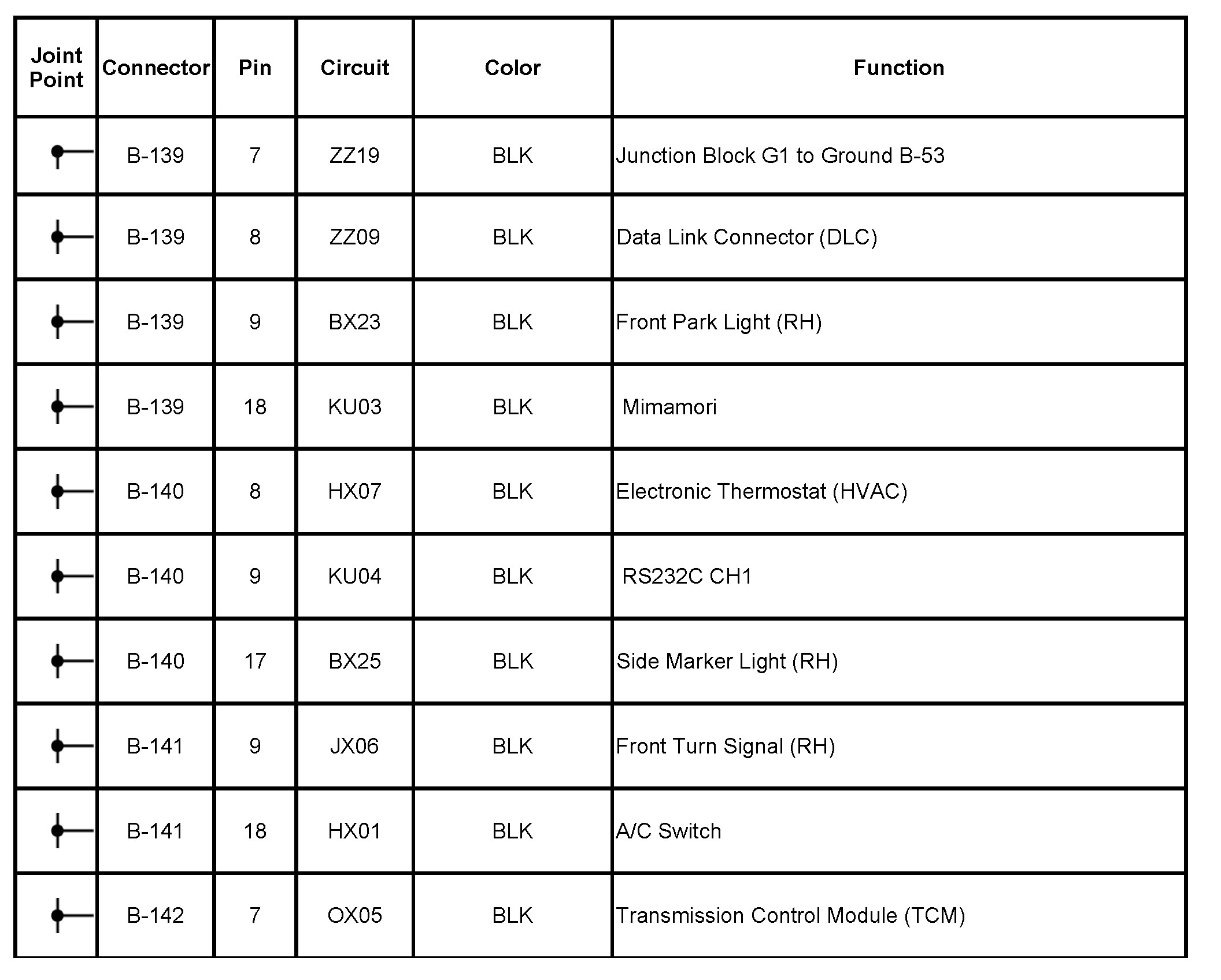

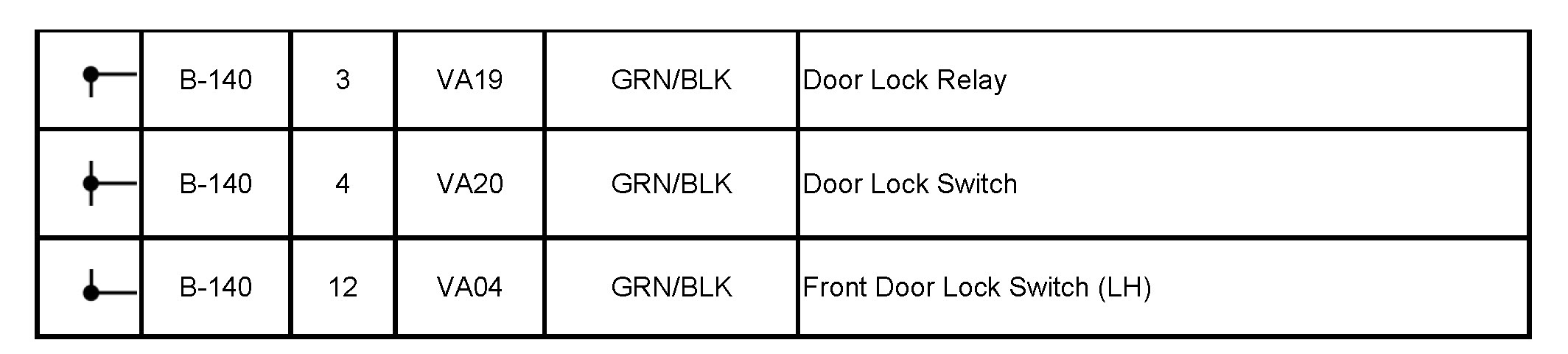

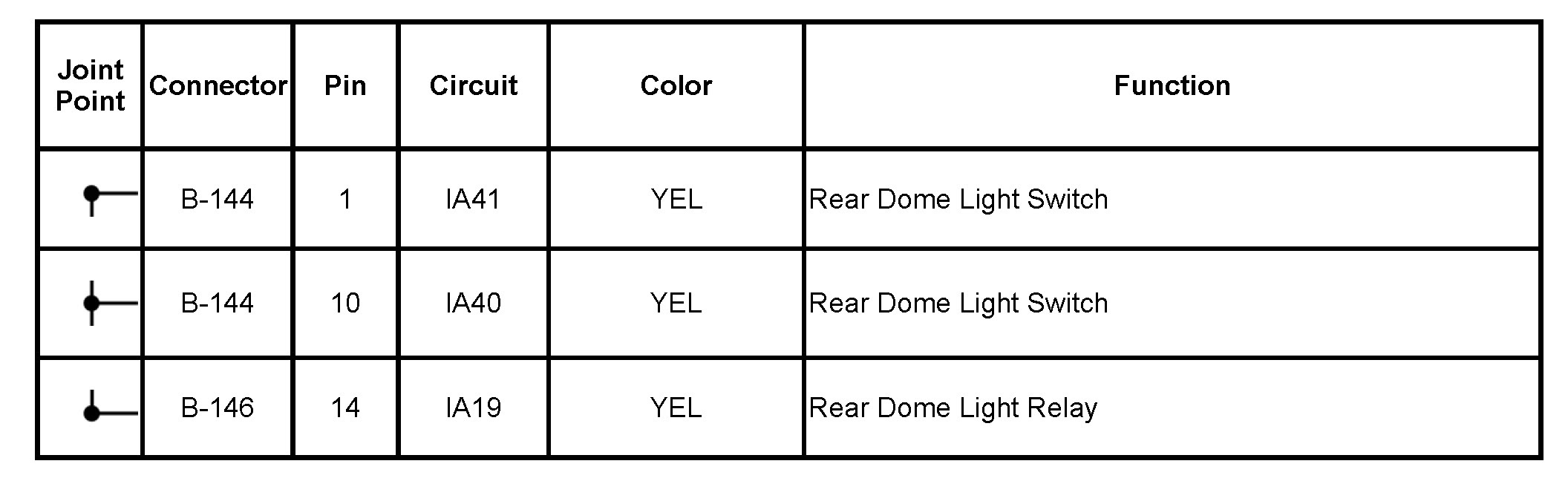

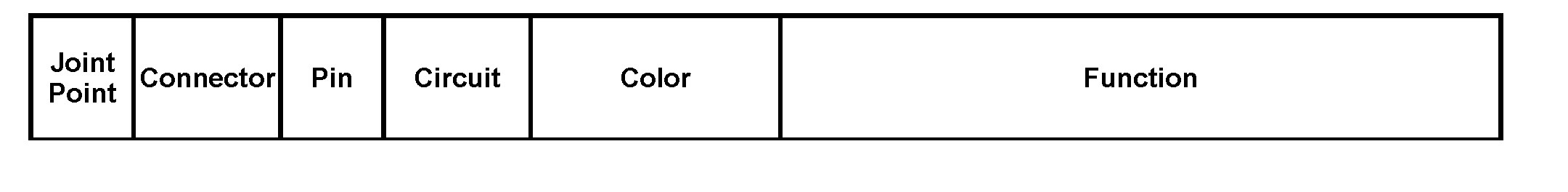

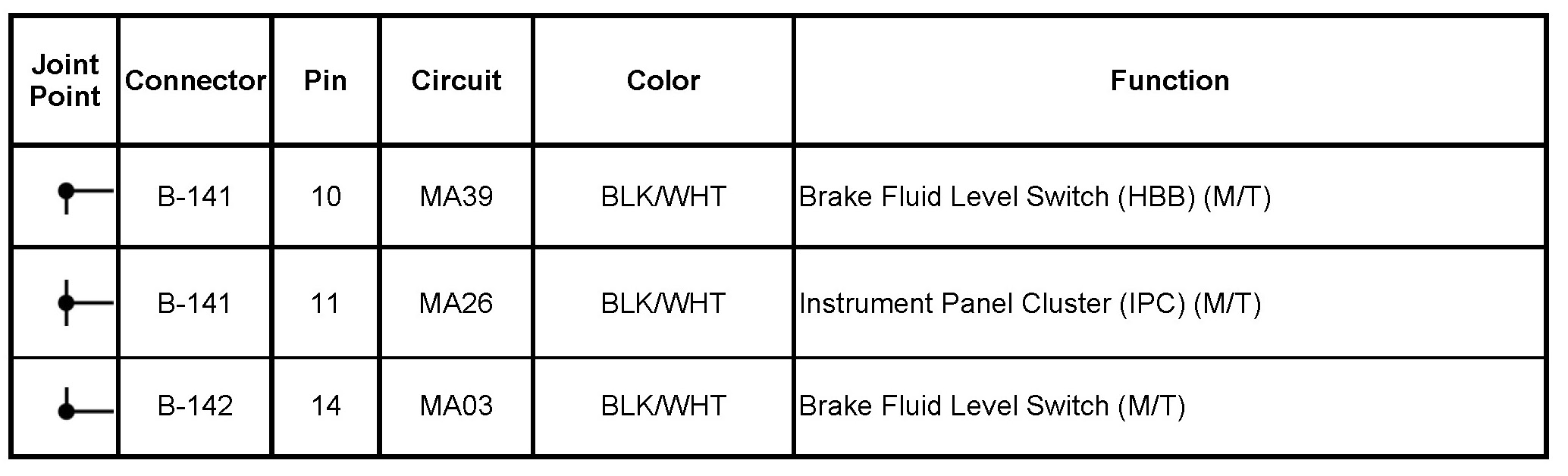

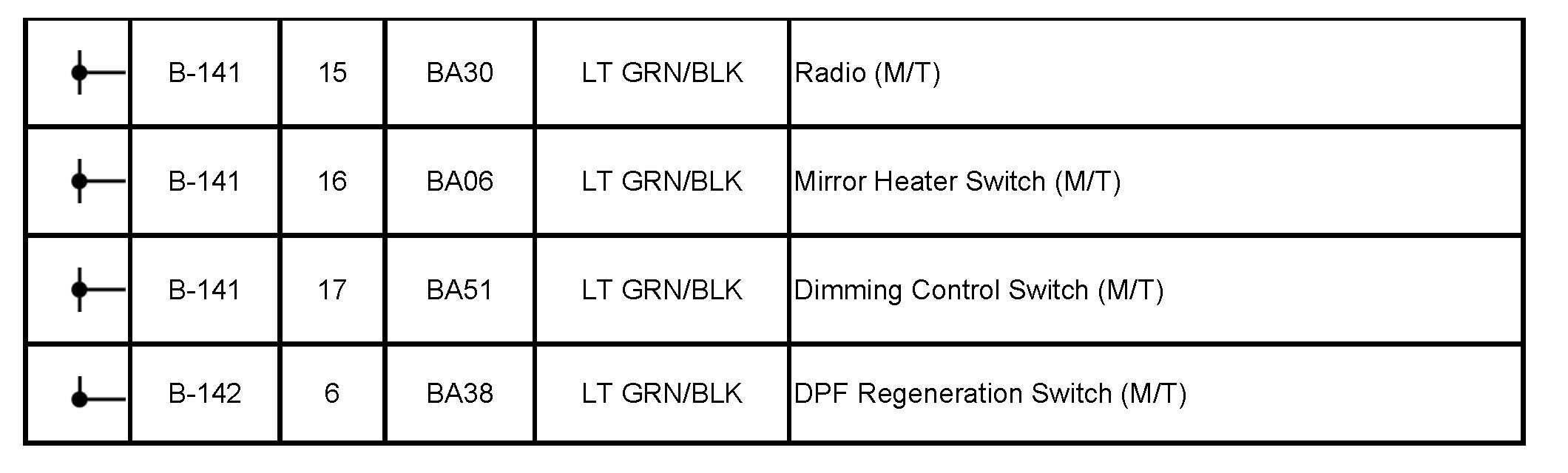

Component Connector View
