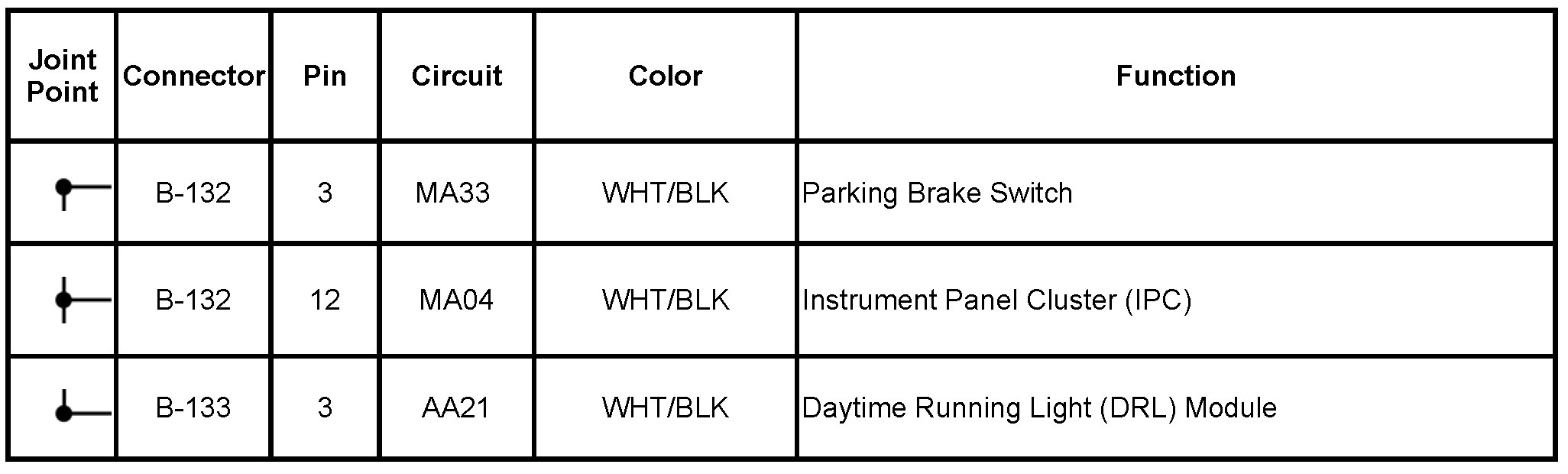

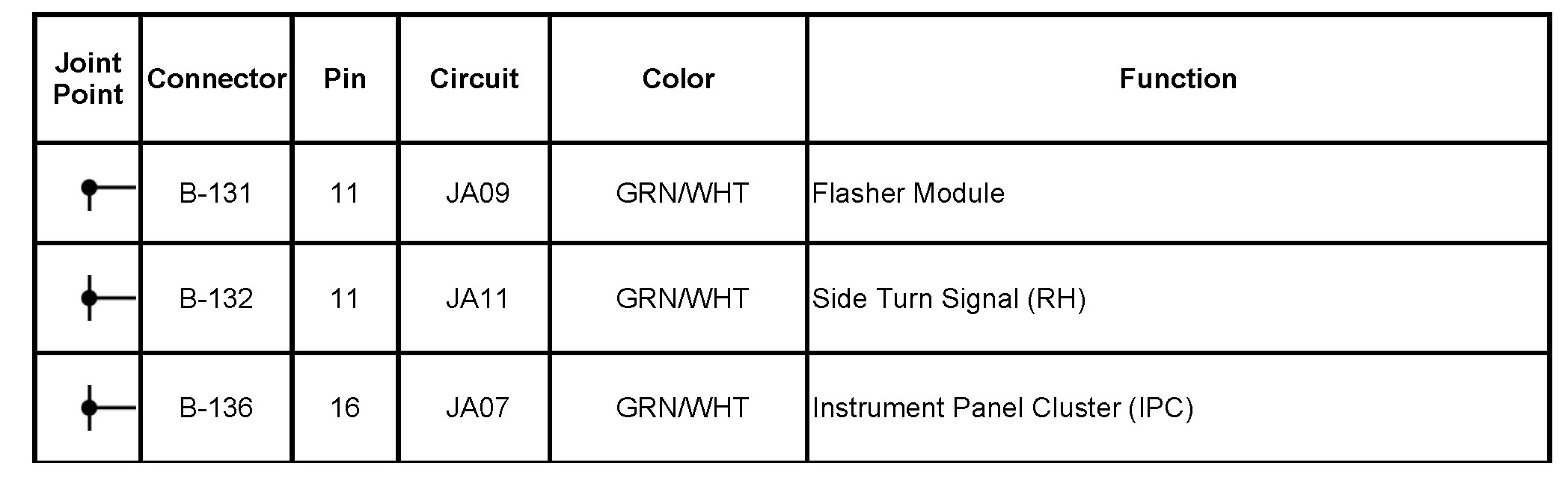

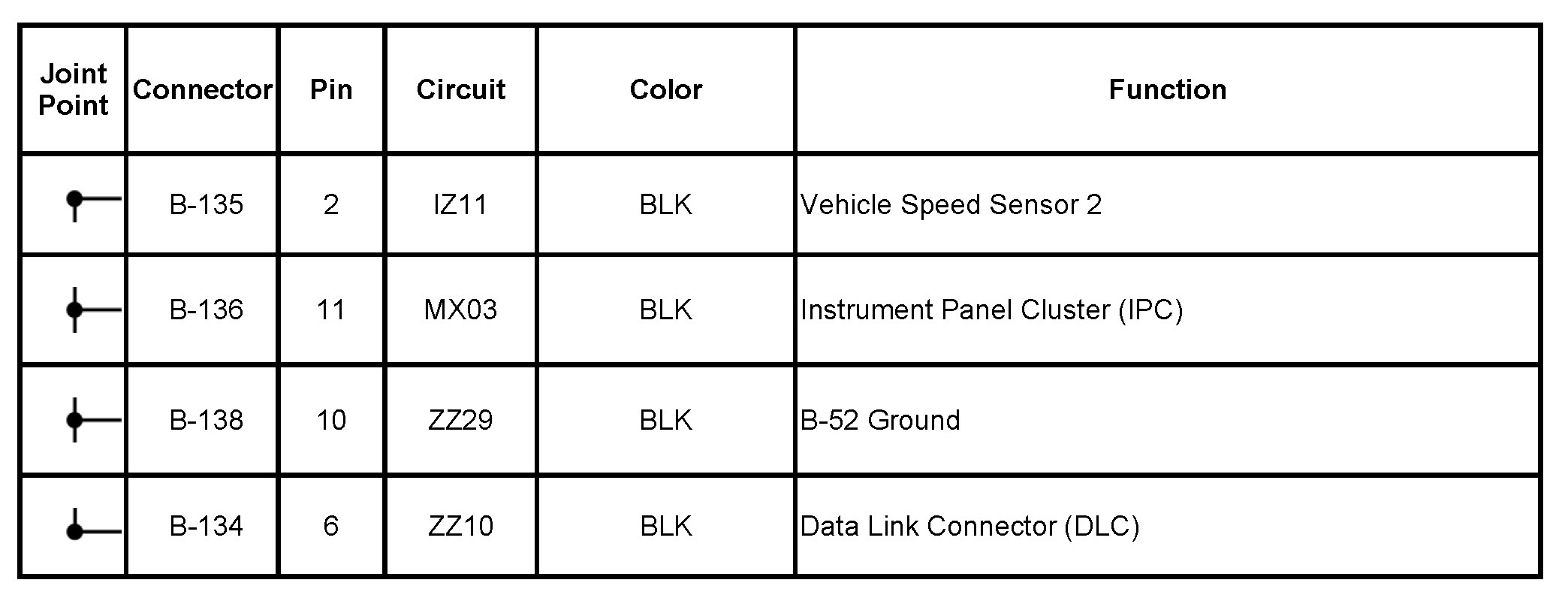

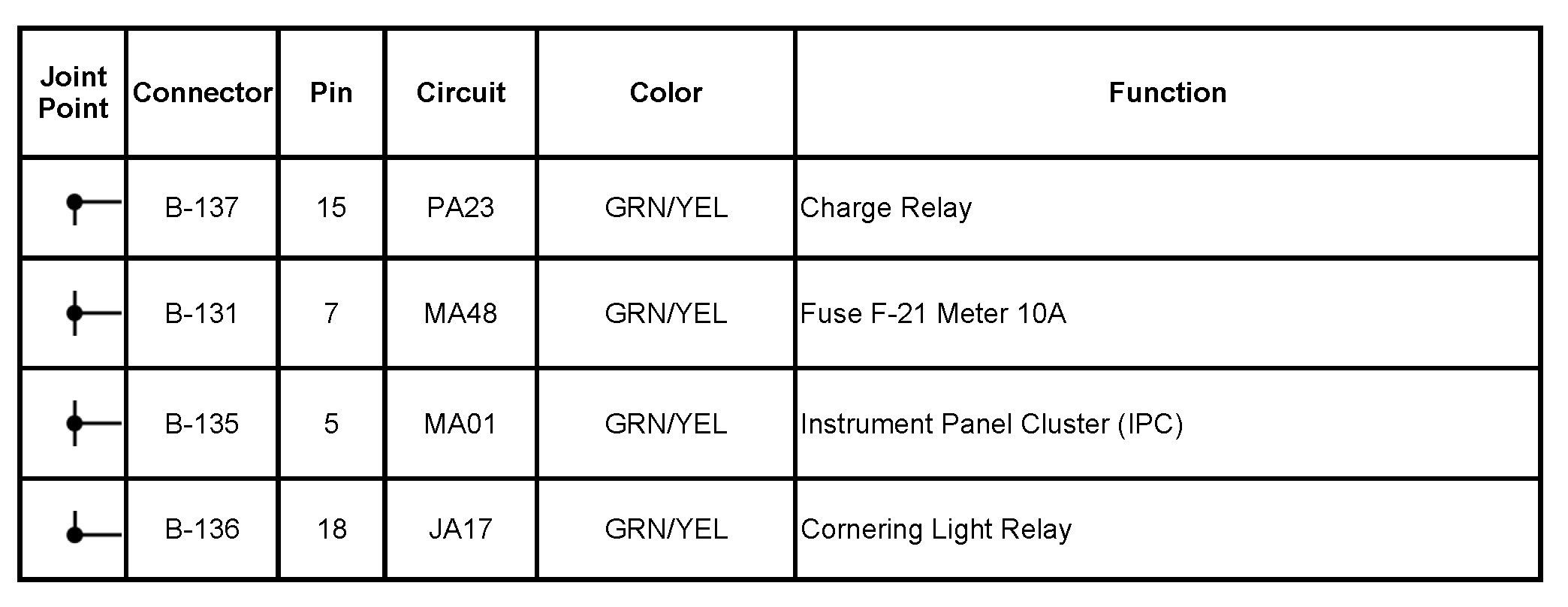

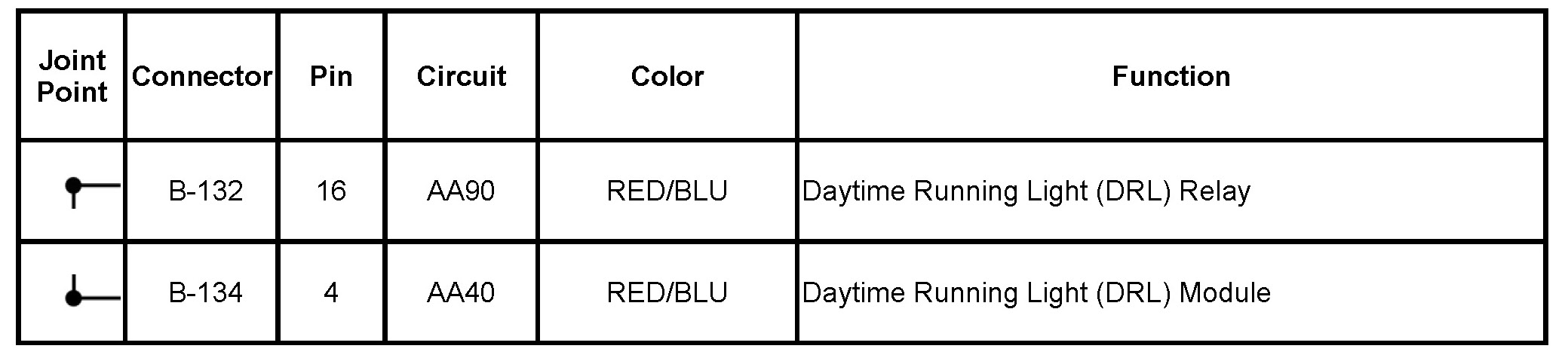

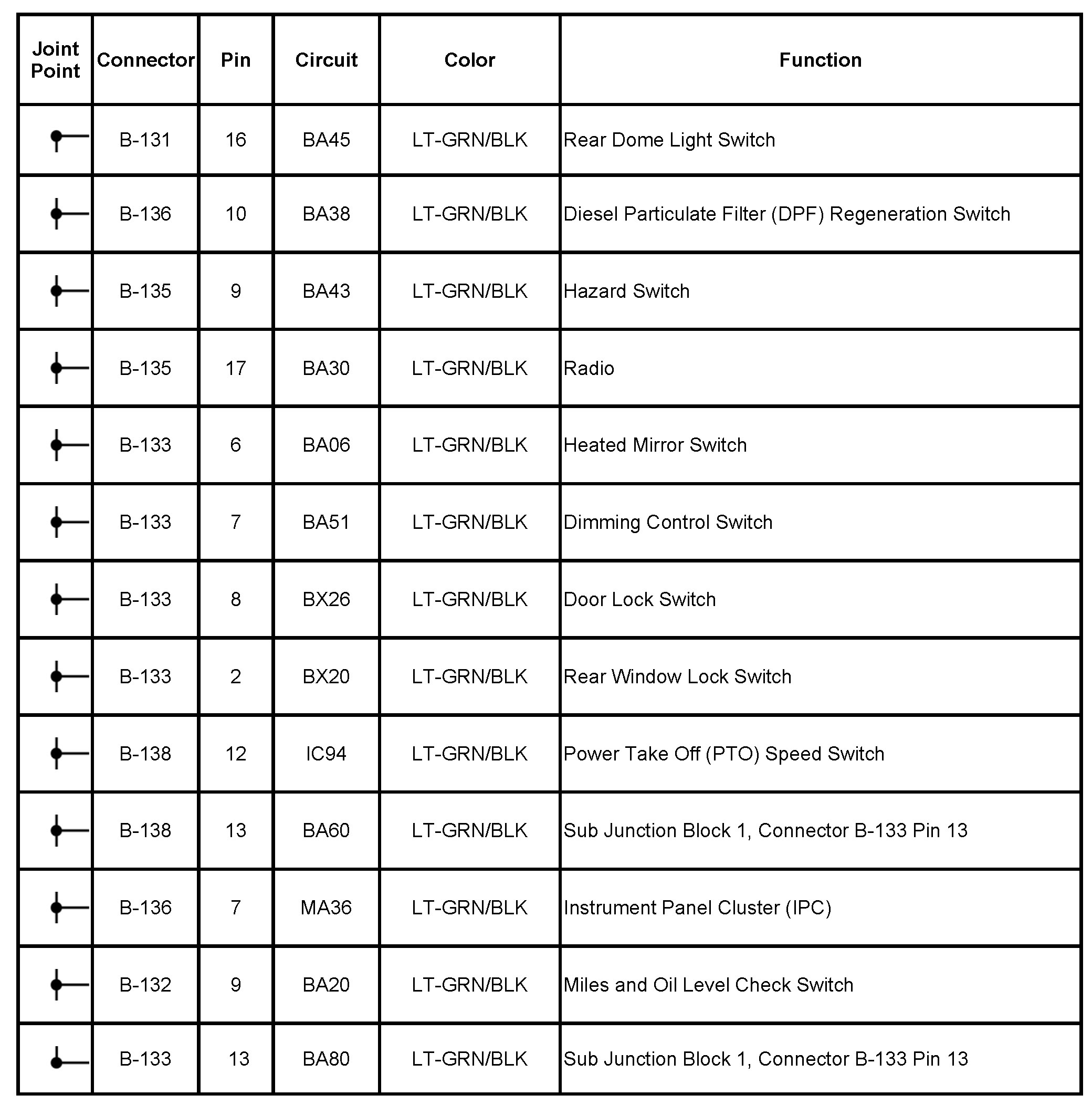

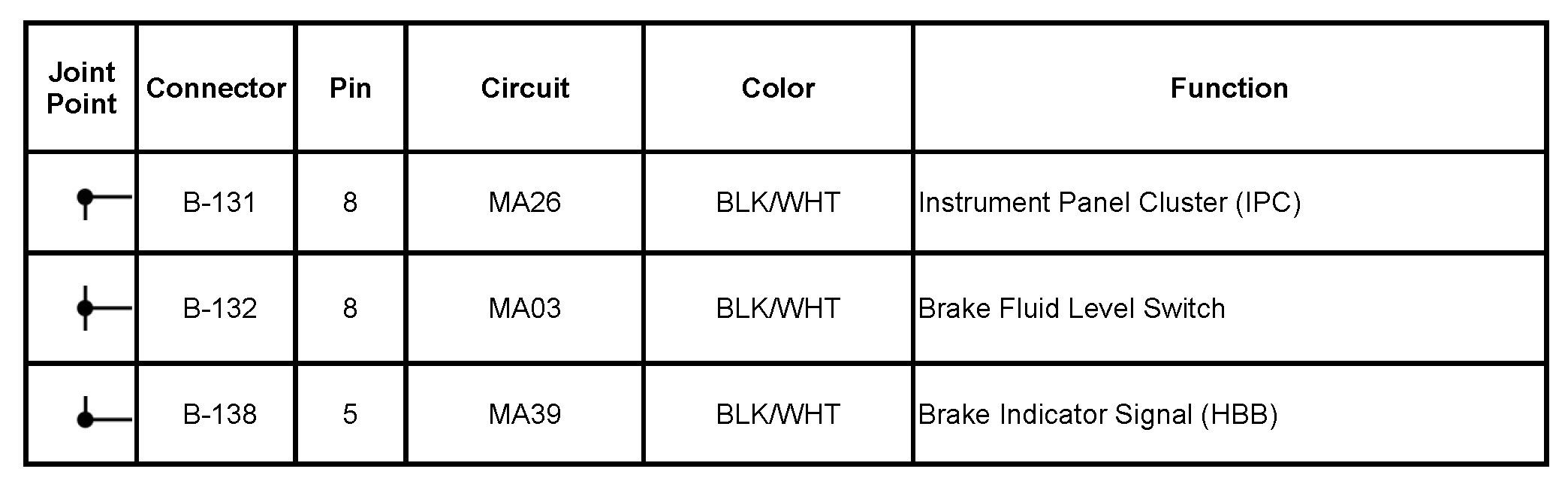

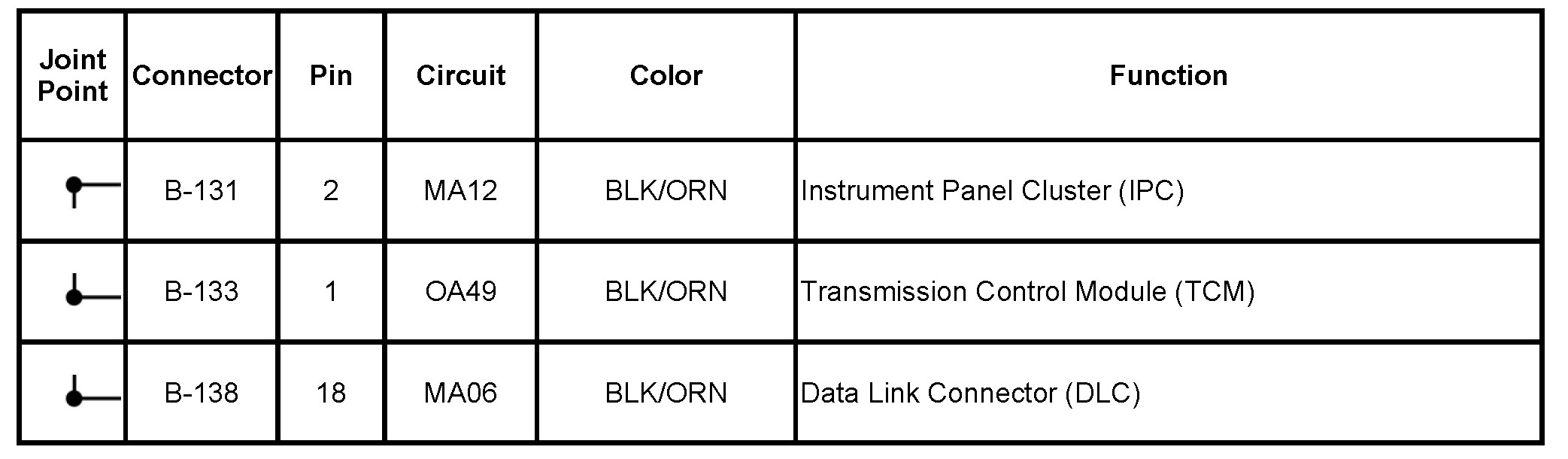

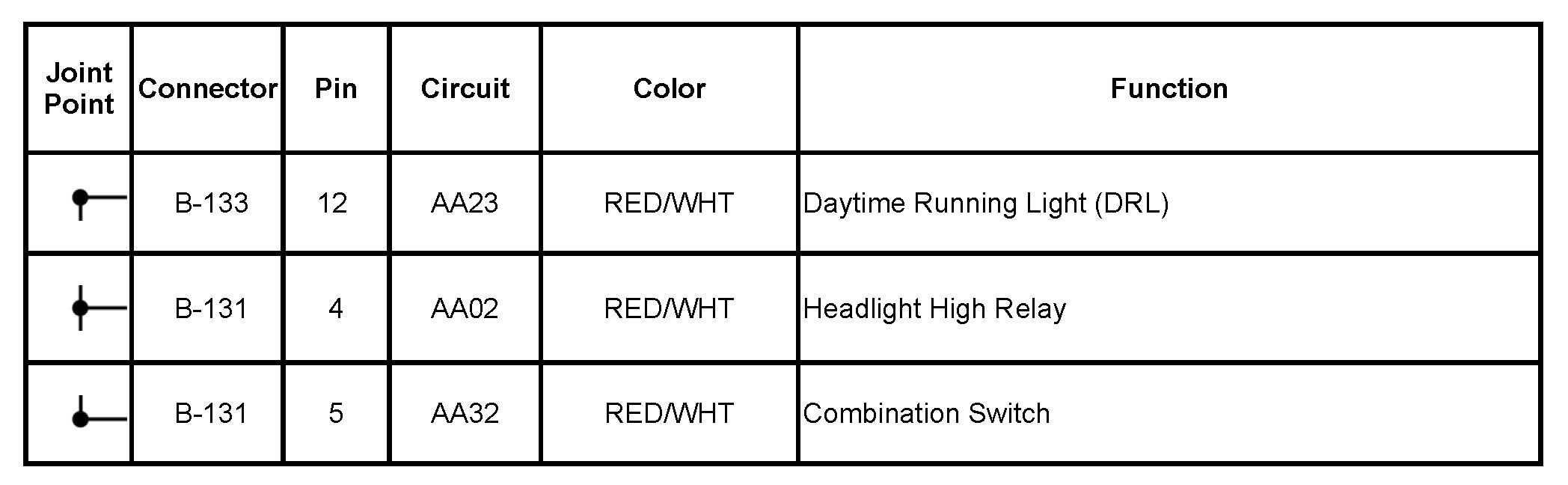

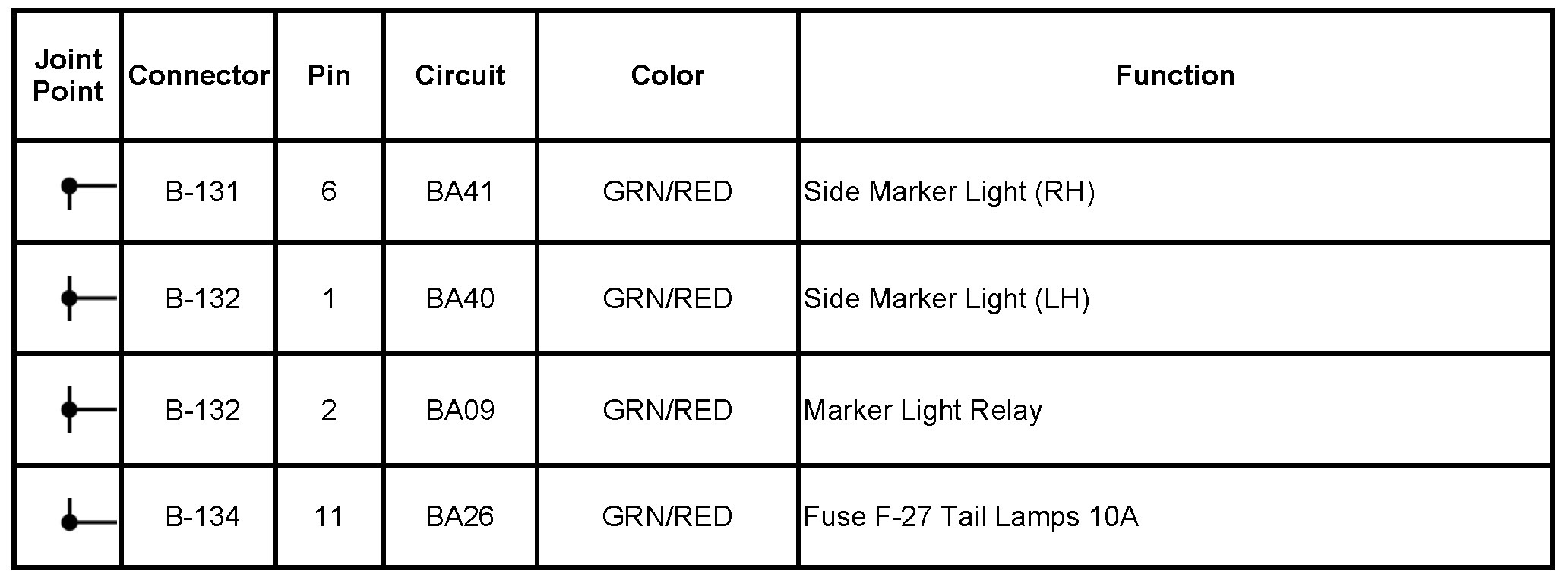

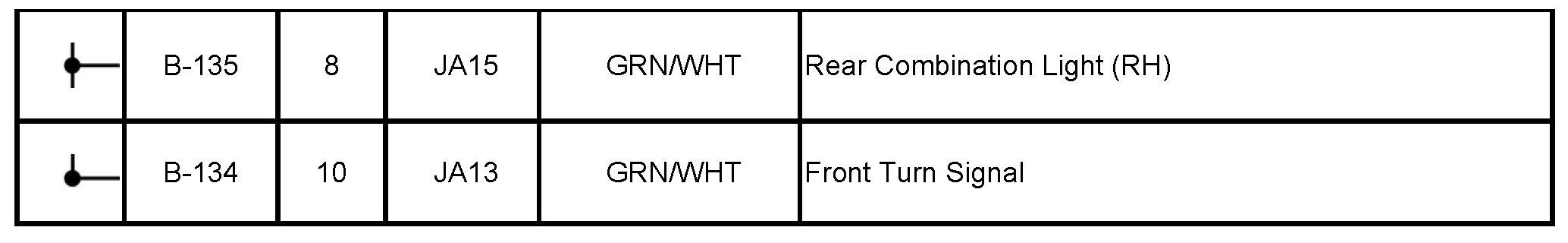

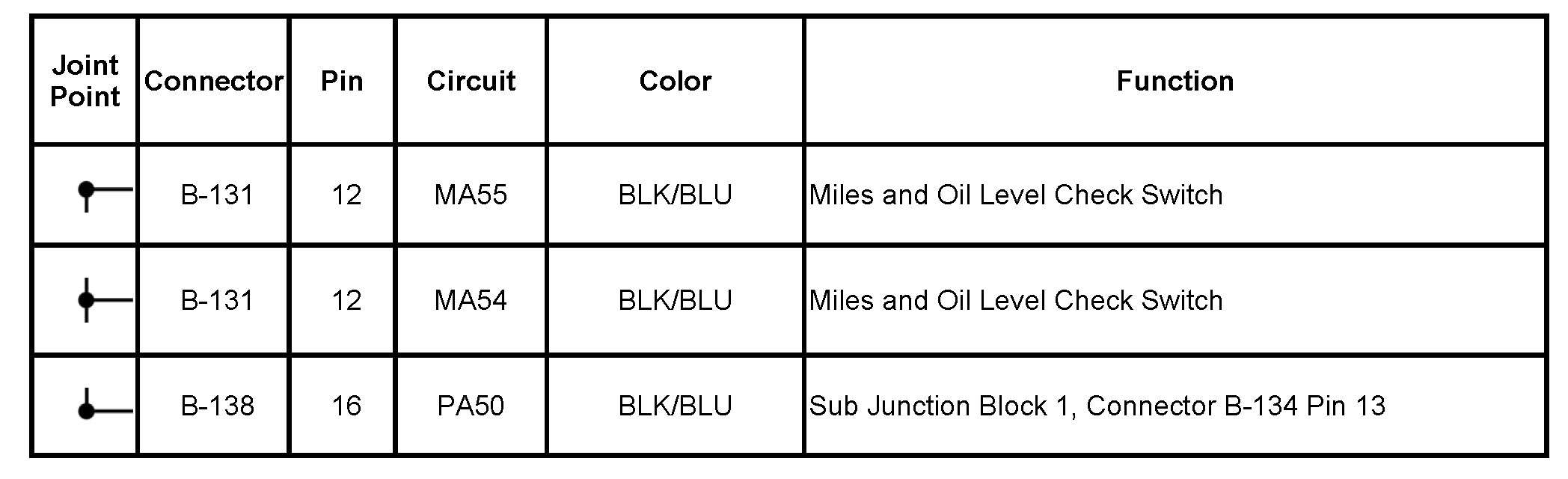

Sub Junction Block 1 (A/T)

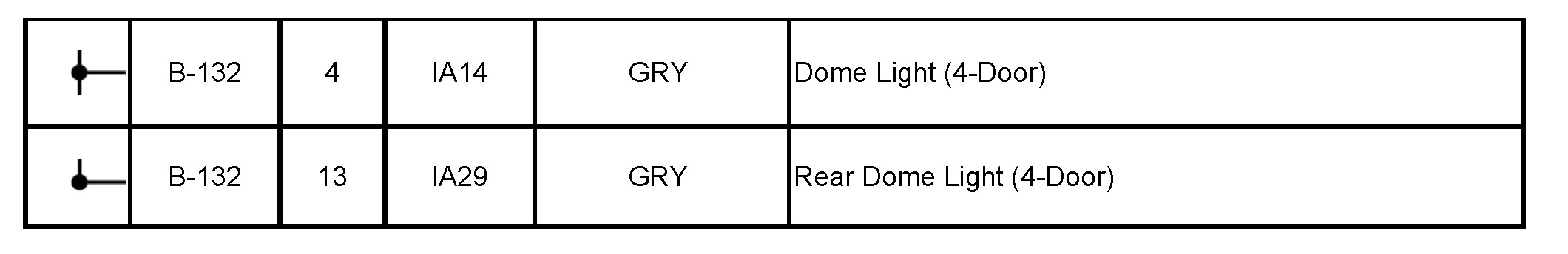

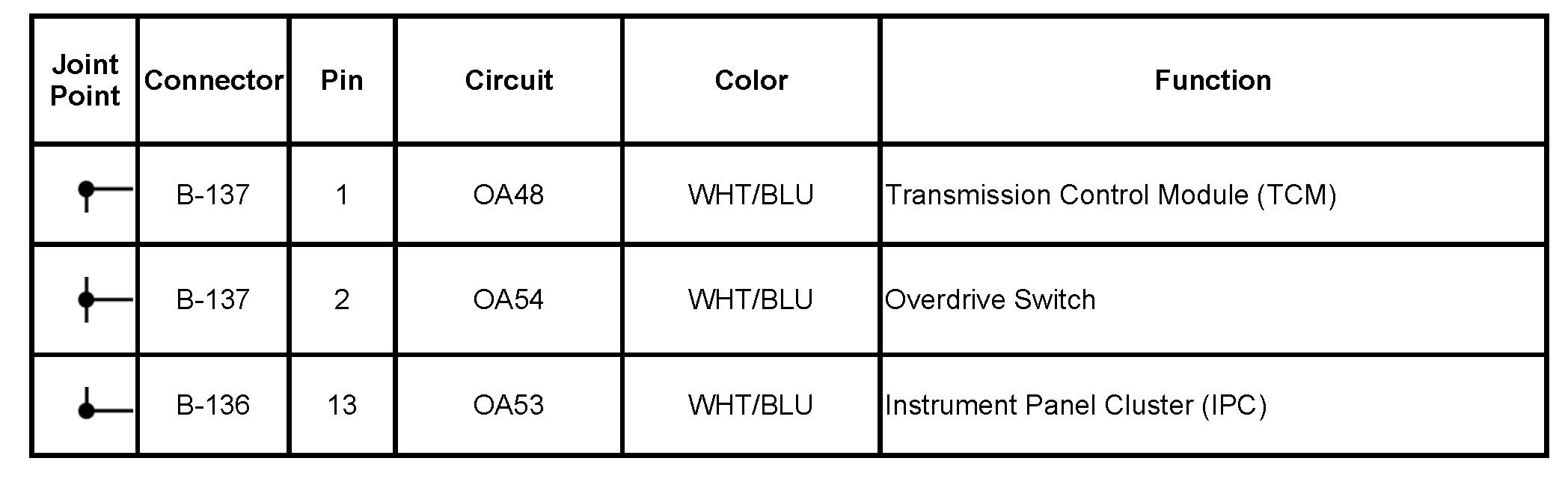

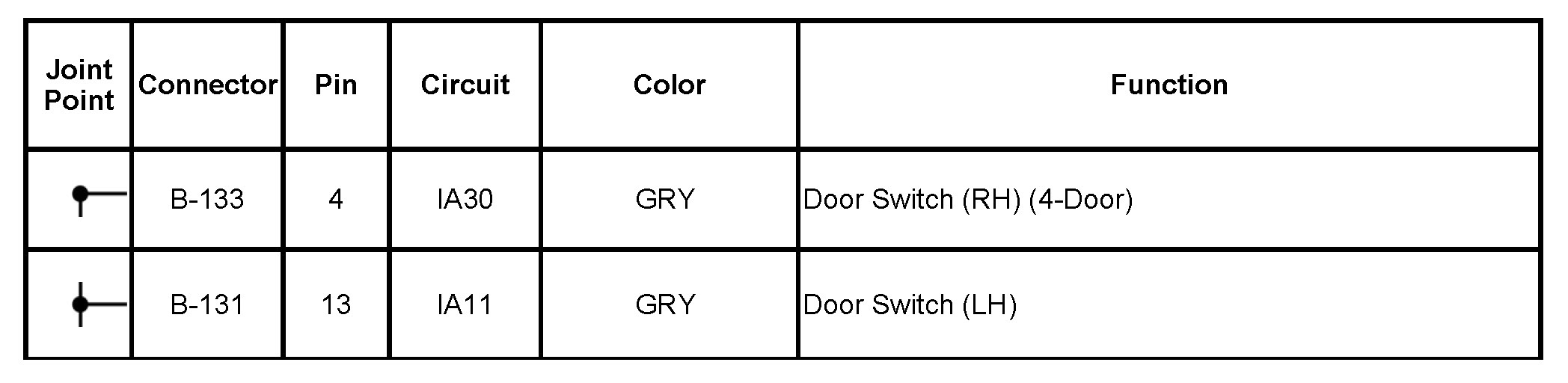

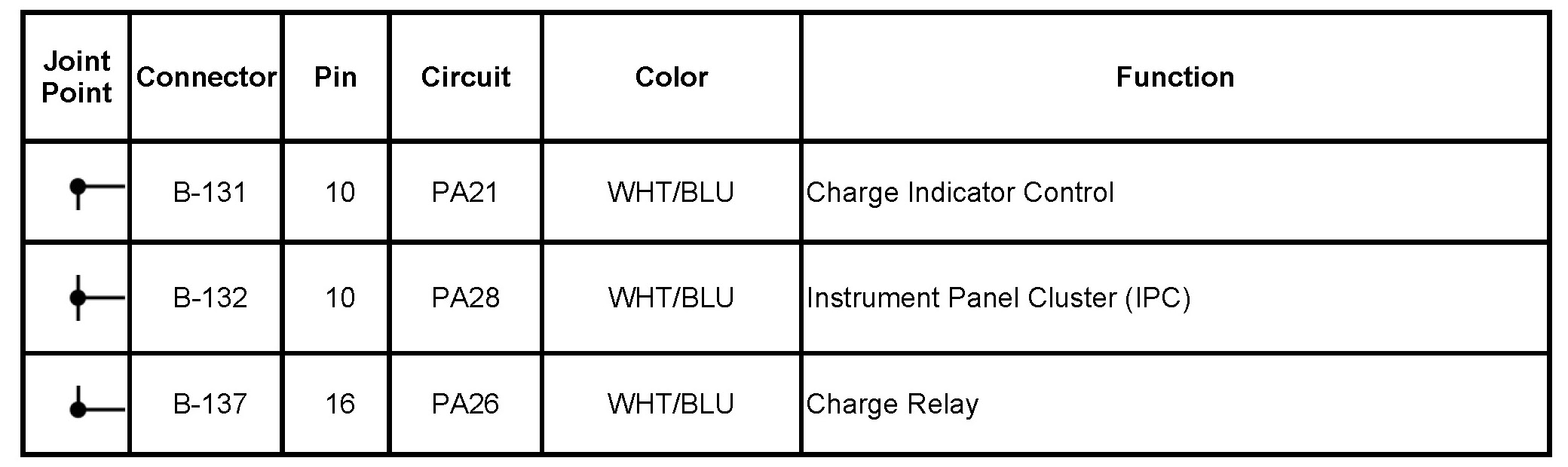

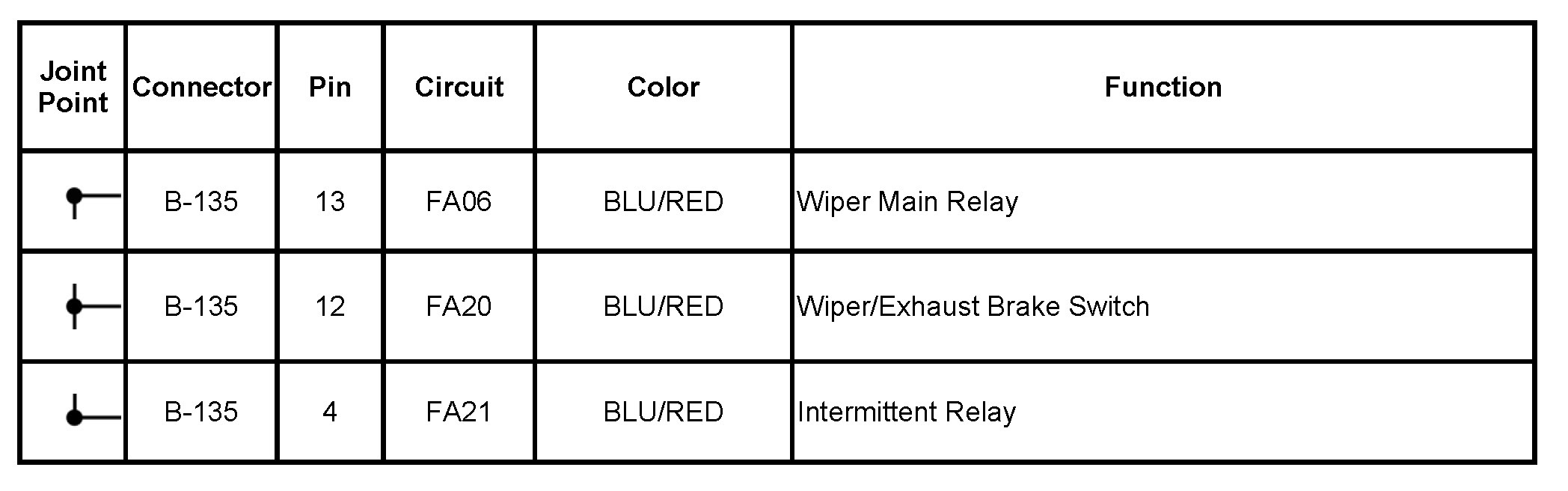

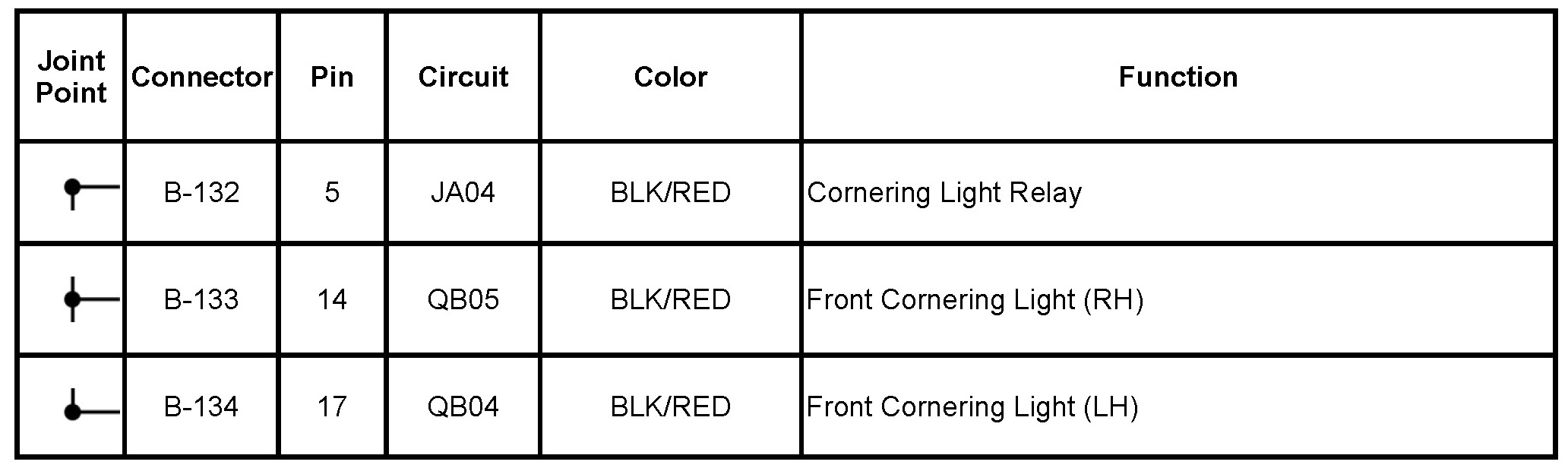

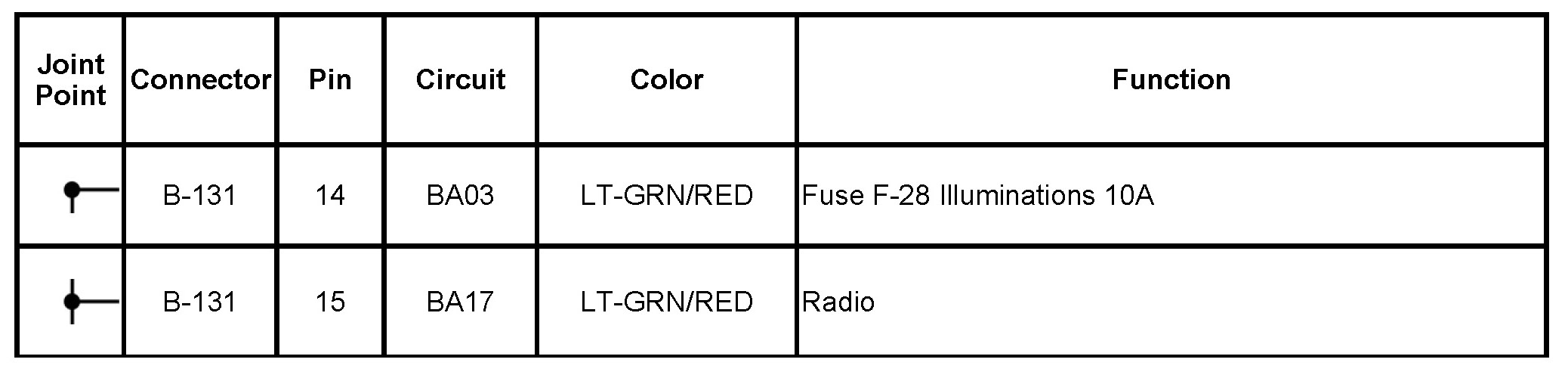

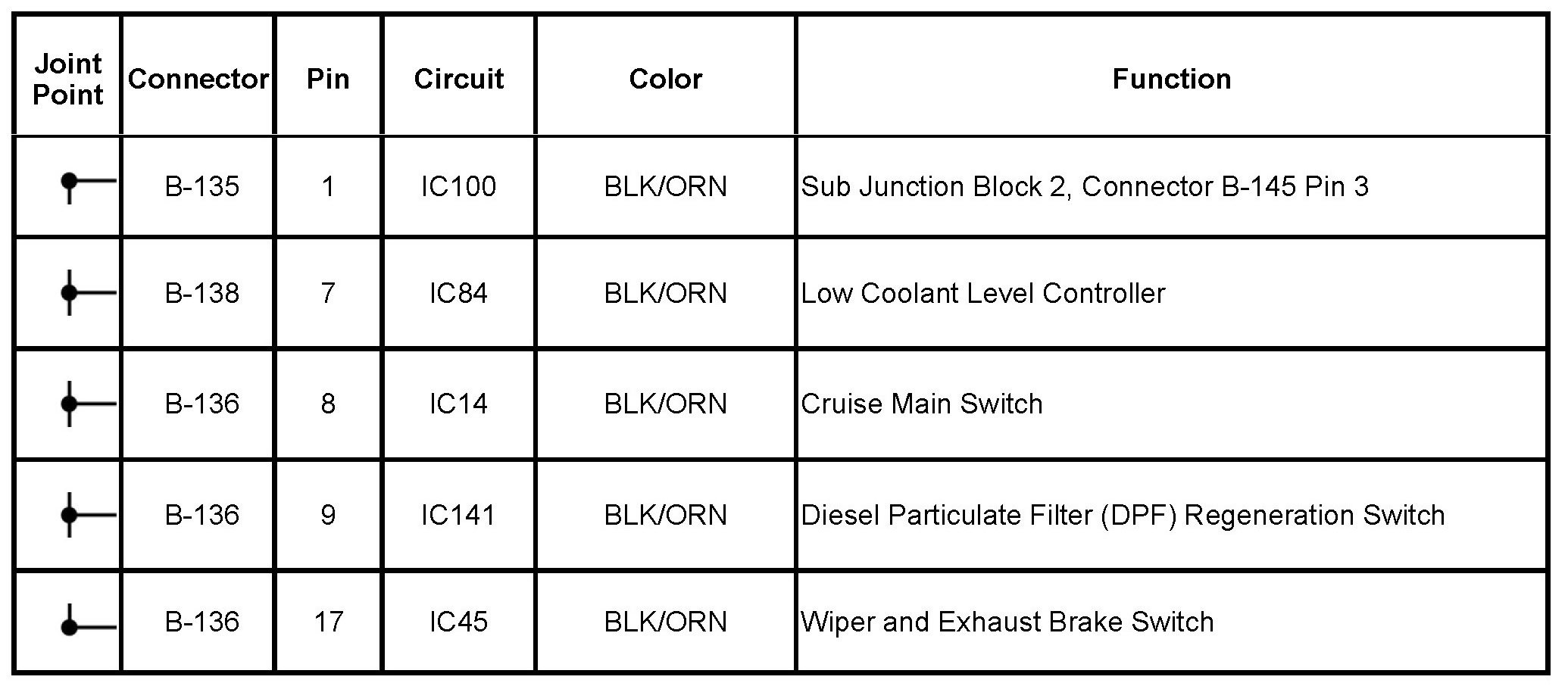

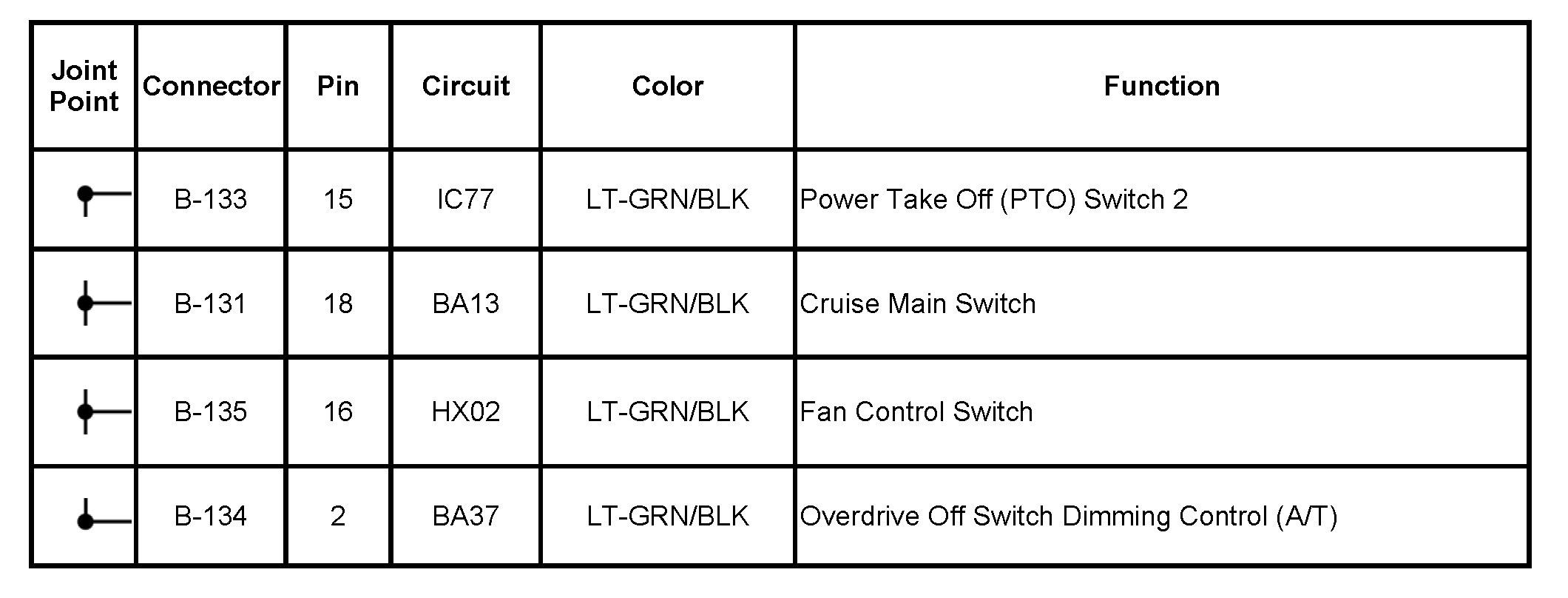

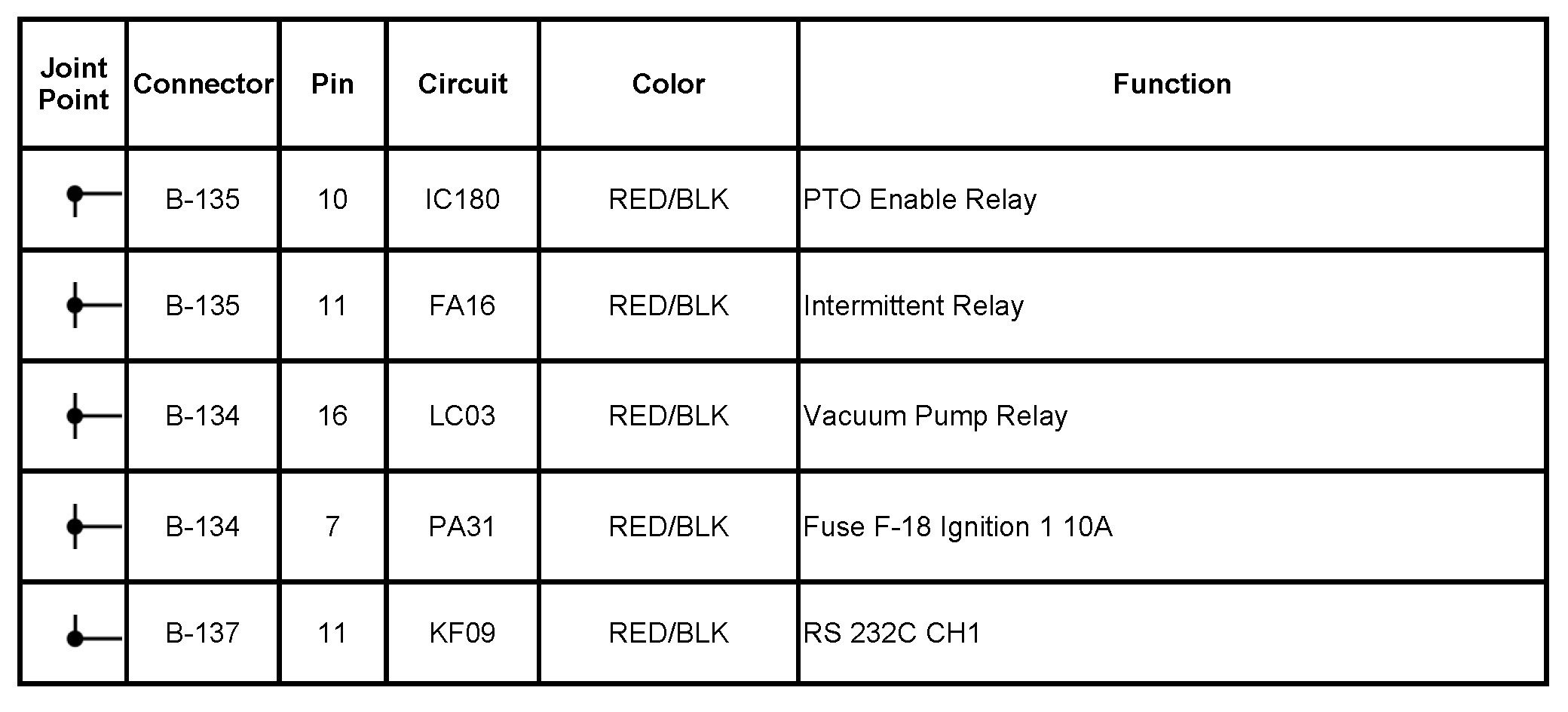

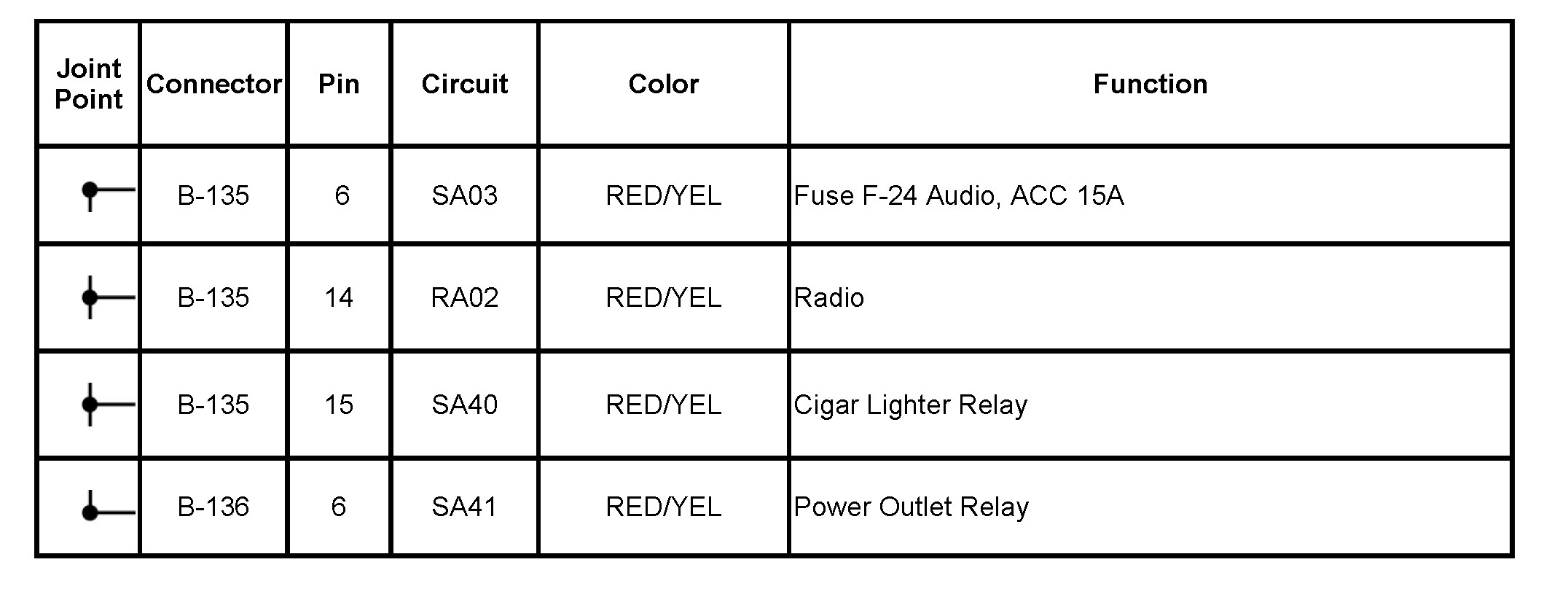

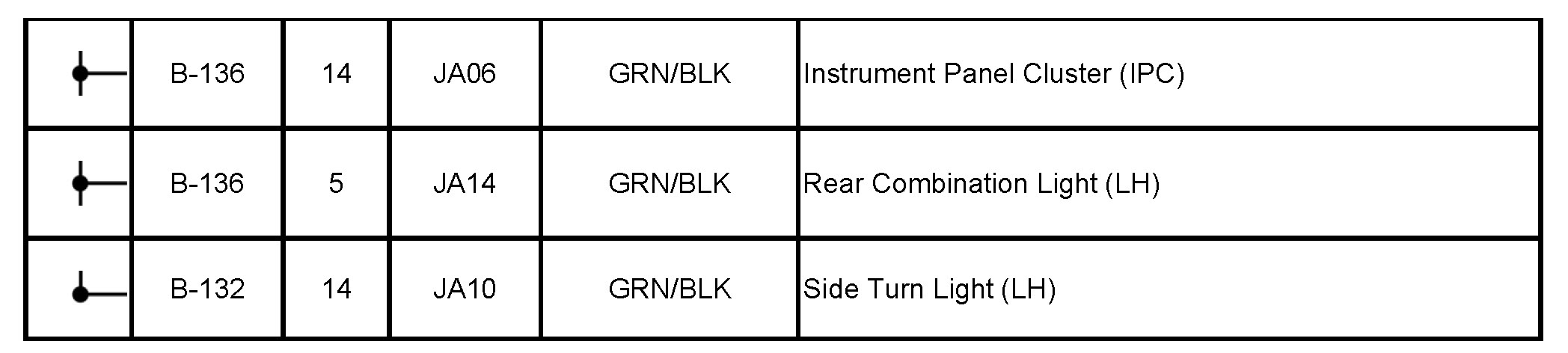

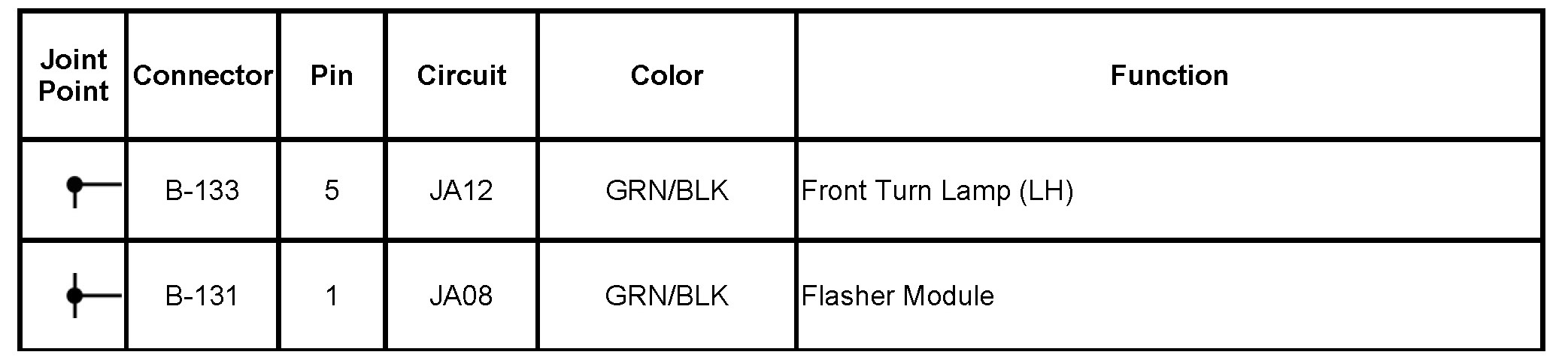

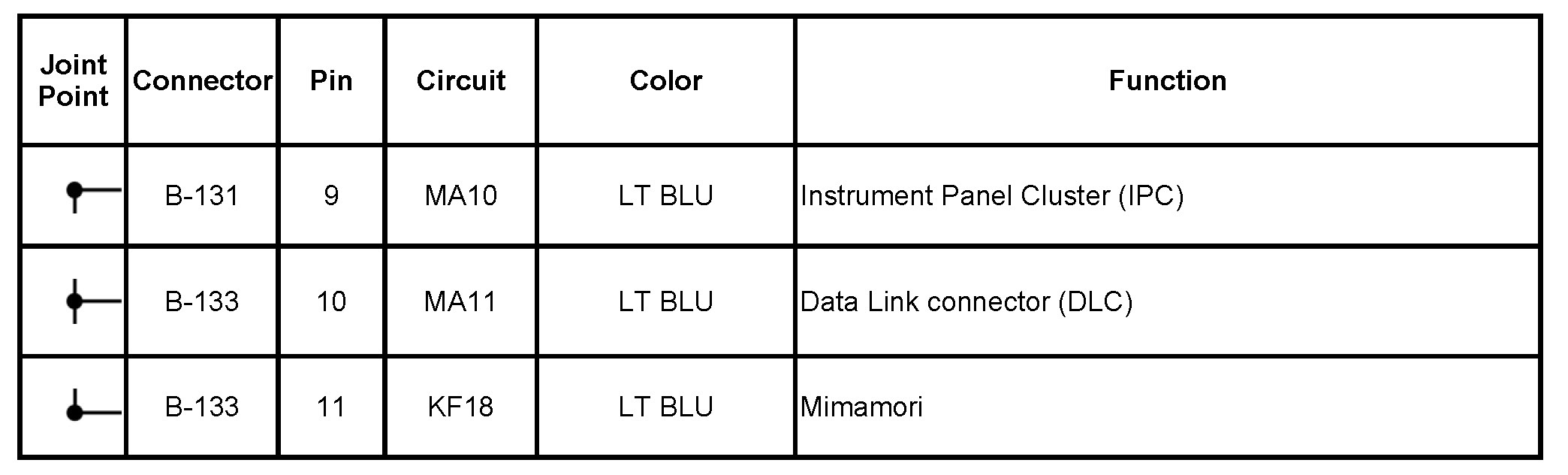

Sub Junction Block 1 (A/T)

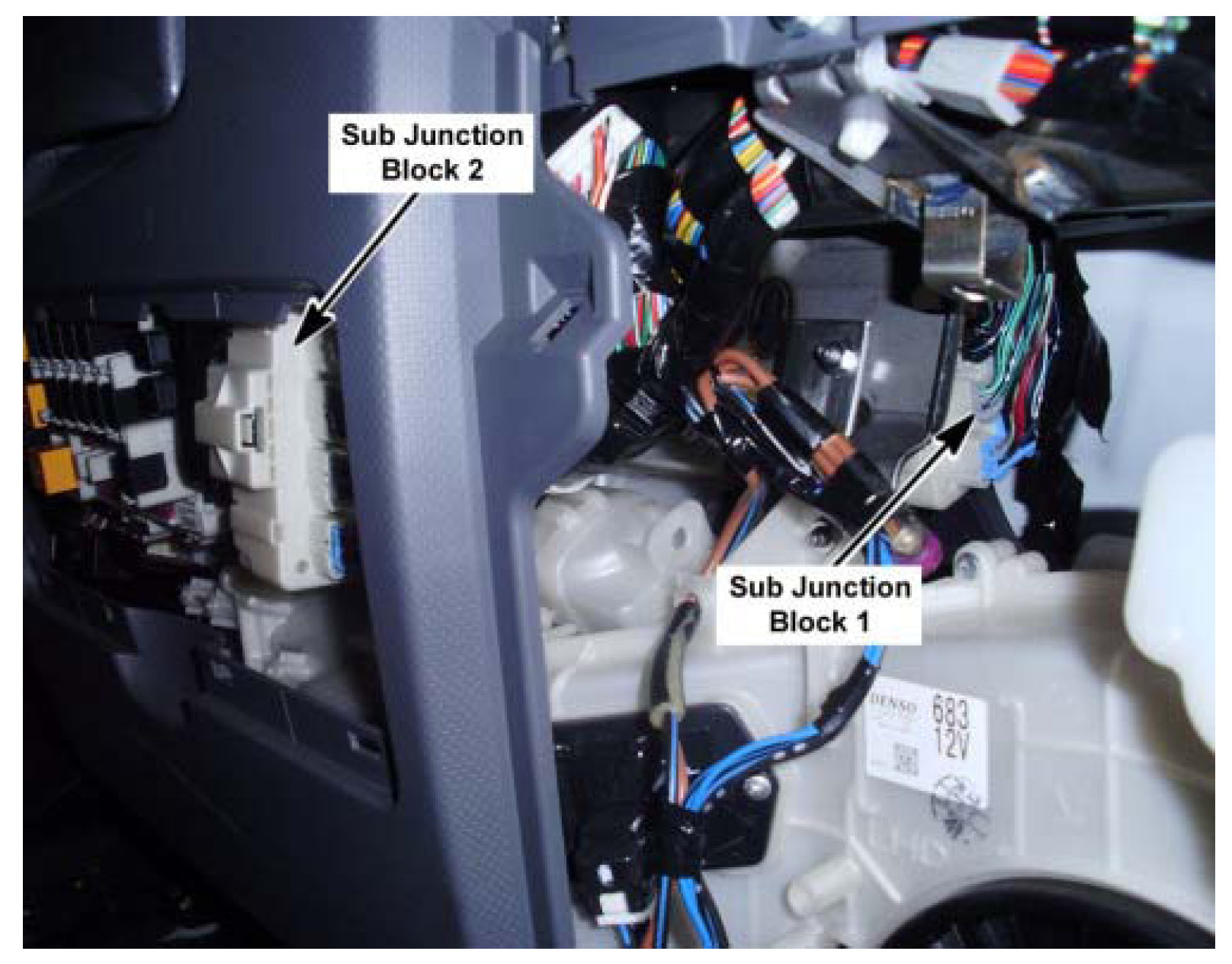

Behind the Center of the I/P, Above the Blower Motor Case To The Left of the Blower Motor

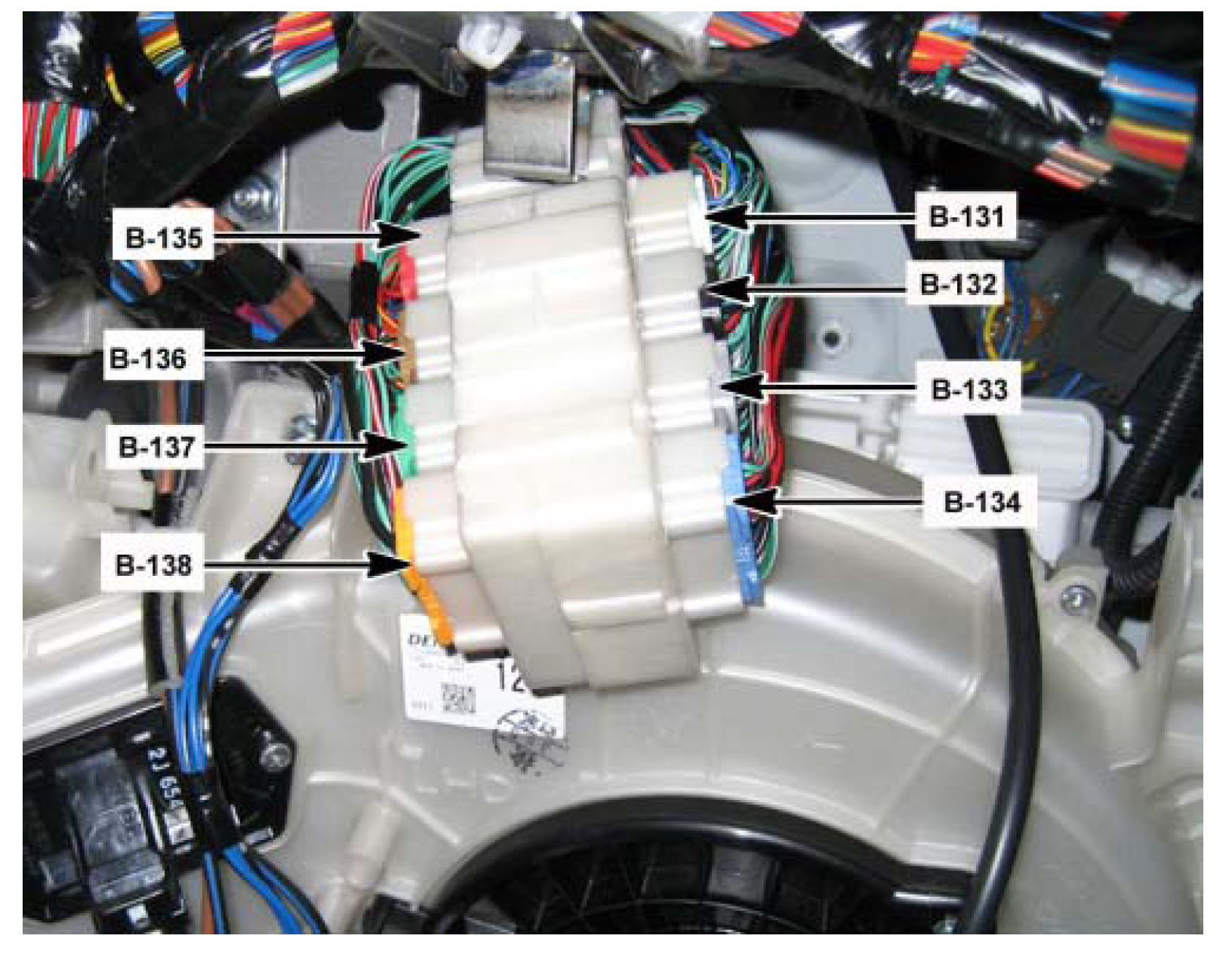

Junction Block Removed For Clarity
