Starter

Starter

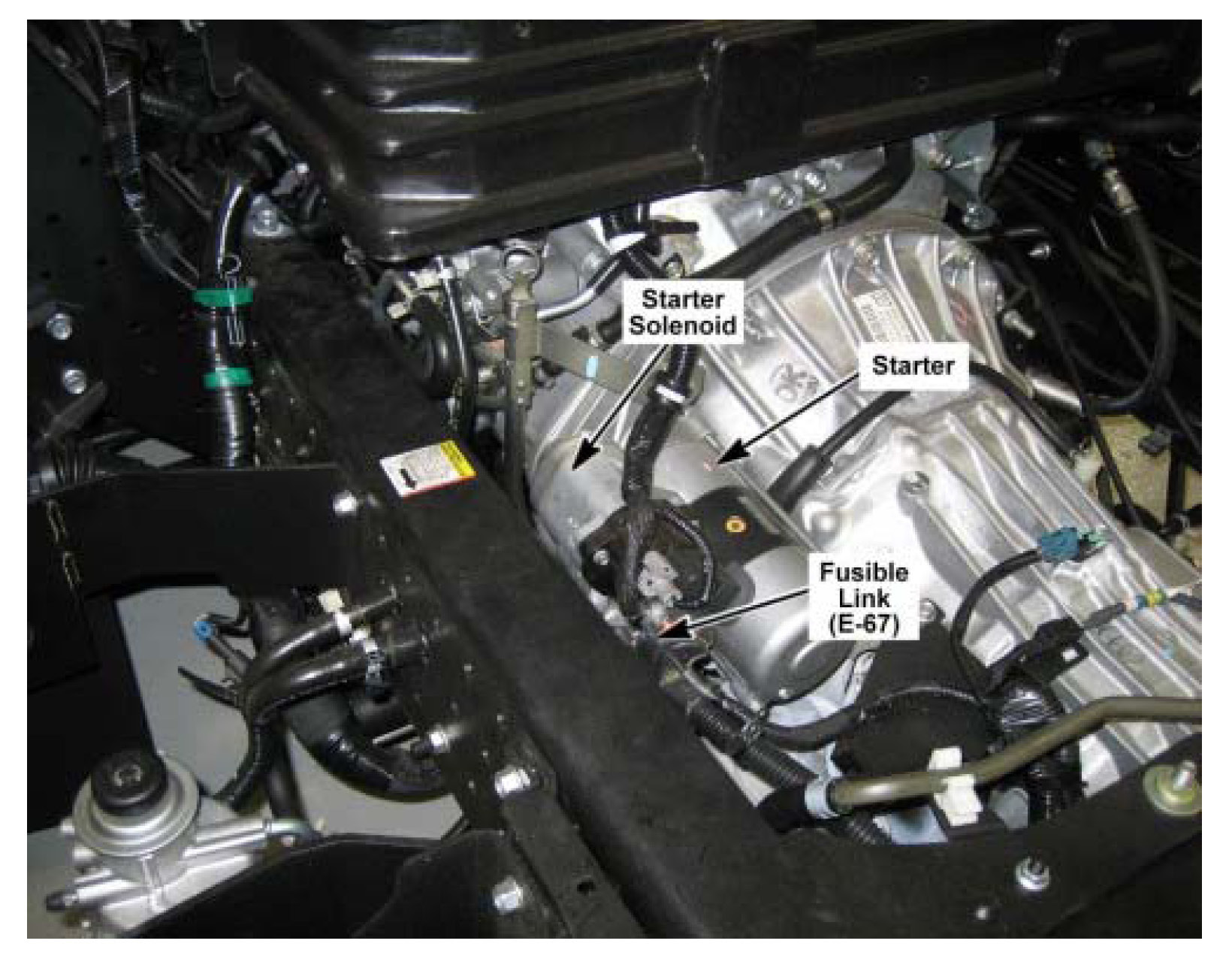

Behind the Left Side of the Engine, Next To The Transmission (5.2L)

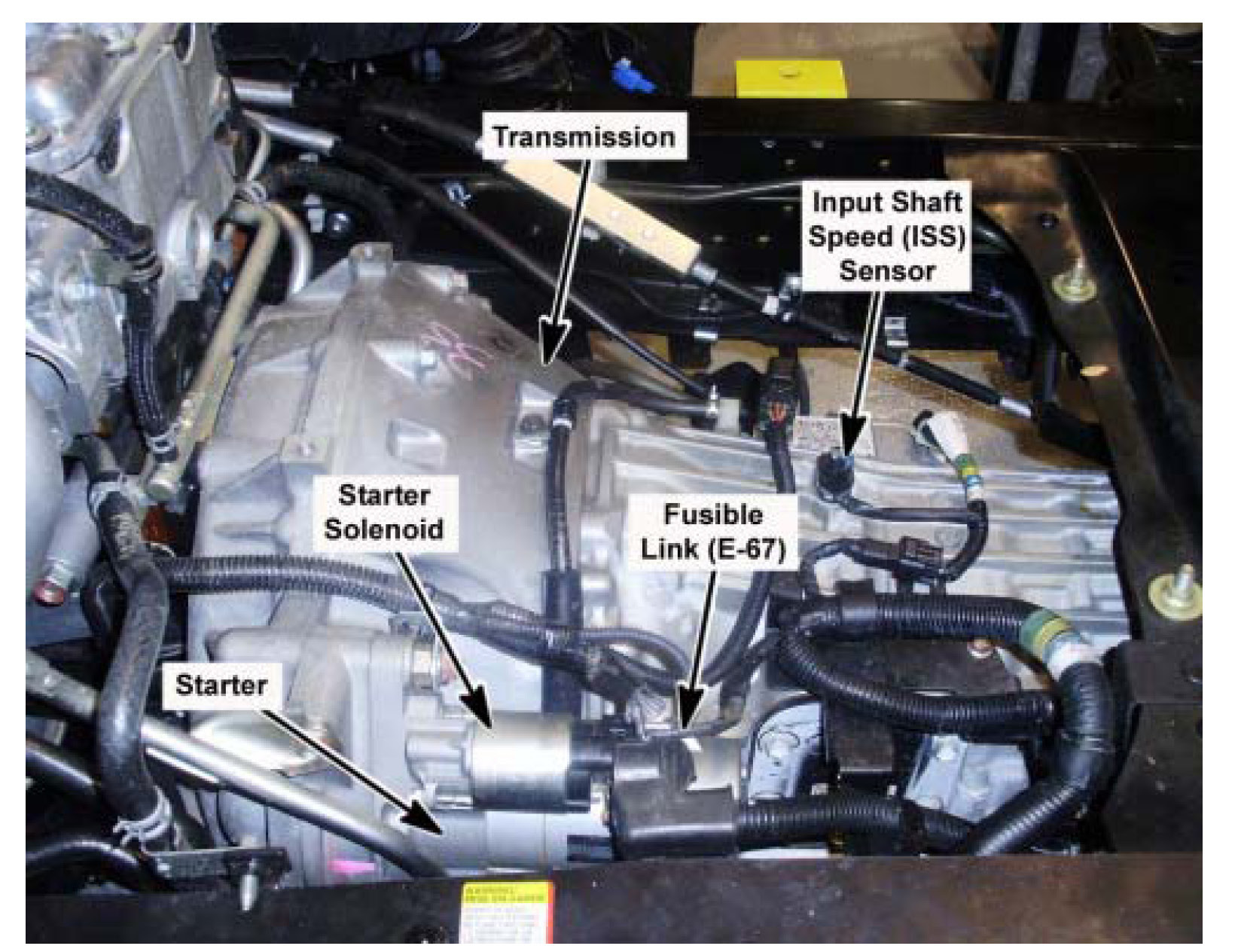

Behind the Left Side of the Engine, Next To The Transmission (3.0L)
