Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Dome Lamps-Rear

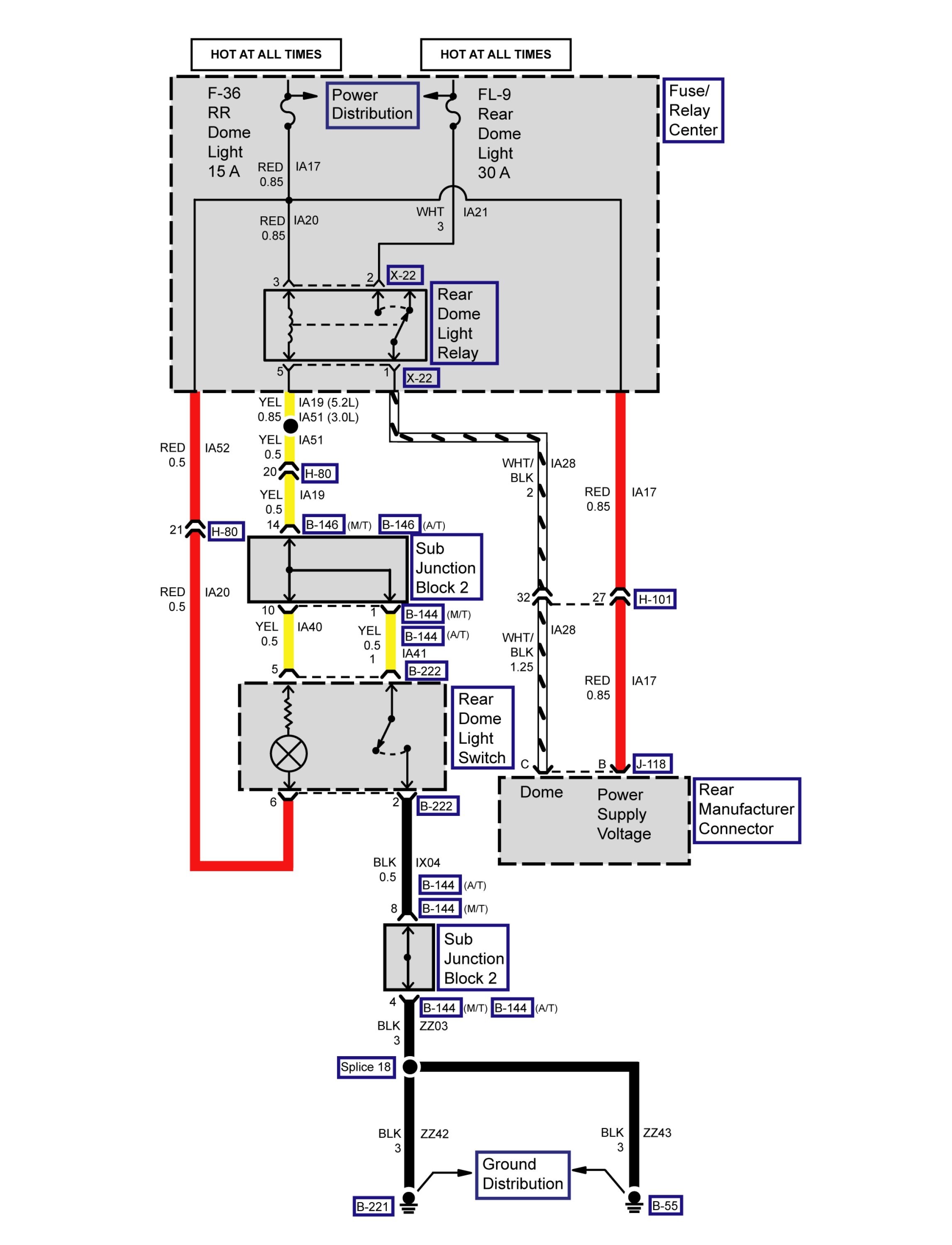

Dome Lamps-Rear

Dome Lamps-Rear
