Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Air Conditioning System
Air Conditioning System
Air Conditioning System

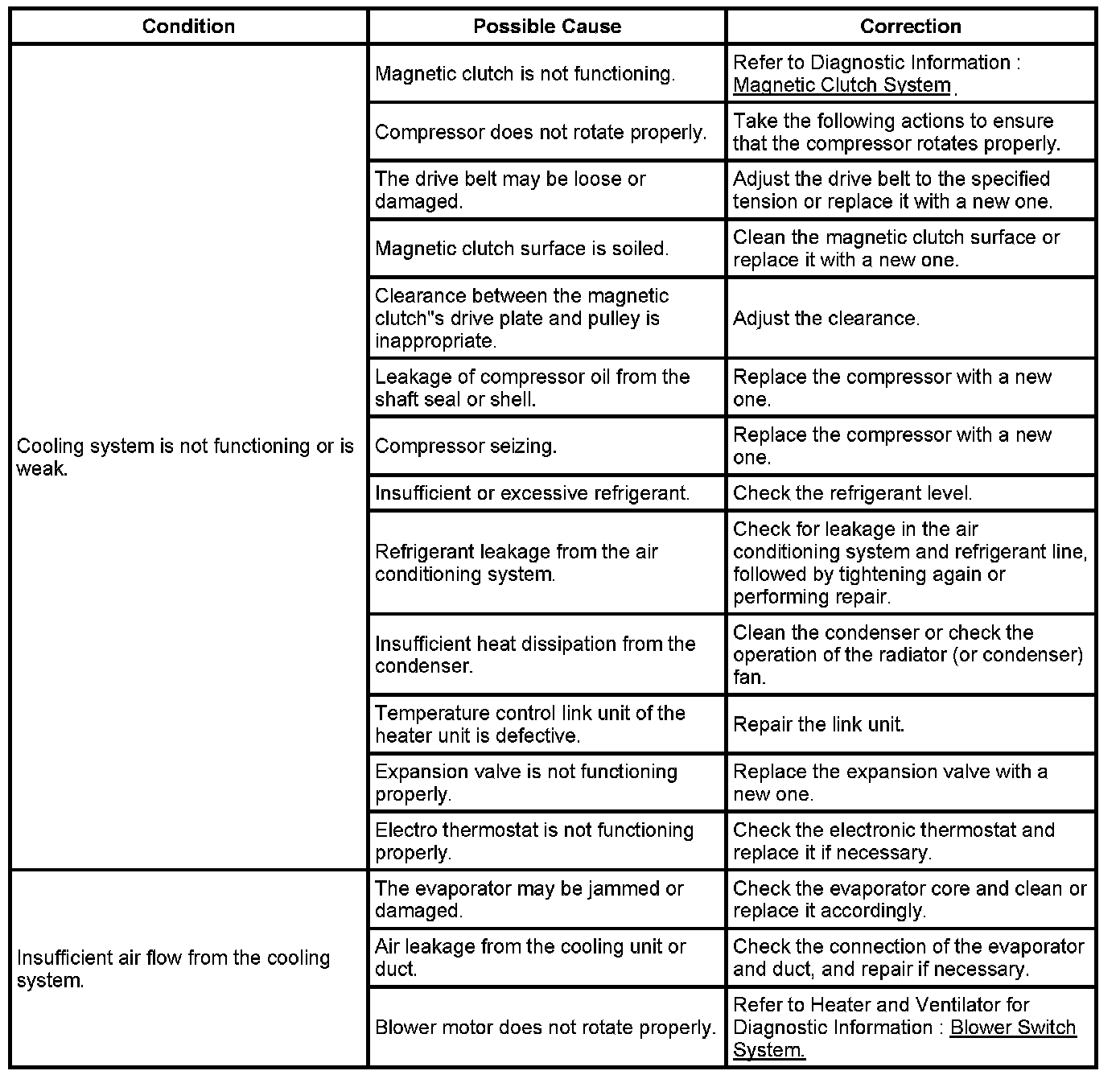

Diagnostic Information: Air Conditioning Cycle System
