Installation

Receiver Dryer

Installation

To install, follow the removal steps in the reverse order, noting the following points.
1. Install with the dryer's bonded section downwards.

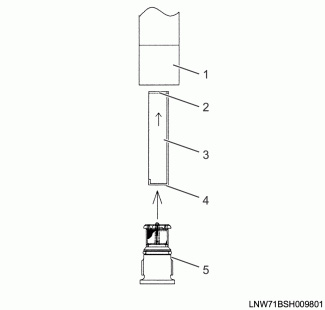

Legend
(1) Receiver Tank
(2) Sewn Part
(3) Dryer
(4) Bonded Section
(5) Receiver Tank Cap

2. Apply compressor oil to the receiver tank cap's O-ring.
- Take care not to allow the oil to adhere to the screw thread.

3. Tighten the receiver tank cap to the specified torque.
