Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>

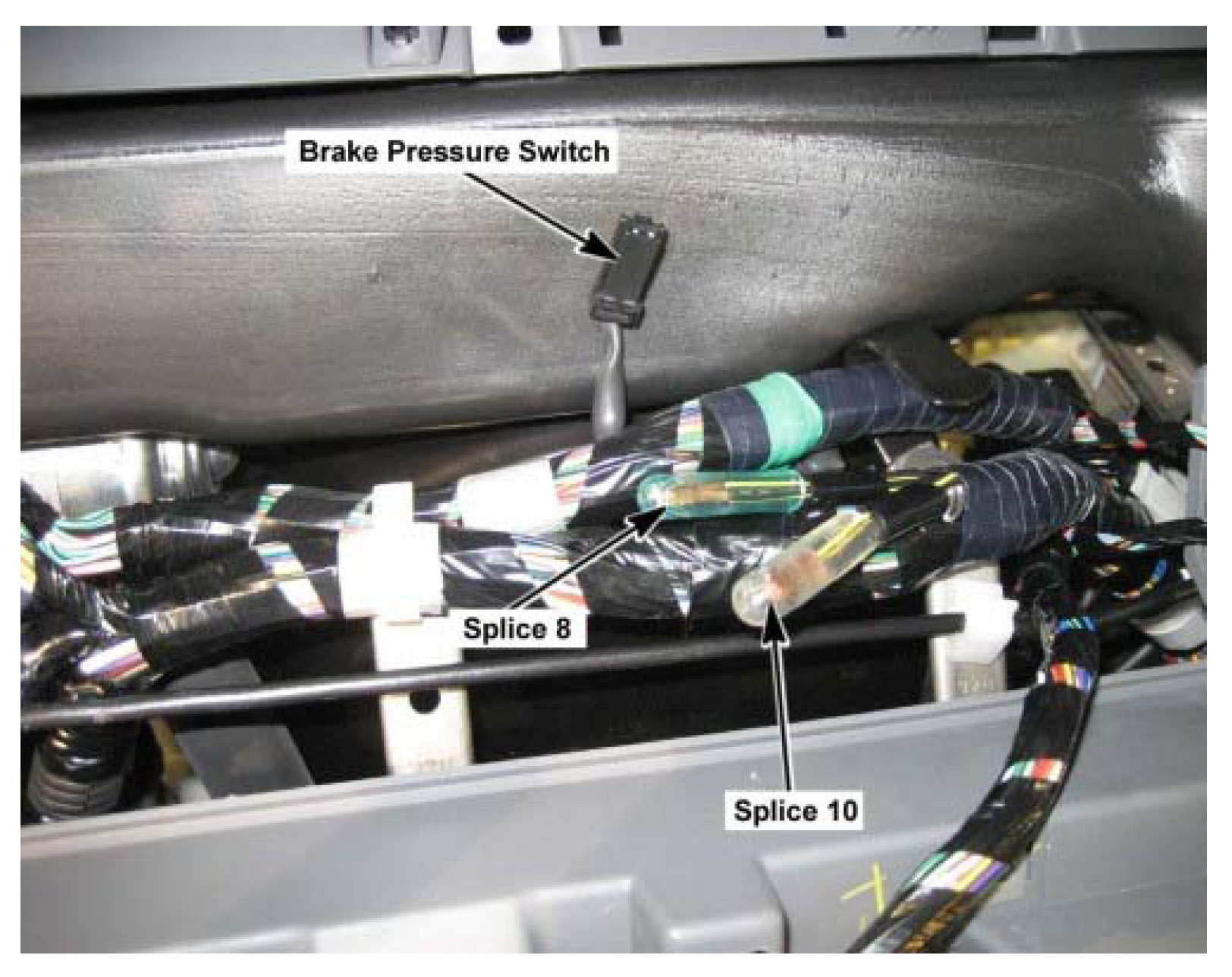

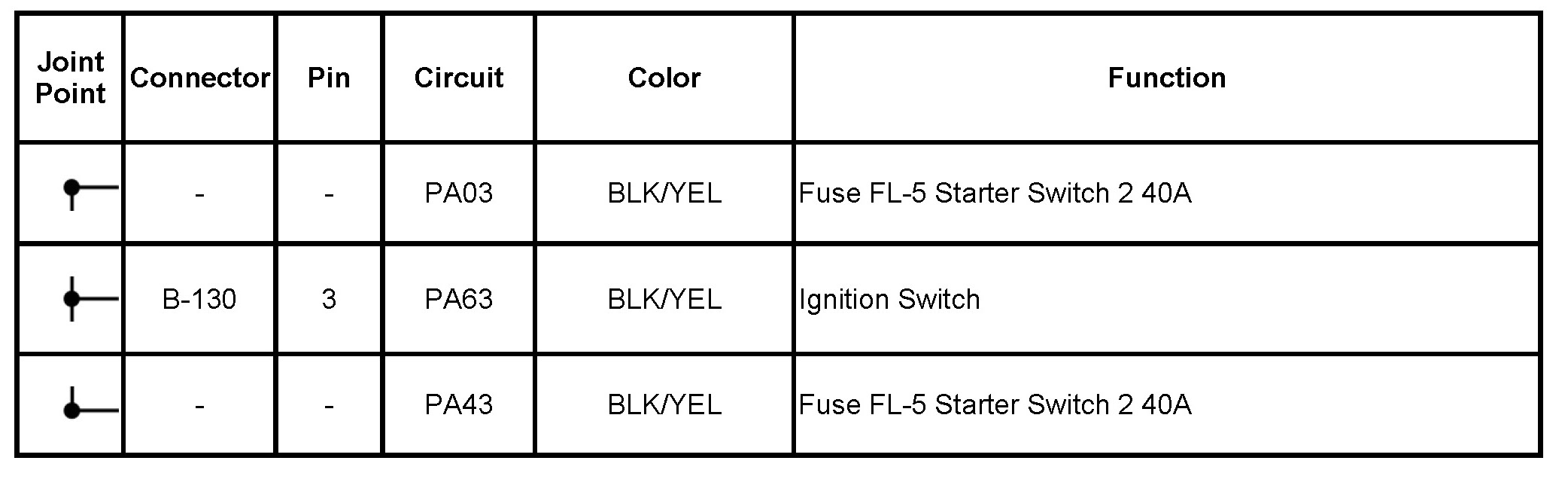

Splice 8
Splice 8
Splice 8
Behind the Right Side of the IPC
