Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>

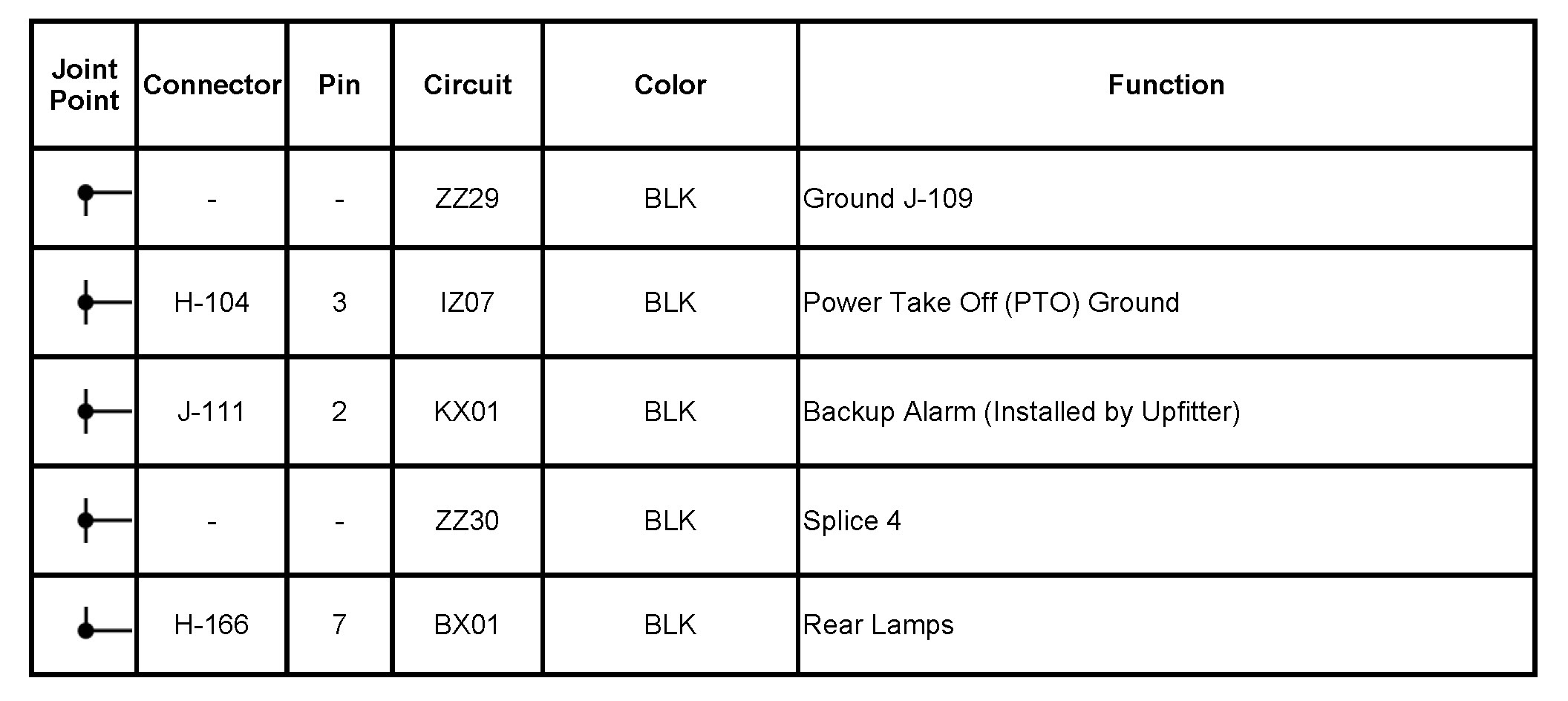

Splice 6
Splice 6
Splice 6

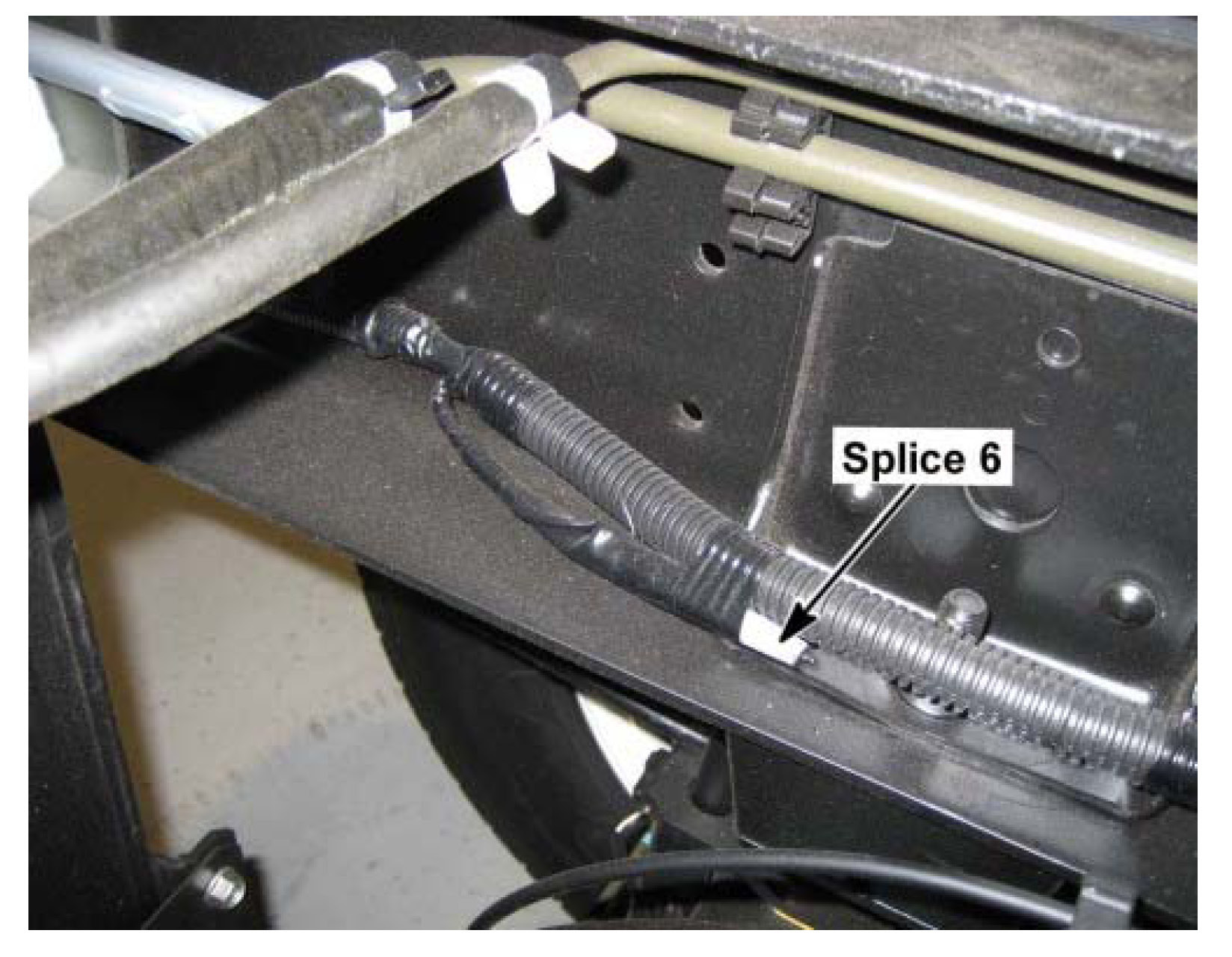

Left Inner Frame Rail, In Front of Rear Fuel Tank
